SU7318ALD21VCommunity Controls Stinger

TRASTI318ALD21V Any changes or modifications to Transmitter Solutions equipment not expressly approved by Transmitter Solutions could void the manufacturer’s warranty and could void the user’s authority to operate the equipment.

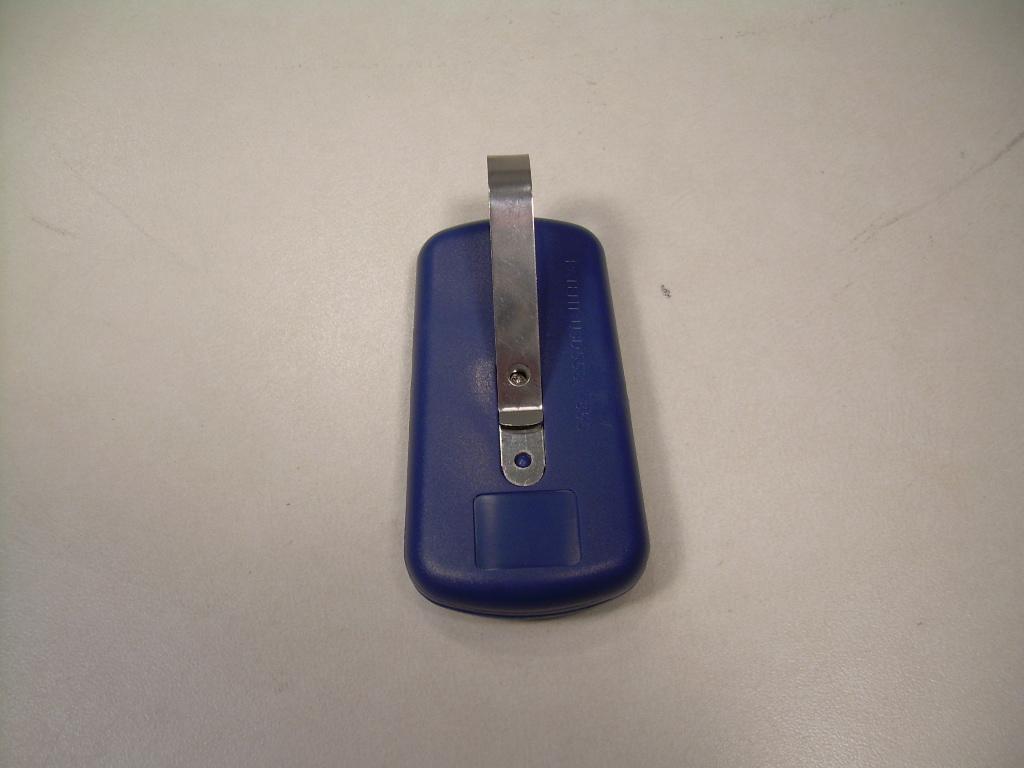

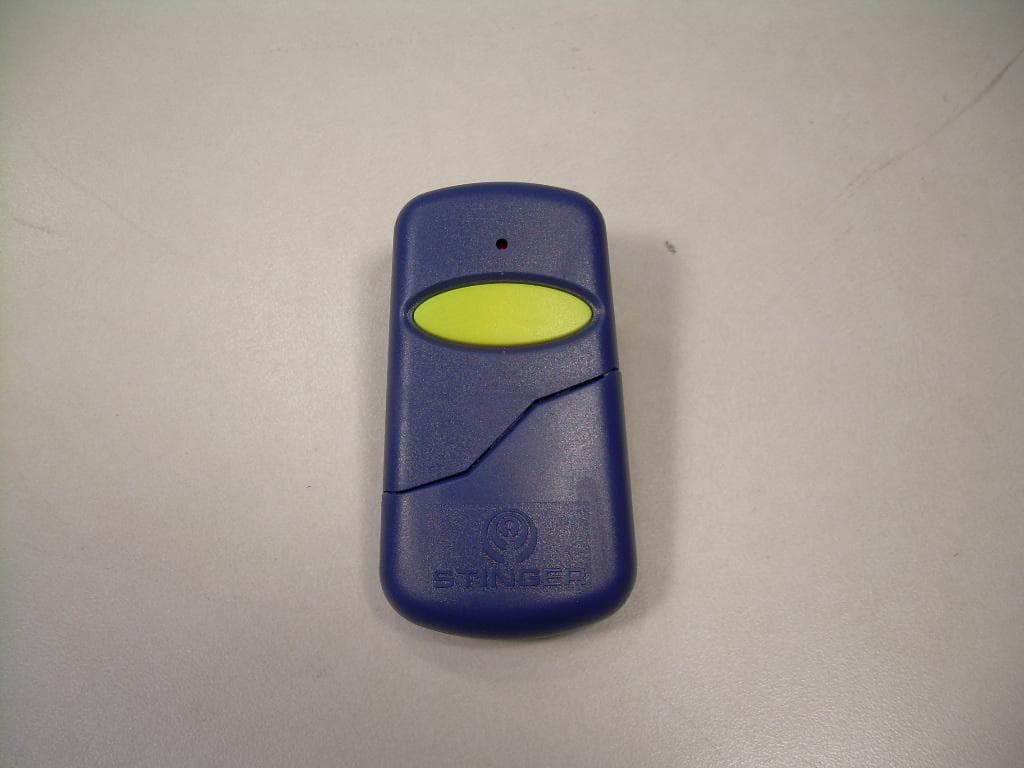

Front View of EUT Back View of the EUT

Component Side of PCB Trace Side of PCB

TRASTI318ALD21V

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: TRASTI318ALD21V Test Specifications: FCC Part 15, Subpart C FCC ID #: SU7318ALD21V Test Report Serial No: 149166-2.1 Applicant: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A. Date of Test: May 17, 2010 Issue Date: July 12, 2010 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 149166-2.1 FCC ID#: SU7318ALD21V Page 2 of 28 2 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Controlled Entry Distributors, Inc. - Manufacturer: Lighting Tech Co., LTD - Brand Name: Firefly - Model Number: TRASTI318ALD21V - FCC ID #: SU7318ALD21V On this 12 th day of July 2010, I, individually, and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the Nemko-CCL, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen EMC Technician Nemko-CCL, Inc. TEST REPORT: 149166-2.1 FCC ID#: SU7318ALD21V Page 3 of 28 3 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) .................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................7 SECTION 4.0 OPERATION OF EUT DURING TESTING ..................................................11 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................12 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS ..........13 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..........................................20 APPENDIX 2 PHOTOGRAPHS ................................................................................................22 Nemko-CCL, Inc. TEST REPORT: 149166-2.1 FCC ID#: SU7318ALD21V Page 4 of 28 4 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A. Contact Name: Brad Kofford Title: President 1.2 Manufacturer: Company Name: Lighting Tech Co., LTD 4F, No. 124 Hua Chen Rd. Hsing Chuang City, Taipei Hsien Taiwan, R.O.C. Contact Name: N. J. Duan Title: Sales Manager Nemko-CCL, Inc. TEST REPORT: 149166-2.1 FCC ID#: SU7318ALD21V Page 5 of 28 5 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Firefly Model Number: TRASTI318ALD21V Serial Number: None Country of Manufacture: Taiwan 2.2 Description of EUT: The TRASTI318ALD21V is a transmitter operating at 318 MHz using ASK modulation. The TRASTI318ALD21V is designed for door and entry systems operating at 318 MHz. The transmitter is powered by an A23S 12 Vdc battery. 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test are listed below: Brand Name Model Number Serial Number FCC ID Number or Compliance Description Name of Interface Ports / Interface Cables BN: Firefly MN: TRASTI318ALD21V (Note 1) SN: None SU7318ALD21V 318 MHz Transmitter See Section 2.4 Note: (1) EUT 2.4 Interface Ports on EUT: There are no interface ports on the EUT. Nemko-CCL, Inc. TEST REPORT: 149166-2.1 FCC ID#: SU7318ALD21V Page 6 of 28 6 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Nemko-CCL, Inc. TEST REPORT: 149166-2.1 FCC ID#: SU7318ALD21V Page 7 of 28 7 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) Section 15.203 Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this Part are not exceeded. 3.2.2 §15.231 (a) The provisions of this section are restricted to periodic operation within the band 40.66-40.70 MHz and above 70 MHz. Except as Shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Radio control o…

Text truncated - open the document above for the full version.

Test Configuration – Vertical Placement of EUT Test Configuration – Horizontal Placement of EUT Test Configuration – On-Edge Placement of EUT
