SU7418ELPWVModel 418ELPWxV

1A - General informationTransmitter Solutions - Stingray 418ELPWxV is a visor transmitteroperating at 418 MHz in ASK modulation. It has been designed for theprogrammable telephone entry systems, anti-burglar systems andaccess control systems operating at 418 MHz. The code sent by thetransmitter includes a 16 bit security code which allows up to 65,536code combinations and 8 bits of facility code which allows up to 256 1B - Technical specificationsNumber of keys: 1 / 2 Battery life: 12 - 18 months Current consumption : 20 mA Operating frequency : 418 MHz Code combinations : 65536 Facility codes : 256 Modulation : AM / ASK Rated e.r.p. : 50 - 100 mW Range in free space: 60 - 120 yd Operating temperature: -20 ÷ +55 °C Overall dimensions: 3.26 x 1.88 x 0.62 in Weight: 20 gr. Supply : 1 Alkaline Battery 12V type 23A facility codes.Each transmitter is individually numbered and can be used with anyreceiver capable of receiving a 26 bit input.The 23A alkaline battery has a life of about 12-18 months.The product fully complies with Part 15 of FCC Regulations. 1C - Main features TRANSMITTER STINGRAY 418ELPWxV Manual 1A - General information1B - Technical specifications1C - Main features1D -Types 1 - TRANSMITTER INTRODUCTION 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS CONTENTS 6 - TROUBLESHOOTING Transmitter Solutions Thank you for choosing a Transmitter Solutions product . Please read this manual carefully before using the product. Made in Italy. Copyright © 2006 by Transmitter Solutions 418ELPW1V 418ELPW2V Push-button A Green Push-button B green Key holder ring Battery door Red LED Enclosure light-grey 2 - NUMBERING 5 - BATTERY ACCESS 6 - TROUBLESHOOTING To access the battery slide out the battery doorPlace the alkaline battery between the 2 contacts. Respect the right polarity as indicated on the bottom of the box. 23A NOTE: Please dispose of the batteries properly according to local laws andregulations.Test proper battery installation by verifying that the red LED illuminates wheneither button is pushed. Each transmitter is manufactured and sold with a different factory set sequencenumber and facility code. + _ 23A Battery Polarity OPEN FAULT SOLUTION The operating range is reduced Check to verify the transmitter is programmed into your system Replace the transmitter batteries Replace the transmitter batteries The system does not receiver the transmitter signal. The transmitter LED is ON The system does not receiver the transmitter signal. The transmitter LED will not light 3 - PROGRAMMING The transmitter facility code and sequence number must be programmed into yoursystem memory. Your own installer or reseller will provide you the necessaryinstructions for your system. 4 - OPERATION a. Firmly depress either button until the small red LED illuminates.b. After the LED has illuminated, release the button. If the device you are attemptingto activate does not respond, repeat steps a. and b. or consult section 6(Troubleshooting) of this manual. IS-T11418CCUK Rev. 0 del 27.06.06 The warranty period of 418 transmitters is 24 months, beginning from the manufacturing date of the transmitter. During this period, if theproduct does operate correctly, due to a defective component, the product will berepaired or replaced at the sole discretion of . The warranty does not extend to the transmitter case which can be damaged byconditions outside the control of or to battery life. Transmitter Solutions Transmitter Solutions Transmitter Solutions WARRANTY TRANSMITTER SOLUTIONS 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected] 1D - Types STINGRAY 418ELPW1V : 1 button transmitterSTINGRAY 418ELPW2V : 2 button transmitter FCC ID : SU7418ELPWV This device complies with FCC Rules Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept interference received, includinginterference that may cause undesired operation. Part. 15 of the Notice Any changes or modification to equipment not expressly approved by could void the manufacturer’s warranty and the user’s authority to operate this product. Transmitter Solutions Transmitter Solutions

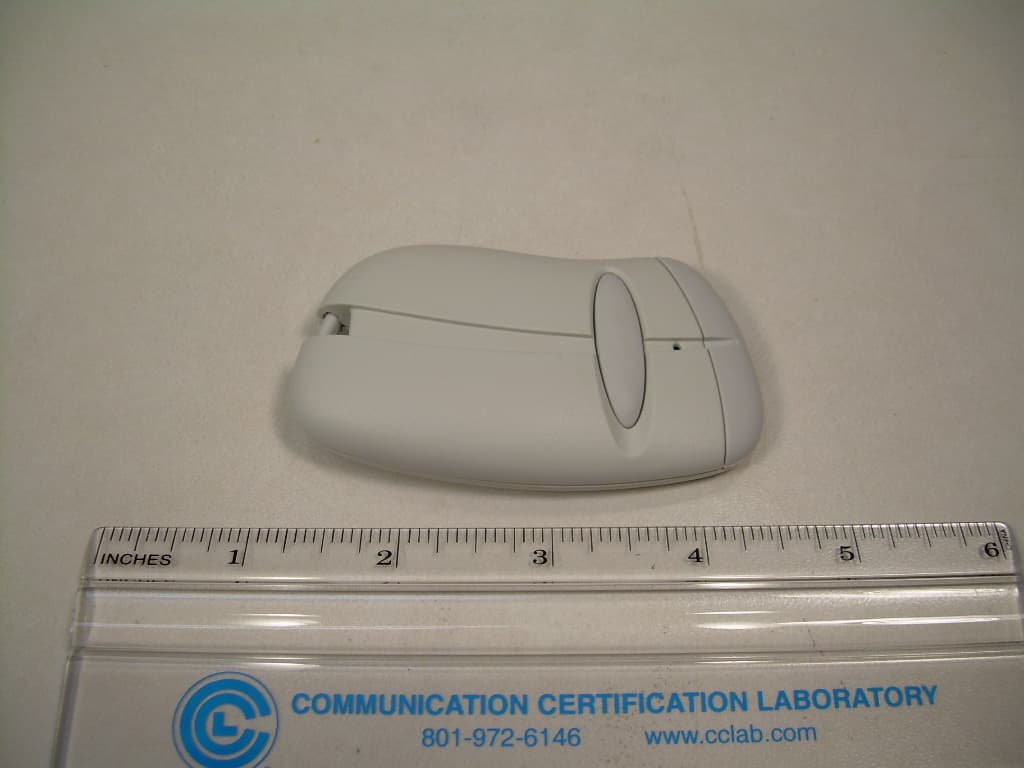

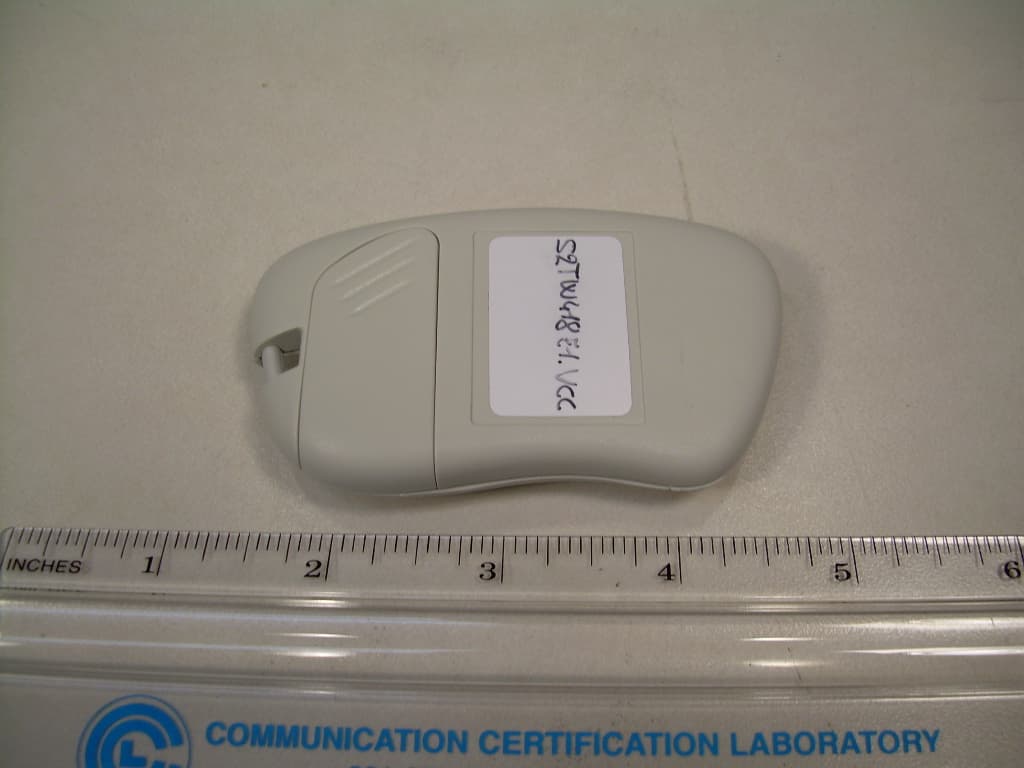

Front View of the EUT Back View of the EUT

Internal View of the EUT View of the Component Side of the PCB View of the Trace Side of the PCB

1A - General informationTransmitter Solutions - Stingray 418ELPWxV is a visor transmitteroperating at 418 MHz in ASK modulation. It has been designed for theprogrammable telephone entry systems, anti-burglar systems andaccess control systems operating at 418 MHz. The code sent by thetransmitter includes a 16 bit security code which allows up to 65,536code combinations and 8 bits of facility code which allows up to 256 1B - Technical specificationsNumber of keys: 1 / 2 Battery life: 12 - 18 months Current consumption : 20 mA Operating frequency : 418 MHz Code combinations : 65536 Facility codes : 256 Modulation : AM / ASK Rated e.r.p. : 50 - 100 mW Range in free space: 60 - 120 yd Operating temperature: -20 ÷ +55 °C Overall dimensions: 3.26 x 1.88 x 0.62 in Weight: 20 gr. Supply : 1 Alkaline Battery 12V type 23A facility codes.Each transmitter is individually numbered and can be used with anyreceiver capable of receiving a 26 bit input.The 23A alkaline battery has a life of about 12-18 months.The product fully complies with Part 15 of FCC Regulations. 1C - Main features TRANSMITTER STINGRAY 418ELPWxV Manual 1A - General information1B - Technical specifications1C - Main features1D -Types 1 - TRANSMITTER INTRODUCTION 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS CONTENTS 6 - TROUBLESHOOTING Transmitter Solutions Thank you for choosing a Transmitter Solutions product . Please read this manual carefully before using the product. Made in Italy. Copyright © 2006 by Transmitter Solutions 418ELPW1V 418ELPW2V Push-button A Green Push-button B green Key holder ring Battery door Red LED Enclosure light-grey 2 - NUMBERING 5 - BATTERY ACCESS 6 - TROUBLESHOOTING To access the battery slide out the battery doorPlace the alkaline battery between the 2 contacts. Respect the right polarity as indicated on the bottom of the box. 23A NOTE: Please dispose of the batteries properly according to local laws andregulations.Test proper battery installation by verifying that the red LED illuminates wheneither button is pushed. Each transmitter is manufactured and sold with a different factory set sequencenumber and facility code. + _ 23A Battery Polarity OPEN FAULT SOLUTION The operating range is reduced Check to verify the transmitter is programmed into your system Replace the transmitter batteries Replace the transmitter batteries The system does not receiver the transmitter signal. The transmitter LED is ON The system does not receiver the transmitter signal. The transmitter LED will not light 3 - PROGRAMMING The transmitter facility code and sequence number must be programmed into yoursystem memory. Your own installer or reseller will provide you the necessaryinstructions for your system. 4 - OPERATION a. Firmly depress either button until the small red LED illuminates.b. After the LED has illuminated, release the button. If the device you are attemptingto activate does not respond, repeat steps a. and b. or consult section 6(Troubleshooting) of this manual. IS-T11418CCUK Rev. 0 del 27.06.06 The warranty period of 418 transmitters is 24 months, beginning from the manufacturing date of the transmitter. During this period, if theproduct does operate correctly, due to a defective component, the product will berepaired or replaced at the sole discretion of . The warranty does not extend to the transmitter case which can be damaged byconditions outside the control of or to battery life. Transmitter Solutions Transmitter Solutions Transmitter Solutions WARRANTY TRANSMITTER SOLUTIONS 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected] 1D - Types STINGRAY 418ELPW1V : 1 button transmitterSTINGRAY 418ELPW2V : 2 button transmitter FCC ID : SU7418ELPWV This device complies with FCC Rules Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept interference received, includinginterference that may cause undesired operation. Part. 15 of the Notice Any changes or modification to equipment not expressly approved by could void the manufacturer’s warranty and the user’s authority to operate this product. Transmitter Solutions Transmitter Solutions

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: 418ELPW1V FCC ID: SU7418ELPWV Test Specification: FCC PART 15, Subpart C Test Report Serial No: 746 Applicant: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 Date of Test: April 25, 2007 Issue Date: May 1, 2007 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 746 FCC ID: SU7418ELPWV Page 2 of 28 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Controlled Entry Distributors, Inc. DBA Community Controls - Manufacturer: Elpro Innotek S.p.A. - Trade Name: Stingray - Model Number: 418ELPW1V - FCC ID: SU7418ELPWV On this 1 st day of May 2007, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the Communication Certification Laboratory EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 746 FCC ID: SU7418ELPWV Page 3 of 28 TABLE OF CONTENTS SECTION 1.0 CLIENT INFORMATION..................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES............6 SECTION 5.0 SUMMARY OF TEST RESULTS............................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.....12 APPENDIX 2 PHOTOGRAPHS.........................................21 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 746 FCC ID: SU7418ELPWV Page 4 of 28 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 Contact Name: Brad Kofford Title: President 1.2 Manufacturer: Company Name: Elpro Innotek S.p.A. Via Piave, 23 I-31020 S. Pietro Di Feletto (TV) Italy Contact Name: Ing. G. Massimo Dalle Carbonare Title: Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 746 FCC ID: SU7418ELPWV Page 5 of 28 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: Stingray Model Number: 418ELPW1V Serial Number: None Options Fitted: N/A Country of Manufacture: Italy 2.2 Description of EUT: The Stingray 418ELPW1V is a visor transmitter operating at 418 MHz using ASK modulation. The 418ELPW1V is designed for programmable telephone entry systems, anti-burglar systems and access control systems operating at 418 MHz. The transmitter is powered by an alkaline 23A battery and has an expected life of about 12-18 months. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 746 FCC ID: SU7418ELPWV Page 6 of 28 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) Section 15.203 Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this Part are not exceeded. 3.2.2 §15.231 (a) The provision of this section are restricted to periodic operation within the band 40.66-40.70 MHz and above 70 MHz. Except as Shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Radio control of toys is not permitted. Continuous transmissions, such as voice or video, and data COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 746 FCC ID: SU7418ELPWV Page 7 of 28 transmissions are not permitted. The prohibition against data transmissions does not preclude the use of recognition codes. Those codes are used to identify the sensor that is activated or to identify the particular component as being part of the system. The following conditions shall be met to comply with the provisions for this periodic operation: (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation. (…
