SU7433TSPW1KModel 433TSPW1K

ELPRO INNOTEK S.p.A. TCF-104 Annex 8 = User manual Pag 1 of 1 MONARCH ONE BUTTON - Type: 433TSPW1K Annex 8 : User manual 1A - General information The Transmitter Solutions - Monarch transmitter is a key chain style mini transmitter operating at 433,92 MHz. It has been designed for the control of automatic closing systems and anti-burglar systems, thanks to its very high security coding system (KeeLoq® Hopping code). The code sent by the transmitter changes at each activation, avoiding any scanning and copying risk. A special algorithm allows to keep synchronized transmitter and receiver. CONTENTS 1A - General information 1B - Technical specifications 1C - Main components 1 - TRANSMITTER OVERVIEW 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS 1B - Technical specifications Operating frequency433,92 MHz Number of keys:1 Battery life:18 24 months Security code:Keeloq Hopping code Number combinations :2exp64 Operating temperature: -20°F÷+131°F (-20°C Overall dimensions:2.4”x1.4”x0.51” (61x36x13 mm) Weight:0.49 oz. (14 gr.) Battery :2 x 3V lithium batteries CR2016 ÷ ® ÷+55°C) The transmitter can operate with many receivers of the range Transmitter Solutions - 433R. Ask your installer or reseller the product which best fits your application. The output of the receivers can be either wiegand 26 bit ( to communicate with access control systems ) or 1-2-4 relay with NO - NO/NC output. The CR 2016 lithium batteries of the transmitter have a shelf life of about 6 months. Part 15 of FCC Regulations and The product fully complies with the European Directives 99/05/CE, 89/336/CEE, 73/23/CEE. 1C - Main components Red LED Key holder ring Dark red push-button 6 - TROUBLESHOOTING Dark grey case Fig. 2 Transmitter Solutions Thank you for choosing a Transmitter Solutions product . Please read this manual carefully before using the product. Made in Italy. Copyright © 2006 by Transmitter Solutions 2 - NUMBERING 6 - TROUBLESHOOTING PROBLEM SOLUTION The operating range is reduced Check to verify the transmitter is programmed into your system Replace the transmitter batteries IS-TM143CCUK Rev. 1 del 19.05.2006 To access the battery open the case with a screwdriver acting on the slot between the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b. Slide out the old batteries and replace them with the new ones ] respecting the polarity, with the positive (+) side upward. [CR2016 NOTE: Please dispose of the batteries properly according to local laws and regulations. Test proper battery installation by verifying that the red LED illuminates when the button is pushed. 5 - BATTERY ACCESS 3 - PROGRAMMING Each transmitter is manufactured and sold with a different factory-set serial number . The transmitter must be programmed into your system memory. Your own installer or reseller will provide you the necessary instructions for your system. Replace the transmitter batteries The warranty period of 433 transmitters is 24 months, beginning from the manufacturing date of the transmitter. During this period, if the product does operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of . The warranty does not extend to the transmitter case which can be damaged by conditions outside the control of Transmitter Solutions or to battery life. Transmitter Solutions Tra n sm itt er S ol u ti on s WARRANTY Transmitter Solutions - Type : 433TSPW1K FCC ID : SU7433TSPW1K This device complies with FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 1 5 of the Notice Any changes or modification to equipment not expressly approved by could void the manufacturer’s warranty. Transmitter Solutions Transmitter Solutions The system does not receiver the transmitter signal. The transmitter LED is ON The system does not receiver the transmitter signal. The transmitter LED will not light 4 - OPERATION A - Firmly depress the button until the small red LED illuminates. B - After the LED has illuminated, release the button. If the device you are attempting to activate does not respond, repeat steps A and B or consult section 6 ( Troubleshooting ) of this manual. Fig. 3a Fig. 3b TRANSMITTER SOLUTIONS 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected]

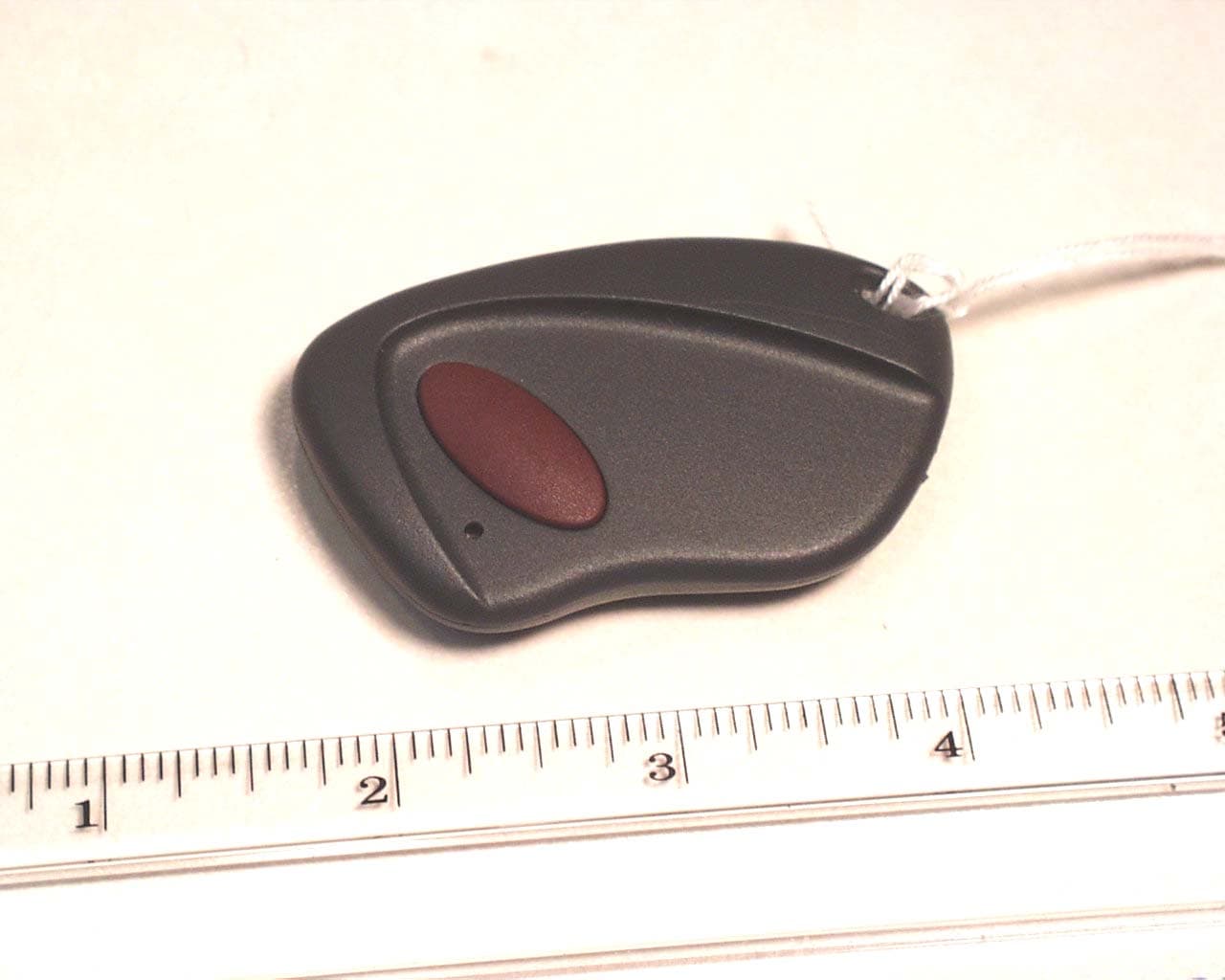

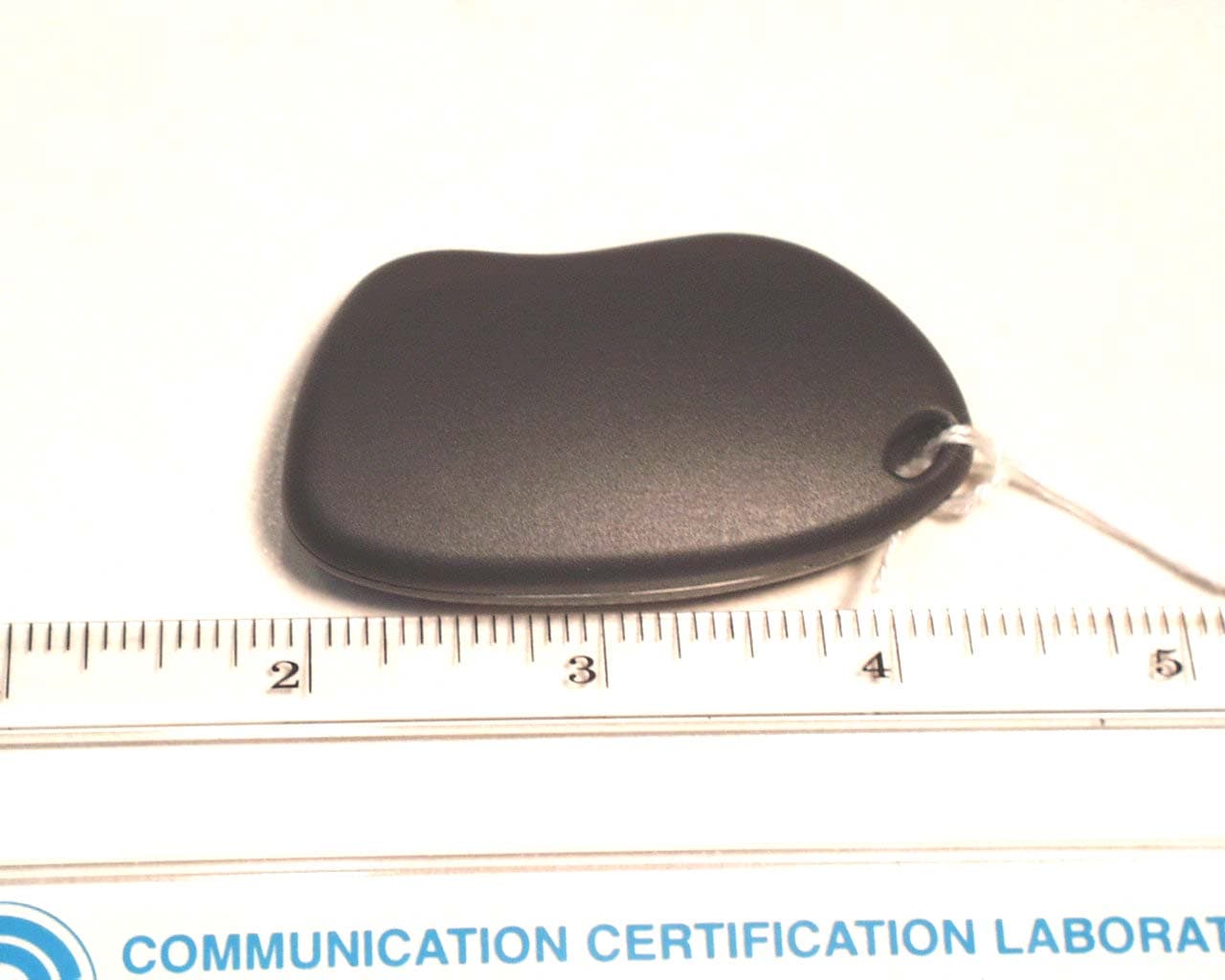

Front View of the EUT Back View of the EUT

ELPRO INNOTEK S.p.A. TCF-104 MONARCH ONE BUTTON - Type: 433TSPW1K Annex 1 : Label and placement The transmitters are not labelled but laser written directly on the back of the case. They are packaged into a white cartonbox, with a window that allows to see the information of the box. case cartonbox Annex 1 = Label and placement Pag 1 of 1

View of the Component Side of the PCB View of the Trace Side of the PCB

ELPRO INNOTEK S.p.A. TCF-104 Annex 8 = User manual Pag 1 of 1 MONARCH ONE BUTTON - Type: 433TSPW1K Annex 8 : User manual 1A - General information The Transmitter Solutions - Monarch transmitter is a key chain style mini transmitter operating at 433,92 MHz. It has been designed for the control of automatic closing systems and anti-burglar systems, thanks to its very high security coding system (KeeLoq® Hopping code). The code sent by the transmitter changes at each activation, avoiding any scanning and copying risk. A special algorithm allows to keep synchronized transmitter and receiver. CONTENTS 1A - General information 1B - Technical specifications 1C - Main components 1 - TRANSMITTER OVERVIEW 2 - NUMBERING 3 - PROGRAMMING 4 - OPERATION 5 - BATTERY ACCESS 1B - Technical specifications Operating frequency433,92 MHz Number of keys:1 Battery life:18 24 months Security code:Keeloq Hopping code Number combinations :2exp64 Operating temperature: -20°F÷+131°F (-20°C Overall dimensions:2.4”x1.4”x0.51” (61x36x13 mm) Weight:0.49 oz. (14 gr.) Battery :2 x 3V lithium batteries CR2016 ÷ ® ÷+55°C) The transmitter can operate with many receivers of the range Transmitter Solutions - 433R. Ask your installer or reseller the product which best fits your application. The output of the receivers can be either wiegand 26 bit ( to communicate with access control systems ) or 1-2-4 relay with NO - NO/NC output. The CR 2016 lithium batteries of the transmitter have a shelf life of about 6 months. Part 15 of FCC Regulations and The product fully complies with the European Directives 99/05/CE, 89/336/CEE, 73/23/CEE. 1C - Main components Red LED Key holder ring Dark red push-button 6 - TROUBLESHOOTING Dark grey case Fig. 2 Transmitter Solutions Thank you for choosing a Transmitter Solutions product . Please read this manual carefully before using the product. Made in Italy. Copyright © 2006 by Transmitter Solutions 2 - NUMBERING 6 - TROUBLESHOOTING PROBLEM SOLUTION The operating range is reduced Check to verify the transmitter is programmed into your system Replace the transmitter batteries IS-TM143CCUK Rev. 1 del 19.05.2006 To access the battery open the case with a screwdriver acting on the slot between the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b. Slide out the old batteries and replace them with the new ones ] respecting the polarity, with the positive (+) side upward. [CR2016 NOTE: Please dispose of the batteries properly according to local laws and regulations. Test proper battery installation by verifying that the red LED illuminates when the button is pushed. 5 - BATTERY ACCESS 3 - PROGRAMMING Each transmitter is manufactured and sold with a different factory-set serial number . The transmitter must be programmed into your system memory. Your own installer or reseller will provide you the necessary instructions for your system. Replace the transmitter batteries The warranty period of 433 transmitters is 24 months, beginning from the manufacturing date of the transmitter. During this period, if the product does operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of . The warranty does not extend to the transmitter case which can be damaged by conditions outside the control of Transmitter Solutions or to battery life. Transmitter Solutions Tra n sm itt er S ol u ti on s WARRANTY Transmitter Solutions - Type : 433TSPW1K FCC ID : SU7433TSPW1K This device complies with FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 1 5 of the Notice Any changes or modification to equipment not expressly approved by could void the manufacturer’s warranty. Transmitter Solutions Transmitter Solutions The system does not receiver the transmitter signal. The transmitter LED is ON The system does not receiver the transmitter signal. The transmitter LED will not light 4 - OPERATION A - Firmly depress the button until the small red LED illuminates. B - After the LED has illuminated, release the button. If the device you are attempting to activate does not respond, repeat steps A and B or consult section 6 ( Troubleshooting ) of this manual. Fig. 3a Fig. 3b TRANSMITTER SOLUTIONS 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected]

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification TEST OF: 433TSPW1K FCC ID: SU7433TSPW1K To FCC PART 15, Subpart C Section 15.231 Test Report Serial No: 73-8302 Applicant: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 Date of Test: May 8, 2006 Issue Date: May 11, 2006 Accredited Testing Laboratory By: NVLAPLab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8302 FCC ID: SU7433TSPW1K Page 2 of 29 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Controlled Entry Distributors, Inc. DBA Community Controls - Manufacturer: Elpro Innotek sri - Trade Name: Monarch - Model Number: 433TSPW1K - FCC ID: SU7433TSPW1K On this 11 th day of May 2006, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, NVLAP does not endorse the product described in this report. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8302 FCC ID: SU7433TSPW1K Page 3 of 29 TABLE OF CONTENTS SECTION 1.0 CLIENT INFORMATION.................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES...........6 SECTION 4.0 OPERATION OF EUT DURING TESTING...................11 SECTION 5.0 SUMMARY OF TEST RESULTS...........................12 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.....13 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT..................21 APPENDIX 2 PHOTOGRAPHS.........................................23 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8302 FCC ID: SU7433TSPW1K Page 4 of 29 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 Contact Name: Brad Kofford Title: President 1.2 Manufacturer: Company Name: Elpro Innotek sri Via Piave, 23 31020 S. Pietro Di Feletto Treviso, Italy Contact Name: Massimo Dalle Carbonare Title: Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8302 FCC ID: SU7433TSPW1K Page 5 of 29 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: Monarch Model Number: 433TSPW1K Serial Number: None Options Fitted: N/A Country of Manufacture: Italy 2.2 Description of EUT: The 433TSPW1K is a one-button, pulsed emission, transmitter operating periodically at 433.9 MHz. The 433TSPW1K is for use with automated gates, access control panels, or garage door openers that operate at 433.9 MHz. Power is supplied by two CR2016, 3 Vdc, lithium batteries. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8302 FCC ID: SU7433TSPW1K Page 6 of 29 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15). Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this Part are not exceeded. 3.2.2 §15.231 (a) The provision of this section are restricted to periodic operation within the band 40.66-40.70 MHz and above 70 MHz. Except as Shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Radio control of toys is not permitted. Continuous transmissions, such as voice or video, and data transmissions are not permitted. The prohibition against data transmissions does not preclude the use of recognition codes. Those codes are used to identify the sensor that is activated or to identify the particular component as being part of the system. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8302 FCC ID: SU7433TSPW1K Page 7 of 29 The following conditions shall be met to comply with the provisions for this periodic operation: (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seco…

Text truncated - open the document above for the full version.

View of the Radiated Emission Test Setup (Vertical Alignment) View of the Radiated Emission Test Setup (Horizontal Face Alignment) View of the Radiated Emission Test Setup (Horizontal Flat Alignment)
