SU7CRW26EMRFID READER

SEBURY 2 Specifications 1. Characteristics Frequency：125 kHz Modulation：Bi-phase DC Supply Voltage: Low voltage input 12 ±10% Vdc unregulated Current Consumption: 100mA @ quiescent maximum Door Relay: 5Amp 12Vdc Alarm output load: 150mA pull current 2. Wiring Connections Electric lock External bell External Push Switch Magnetic Contacts Alarm 3. Programming memory: Non volatile Eeprom memory Operating Temperature: 0°C to 60°C (32°F to 140°F) Keypad Housing: Metal Dimensions: 121mm x 46mm x 24mm Weight: 500g NOTE PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL Intramural Interface Circuit 1. Alarm output interface (See Figure 1) 2. Electric lock interface (See Figure 2) 3 Mounting 1. Attach the rear plate to a single or double gang electrical box or secure to the wall firmly with at least three flat head screws. 2. When wiring has been completed, attach the front cover to the rear plate. Figure 1 Figure 2 4 Size Model & characteristics FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The antenna provided is a unique antenna. By installation of unauthorized antenna to this equipment. Such unauthorized installation could void the user's authority to opearte the equipment. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

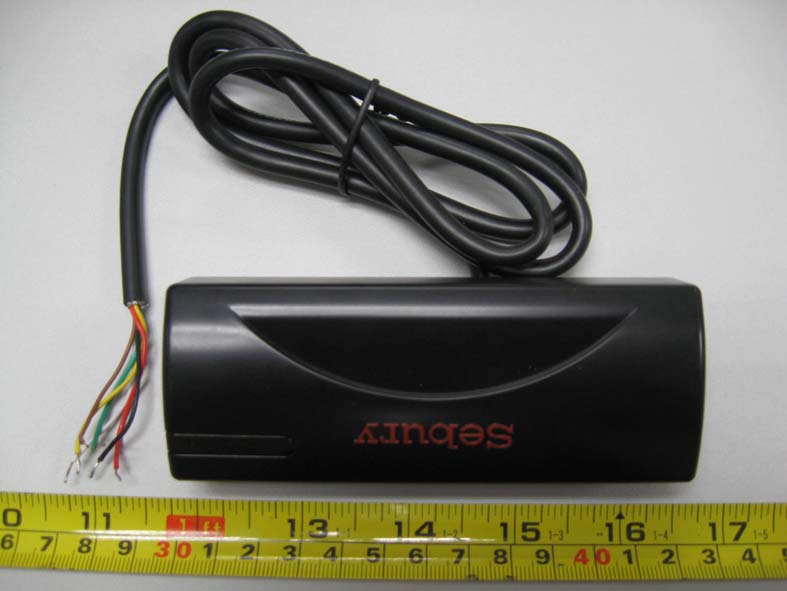

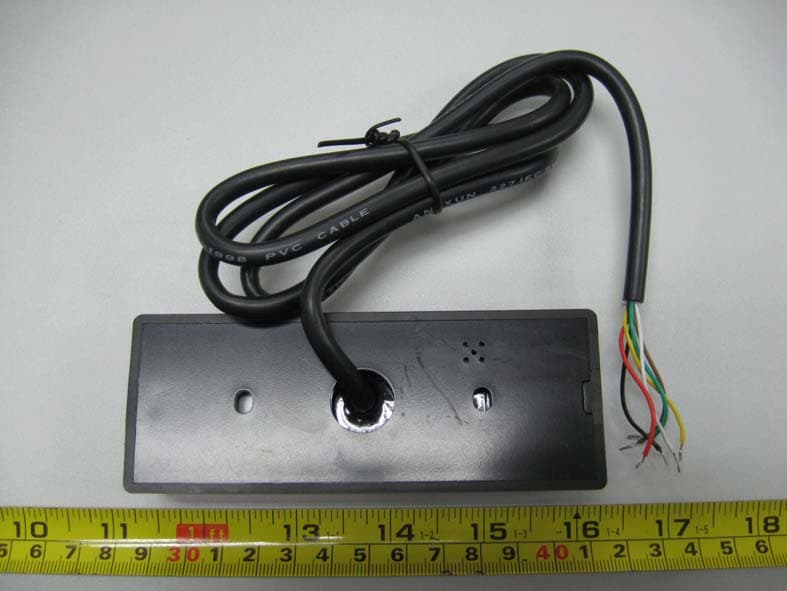

CONTROLLED ENTRY DISTRIBUTOR, INC. Model: CRW-26EM Report No.: STR08018059I FCC PART 15C EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

CONTROLLED ENTRY DISTRIBUTOR, INC. Model: CRW-26EM Report No.: STR08018059I FCC PART 15C EXHIBIT 1- PRODUCT LABELING Proposed FCC Label Format FCC ID: SU7CRW26EM Specifications : Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

CONTROLLED ENTRY DISTRIBUTOR, INC. Model: CRW-26EM Report No.: STR08018059I FCC PART 15C EXHIBIT 1- PRODUCT LABELING Proposed FCC Label Format FCC ID: SU7CRW26EM Specifications : Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

CONTROLLED ENTRY DISTRIBUTOR, INC. Model: CRW-26EM Report No.: STR08018059I FCC PART 15C EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 CONTROLLED ENTRY DISTRIBUTOR, INC. Model: CRW-26EM Report No.: STR08018059I FCC PART 15C Solder Board-Component View 2

Operational Descriptions The signal is detected from the 125kHz antenna RF module, then the signal is analyzed by the CPU(AT89C2051) which is supported by 12MHz crystal. Then the functional control signal is active to the Buzzer. CPU is powered by 12v together with the filter of LM7805.

CONTROLLED ENTRY DISTRIBUTOR, INC. MODEL: CRW-26EM REPORT NO.: STR08018059I PAGE 1 OF 13 FCC PART 15C FCC PART 15C MEASUREMENT AND TEST REPORT FOR Controlled Entry Distributor, Inc. 2500 South 3850 West, Suite A, Salt Lake City, Utah 84120 USA FCC ID: SU7CRW26EM Report Concerns: Original Report Equipment Type: RFID reader Model: CRW-26EM Report No.: STR08018059I Test/Witness Engineer: Test Date: 2008-01-18 to 2008-01-24 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C. (518101) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . CONTROLLED ENTRY DISTRIBUTOR, INC. MODEL: CRW-26EM REPORT NO.: STR08018059I PAGE 2 OF 13 FCC PART 15C TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A)- CONDUCTED EMISSION .................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RECEIVER SETUP.........................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 CONTROLLED ENTRY DISTRIBUTOR, INC. MODEL: CRW-26EM REPORT NO.: STR08018059I PAGE 3 OF 13 FCC PART 15C 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Controlled Entry Distributor, Inc. Address of applicant: 2500 South 3850 West, Suite A, Salt Lake City, Utah 84120 USA Manufacturer: Sebury Technology Co., Ltd. Address of manufacturer: Zhuangda Industrial park, Fuguang Village, Xili Town, Nanshan District, Shenzhen City, Guangdong Province, China General Description of E.U.T Items Description EUT Description: RFID reader Trade Name: / Model No.: CRW-26EM Rated Voltage: DC 12V Battery Rated Current: 60mA Operation Frequency: 125kHz Packaging Size: 12.1X4.6X2.4 cm For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a production sample, provided by …

Text truncated - open the document above for the full version.

CONTROLLED ENTRY DISTRIBUTOR, INC. Model: CRW-26EM Report No.: STR08018059I FCC PART 15C EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup
