Model BC-2010 HID&EM Keypad/Reader/Controller User Manual 2 1. Packing List Name QuantityRemarks Digital Keypad-BC-2010 1 User manual 1 Screw driver 1 Rubber bungs 4 6*27mm, used for fixing Self tapping screws 4 3.5*27mm, used for fixing Please ensure that all the above contents are correct. If any are missing please notify the supplier of the BC-2010. 2. BC-2010 Quick Reference Programming Guide To enter the programming mode * Master code # 888888 is the default factory master code To exit from the programming mode * Note that to undertake the following programming the master user must be logged in To change the master code 0 New code # New code # The master code can be 6 to 8 digits long To add a PIN user. 1 User ID number # PIN # The ID number is any number between 1 & 1500. The PIN is any four digits between 0000 & 9999 with the exception of 1234 which is reserved. Users can be added continuously without exiting programming mode To add a card user 1 Read Card # Cards can be added continuously without exiting programming mode To delete a PIN or a card user. 2 User ID number # for a PIN user or 2 Read Card or Card ID number # for a card user Users can be deleted continuously without exiting programming mode To unlock the door for a PIN user Enter the PIN then press # To unlock the door for a card user Present the card 3 3. Description The BC-2010 is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The BC-2010 supports up to 1500 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports both HID and EM 125KHZ frequency cards. The BC-2010 has many extra features including lock output current short circuit protection, a Wiegand input and output interface, and a backlit keypad. These features make the BC-2010 an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons. 4. Features z Strong Zinc Alloy Electroplated anti-vandal case z Full programming from the keypad z 1500 uses, supports Card, PIN, Card + PIN z Can be used as a stand alone keypad z Support both 125KHZ HID card, 125KHZ EM card z Card Block enrollment, can enroll 1500cards within 25 seconds z Backlight keys z Wiegand 26 input for the connection of an external reader z External readers can be any make of card reader with a 26 bit output, i.e. HID, Mifare， EM and so on z Wiegand 26 output for connection to a controller z Dual BC-2010 units can interconnected z One Relay output, NO, NC, COM z Adjustable Door Output time, Alarm time, Door Open time z Can delete card by 8 digit card number without present the card z Very low power consumption (20Ma) z Fast operating speed, <20ms with 1500 users z Lock output current short circuit protection z Easy to install and program z Built in light dependent resistor (LDR) for anti tamper z Built in buzzer z Red, Yellow and Green LEDS display the working status z Five year warranty 4 5. Specifications Operating Voltage 12V DC User Capacity 1500 Keypad 12 keys, 3x 4 digits Card Type HID 125 KHZ card; EM 125KHZ card Card Reading Distance 3 -7 cm Active Current ＜80mA Idle Current ＜50mA Lock Output Load Max 3A Alarm Output Load Max 20A Operating Temperature -20～60°C Operating Humidity 5%- 95% RH Adjustable Door Relay time 0 -99 seconds Adjustable Alarm Time 0- 3 minutes Wiegand Interface Wiegand 26 bit Wiring Connections Electric Lock, Exit Button, DOTL, External Alarm Dimensions L128 x W82 x H28 mm Net Weight 500 g Gross Weight 700 g 6. Installation z Remove the back cover from the keypad using the supplied security screwdriver z Drill 4 holes on the wall for the screws and I hole for the cable z Fix the back cover firmly on the wall with 4 flat head screws z Thread the cable through the cable hole z Use the supplied rubber bungs to waterproof the screw holes z Apply waterproof compound around the cable entry hole z Attach the keypad to the back cover. 5 7. Wiring Colour Function Description Green D0 Wiegand Output D0 (or input from an external reader) White D1 Wiegand Output D1 (or input from an external reader) Grey Alarm - Alarm Negative Yellow OPEN Request to Exit Button Brown D-In Door Contact Red 12V + 12V + DC Regulated Power Input Black GND 0V DC Regulated Power Input Blue NO Relay output NO Purple COM Relay output COM Orange NC Relay output NC Connection Diagram Notes: BC-2010 uses a standard 10 pin connector- J1.The diagrams above show the standard cable colour connections for wiring BC-2010 keypad to a lock when used in a standalone mode. The upper diagram shows a common power supply for both the keypad and lock, the under diagram shows a special power supplier for both the keypad and lock. 6 NO and COM: Fail-secure lock, when power on, the lock is opened. NC and COM: Fail-safe lock, when power off, the lock is opened. 8. To Reset to Factory Default To reset to factory default, power off the device, remove the keypad from the back cover, press the RESET key(K2) on the PCB, hold it and power on, keeping pressing it until hear three beeps, means reset to factory default successfully. Note: Reset to factory default, the user’s information is still retained. 9. Anti Tamper Alarm The BC-2010 is built-in tamper switch. If the keypad is removed from the cover then the tamper alarm will operate. 10. Sound and Light indication Operation Status Red LightGreen LightYellow Light Buzzer Power on - Bright - Short Ring Stand by Bright - - - Press keypad - - - Short Ring Operation successful - Bright - Short Ring Operation failed - - - 3 Short Rings Enter into programming mode Bright - - Short Ring In the programming mode - - Bright - Exit from the programming mod…

Text truncated - open the document above for the full version.

Controlled Entry Distributors, Inc. 2500 South 3850 West, Suite A, Salt Lake City, UT 84120 USA FCC ID: SU7DREAM1500 POWER OF ATTORNEY February 28, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Controlled Entry Distributors, Inc. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Controlled Entry Distributors, Inc.

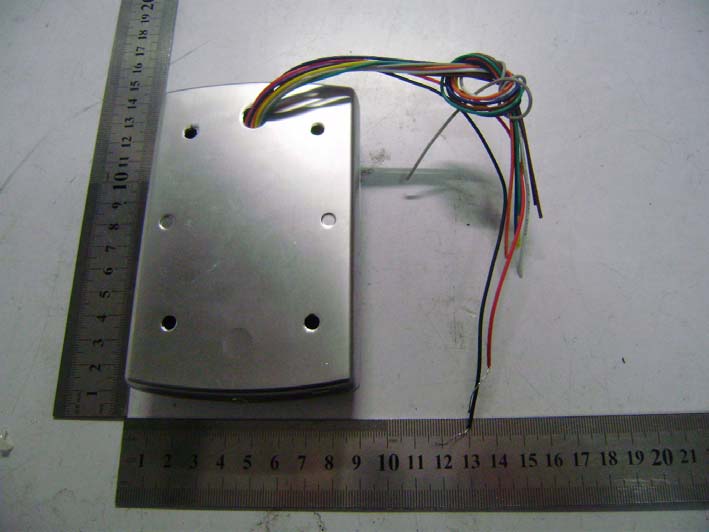

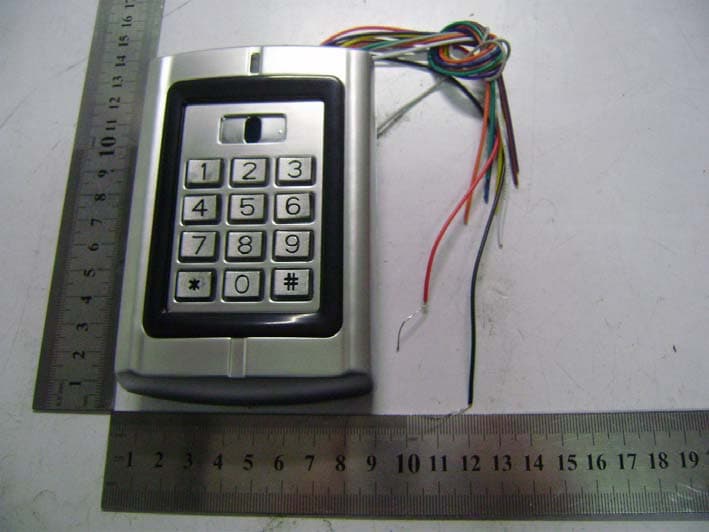

Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SU7DREAM1500 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SU7DREAM1500 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C Solder Board-Component View 2

Circuit Descriptions: BC-2010H&EM, which can memory cards and identify their availability, is a single door controller with two readable cards, HID and EM. After frequency division of IC CD4060 & generating sine wave by 125 KHz square-wave throughout the drive circuit & oscillation of antenna, the product will provide EM card-reader circuit and HID card-reader circuit. The clock signal of the 4MHz is base clock frequency. HID card-reader circuit will send signals to HID drive circuit & HID comparison circuit, and then to HID micro controller for decoding. HID micro controller will send out Wiegand 26 signals to the main micro controller MCU, EM card-reader circuit will send the received signals to micro controller MCU for comparison & decoding, after being compared with the memorized information of users, the door will open through the circuit controlled by electric lock if the users are available. The product has the following functions: 1. being outputted/inputted by Wiegand26; 2. equipped with anti-vandal and alarm circuit, work status detection circuit of door, circumscribed electric lock circuit and circumscribed alarm circuit.

123456 A B C D 654321 D C B A 1 2 3 4 5 6 7 8 9 10 J1 CON10 NC COM NO GND +12V D_IN OPEN ALARM- D1 D0 +12V R11 100K R12 100K D_IN OPEN C1 104P C2 104P ALARM R10 470R R9470R D1 D0 +5V RF-OUT R28 1K R8 10K C35 220P Q5 S8050 R24 560R R25 560R Q4 S8050 Q6 S8550 V_12V V_12V 1 2 J4 CON2 C40 2A392J R49 10M C37 202P C36 202P C39 202P C38 202P R48 240K D4 IN4148 C34 220P M_IN1 1 2 J3 CON2 L3 490uH Q2 S8550 +5V R40 2K SOUND BZ1 AC5V D3 IN4148 ALARM R26 1K ALARM_OUT 1 2 3 4 5 6 7 8 910111213141516 17 18 19 20 21 22 23 24 2526272829303132 U2 ATMEGA48/168 PD0 PD1PD2 PD3 PD4 GND GND VCC VCC PB0PB1PB2PB3PB4 PB5 PB6 PB7 PD5 PD6PD7 AVCC ADC6 AREF GND ADC7 PC0 PC1 PC2 PC3PC4PC5PC6 +5V C3104P Y1 4.0M C13 33P C12 33P M_IN1 V3 V2 SOUND V1(MOSI)H4(MISO) H3(SCK) +5V H1&RE H2 PROTECT_1 ALARM_IN UNLOCK OPEN ALARM_OUT RESET D_IN YELLOW D0 D1 GREEN SW1 KEY SW5 KEY SW9 KEY SW2 KEY SW6 KEY SW10 KEY SW3 KEY SW7 KEY SW11 KEY SW4 KEY SW8 KEY SW12 KEY H1&RE H2 H3(SCK) H4(MISO) V1(MOSI) V2 V3 +5V LED1 LED_R LED2 LED_G R22 1.5K R23 560R YELLOW GREEN 1 2 3 4 5 6 J2 CON6 +5V MOSI MISO SCK RESET GND V1(MOSI) H4(MISO) H3(SCK) RESET R3 10K R1 10K R2 10K R4 10K +5V K1 ALARM K2 RESET ALARM_IN H1&RE 设计： 审核： 批准： 日期： 深圳世礴创科技有限公司 型号:BC-2010 HID&EM V0.1.sch 图号: 版本: V0.1 页码: 1 OF 1 文件: BC-2010 D8 IN4148 D7 IN4148 V_12V UNLOCK R27 1K Q1 20N03HL R7 10K +12V R13 100K PROTECT_1 LED5LED_B R18 1.5K C9 104 R47 330K R14 100K Z1 9.1V M_IN2 M_IN2 R5 10K R6 10K +5V C41 C42 C11 47u/16V R19 1.5K R21 1.5K R20 1.5K LED6 LED_B LED3 LED_B LED4 LED_B +5V 1234567 8910 1112 131415161718 CMP1VREFCMP2VSSTHVINTRX TX CCP1 PGM RB5 OSO OSI VDD OSC1 OSC2 RND AN1 U3 PIC16F628A 12 34567 8 9 10 11 121314 OUT1 OUT2 OUT3 OUT4 IN1- IN2- IN3- IN4- IN1+IN2+ IN3+ IN4+ VCCVSS U5 084C 1234 5678 OUT1 IN1- IN1+ IN2+ IN2- VSS VDDOUT2 U4 LM393 C20 104 R35 10K R41 2.7K C18 47uF C19 104 X2 20.0M C16 22P C17 22P C21 104 R29 10K R30 10K C22 102 R38 15.4K C23 102 R32 10K C24 102 R34 10K R33 10K C26 102 R39 82.5K C25 102 R44 2.67K R43 47.5K C28 102 C29 102 R46 1.82K R45 1M C33 102P R42 620K R37 10K R36 10K C27 102 R31 10K C10 104 H-ANT +5V +5V +5V +5V D0D1 D6 IN4148 H-ANT A0 A1 D1 IN4004 C4 100u/25V C5 104P TVS1 33V U1 MC34063 R15 0.33R R17 3.6K L2 100uh D2 SS14 R16 1.2K C6 100P C7 220uF/16V C8 104 1 2 3 4 5 6 7 8 L1 260uH +12V Q3 S8550 NC COM NO K3 DC-5V D5 IN4148 +5V COM NC NO C32 102 C30 102 C31 102 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 Q12 Q13 Q14Q5 Q6 Q7 Q4 RESET VSS COUT COUT CIN Q8 Q9 Q10 VDD U6 CD4060 R50 1M R51 330R X1 4.0M C15 33P C14 33P +5V RF-OUT R9 100K R15 2K R14 2K R11 200K R8 100K R13 2K R12 2K R10 200K Q7 S8550 Q9 S8550 Q10 S8050 Q8 S8050 Date0 Date1 +5V +5V D0 D1 L2 100uh C26 220uF/16V UnRegistered

Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I PAGE 1 OF 15 FCC PART 15C FCC PART 15C MEASUREMENT AND TEST REPORT FOR Controlled Entry Distributors, Inc. 2500 South 3850 West, Suite A, Salt Lake City, UT 84120 USA FCC ID: SU7DREAM1500 Report Concerns: Original Report Equipment Type: Access Controller Model: BC-2010 Report No.: STR10128135I Test Date: 2010-12-19 to 2010-12-23 Issue Date: 2011-03-09 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I PAGE 2 OF 15 FCC PART 15C TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.207 (A)- CONDUCTED EMISSION .................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.6 TEST RECEIVER SETUP...........................................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 4.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 5. §15.205, §15.209- RADIATED EMISSION ...........................................................................................................11 5.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 5.2 STANDARD APPLICABLE.......................................................................................................................................11 5.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.4 TEST PROCEDURE.................................................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................12 5.6 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I PAGE 3 OF 15 FCC PART 15C 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Controlled Entry Distributors, Inc. Address of applicant: 2500 South 3850 West, Suite A, Salt Lake City, UT 84120 USA Manufacturer: Sebury Technology Co., Ltd. Address of manufacturer: 5/F, Building 8, X…

Text truncated - open the document above for the full version.

Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Controlled Entry Distributors, Inc. Model: BC-2010 REPORT NO.: STR10128135I FCC PART 15C Radiation Emission Test Setup (Above 30MHz)
