SU7FKTHS2641E1Community Controls Keyfree Transmitter

PRELIMINARY HIGH SENSITIVITY KEYFREE TRANSMITTER Carrier frequency433,92 Mhz AM/ASK N° channels1 Rated E.r.p.1 mW Battery typeCR123A Operating voltage3 Vdc Current consumption100 μA : stand-by 20 mA : transmission Battery life 12 months Security protocol Code combinations 2exp64 Activation sensitivityAbout 3 - 14 cm Radio Range in open space200/400 m Operating temperature-20°/+80°C Enclosure IP grade IP55 Dimensions (mm)60 x 90 x 27 Weight ( gr. )93 KeeLoq® Hopping code 2 - TECHNICAL SPECIFICATIONS 1 - INTRODUCTION The Keyfree transmitter is a special radio transmitter operating at 433,92 MHz in AM/ASK modulation. It’s mainly composed by a infrared sensitive circuit and by a radio transmitter. It can be used to operate gates or garage doors or any device with the corresponding compatible 433 MHz receiver. The security protocol is a rolling code type. Each product is already factory programmed with a different security code. The button is battery supplied with a CR123A lithium battery for 1 year life. The enclosure protection grade IP55 allows outdoor installations.The product fully complies to the requirements of the European Directives 73/23/CEE, 89/336/CEE, 99/05/CE and FCC Rules Part 15. Use and installation manual Thank you for choosing this product . You are recommended to read this manual carefully before installing this product. IS-FKTHSTSUK Rev. 0 del 25/6/2010 GUARANTEE The warranty period of Transmitter Solutions receivers is 24 months, beginning from the manufacturing date of the transmitter. During this period, if the product doesn’t operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of .The warranty does not extend to the receiver case which can be damaged by conditions outside the control of . Transmitter Solutions Transmitter Solutions 3 - INSTALLATION PHASES 4 - OPERATE The Button operates when you approach over the external surface with the hand. The sensitivity of the detector is adjustable with a trimmer . Approach the cover or touch it until the buzzer sounds. The RF transmissions is indicated by the sound of the buzzer or the light of the led and lasts all time the buzzer sounds or the led is on. Normally it’s necessary to approach over the cover with the hand and not only with a single finger. The appliance uses a lithium battery type CR123A. Insert the new battery on the battery location, respecting the right polarity. The removal and the disposal of the battery must have effected before the elimination of the appliance and according to the current Regulations. ATTENTION: - Danger of explosion if the battery is not replaced in the correct way! Replace only with an equal or equivalent type. 6 - BATTERY REPLACEMENT 1.Locate the best position for the installation, avoiding metallic surfaces that could decrease the RF transmission. 2.Using the box bottom as a template mark the position of the 4 mounting holes. 3.Drill the mounting holes and insert the plugs. 4.Assemble base and seal together, install to mounting surface using 4 screws. 5.Install the module to base and secure with the screws. FKTHS2641E1 This device complies with FCC Rules . Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 15 of the Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 5 - ADJUSTMENT Rotate the trimmer clockwise to increase the sensitivity and anticlockwise to reduce the sensitivity. An higher sensitivity allows to activate the RF transmission from an longer distance from the enclosure surface. Antenna Adjustment trimmer Battery + - It’s possible to select which type of signal is active ( led light or buzzer sound ). Use the jumper as shown in the figure. LED LED Jumper Buzzer Buzzer Transmitter Solutions 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected]

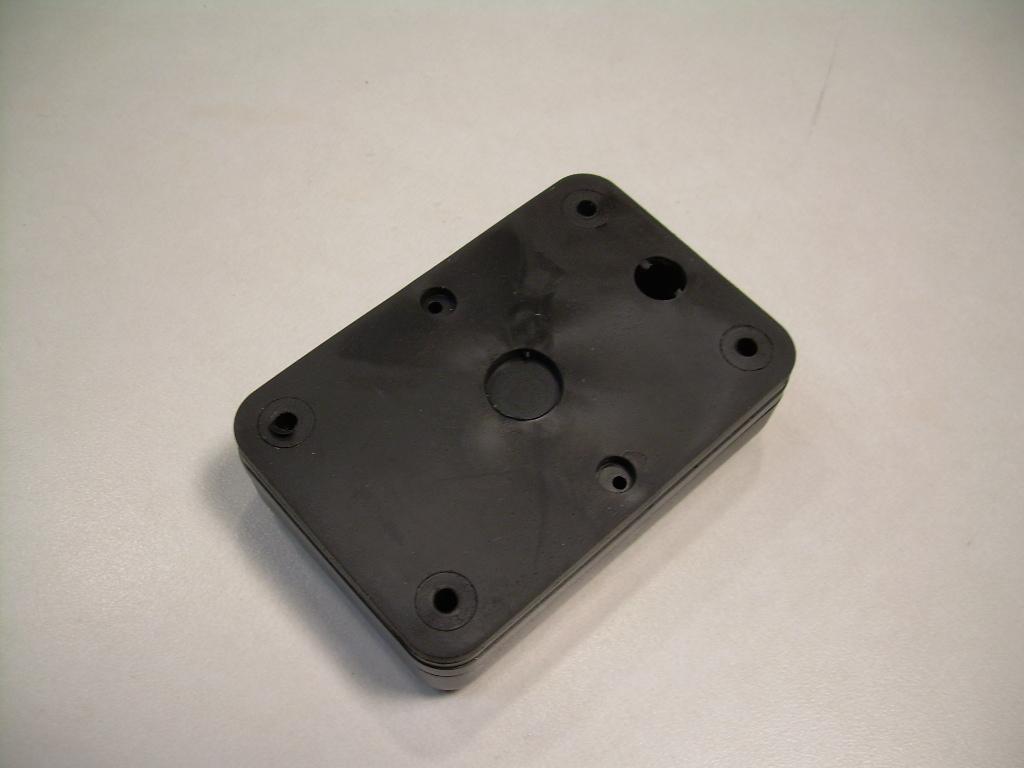

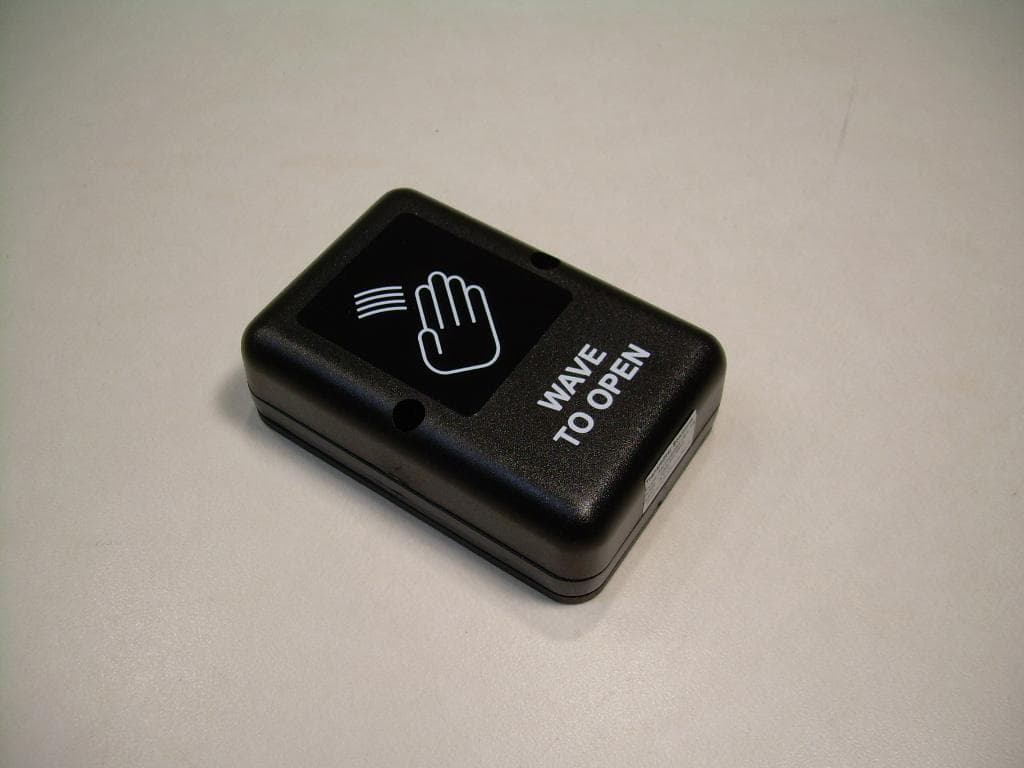

Front View of EUT Back View of the EUT

View of the EUT with Front Housing Removed Top View of the PCB Bottom View of the PCB

PRELIMINARY HIGH SENSITIVITY KEYFREE TRANSMITTER Carrier frequency433,92 Mhz AM/ASK N° channels1 Rated E.r.p.1 mW Battery typeCR123A Operating voltage3 Vdc Current consumption100 μA : stand-by 20 mA : transmission Battery life 12 months Security protocol Code combinations 2exp64 Activation sensitivityAbout 3 - 14 cm Radio Range in open space200/400 m Operating temperature-20°/+80°C Enclosure IP grade IP55 Dimensions (mm)60 x 90 x 27 Weight ( gr. )93 KeeLoq® Hopping code 2 - TECHNICAL SPECIFICATIONS 1 - INTRODUCTION The Keyfree transmitter is a special radio transmitter operating at 433,92 MHz in AM/ASK modulation. It’s mainly composed by a infrared sensitive circuit and by a radio transmitter. It can be used to operate gates or garage doors or any device with the corresponding compatible 433 MHz receiver. The security protocol is a rolling code type. Each product is already factory programmed with a different security code. The button is battery supplied with a CR123A lithium battery for 1 year life. The enclosure protection grade IP55 allows outdoor installations.The product fully complies to the requirements of the European Directives 73/23/CEE, 89/336/CEE, 99/05/CE and FCC Rules Part 15. Use and installation manual Thank you for choosing this product . You are recommended to read this manual carefully before installing this product. IS-FKTHSTSUK Rev. 0 del 25/6/2010 GUARANTEE The warranty period of Transmitter Solutions receivers is 24 months, beginning from the manufacturing date of the transmitter. During this period, if the product doesn’t operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of .The warranty does not extend to the receiver case which can be damaged by conditions outside the control of . Transmitter Solutions Transmitter Solutions 3 - INSTALLATION PHASES 4 - OPERATE The Button operates when you approach over the external surface with the hand. The sensitivity of the detector is adjustable with a trimmer . Approach the cover or touch it until the buzzer sounds. The RF transmissions is indicated by the sound of the buzzer or the light of the led and lasts all time the buzzer sounds or the led is on. Normally it’s necessary to approach over the cover with the hand and not only with a single finger. The appliance uses a lithium battery type CR123A. Insert the new battery on the battery location, respecting the right polarity. The removal and the disposal of the battery must have effected before the elimination of the appliance and according to the current Regulations. ATTENTION: - Danger of explosion if the battery is not replaced in the correct way! Replace only with an equal or equivalent type. 6 - BATTERY REPLACEMENT 1.Locate the best position for the installation, avoiding metallic surfaces that could decrease the RF transmission. 2.Using the box bottom as a template mark the position of the 4 mounting holes. 3.Drill the mounting holes and insert the plugs. 4.Assemble base and seal together, install to mounting surface using 4 screws. 5.Install the module to base and secure with the screws. FKTHS2641E1 This device complies with FCC Rules . Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 15 of the Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 5 - ADJUSTMENT Rotate the trimmer clockwise to increase the sensitivity and anticlockwise to reduce the sensitivity. An higher sensitivity allows to activate the RF transmission from an longer distance from the enclosure surface. Antenna Adjustment trimmer Battery + - It’s possible to select which type of signal is active ( led light or buzzer sound ). Use the jumper as shown in the figure. LED LED Jumper Buzzer Buzzer Transmitter Solutions 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected]

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: FKTHS2641E1.TS Test Specifications: FCC Part 15, Subpart C FCC ID #: SU7FKTHS2641E1 Test Report Serial No: 163309-3.1 Applicant: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A. Dates of Test: December 29, 2010 Issue Date: January 17, 2011 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 163309-3.1 FCC ID#: SU7FKTHS2641E1 Page 2 of 28 2 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Controlled Entry Distributors, Inc. - Manufacturer: Elpro Innotech SPA - Brand Name: Community Controls - Model Number: FKTHS2641E1.TS - FCC ID #: SU7FKTHS2641E1 On this 17 th day of January 2010, I, individually, and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the Nemko-CCL, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen EMC Technician Nemko-CCL, Inc. TEST REPORT: 163309-3.1 FCC ID#: SU7FKTHS2641E1 Page 3 of 28 3 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) .................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................6 SECTION 4.0 OPERATION OF EUT DURING TESTING ..................................................10 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS ..........12 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..........................................18 APPENDIX 2 PHOTOGRAPHS ................................................................................................20 APPENDIX 3 MANUFACTURER’S STATEMENT/ATTESTATION .................................28 Nemko-CCL, Inc. TEST REPORT: 163309-3.1 FCC ID#: SU7FKTHS2641E1 Page 4 of 28 4 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Controlled Entry Distributors, Inc. DBA Community Controls 2500 South 3850 West, Suite A Salt Lake City, UT 84120 U.S.A. Contact Name: Brad Kofford Title: President 1.2 Manufacturer: Company Name: Elpro Innotek SPA Via Piave, 23 31020 S. Pietro Di Feletto (TV) - Italy Contact Name: Ing. G. Massimo Dalle Carbonare Title: Product Manager Nemko-CCL, Inc. TEST REPORT: 163309-3.1 FCC ID#: SU7FKTHS2641E1 Page 5 of 28 5 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Community Controls Model Number: FKTHS2641E1.TS Serial Number: None 2.2 Description of EUT: The FKTHS2641E1.TS is a transmitter operating at 433.9 MHz. The FKTHS2641E1.TS has an IR motion detector that when triggered transmits to a receiver that will then open a device such as a door. The transmitter is powered by a 3 Vdc CR123A Lithium battery. This report covers the transmitter circuitry of the device subject to FCC Part 15, Subpart C. The other circuitry of the device, subject to FCC Part 15, Subpart B is covered in Nemko- CCL, Inc. report #163309-2.1. 2.3 EUT and Support Equipment: Brand Name Model Number FCC ID Number or Compliance Description Name of Interface Ports / Interface Cables BN: Community Controls MN: FKTHS2641E1.TS SU7FKTHS2641E1 433.9 MHz Transmitter See Section 2.4 2.4 Interface Ports on EUT: There are no interface ports on the EUT. 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. This report is not complete without an accompanying signed attestation, included as Appendix 3, that the product will have all of the documented modifications incorporated into the product when manufactured and placed on the market. Nemko-CCL, Inc. TEST REPORT: 163309-3.1 FCC ID#: SU7FKTHS2641E1 Page 6 of 28 6 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15) Section 15.203 Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection systems and some field disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper antenna is employed so that the limits in this P…

Text truncated - open the document above for the full version.

Test Configuration – Vertical Placement of EUT Test Configuration – Horizontal Placement of EUT Test Configuration – On-Edge Placement of EUT
