SU7SAW10000ACCESS CONTROL

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: The manufacturer is not responsible for any changes or modifications not expressly approved by the manufacturer for compliance, such modifications could void the user’s authority to operate the equipment.

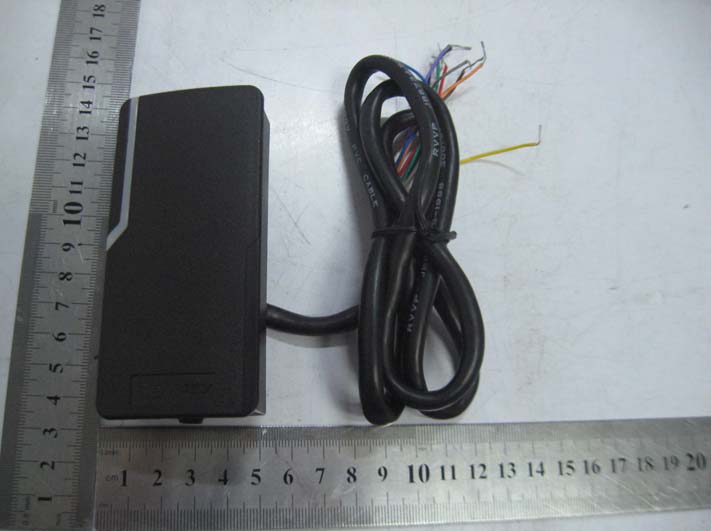

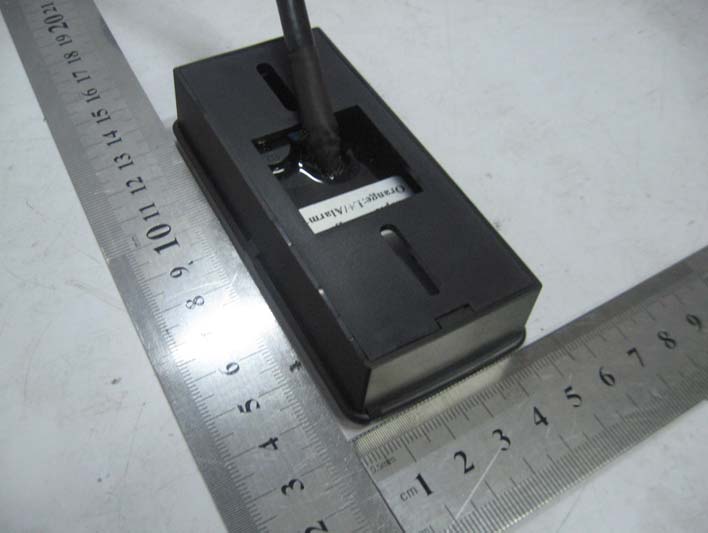

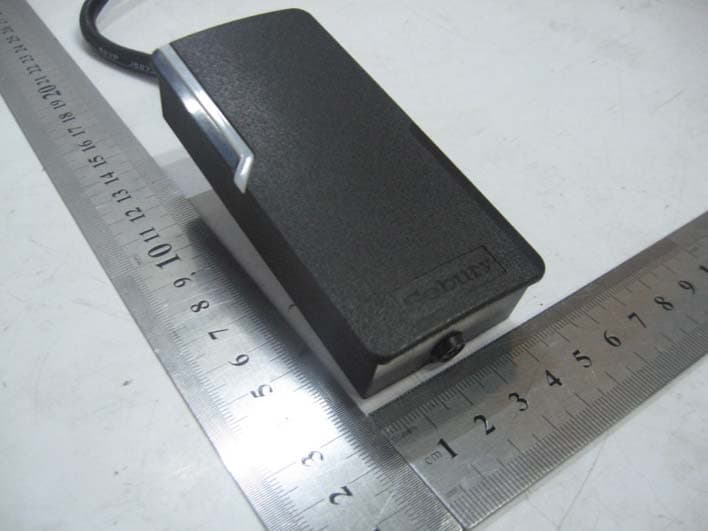

Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C EUT View 3

Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SU7SAW10000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SU7SAW10000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C Solder Board-Component View 2

Circuit Description: W2-A: is a EM and HID card single door controller. It is a standard single-chip MCU generates an ASK 125KHz square wave through the drive circuit and the antenna oscillations. Generate a sine wave. Were provided to the EM and HID Card reader circuit circuit. HID card reader circuit cards read to read the information sent by the HID driver circuit, sending the microcontroller (MCU) inside the decoder. EM card reader circuit cards read by reading the information sent to the microcontroller (MCU) inside the decoder. Users can remove the infrared remote control and user information stored in the machine functions and settings. User information is stored in serial memory (FLASH Memory) inside. When the machine read the card when the card information stored inside the user with the FLASH card information to compare, then make the appropriate action by the MCU. The machine has a Wiegand 26 output / input function. 1, the output function: When the machine when the card read, MCU will Wiegand 26 output signal. This signal can be connected to any Wiegand 26 with the input of the controller. 2, enter the function: The machine has an external Wiegand 26 output for any reader. The machine has Wiegand26 input / output; machine tamper alarm circuit; door status detection circuit; external electric lock circuit; external alarm circuit.

第1页 共1页 图号: 版本: V0.1 设计:审核:批准:日期: 2011.2.26 深圳市世礴创科技有限公司 型号: R2-W-EH文件名: R2-W-EH-V0.1 HID部分 + C17 10uF 25V R1 100R C2 33p C1 33p X1 12MHz 123456 J2 MISO +5V SCK MOSI RESET GND 1 PD3 2 PD4 3 GND 4 VCC 5 GND 6 VCC 7 PB6 8 PB7 24 PC1 23 PC0 22 ADC7 21 GND 20 AREF 19 ADC6 18 AVCC 17 PB5 25 PC2 26 PC3 27 PC4 28 PC5 29 PC6 30 PD0 31 PD1 32 PD2 16 PB4 15 PB3 14 PB2 13 PB1 12 PB0 11 PD7 10 PD6 9 PD5 U1 ATmega88 C11 104 Q4 8550 D5 1N4004 R2 470R R3 470R C10 104 C9 104 D4 1N4148 1 2 J1 1 2 J1' D3 1N4148 C5 202 C8 202 R6 1K R18 100K D1 1N4148 D2 1N4148 R23 10M C7 202 C6 202 R21240k C3 220P C34 332J 100V L2 490uH R5 560R R4 560R C4 102 R1210K Q3 8550 Q2 8050 Q1 8050 +- BZ1 R9 2K R13 10K SW1 RESET R15 100K R19 100K R7 1K D6 1N4004 Q5 20N03 Q6 20N03 R8 1K R20 100K 12345678910 J4 D0 D1 ALARM- OPEN D_IN +12V GNDVSS L- L+(ALARM+) R22 330K C12 104 TVS1 22V R10 10K R11 10K R17 100K R16 100K 1 IN 2 GND 3 OUT U2 78M05 C14104 + C22 100uF 25V C13104 + C21 100uF 25V L1 100uH C15104 + C20 100uF 16V 1 SI 2 SCK 3 RESET 4 CS 8 SO 7 GND 6 VCC 5 WP U4 AT45DB011B-SU R30 2K RG LED1 RG LED2 RG LED3 RG LED4 RG LED8 RG LED7 RG LED6 RG LED5 R31 2K Q7 8050 R3230K R3330K Q8 8050 3 OUT 2 GND 1 VCC U5 IRM-8881S 123456 J3' 123456 J3 C16104 1 GND 2 OUT 3 IN U3 LM1117-3.3 + C18 10uF 16V R1410K + C19 100uF 16V RDS1 GL5537-1 R24 100K SW2 ALARM R25 100K +- 23 1 U6-A TL084 -+ 56 7 U6-B TL084 -+ 10 9 8 U6-C TL084 +- 1312 14 U6-D TL084 R26 100K R27 1.8K C24 102 C23 102 R28 100k R29 100k C28104 R34 75K C25 102 C26 102 R35 1.2K R36 100k R37 150k R38 10K C27 102 R39 470K C30104 C29 103 R40 20K R41 4.7K R42 47K R43 10K C31 102 C32 102 R4410K C33 104 Q208050 R4510K +5V +5V PROTECT ALARMALARM- +12V L- LOCK PROTECT GREEN ALARM LOCK ALARM- +12V L- SOUND +12VB RF_OUT D0 D1 D_IN OPEN +5V D0 SOUND RF_OUT D_IN OPEN IRD1 +5V +5V MOSI MISO SCK +5V MOSISCK RED RESET RESET +12V +5V +12VB +12V +5V MOSI SCK CS MISO +3.3V CS MISO IR REDGREEN +12VB +3.3V +3.3V +5V +5V HID_IN HID_IN1 HID_IN HID_IN1

Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I PAGE 1 OF 15 FCC PART 15C FCC PART 15C MEASUREMENT AND TEST REPORT FOR Controlled Entry Distributors, Inc. 2500 South 3850 West, Suite A, Salt Lake City, UT 84120 USA FCC ID: SU7SAW10000 Report Concerns: Original Report Equipment Type: Access Control Model: SAM+10,000 Report No.: STR11088028I Test Date: 2011-08-02 to 2011-08-15 Issue Date: 2011-08-16 Tested By: Jason Jiang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I PAGE 2 OF 15 FCC PART 15C TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.207 (A)- CONDUCTED EMISSION .................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.6 TEST RECEIVER SETUP...........................................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 4.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 5. §15.205, §15.209- RADIATED EMISSION ...........................................................................................................11 5.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 5.2 STANDARD APPLICABLE.......................................................................................................................................11 5.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.4 TEST PROCEDURE.................................................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................12 5.6 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I PAGE 3 OF 15 FCC PART 15C 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Controlled Entry Distributors, Inc. Address of applicant: 2500 South 3850 West, Suite A, Salt Lake City, UT 84120 USA Manufacturer: Sebury Technology Co., Ltd. Address of manufacturer: 5/F, Bu…

Text truncated - open the document above for the full version.

Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Controlled Entry Distributors, Inc. Model: SAM+10,000 REPORT NO.: STR11088028I FCC PART 15C Radiation Emission Test Setup (Above 30MHz)
