SUN-R6252XInSite Player Unit

P/N R63314 v1.08 User Guide COPYRIGHT© 2014 RIDDELL INC. ALL RIGHTS RESERVED. REPRODUCTION OF THIS MANUAL IN ANY MEDIUM WITHOUT THE EXPRESS PERMISSION OF RIDDELL IS PROHIBITED. LIMITED RIGHTS NOTICE TECHNICAL DATA/DOCUMENTATION P/N R63314 v1.08c Page | 2 CONTENTS Introduction ................................................................................4 Warnings .....................................................................................5 Product Overview ........................................................................7 Setup Summary ......................................................................... 11 Equipment Guide - Alert Monitor ............................................... 12 Battery Care ............................................................................................ 12 Controls and Indicators ........................................................................... 13 Navigation – Screens & Menus ............................................................... 15 Equipment Guide - Player Unit ................................................... 19 Battery Care ............................................................................................ 19 Controls and Indicators ........................................................................... 19 Installation into Helmets ......................................................................... 23 Software Guide – InSite Player Management .............................. 32 Equipment Assignments ......................................................................... 33 Alert Monitor Setup ............................................................................ 33 Player Unit Setup ................................................................................ 35 Player Setup ............................................................................................ 38 System Settings ....................................................................................... 41 Team Management ................................................................................. 42 Multi-Team Setup ............................................................................... 42 Transfers Between Teams ................................................................... 44 Deleting Players or Equipment ........................................................... 49 Using InSite................................................................................ 50 P/N R63314 v1.08c Page | 3 Before Play .............................................................................................. 50 During Play - Using Alerts ........................................................................ 52 Alert Types .......................................................................................... 53 Viewing New Alerts ............................................................................. 54 Alert Response .................................................................................... 54 After Play ................................................................................................ 55 Equipment Management .................................................................... 55 Alert Management .............................................................................. 56 Maintenance ............................................................................. 58 Cleaning InSite Equipment ...................................................................... 58 Battery Care ............................................................................................ 59 Long-Term (End-of-Season) Storage ....................................................... 59 Reconditioning ........................................................................................ 59 Software and Firmware Updates ............................................................ 61 Troubleshooting ........................................................................ 68 Alert Monitor .......................................................................................... 68 Player Unit .............................................................................................. 70 Sending Test Alerts (Test Mode) ......................................................... 70 InSite Player Management Software (ISPM) ........................................... 73 Contact Information ................................................................... 74 Compliance Information ............................................................. 74 Warranty ................................................................................... 75 P/N R63314 v1.08c Page | 4 INTRODUCTION For over 80 years, Riddell has been the recognized leader in helmet technology and innovation. Founded with the mission to make sports equipment safer, better and easier to use, Riddell continues to address the evolving protective equipment needs of the athlete. Today, Riddell equipment is seen on football fields from coast-to -coast, protecting every level of player—from youth athletes to NFL professionals. Riddell is always working on the next generation of helmet technology. Its newest product introduction, the Riddell InSite Impact Response System, is the latest in a series of recent innovations incorporating state-of -the-art features that are new to the football field. Riddell InSite is a new integrated monitoring and alerting tool designed specifically for the proactive protection of football players. As the first to implement head impact monitoring and recording systems, Riddell developed InSite using data collected by Riddell’s Sideline Response System (SRS) with Head Impact Telemetry (HITS). Since 2004, Riddell SRS has analyzed millions of impacts from youth to elite football competition, and its data has led to impactful changes to rules, how the game is played and coached, and has informed new helmet designs …

Text truncated - open the document above for the full version.

10 Water Street, Suite 410 Lebanon, NH 03766 T: 603.448.2367 F: 603.448.0380 17 January 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Simbex LLC FCC ID: SUN-R6252X To Whom It May Concern: We, Simbex LLC, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number SUN-R6252X under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 17 January 2020. The Limited Agency Agreement expires on 1 May 2020, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Jeff Chu CTO

10 Water Street, Suite 410 Lebanon, NH 03766 T: 603-448-2367 F: 603-448-0380 Date: 01/20/2020 Attention: Application Examiner RE: Request for Confidentiality Applicant: Simbex, LLC FCC ID: SUN-R6252X _______________________________________________________________________ To Whom It May Concern: Request is hereby submitted by Simbex to withhold permanently from public review certain portions of the application for equipment certification for FCC ID #SUN-R6252X. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: a. Schematic Diagrams b. Operational Description c. Block Diagrams Rationale for request for confidentiality: Simbex has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, ____________________________ Jeff Chu CTO Simbex, LLC 603-448-2367

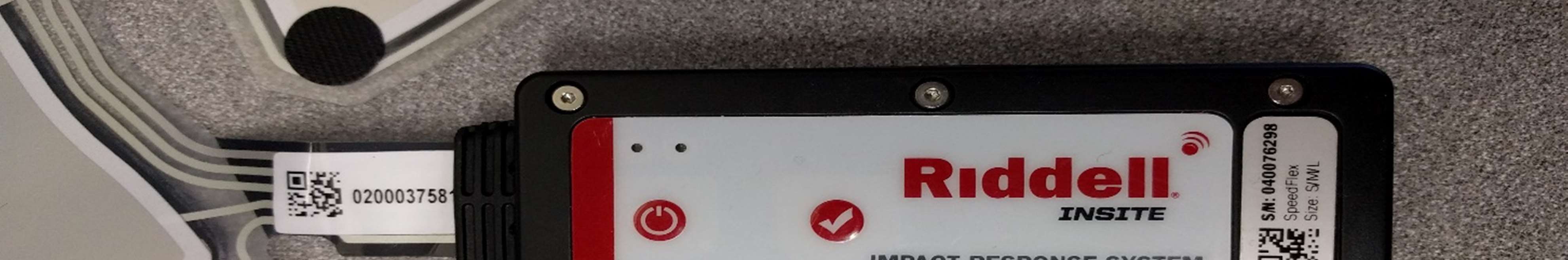

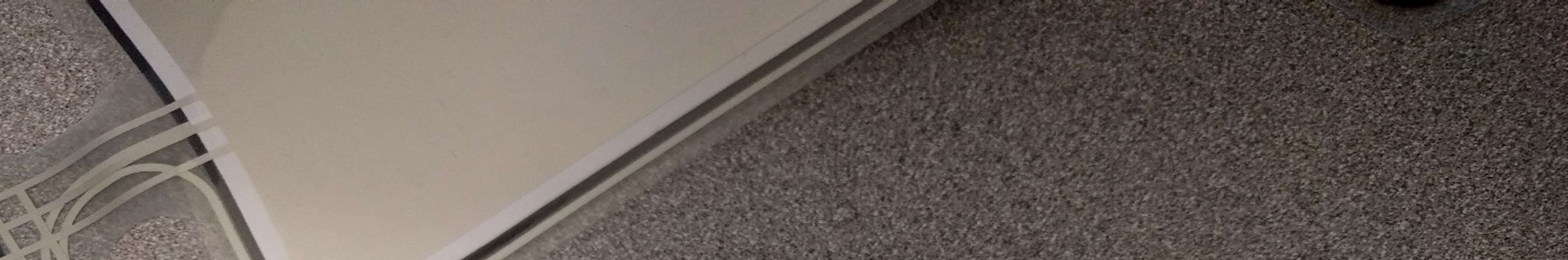

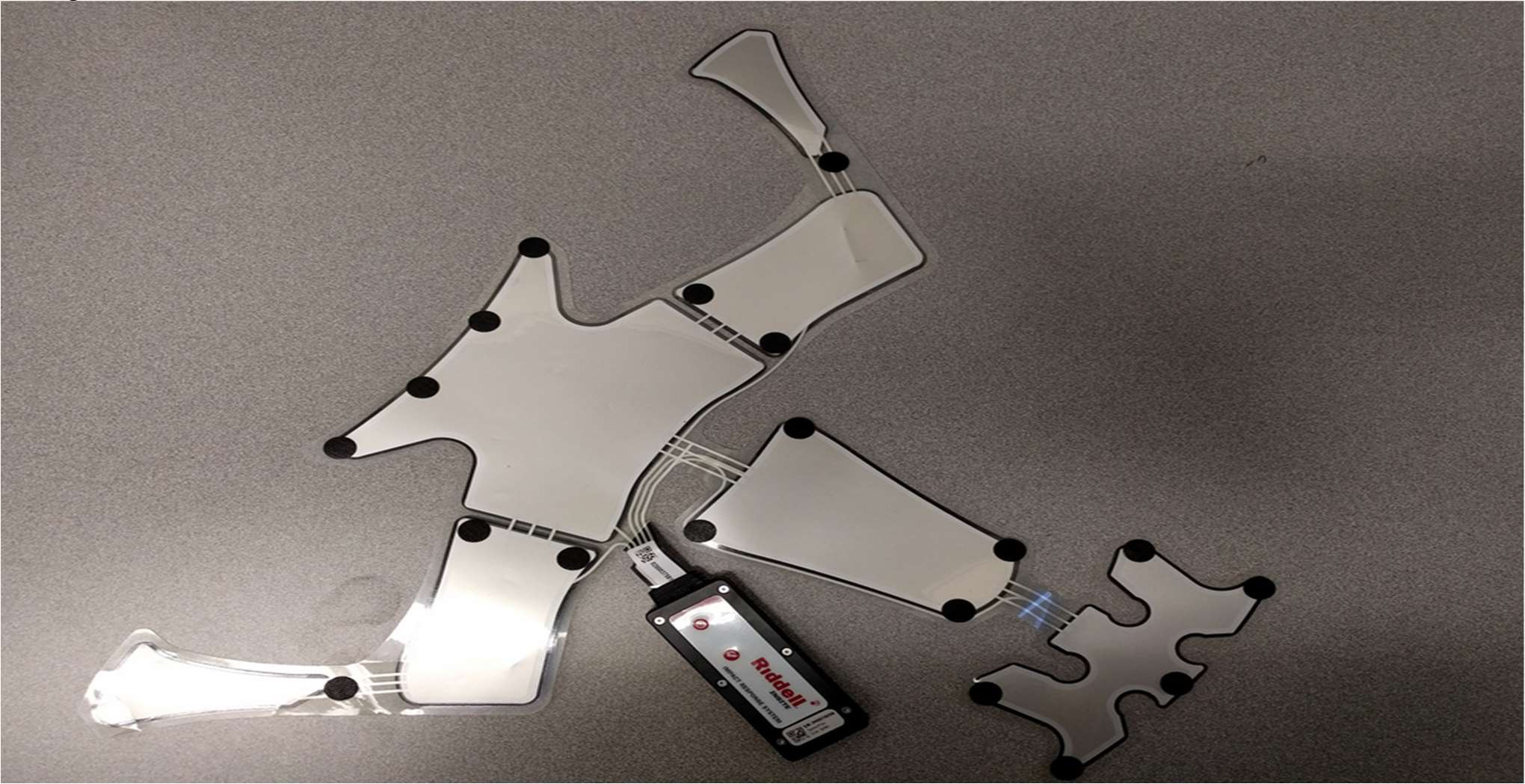

FRM-0009 Revision B 4/25/2013 Simbex – CONFIDENTIAL Page 1 of 3 016-I-1000 External Photos Image 1: Image 2: FRM-0009 Revision B 4/25/2013 Simbex – CONFIDENTIAL Page 2 of 3 Image 3: Image 4: FRM-0009 Revision B 4/25/2013 Simbex – CONFIDENTIAL Page 3 of 3 Image 5: Image 6:

FCC ID: SUN-R6252X Designed & Assembled in the USA Scale: 1:1 20.86 100% White IC ID: 5602A-R6252X R0.50 4X ALL DIMENSIONS IN MILLIMETERS 26.05 SpeedFlex Size: S/M/L P/N: R62523 Lines 1, 2 - Font: “FranklinGothic URW Book”, Point size: 6.2 (Overall width) (Overall height) Lines 7, 8 - Font: “FranklinGothic URW Cond Demi” Point size: 6.0 Lines 5, 6 - Font: “FranklinGothic URW Book” Point size: 6.0 Line 4 - Font: “FranklinGothic Cond Demi” (except for “/”, which is Arial) Point size: 7.0 Lines 3 - Font: “FranklinGothic URW Book” (except for “/”, which is Arial), Point size: 6.0 PLAYER UNIT, FCC LABEL RIDDELL P/N: 016-20205 DATE: 19-AUG-2019

FRM-0009 Revision B 4/25/2013 Simbex – CONFIDENTIAL Page 1 of 2 016-I-1000 Internal Photos Image 1: Image 2: FRM-0009 Revision B 4/25/2013 Simbex – CONFIDENTIAL Page 2 of 2 Image 3:

10 Water Street, Suite 410 Lebanon, NH 03766 T: 603.448.2367 F: 603.448.0380 08/19/2019 Subject: RF Exposure Info Simbex, LLC FCC ID: SUN-R6252X The equipment to be certified, Player Unit (FCC ID: SUN-R6252X), is a portable device with respect to RF exposure compliance, a separation distance less than 20 cm from all persons. The following SAR test exclusion threshold formula, provided in Section 4.3.1 a) of FCC KDB Publication 447498 D01 v06, is used to determine if SAR test exclusion threshold is satisfied. � 푃푃 푅푅 �×√푓푓 ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR Equation 1 where: P = Maximum Power in mW R = Minimum Test Separation Distance in mm f = Channel Frequency in GHz With P = 8.34 dBm (6.82 mW), R = 5 mm, and f = 2.41 GHz, � 6.82 푚푚푚푚 5 푚푚푚푚 �× √ 2.41퐺퐺퐺퐺퐺퐺 = 2.117497429 ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR Equation 2 Based on the above calculation, SAR evaluation for general population exposure conditions, by measurement or by numerical simulation, is not required as the corresponding SAR Test Exclusion Threshold conditions are satisfied.

SIMBEX LLC TEST REPORT SCOPE OF WORK EMISSIONS TESTING – ELECTRONIC PLAYER UNIT REPORT NUMBER 103976876BOX-001 ISSUE DATE [REVISED DATE] October 8, 2019 Original Issue PAGES 67 DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. December 2017 © 2017 INTERTEK Non-Specific Radio Report Shell Rev. December 2017 Page 2 of 67 Client: SIMBEX LLC / Model: Electronic Player Unit EMISSIONS TEST REPORT (FULL COMPLIANCE) Report Number: 103976876BOX-001 Project Number: G103976876 Report Issue Date: October 8, 2019 Model(s) Tested: Electronic Player Unit Model(s) Partially Tested: None Model(s) Not Tested but declared equivalent by the client: None Standards: CFR47 FCC Part 15.247 Subpart C: 10/2019, CFR47 FCC Part 15 Subpart B: 10/2019, RSS-247 Issue 2 February 2017, ICES-003 Issue 6 Published: January 2016 Updated: April 2019, RSS-Gen Issue 5 April 2018, RSS-102 Issue 5 March 2015 558074 D01 15.247 Meas Guidance v05r02 April 2, 2019 Tested by: Client: Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 USA SIMBEX LLC 10 Water Street Suite 410 Lebanon, NH 03766 USA Report prepared by Report reviewed by Kenneth Lee / Project Engineer Kouma Sinn / EMC Staff Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 103976876BOX-001 Issued: 10/08/2019 Non-Specific Radio Report Shell Rev. December 2017 Page 3 of 67 Client: SIMBEX LLC / Model: Electronic Player Unit Table of Contents 1 Introduction and Conclusion .............................................................................................................. 4 2 Test Summary ...................................................................................................................................... 4 3 Client Information ................................................................................................................................ 5 4 Description of Equipment Under Test and Variant Models ............................................................. 5 5 System Setup and Method .................................................................................................................. 6 6 Maximum Peak Output Power and SAR Exclusion Calculations ................................................... 8 7 6 dB Bandwidth and Occupied Bandwidth ..................................................................................... 16 8 Maximum Power Spectral Density ................................................................................................... 22 9 Band Edge Compliance ..................................................................................................................... 26 10 Transmitter spurious emissions ................................................................................................... 34 11 Digital Device and Receiver Radiated Spurious Emissions ...................................................... 59 12 Revision History ............................................................................................................................. 67 Intertek Report Number: 103976876BOX-001 Issued: 10/08/2019 Non-Specific Radio Report Shell Rev. December 2017 Page 4 of 67 Client: SIMBEX LLC / Model: Electronic Player Unit 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested was found Compliant with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Result 3 Client Information -- 4 Description of Equipment Under Test and Variant Models -- 5 System Setup and Method -- 6 Maximum Peak Output Power and Human RF exposure CFR47 FCC Part 15 Subpart C:10/2019, Section 15.247 (b)(3) RSS-247 Issue 2 February 2017, RSS-102 Issue 5 March 2015 Pass 7 6 dB Bandwidth and Occupied Bandwidth CFR47 FCC Part 15 Subpart C: 10/2019, Section 15.247 (a)(2) RSS-247 Issue 2 February 2017 Pass 8 Maximum Power Spectral Density CFR47 FCC Part 15 Subpart C: 10/2019, Section 15.247 (e) RSS-247 Issue 2 February 2017 Pass 9 Band Edge Compliance CFR47 FCC Part 15 Subpart C: 10/2019, Section 15.247 (d) RSS-247 Issue 2: 02/2017) Pass 10 Transmitter spurious emissions CFR47 FCC Part 15 Subpart C: 10/2019, Section 15.247 (d) RSS-247 Issue 2 February 2017 Pass 11 Digital Device and Receiver Radiated Spurious Emissions (CFR47 FCC Part 15 Subpart B 15.109: 10/2019, ICES-003 Issue 6 Published: January 2016 Updated: April 2019 Pass -- AC Mains Conducted Emissions FCC 47CFR Part 15.107: 10/2019 ICES-003 Issue 6 Published: January 2016 Updated: April 2019 N/A* 12 Revision History -- …
