SUZ-PB2701Dell Interactive Wireless Dongle

Quick Installation Guide Brand: Dell Product name: Dell PointBlank USB Dongle Model no: DPB2701 DPB2701 is a 2.4G RF dongle designed to work with TI PointBlank system. It can receive coordinates form PointBlank projector and presents them as USB HID absolute mouse coordinates. DPB2701 is driver free for Windows XP, Vista and Win7. Step 1 Install the Hardware 1. Insert the Wireless USB into the USB Port of your computer. 2.The system will automatically detect the new hardware. Step 2 Verification 1. To verify if the device exists in your computer and is enable.
Go to start > Control Panel
SystemHardwardDevice ManagerKeyboard
Expand the Keyboard category. If the “HID Keyboard Device” is listed here, it means that your device is properly installed and enabled. Step 3 Install the Sofeware
Insert the Wireless USB into the USB Port of your computer
The USB will run automatically FCC ID : SUZ-PB2701 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications Any changes or modification not expressly approved by the party responsible could void the user's authority to operate the device. IC: 5923A-PB2701 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

2206 Ringwood Avenue, San Jose, CA 95131, USA Tel: +1(408) 526 1188, Fax: +1(408) 526 1088, Email: [email protected], URL: www.siemic.com April 10, 2012 To: FCC From: SIEMIC, INC. RE: Supercede of the Test Report. Due to the EUT model typo on the conducted emission data of test report, we would like to supercede the test report. Thank you, Choon Sian Ooi SIEMIC, INC. 2206 Ringwood Ave., San Jose, CA 95131 Tel: 408-526-1188 Ext 209 Fax: 408-526-1088

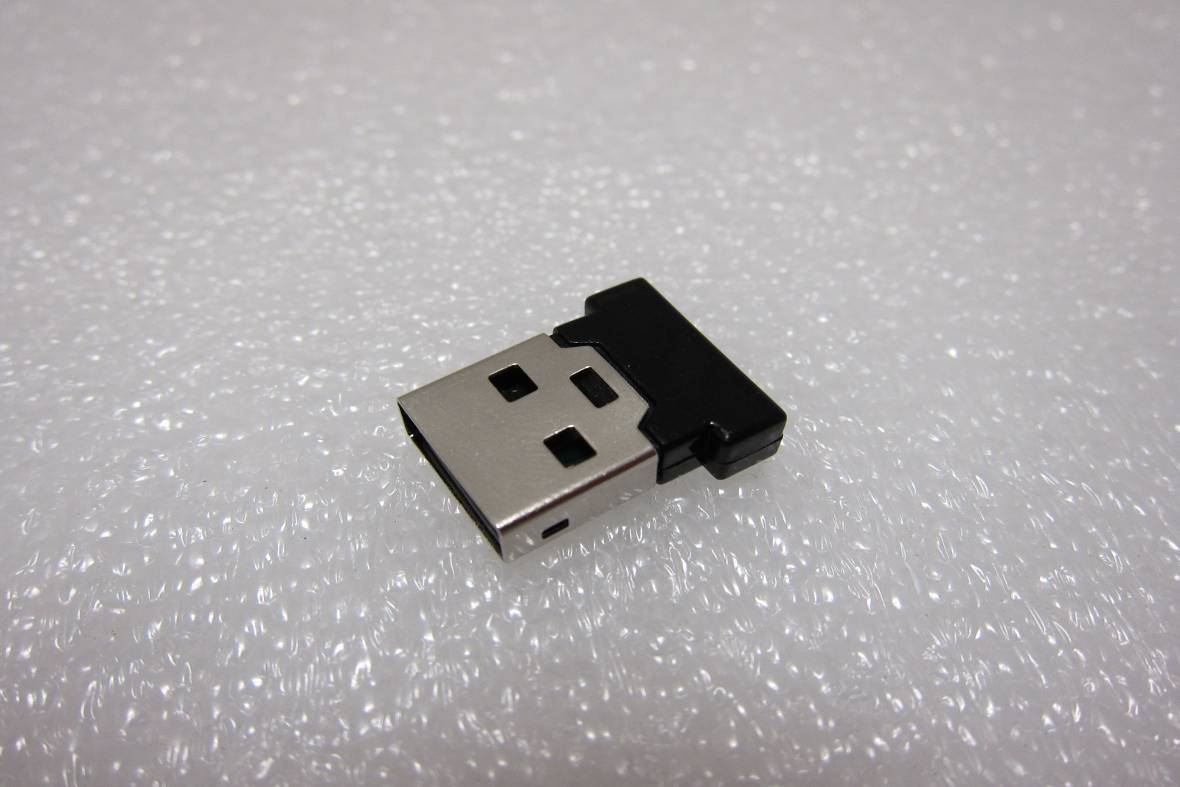

FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC Front of EUT Back of EUT

ID LABEL FORMAT AND LOCATION Applicant: Coretronic Corp. FCC ID: SUZ-PB2701 IC: 5923A-PB2701 FCC ID: SUZ-PB2701 IC: 5923A-PB2701

FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC Open View of EUT Internal of EUT – 1 FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC Internal of EUT – 2 Antenna

Page: 1 of 34 TEST REPORT of FCC Part 15 Subpart C and CANADA RSS-210 New Application; Class I PC; Class II PC Product : Dell Interactive Wireless Dongle Brand: DELL Model: DPB2701 Model Difference: N/A FCC ID: IC: SUZ-PB2701 5923A-PB2701 FCC Rule Part: IC Rule Part: §15.249 RSS-210 issue 8:2010, Annex 2.9 Applicant: Coretronic Corp. Address: No. 11, Li Hsing Rd, Science-Based Industrial Park, Hsinchu, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR024FC Issue Date : 2012/03/05 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 34- FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC VERIFICATION OF COMPLIANCE Applicant: Coretronic Corp. Product Description: Dell Interactive Wireless Dongle Brand Name: DELL Model No.: DPB2701 Model Difference: N/A FCC ID: SUZ-PB2701 IC: 5923A-PB2701 FCC Rule Part: §15.249 IC Rule Part: RSS-210 issue 8:2010, Annex 2.9 Date of test: 2012/02/21 ~ 2012/03/02 Date of EUT Received: 2012/02/21 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/03/05 Dion Chang / Engineer Prepared By: Date: 2012/03/05 Eva Kao / Technical Supervisor Approved By: Date: 2012/03/05 Vincent Su / Technical Manager -3 of 34- FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC Version Version No. Date Description 00 2012/03/05 Initial creation of document -4 of 34- FCC ID: SUZ-PB2701 IC: 5923A-PB2701 International Standards Laboratory Report Number: ISL-12LR024FC Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1. PRODUCT DESCRIPTION ................................................................................................................... 5 1.2. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 5 1.3. TEST METHODOLOGY ....................................................................................................................... 5 1.4. TEST FACILITY ................................................................................................................................. 5 1.5. SPECIAL ACCESSORIES ..................................................................................................................... 5 1.6. EQUIPMENT MODIFICATIONS ........................................................................................................... 5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6 2.1. EUT CONFIGURATION ...................................................................................................................... 6 2.2. EUT EXERCISE ................................................................................................................................. 6 2.3. TEST PROCEDURE ............................................................................................................................. 6 2.4. LIMITATION ...................................................................................................................................... 7 2.5. CONFIGURATION OF TESTED SYSTEM .............................................................................................. 9 3. SUMMARY OF TEST RESULTS ................................................................................. 10 4. CONDUCTED EMISSIONS TEST ............................................................................... 11 4.1 MEASUREMENT PROCEDURE: ........................................................................................................ 11 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 11 4.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 11 4.4 MEASUREMENT RESULT: ............................................................................................................... 11 5. RADIATED EMISSION TEST (TX,RX) ...................................................................... 14 5.1 MEASUREMENT PROCEDURE.......................................................................................................... 14 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 14 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 15 5.4 FIELD STRENGTH CALCULATION ................................................................................................... 15 5.5 MEASUREMENT RESULT ...............................................................................................................…
