SUZ-WN6500RHN802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module

WN6500RH Specification Page 1/8 2012/3/30 LTC Network Access Confidential Coretronic Corporation 802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module WN6500RH User Manual This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Change History: Revision Date Author Change List Version 1.0 2011/11/01 Tracy Chang Preliminary Version 1.1 2011/11/01 Tracy Chang Update Pin Define Version 1.2 2012/3/30 Tracy Chang Update Product Pictures Author: Tracy Chang Approved by: ML Wu Editor: Tracy Chang Project Leader: ML Wu WN6500RH Specification Page 3/8 2012/3/30 LTC Network Access Confidential PRODUCT FEATURES  Operate at ISM frequency bands (2.4 / 5 GHz)  IEEE standards support: IEEE 802.11a, 802.11b, 802.11g, 802.11n  The WN6500RH is developed using single-chip designed by Ralink Technology Corporation  PCI Express Half Mini Module USB interface  Complies with USB Specification 2.0, support Full-speed(12Mbps) and High-speed(480Mbps)  Enterprise level security which can apply WPA, WPA2, Wi-Fi Protected Set-Up and QoS  2 transmitter and 2 receiver allow data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHY rate  20MHz/40MHz Bandwidth Support  Low power with advanced Power Management  RoHS compliance  Low Halogen compliance Channel Table WLAN 2.4GHz 11 Channels are provided for 802.11b,802.11g and 802.11n (20MHz) CHANNEL RFEQUENCY CHANNEL FREQUENCY 1 2412MHz 8 2447MHz 2 2417MHz 9 2452MHz 3 2422MHz 10 2457MHz 4 2427MHz 11 2462MHz 5 2432MHz 6 2437MHz 7 2442MHz 9 Channels are provided for 802.11n (40MHz) CHANNEL RFEQUENCY CHANNEL FREQUENCY 3 2422MHz 8 2447MHz 4 2427MHz 9 2452MHz 5 2432MHz 10 2457MHz 6 2437MHz 11 2462MHz 7 2442MHz WLAN 5.18 ~ 5.32GHz 8 channels are provided for 802.11a,802.11n (20MHz) CHANNEL RFEQUENCY CHANNEL FREQUENCY 36 5180MHz 52 5260MHz 40 2200MHz 56 5280MHz 44 5220MHz 60 5300MHz 48 5240MHz 64 5320MHz 4 channels are provided for 802.11n (40MHz) CHANNEL RFEQUENCY CHANNEL FREQUENCY 38 5190MHz 54 5270MHz 46 5230MHz 62 5310MHz WLAN 5.50 ~ 5.70GHz 11 channels are provided for 802.11a,802.11n (20MHz) CHANNEL RFEQUENCY CHANNEL FREQUENCY 100 5500MHz 124 5620MHz 104 5520MHz 128 5640MHz 108 5540MHz 132 5660MHz 112 5560MHz 136 5680MHz 116 5580MHz 140 5700MHz 120 5600MHz 5 channels are provided for 802.11n (40MHz) CHANNEL RFEQUENCY CHANNEL FREQUENCY 102 5510MHz 126 5630MHz 110 5550MHz 134 5670MHz 118 5590MHz By Tracy Chang 1 / 6 4 September 2012 1. “Update Driver Software” by click right button on WLAN device By Tracy Chang 2 / 6 4 September 2012 2. Choose “Browse my computer for device software” 3. Choose “Let me pick from a list of device drivers on my computer” By Tracy Chang 3 / 6 4 September 2012 4. “Have Disk” 5. “Browse” from the file location By Tracy Chang 4 / 6 4 September 2012 6. Choose your OS type and enter the folder, then double click the inf file inside 7. Then press “OK” By Tracy Chang 5 / 6 4 September 2012 8. The file name is “RT5572 QA Test USB WDM Driver”, then click “Next”, driver will be installed right away 9. To make sure you install correct driver, check the name of device of Device Manager Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final produ…

Text truncated - open the document above for the full version.

FCC ID: SUZ-WN6500RHN Report No.: RF121009E03B Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch January 17, 2013 Dear Application Examiner, Coretronic Corp., device: 802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module, FCC ID: SUZ-WN6500RHN would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input. It is integrated in chip Marvell RT5572. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is Marvell RT5572. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: SUZ-WN6500RHN Report No.: RF121009E03B 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Signature Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

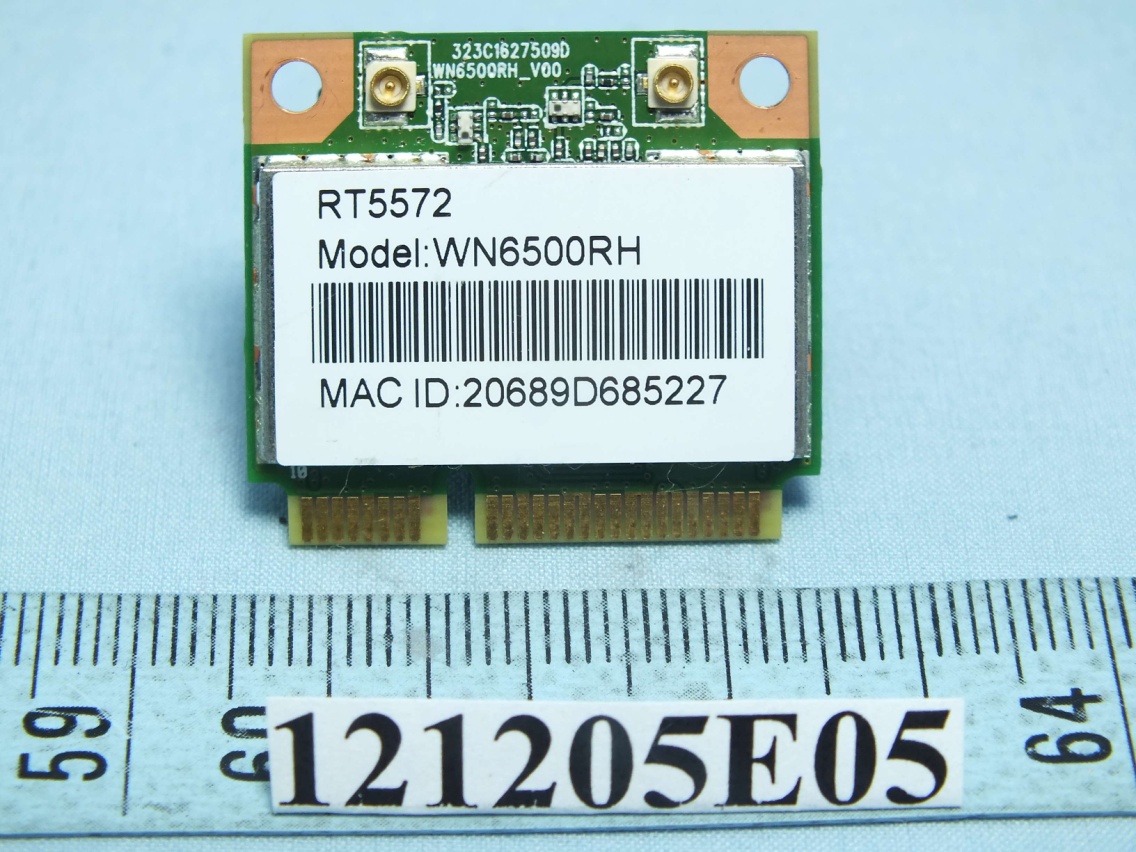

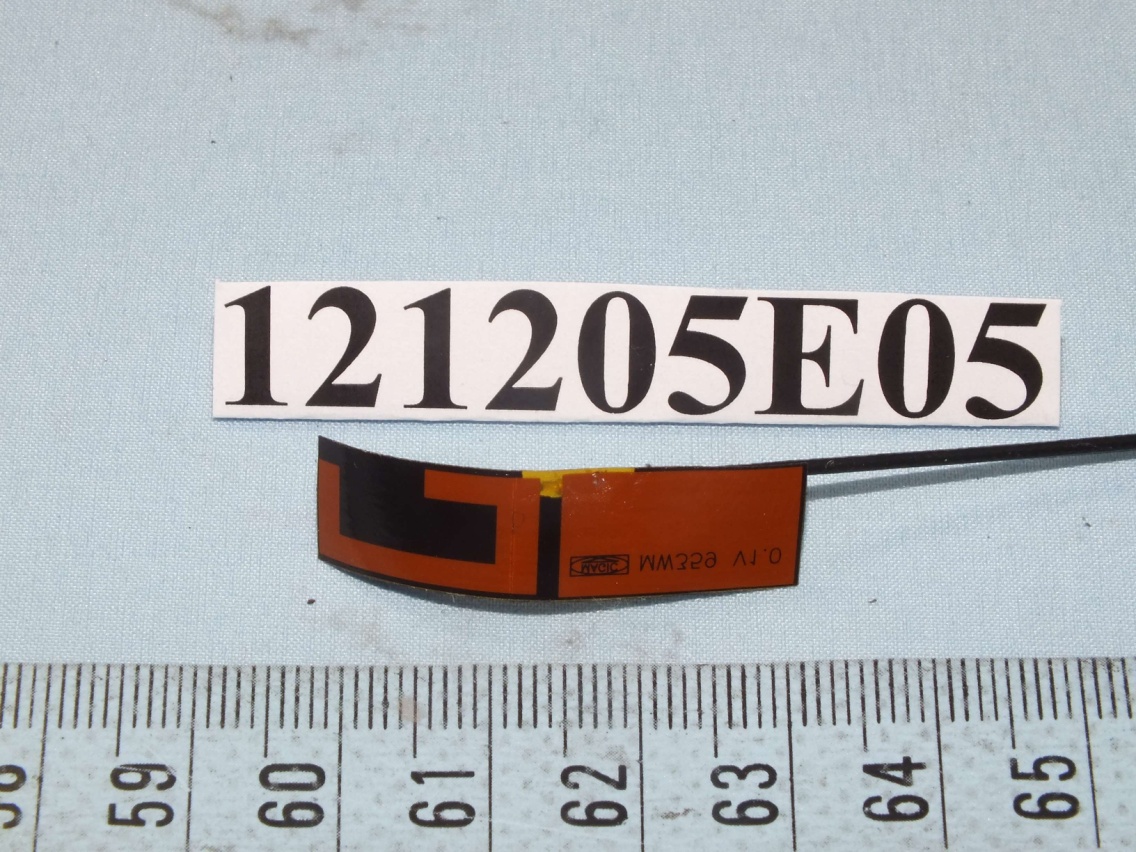

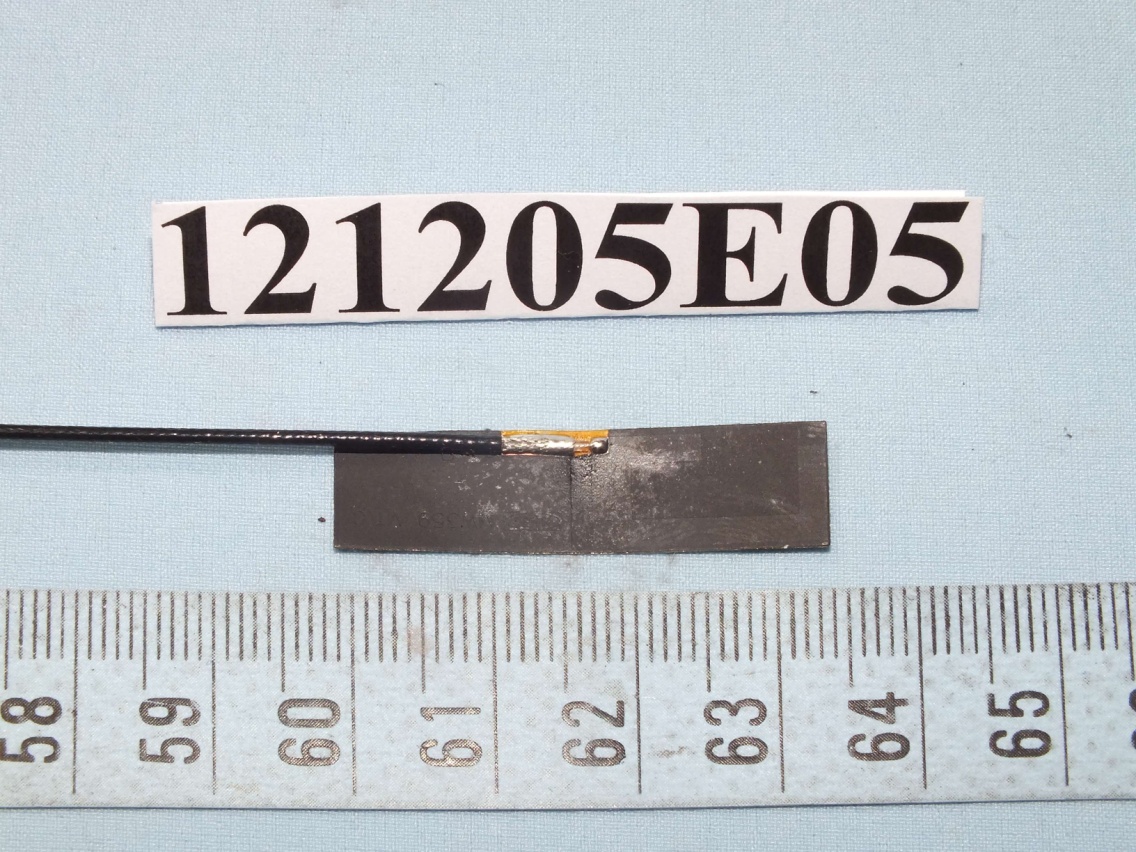

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

(Fig.1) FCC ID: SUZ-WN6500RHN Label FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 5 Page 6

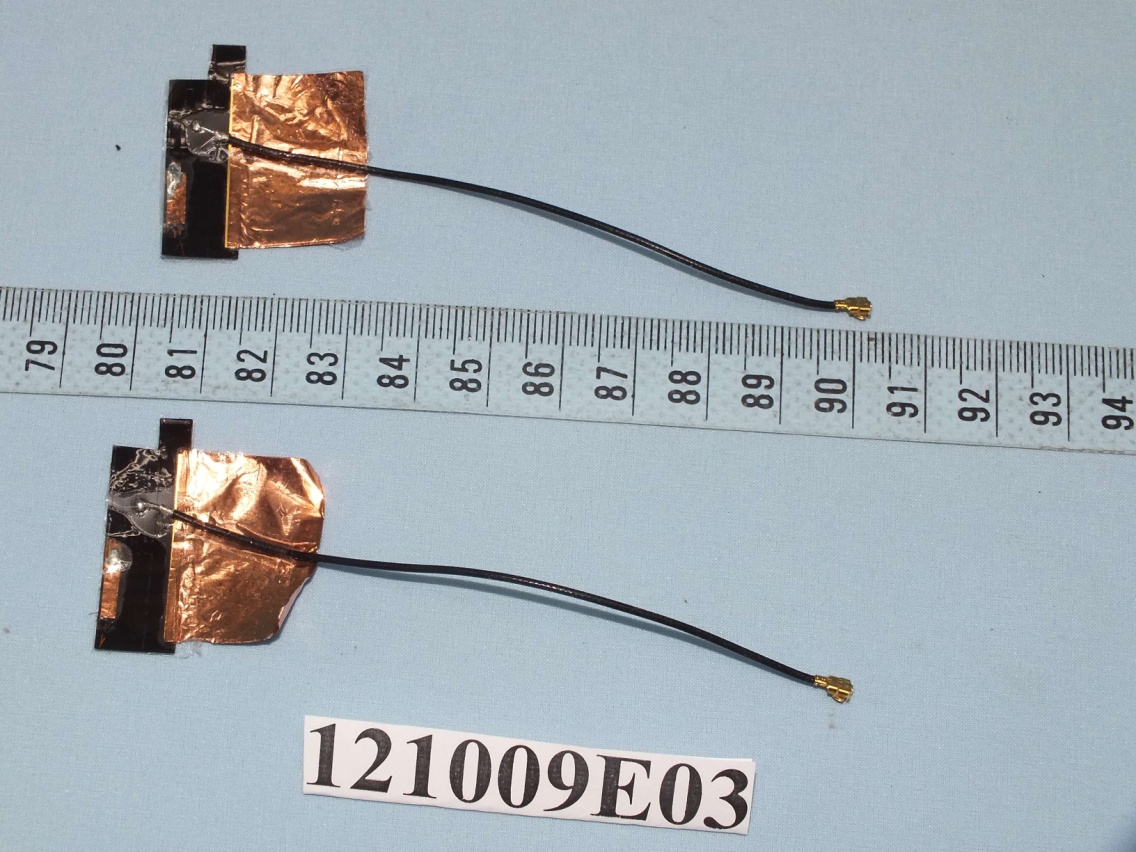

FCC ID: SUZ-WN6500RHN IC ID: 5923A-WN6500RH Report No.: RF1201009E03 IC121009E03 Operational Description This device is a 802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module, which operates in 2.4GHz band and 5GHz bands for WLAN; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc from host equipment. The antenna provided to the EUT is PIFA antenna with I-PEX connector and Monopole type. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA121009E03B 1 of 7 Report Format Version 5.0.0 Reference No.: 121009E03, 121205E05, 121226E01 RF EXPOSURE REPORT REPORT NO.: SA121009E03B MODEL NO.: WN6500RH FCC ID: SUZ-WN6500RHN RECEIVED: Oct. 09, 2012 TESTED: Oct. 20, 2012 ~ Jan. 05, 2013 ISSUED: Jan. 10, 2013 APPLICANT: Coretronic Corp. ADDRESS: No. 11, Li Hsing Rd, Science-Based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA121009E03B 2 of 7 Report Format Version 5.0.0 Reference No.: 121009E03, 121205E05, 121226E01 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 3 1. CERTIFICATION ......................................................................................................................... 4 2. RF EXPOSURE .......................................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................................... 5 2.2 MPE CALCULATION FORMULA ............................................................................................... 5 2.3 CLASSIFICATION ....................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ............................................. 6 Report No.: SA121009E03B 3 of 7 Report Format Version 5.0.0 Reference No.: 121009E03, 121205E05, 121226E01 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121009E03B Original release Jan. 10, 2013 Report No.: SA121009E03B 4 of 7 Report Format Version 5.0.0 Reference No.: 121009E03, 121205E05, 121226E01 1. CERTIFICATION PRODUCT: 802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module MODEL NO.: WN6500RH BRAND: Coretronic APPLICANT: Coretronic Corp. TESTED: Oct. 20, 2012 ~ Jan. 05, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: WN6500RH) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jan. 10, 2013 Ivy Lin / Specialist APPROVED BY : , DATE :Jan. 10, 2013 Ken Liu / Manager Report No.: SA121009E03B 5 of 7 Report Format Version 5.0.0 Reference No.: 121009E03, 121205E05, 121226E01 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA121009E03B 6 of 7 Report Format Version 5.0.0 Reference No.: 121009E03, 121205E05, 121226E01 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER 1TX FREQUENCY BAND (MHz) MODULATION MODE MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 802.11b 19.23 4.83 20 0.051 1 802.11g 24.68 4.83 20 0.178 1 802.11n (20MHz) 24.68 4.83 20 0.178 1 802.11n (40MHz) 21.68 4.83 20 0.089 1 5180-5240 802.11a 14.06 6.08 20 0.021 1 802.11n (20MHz) 13.99 6.08 20 0.020 1 802.11n (40MHz) 14.10 6.08 20 0.021 1 5260-5320 802.11a 13.97 6.15 20 0.020 1 802.11n (20MHz) 14.05 6.15 20 0.021 1 802.11n (40MHz) 14.10 6.15 20 0.021 1 5500-5700 802.11a 14.05 5.71 20 0.019 1 802.11n (20MHz) 14.07 5.71 20 0.019 1 802.11n (40MHz) 14.06 5.71 20 0.019 1 5745-5825 802.11a 21.52 5.67 20 0.104 1 802.11n (20MHz) 21.50 5.67 20 0.104 1 802.11n (40MHz) 21.73 5.67 20 0.1…

Text truncated - open the document above for the full version.

Report No.: RF121009E03BB 1 of 144 Report Format Version 5.1.0 Reference No.: 121009E03, 121205E05, 121226E01 FCC TEST REPORT (15.247) REPORT NO.: RF121009E03B MODEL NO.: WN6500RH FCC ID: SUZ-WN6500RHN RECEIVED: Oct. 09, 2012 TESTED: Oct. 20, 2012 ~ Jan. 05, 2013 ISSUED: Jan. 10, 2013 APPLICANT: Coretronic Corp. ADDRESS: No. 11, Li Hsing Rd, Science-Based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121009E03BB 2 of 144 Report Format Version 5.1.0 Reference No.: 121009E03, 121205E05, 121226E01 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 5 1. CERTIFICATION ......................................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................................ 7 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 7 3. GENERAL INFORMATION ......................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 8 3.2 DESCRIPTION OF TEST MODES ........................................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................... 11 3.3 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 17 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................................... 17 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 18 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ............................................................... 19 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 19 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 19 4.1.2 TEST INSTRUMENTS .............................................................................................................. 20 4.1.3 TEST PROCEDURES .............................................................................................................. 21 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................... 21 4.1.5 TEST SETUP ............................................................................................................................ 22 4.1.6 EUT OPERATING CONDITIONS ............................................................................................. 22 4.1.7 TEST RESULTS ....................................................................................................................... 23 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 61 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................ 61 4.2.2 TEST INSTRUMENTS .............................................................................................................. 61 4.2.3 TEST PROCEDURES .............................................................................................................. 62 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................... 62 4.2.5 TEST SETUP ............................................................................................................................ 63 4.2.6 EUT OPERATING CONDITIONS ............................................................................................. 63 4.2.7 TEST RESULTS ....................................................................................................................... 64 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................................ 68 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................................................... 68 4.3.2 TEST SETUP .....................................…

Text truncated - open the document above for the full version.

Report No.: RF121009E03B-1 1 of 145 Report Format Version 5.1.0 Reference No.: 121009E03, 121205E05, 121217C05 FCC TEST REPORT (15.407) REPORT NO.: RF121009E03B-1 MODEL NO.: WN6500RH FCC ID: SUZ-WN6500RHN RECEIVED: Oct. 09, 2012 TESTED: Oct. 22, 2012 ~ Jan. 05, 2013 ISSUED: Jan. 10, 2013 APPLICANT: Coretronic Corp. ADDRESS: No. 11, Li Hsing Rd, Science-Based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121009E03B-1 2 of 145 Report Format Version 5.1.0 Reference No.: 121009E03, 121205E05, 121217C05 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 4 1. CERTIFICATION .......................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 6 3. GENERAL INFORMATION .......................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................................. 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 10 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................................. 13 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 14 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................................... 14 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 15 4. TEST TYPES AND RESULTS ................................................................................................... 16 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................... 16 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT................................. 16 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............................ 16 4.1.3 TEST INSTRUMENTS ............................................................................................................... 17 4.1.4 TEST PROCEDURES ............................................................................................................... 18 4.1.5 DEVIATION FROM TEST STANDARD ..................................................................................... 18 4.1.6 TEST SETUP ............................................................................................................................. 19 4.1.7 EUT OPERATING CONDITION ................................................................................................ 19 4.1.8 TEST RESULTS ........................................................................................................................ 20 4.2 CONDUCTED EMISSION MEASUREMENT ..........................................................................106 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................................106 4.2.2 TEST INSTRUMENTS .............................................................................................................106 4.2.3 TEST PROCEDURES .............................................................................................................107 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................................107 4.2.5 TEST SETUP ...........................................................................................................................108 4.2.6 EUT OPERATING CONDITIONS ............................................................................................108 4.2.7 TEST RESULTS ......................................................................................................................109 4.3 PEAK TRANSMIT POWER MEASUREMENT…

Text truncated - open the document above for the full version.

Report No.: RF121009E03B-2 1 of 24 Report Format Version 5.0.0 Reference No.: 121226E01 DFS TEST REPORT REPORT NO.: RF121009E03B-2 MODEL NO.: WN6500RH FCC ID: SUZ-WN6500RHN RECEIVED: Oct. 09, 2012 TESTED: Jan. 10, 2013 ISSUED: Jan. 10, 2013 APPLICANT: Coretronic Corp. ADDRESS: No. 11, Li Hsing Rd, Science-Based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of t…

Text truncated - open the document above for the full version.
