SVM-ARIZA800SDigital Satellite Receiver

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ◎ Reorient or relocate the receiving antenna. ◎ Increase the separation between the equipment and receiver. ◎ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ◎ Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.

A/V SWITCH A/V SWITCH SMPS LNB DRIVING PARTS AUDIO DAC AUDIO DAC TU NER . ARIZA 800S’S BLOCK DIAGRAM 5518 (DEMUX & MPEG DECODER) VIDEO FILTER VIDEO FILTER R F - M O D U L CINCH&S-VHS(VIDEO& AUDIO Y/U/V&SPDIF) RS-232 PORT FRONT PARTS . 5518 PART . ARIZA 800S’S BLOCK DIAGRAM 5518 (DEMUX & MPEG DECODER) FLASH(16Mbit) EEPROM(32K) VCXO(27MHz) SDRAM(64Mbit)*2 PROTECTION PARTS ADDRESS BUS DATA BUS DATA BUS ADDRESS BUS .VIDEO & AUDIO OUTPUT etc ... . ARIZA 800S’S BLOCK DIAGRAM 5518 (DEMUX & MPEG DECODER) A/V SWITCH A/V SWITCH AUDIO DAC AUDIO DAC VIDEO FILTER VIDEO FILTER CINCH(VIDEO& AUDIO OUTPUT&Y/U/V) S-VIDEO R F M O D U L A T O R S/PDIF

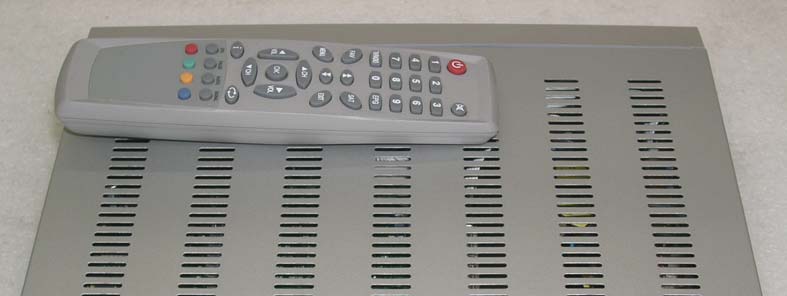

Appendix C. External Photographs Report no. ETLE060106.007, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Front side view of EUT Rear side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE060106.007Page 1 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Global Technologies Inc Digital Satellite Receiver FCC ID : SVM-ARIZA800S Model No : ARIZA 800S POWER : AC 90 – 250 V 50/60 Hz, Max. 20 W Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, Including interference that may cause undesired operation Manufacturer: Global Technologies Inc. Made in Korea Appendix A. FCC ID Label and Location Report no. ETLE060106.007Page 2 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE060106.007, Page 1 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE060106.007, Page 2 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of main board Appendix D. Internal Photographs Report no. ETLE060106.007, Page 3 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Solder side view of main board Appendix D. Internal Photographs Report no. ETLE060106.007, Page 4 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside view of LNB tuner Appendix D. Internal Photographs Report no. ETLE060106.007, Page 5 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of power board Appendix D. Internal Photographs Report no. ETLE060106.007, Page 6 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Solder side view of power board Appendix D. Internal Photographs Report no. ETLE060106.007, Page 7 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of front board Solder side view of front board Appendix D. Internal Photographs Report no. ETLE060106.007, Page 8 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of EUT of RF modulator Appendix D. Internal Photographs Report no. ETLE060106.007, Page 9 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view RF modulator View of front cover Appendix D. Internal Photographs Report no. ETLE060106.007, Page 10 of 10 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of bottom cover View of top cover

♣ Tuner / LNB Frequency Range 950~2150MHz Signal Level -65~-25dbm LNB power & Polarization Vertical : +13V Horizontal : 18V Crunnent : Max. 500mA 22KHz Tone Frequency : 22±1KHz Amplitude : 0.6±0.2V DiSEqC Control Version 1.3 Compatible Demodulation QPSK Symbol Rate 1~45Msps(SCPC,MCPC) Viterbi Decoding Rate 1/2, 2/3, 3/4, 5/6, 7/8 Reed solomon Decoding FEC : 204, 188 t=8 ♣MPEG Transport Stream & A/V Decoding Transport Stream MPEG-2 ISO/IEC 13818-1 Profile Level MPEG-2 MP@ML Input Stream Max. 90Mbit/s Aspect Ratio 4:3/16:9 Video Resolution 720X480 Audio Decoding MPEG layer I and II Audio Mode Single/Dual Channel,Stereo,Joint Stere o Sampling Frequency 16/22.05/24/32/44.01/48 KHz ♣ MPEG-2 Didital & Fully DVB-S Compatible ♣ 5Favorite CH.Group ♣ Powerful Channel Control by Favorites,Parental Lock,Move,Delete,Skip,Rename ♣ Channel Sorting by Favorite, FTA,Scramble,TV&Radio channel ♣ Fast Channel Change ♣ Power Scan,Manual PID Scan ,Statellite & TP Scan,Network Scan ♣ Multi-Sat Scan : Simultaneous Scan for 4 Satellites ♣ USALS and DiSEqC1.0&1.2 Compatible ♣ Timer Function (Automatic Turn On/Off by Setting Function) ♣ Automatic PAL/NTSC Conversion ♣ User Friendly EPG (Electronic Program Guide) ♣ 256 Colors (Graphic Use Interface) ♣ Full Picture in Graphic (PIG) ♣ Software upgrade via RS-232C (STB toSTB, PC to STB) ♣ Super Video Output,YPbPr out ♣ S/PDIF (For Digital Audio out) ♣ RF moudulator(NTSC 3/4 SWITCH) Operating Description (ARIZA 800S)

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. www.etl.re.kr E-RAE Testing Laboratory Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Digital Satellite Receiver, Model ARIZA 800S has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL/EMC Test Laboratory and has been shown to complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: TV interface device. I attest to the accuracy of data. All measurement here in was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 PRODUCT : Digital Satellite Receiver MODEL/TYPE NO : ARIZA 800S FCC ID : SVM-ARIZA800S APPLICANT / ADDRESS : Global Technologies Inc. 340-9, Yangpyeong-ri, Moga-myeon,Icheon-si Gyeonggi-do, 467-873 Korea. Attn : Sung-Jin, Kang / Assistant Manager MANUFACTURER : Same as applicant FCC CLASSIFICATION : HID : TV interface device FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : ARIZA TEST REPORT No. : ETLE060106.007 DATES OF TEST : January 11 - 23, 2006 REPORT ISSUE DATE : January 31, 2006 TEST LABORATORY : ETL Inc. (FCC Registration Number: 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel: 82-31- 885-0072 Fax: 82-31-885-0074 Report no. ETLE060106.007, Page 2 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission Test 5.3 Radiated Emission Test 5.4 Antenna Power Conduction Meaurement 5.5 Output Signal Level Measurement 5.6 Output Terminal Conducted Spurious Emission Measurement 5.7 Transfer Switch Measurement 6. Sample Calculation 7. List of test Equipment used for Measurements Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Manual Report no. ETLE060106.007, Page 3 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : Digital Satellite Receiver z Model Number : ARIZA 800S z FCC Identifier : SVM-ARIZA800S z S/N : N/A z Freq. Range : 61.25 MHz – 71.75 MHz z FCC Rule Part(s) : Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : TV Interface Device z RF Channels : Ch. 3 / Ch. 4 z Dates of Tests : January 11 - 23, 2006 z Place of Tests : ETL Inc. 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : 82-31- 885-0072 Fax : 82-31- 885-0074 z Test Report No. : ETLE060106.007 Applicant Name : Global Technologies Inc. Address : 340-9, Yangpyeong-ri, Moga-myeon,Icheon-si Gyeonggi-do, 467-873 Korea. Attention : Attn : Sung-Jin, Kang / Assistant Manager Report no. ETLE060106.007, Page 4 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the shielded anechoic chamber room and open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2001) was used in determining radiated and conducted emissions from the Global Technologies Inc / Digital Satellite Receiver / Model : ARIZA 800S Report no. ETLE060106.007, Page 5 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test(EUT) is the Global Technolo…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE060106.007, Page 1 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Radiated Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060106.007, Page 2 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060106.007, Page 3 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Antenna Power Conduction Measurement Test Setup Output Signal Level Measurement Test Setup Appendix B. Test Setup Photographs Report no. ETLE060106.007, Page 4 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Output Terminal Conducted Spurious Emission Measurement Test Setup Antenna Transfer Switch Measurement
