SVM-PANSAT250SMDigital Set-top Box

USER’S GUIDE 250SM DIGITAL SATELLITE RECEIVER Panarex Electronics SUN VALLEY, CALIFORNIA, U.S.A. PREFACE 1. OVERVIEW 1. WHAT IS THIS PRODUCT FOR? 2. WHAT FEATURE DOES THIS PRODUCT OFFER? 3. FOR YOUR SAFETY 4. PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE ENCLOSED 5. HOW TO USE THE REMOTE CONTROL KEY 6. FRONT PANEL 7. REAR PANEL 8. SIMPLE DIGITAL CONNECTION 9. ANALOGUE / DIGITAL CONNECTION 2. OPERATING 1. Start Up 2. Installation 3. Channel Edit 4. User Setup 5. System Setup 6. Channel List 7. Program Guide 8. Audio change 9. USB Memory Stick 10. Multi Pictures 11. Embedded 12. Recall the Favorite channel 13. Download Procedure between Receiver & PC 3. SPECIFICATION 4. TROUBLE SHOOTING 1. OVERVIEW 1. WHAT IS THIS PRODUCT FOR? This product is designed for using Digital Satellite and allows you to enjoy a lot of broadcasting whenever you want to watch it anytime. By simply pressing the button of the remote control unit, the vivid picture and life –like sound of digital broadcasting that your TV portrays through this product, allows you to watch whatever channel you wish of the digital broadcasting. Through this manual you will notice that the operation is easy to use. This manual will help you get the most from this product and guide you through Installation, channel selection and many other functions. In case you experience any difficulties to use this product, please consult the relevant section of this manual. From now on, enjoy digital broadcasting with digital satellite receiver!!! 2. WHAT FEATURE DOES THIS PRODUCT OFFER? 2.1 General Features ▪ 10days EPG (Electronic Program Guide) ▪ Full Compliant of MPEG-2 Digital & DVB broadcasting ▪ 950-2, 150 MHz input Frequency (IF Loop Throughout) ▪ Variable Input Symbol Rate (1-45Msps) ▪ Multi Language OSD ▪ Automatic PAL/NTSC Conversion ▪ Fast Channel Change ▪ 5,000 Channel TV & Radio Program ▪ Flexible reception of SCPC & MCPC from C/Ku-Band Satellites ▪ S/PDIF (Digital Audio or Dolby AC3 Stream out) ▪ Timer Function (Automatic Turn On/Off by Setting Function) ▪ 256 Colors (Graphic Use Interface) Number ▪ PIG (Picture In Graphic) ▪ 5 Favorite List & 100 programs per each ▪ Powerful Channel Editing Function - Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock - Move, Delete, Favorite Edit - Parental Lock, Channel Rename, Channel Skip ▪ Manual PID/Satellite & TP/Network Scan ▪ Blind Scan ▪ Satellite Scan – Simultaneous Scan with various Satellites ▪ DiSEqC 1.2 & USALS Compatible ▪ Comparable of Setting the Frequency for SMATV System ▪ Software Upgrade via USB Memory Stick or RS232C (Receiver to Receiver, PC to Receiver) ▪ UHF- Ready ▪ S-VHS Out ▪ Universal Remote Control 2.2 Additional Features ▪ RTC (Real Time Clock) ▪ Component Out (YPbPr) ▪ Integrated USB2.0 (Host), Support to USB Memory Stick ▪ Multi pictures (Max. 16) 2.3 Conditional Access ▪ Conditional Access – Conax CAS Embedded 3. FOR YOUR SAFETY ▪ Do not open the cover. It may cause malfunction or electric shock. ▪ When you do not use the product for a long time, please pull the power cord out from the outlet. Also do not use a damaged power cord that may cause fire or electric shock. ▪ Do not use install the product in a humid area. ▪ Do not cover the product or place anything heavy on the product, Keep clear space around the product for sufficient ventilation. ▪ Avoid using spray or liquid materials around the product. Don’t make other materials come into the inside the product. ▪ Do not connect to modify cables when the product is plugged in. ▪ Socket-outlet shall be installed near the equipment and shall be easily accessible. ▪ Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the apparatus. 4 PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE ENCLOSED ▪ User manual 1 set ▪ Remote Control Unit 1 Set ▪ Batteries (AAA Type) 2EA Note ! If any of the accessories listed above are missing, Please contact the sales outlet where this product was initially purchased. 5. HOW TO USE THE REMOTE CONTROL KEY Key Function Turns this receiver on/off. In the standby mode, it is automatically changed to TV mode that enables to watch terrestrial TV broadcasting. TV/SAT Toggles between TV & SAT TV/VCR Toggles between TV & VCR TIME Time shows current Time Sounds Off/On Shows channel information, such as channel number, channel name, Frequency, Polarity, INFO Symbol Rate, Video PID, Audio PID and PCR PID EPG Shows program information Toggles between the TV service and radio TV/RADIO service PAUSE Holds the picture or release the pause SIG Shows signal quality Selects audio mode (Stereo, left only and right only). AUDIO Select language in case of Multilingual program. MENU Enters main menu screen. Or exits menu screen EXIT Moves to upper menu CH ▲▼ Channel up/down Moves the cursor upward/downward in the menu screen OK Shows Channel list. Confirms selection VOL Volume down/up Change the value of a selected line LAST Returns to previous program Enter favorite program or Exit from Favorite FAV program Changes channel directly. Controls the numerical operation. 0~9 Input the alphabet in the name edit screen Execute page down function in the menu Execute page up function in the menu SAT Classifies satellite by satellite ??? ??? TTX Teletext SUB Subtitle Operating Principle ▪ Select an item by using up and down key and change the value of the highlighted (selected) item by using keys shown on the screen. Press OK to enter to the sub-menu if there is no instruction marks on the screen. ▪ The items is automatically stored and moved the upper menu by pressing the ‘EXIT’ key ▪ You can return to normal mode at any time by pressing the menu key from the menu mode 6. FRONT PANEL 1. POWER To put Power in and out of standby mode. 2. VOLUME To make volume up and down. 3. CHANNEL To move up and down in the menus, To change channels. 4. Menu To enter main menu screen. 5. Exit To move to upper menu. 6. Select To enter selected menu screen. 7. Di…

Text truncated - open the document above for the full version.

A/V SWITCH A/V SWITCH SMPS LNB DRIVING PARTS AUDIO DAC AUDIO DAC TU NER . PANSAT 250SM BLOCK DIAGRAM VIRGO-SE (DEMUX & MPEG DECODER) VIDEO FILTER VIDEO FILTER R F - M O D U L CINCH(VIDEO& AUDIO Y,Pb,Pr OUTPUT) RS-232 PORT FRONT PARTS UHF& SPDIF SMART CARD INTERFACE USB INTERFACE S-VIDEO . VIRGO-SE PART . PANSAT’S BLOCK DIAGRAM VIRGO-SE (DEMUX & MPEG DECODER) FLASH(64Mbit) EEPROM(256K) X-TAL(60MHz) SDRAM(256Mbit) VCXO(27MHz) .VIDEO & AUDIO OUTPUT etc ... . PANSAT 250SM BLOCK DIAGRAM VIRGO-SE (DEMUX & MPEG DECODER) A/V SWITCH A/V SWITCH AUDIO DAC AUDIO DAC VIDEO FILTER VIDEO FILTER CINCH(VIDEO& AUDIO OUTPUT&Y,Pb,Pr) S-VIDEO UHF &OPTICAL MODULE R F M O D U L A T O R

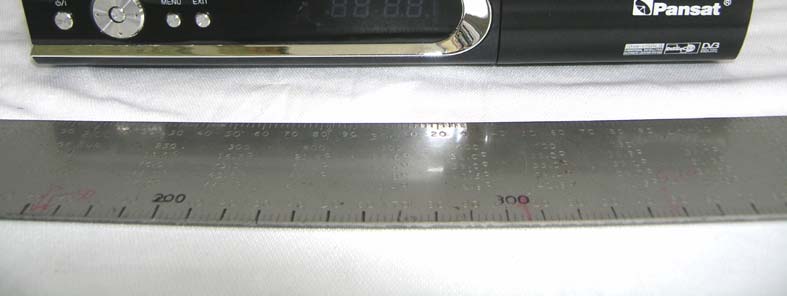

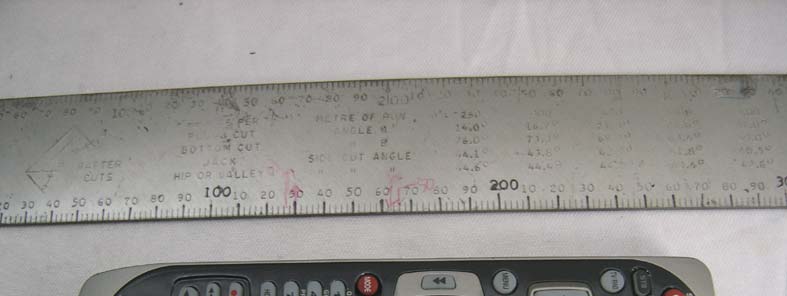

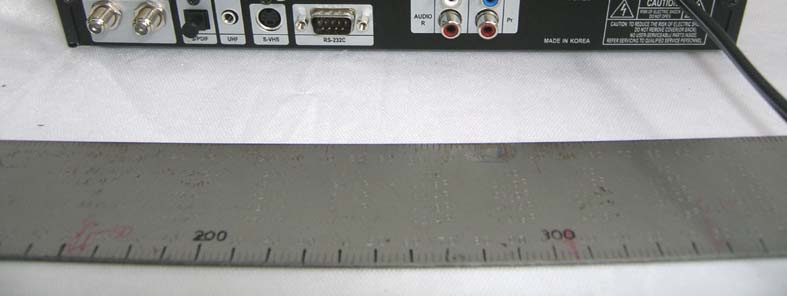

Appendix C. External Photographs Report no. ETLE061227.596, Page 1 of 2 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Front side view of EUT Rear side view of EUT Appendix C. External Photographs Report no. ETLE061227.596, Page 2 of 2 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of Remote control unit

Appendix A. FCC ID Label and Location Report no. ETLE061227.596Page 1 of 1 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Global Technologies Inc. Digital Set-top Box FCC ID : SVM-PANSAT250SM Model No : PANSAT 250SM POWER : AC 90-250 V, 50/60 Hz/ Max 20 W Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, Including interference that may cause undesired operation Manufacturer: Global Technologies Inc. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE061227.596, Page 1 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE061227.596, Page 2 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of main board Appendix D. Internal Photographs Report no. ETLE061227.596, Page 3 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE061227.596, Page 4 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Inside view of LNB tuner (Top) Appendix D. Internal Photographs Report no. ETLE061227.596, Page 5 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Inside view of LNB tuner (Bottom) Appendix D. Internal Photographs Report no. ETLE061227.596, Page 6 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Inside view of RF (Top) Appendix D. Internal Photographs Report no. ETLE061227.596, Page 7 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Inside view of RF (Bottom) Appendix D. Internal Photographs Report no. ETLE061227.596, Page 8 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of power board Appendix D. Internal Photographs Report no. ETLE061227.596, Page 9 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of power board Appendix D. Internal Photographs Report no. ETLE061227.596, Page 10 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of front board Bottom side view of front board Appendix D. Internal Photographs Report no. ETLE061227.596, Page 11 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of smart card Bottom side view of smart card Appendix D. Internal Photographs Report no. ETLE061227.596, Page 12 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of USB interface board Bottom side view of USB interface board Appendix D. Internal Photographs Report no. ETLE061227.596, Page 13 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View RF modulator View of front cover Appendix D. Internal Photographs Report no. ETLE061227.596, Page 14 of 14 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of bottom cover View of top cover

Operational Description Operational Description Operational Description Operational Description Operational Description Operational Description Specification

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. www.etl.re.kr E-RAE Testing Laboratory Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Digital Set-top Box, Model PANSAT 250SM has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: TV interface device. I attest to the accuracy of data. All measurement here in was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : Digital Set-top Box MODEL/TYPE NO : PANSAT 250SM FCC ID : SVM-PANSAT250SM APPLICANT / ADDRESS : Global Technologies Inc. 340-9,Yangpyeong-ri, Moga-myeon, Icheon-si, Gyeonggi-do 467-873 South Korea Attn : Heo, Jin-Sik / Manager MANUFACTURER 1 : Global Technologies Inc. 340-9,Yangpyeong-ri, Moga-myeon, Icheon-si, Gyeonggi-do 467-873 South Korea MANUFACTURER 2 : Hyundai Digital Technology(Shenzhen) Co., Ltd. HDTCN, Ind. Park, Potouxia Village Kukeng, Guanlan Town, Bao’an District, Shenzhen City, China, PRC FCC CLASSIFICATION : HID : TV interface device FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : GLOBALTEQ, PANSAT TEST REPORT No. : ETLE061227.596 DATES OF TEST : December 27, 2006 to January 17, 2007 REPORT ISSUE DATE : January 19, 2007 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE061227.596, Page 2 of 23 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission Test 5.3 Radiated Emission Test 5.4 Antenna Power Conduction Meaurement 5.5 Output Signal Level Measurement 5.6 Output Terminal Conducted Spurious Emission Measurement 5.7 Transfer Switch Measurement 6. Sample Calculation 7. List of test Equipment used for Measurements Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Manual Report no. ETLE061227.596, Page 3 of 23 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : Digital Set-top Box z Model Number : PANSAT 250SM z FCC Identifier : SVM-PANSAT250SM z S/N : N/A z FCC Rule Part(s) : Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : TV Interface Device z RF Channels : Ch. 3 / Ch. 4 z Dates of Tests : December 27, 2006 to January 17, 2007 z Place of Tests : ETL Inc. Testing Lab. (FCC Registration Number : 95422) Radiated Emission test; #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Conducted Emission test; ETL Inc. Testing Lab. (FCC Registration Number : 95422) 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE061227.596 Applicant Name : Global Technologies Inc. Address : 340-9, Yangpyeong-ri, Moga-myeon,Icheon-si Gyeonggi-do, 467-873 Korea. Attention : Heo, Jin-Sik / Manager Report no. ETLE061227.596, Page 4 of 23 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Global Technologies Inc. / Digital Set-top Box / Model : PANSAT 250SM Report no. ETLE061227.596, Page 5 of 23 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test(EUT) is the Global Technologies Inc ./ Digital Set-top Box / Model : PANSAT 250SM 2.2 General…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE061227.596, Page 1 of 4 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE061227.596, Page 2 of 4 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE061227.596, Page 3 of 4 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Antenna Power Conduction Measurement Test Setup Output Signal Level Measurement Test Setup Appendix B. Test Setup Photographs Report no. ETLE061227.596, Page 4 of 4 Head office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab. : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Output Terminal Conducted Spurious Emission Measurement Test Setup Antenna Transfer Switch Measurement
