SVNDH-IPC-TX6ECONSUMER CAMERA

Zhejiang Dahua Vision Technology Co., Ltd To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Zhejiang Dahua Vision Technology Co., Ltd No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Hangzhou, 310052, China Regarding: Confidentiality Request regarding application for FCC ID : SVNDH-IPC-TX6E LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code) Yolanda.chen Title: Senior Certification engineer Company Name: Zhejiang Dahua Vision Technology Co., Ltd.

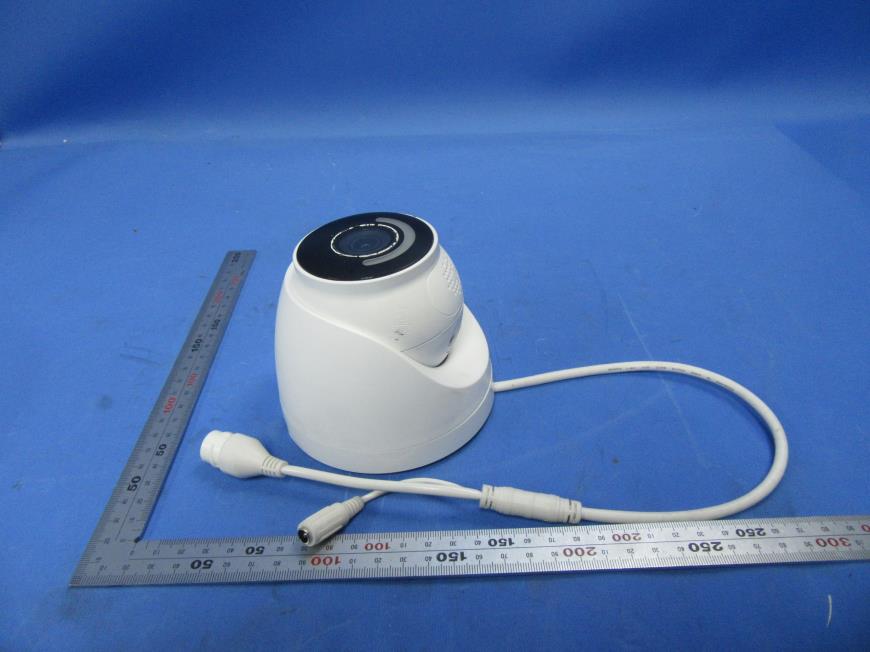

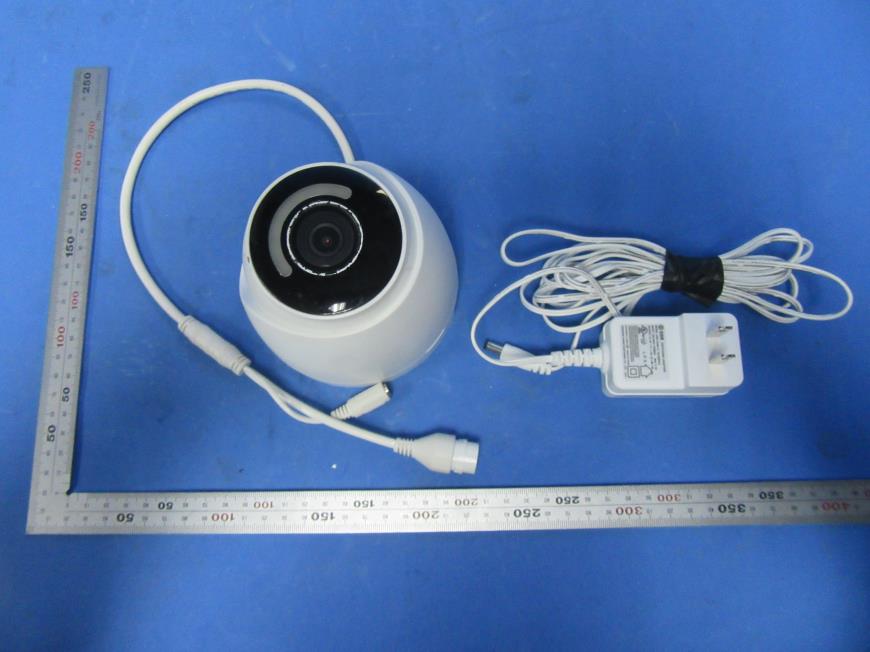

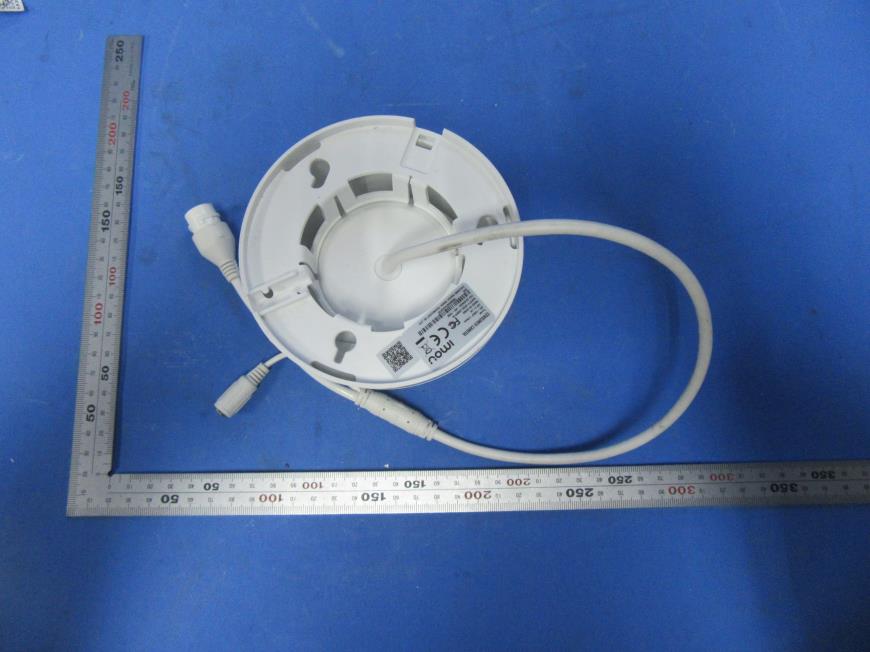

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 6 Page 1 of 6 External Photos Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): Product Name: CONSUMER CAMERA Model No.: IPC-T26EP SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 6 Page 2 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 6 Page 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 6 Page 6 of 6 End

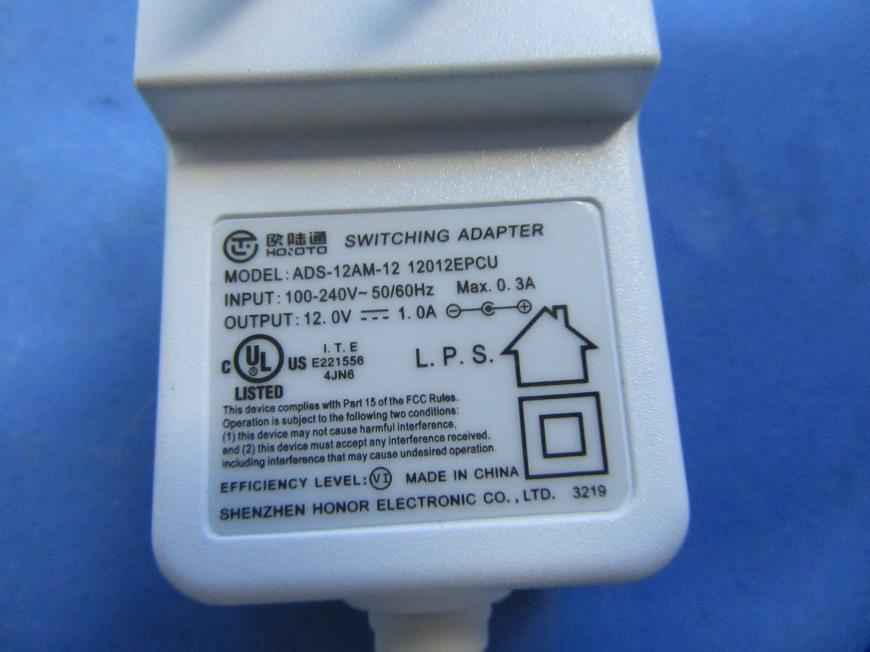

Label location FCC Warning

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 9 Page 1 of 9 Internal Photos Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): Product Name: CONSUMER CAMERA Model No.: IPC-T26EP SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 9 Page 2 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 9 Page 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 9 Page 4 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 9 Page 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 9 Page 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 9 Page 7 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 9 Page 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 9 Page 9 of 9 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101914602 Page: 1 of 7 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM1911019146CR FCC ID: SVNDH-IPC-TX6E Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Manufacturer: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Manufacturer: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): EUT Name: CONSUMER CAMERA Model No.: IPC-T26EP Add Model No.: IPC-T26EN; IPC-T26EP-imou; IPC-T26EN-imou; IPC-T26E Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2019-11-25 Date of Test: 2019-11-26 to 2019-12-05 Date of Issue: 2019-12-06 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101914602 Page: 2 of 7 Revision Record Version Description Date Remark 00 Original 2019-12-06 / Authorized for issue by: Vincent Zhu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM181000947201 Page: 3 of 7 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION ........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY ......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 5 MEASUREMENT AND CALCULATION ..................................................................................................... 6 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 6 5.2 MPE CALCULATION ................................................................................................................................. 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM181000947201 Page: 4 of 7 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V by adapter Adapter: Model:ADS-12AM-12 12012EPCU Input:100-240V~50/60Hz Max 0.3A Output:DC 12V 1A Test voltage: AC120V 60Hz Cable: DC Cable 1.5m for adapter 3.2 Technical Specifications Antenna Gain Antenna1: 2.84dBi Antenna2: 2.84dBi MIMO:5.85 dBi Antenna Type Antenna1: Integral Antenna Antenna2: Integral Antenna Channel Spacing 5MHz Modulation Type 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM181000947201 Page: 5 of 7 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (Certificate No. 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National Voluntary Laboratory Accreditation Program(NVLAP). Certificate No. 201034-0. • FCC –Designation Number: CN5033 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. Designation Number: CN5033. Test Firm Registration Number: 479755. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has been recognized by ISED as an accredited testing laboratory. IC Registration No.: 8617A-1. CAB Identifier: CN0020. • VCCI (Member No.: 3061) The 3m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services (Shangh…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM191101914602 1.6dB Bandwidth Test Mode Test Channel EBW[MHz] Limit Verdict Ant1 Ant2 11B 2412 10.07 10.07 0.5 PASS 11B 2437 10.07 10.07 0.5 PASS 11B 2462 10.07 10.06 0.5 PASS 11G 2412 16.54 16.55 0.5 PASS 11G 2437 16.55 16.55 0.5 PASS 11G 2462 16.54 16.52 0.5 PASS 11N20SISO 2412 17.68 17.72 0.5 PASS 11N20SISO 2437 17.68 17.68 0.5 PASS 11N20SISO 2462 17.72 17.71 0.5 PASS 11N40SISO 2422 36.40 36.38 0.5 PASS 11N40SISO 2437 36.40 36.38 0.5 PASS 11N40SISO 2452 36.37 36.37 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant2 6dB Bandwidth_11B_2437_Ant2 6dB Bandwidth_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant2 6dB Bandwidth_11G_2437_Ant2 6dB Bandwidth_11G_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant2 6dB Bandwidth_11N20SISO_2437_Ant2 6dB Bandwidth_11N20SISO_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant2 6dB Bandwidth_11N40SISO_2437_Ant2 6dB Bandwidth_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test Mode Test Channel OBW[MHz] Limit[MHz] Verdict Ant1 Ant2 11B 2412 14.95 14.95 --- PASS 11B 2437 14.94 14.94 --- PASS 11B 2462 14.95 14.96 --- PASS 11G 2412 16.79 16.79 --- PASS 11G 2437 16.79 16.82 --- PASS 11G 2462 16.82 16.80 --- PASS 11N20SISO 2412 17.88 17.86 --- PASS 11N20SISO 2437 17.86 17.85 --- PASS 11N20SISO 2462 17.88 17.86 --- PASS 11N40SISO 2422 36.06 36.05 --- PASS 11N40SISO 2437 36.04 36.05 --- PASS 11N40SISO 2452 36.03 36.03 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412_Ant1 Occupied Bandwidth_11B_2437_Ant1 Occupied Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412_Ant1 Occupied Bandwidth_11G_2437_Ant1 Occupied Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412_Ant1 Occupied Bandwidth_11N20SISO_2437_Ant1 Occupied Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422_Ant1 Occupied Bandwidth_11N40SISO_2437_Ant1 Occupied Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412_Ant2 Occupied Bandwidth_11B_2437_Ant2 Occupied Bandwidth_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412_Ant2 Occupied Bandwidth_11G_2437_Ant2 Occupied Bandwidth_11G_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412_Ant2 Occupied Bandwidth_11N20SISO_2437_Ant2 Occupied Bandwidth_11N20SISO_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422_Ant2 Occupied Bandwidth_11N40SISO_2437_Ant2 Occupied Bandwidth_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict Ant1 Ant2 Ant1 Ant2 Ant1 Ant2 MIMO 11B 2412 15.42 13.85 0.00 0.00 15.42 13.85 NA 30 PASS 11B 2437 15.31 13.57 0.00 0.00 15.31 13.57 NA 30 PASS 11B 2462 14.3 12.49 0.00 0.00 14.3 12.49 NA 30 PASS 11G 2412 15.07 15.04 0.00 0.00 15.07 15.04 NA 30 PASS 11G 2437 14.98 14.67 0.00 0.00 14.98 14.67 NA 30 PASS 11G 2462 14.01 13.57 0.00 0.00 14.01 13.57 NA 30 PASS 11N20MIMO 2412 14.24 14.4 0.00 0.00 14.24 14.4 17.33 30 PASS 11N20MIMO 2437 14.05 13.84 0.00 0.00 14.05 13.84 16.96 30 PASS 11N20MIMO 2462 13.13 12.68 0.00 0.00 13.13 12.68 15.92 30 PASS 11N40MIMO 2422 14.54 14.44 0.00 0.00 14.54 14.44 17.50 30 PASS 11N40MIMO 2437 14.32 14.00 0.00 0.00 14.32 14.00 17.17 30 PASS 11N40MIMO 2452 13.82 13.41 0.00 0.00 13.82 13.41 16.63 30 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20MIMO_2412_Ant1 Maximum conducted (average) output power_11N20MIMO_2437_Ant1 Maximum conducted (average) output power_11N20MIMO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N40MIMO_2422_Ant1 Maximum conducted (average) output power_11N40MIMO_2437_Ant1 Maximum conducted (average) output power_11N40MIMO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant2 Maximum conducted (average) output power_11B_2437_Ant2 Maximum conducted (average) output power_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant2 Maximum conducted (average) outpu…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11B_2462_Ant2 Band-edge for RF Conducted Emissions_11G_2412_Ant2 Band-edge for RF Conducted Emissions_11G_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11N20SISO_2412_Ant2 Band-edge for RF Conducted Emissions_11N20SISO_2462_Ant2 Band-edge for RF Conducted Emissions_11N40SISO_2422_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6.RF Conducted Spurious Emissions Test Mode Test Channel StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict Ant1 Ant2 Ant1 Ant2 Ant1 Ant2 11B 2412 30 10000 100 300 5.53 4.09 -49.91 -54.49 <- 24.47 <- 25.91 PASS 11B 2412 10000 26000 100 300 5.534 4.088 -43.910 -44.375 <- 24.466 <- 25.912 PASS 11B 2437 30 10000 100 300 5.47 3.73 -48.93 -53.55 <- 24.53 <- 26.27 PASS 11B 2437 10000 26000 100 300 5.472 3.732 -44.749 -44.351 <- 24.528 <- 26.268 PASS 11B 2462 30 10000 100 300 4.47 2.68 -49.28 -53.60 <- 25.54 <- 27.32 PASS 11B 2462 10000 26000 100 300 4.465 2.681 -43.695 -44.416 <- 25.535 <- 27.319 PASS 11G 2412 30 10000 100 300 0.59 0.91 -50.84 -54.94 <- 29.42 <- 29.09 PASS 11G 2412 10000 26000 100 300 0.585 0.91 -44.396 -43.797 <- 29.415 <- 29.09 PASS 11G 2437 30 10000 100 300 0.79 0.62 -48.95 -54.31 <- 29.21 <- 29.38 PASS 11G 2437 10000 26000 100 300 0.793 0.616 -44.835 -45.015 <- 29.207 <- 29.384 PASS 11G 2462 30 10000 100 300 -0.05 -0.45 -49.34 -53.58 <- 30.05 <- 30.45 PASS 11G 2462 10000 26000 100 300 -0.047 -0.452 -44.374 -43.833 <- 30.047 <- 30.452 PASS 11N20SISO 2412 30 10000 100 300 0.27 0.61 -49.86 -54.26 <- 29.74 <- 29.40 PASS 11N20SISO 2412 10000 26000 100 300 0.265 0.605 -44.737 -44.001 <- 29.735 <- 29.395 PASS 11N20SISO 2437 30 10000 100 300 0.27 0.02 -51.06 -54.04 <- 29.73 <- 29.98 PASS 11N20SISO 2437 10000 26000 100 300 0.268 0.016 -44.061 -44.620 <- 29.732 <- 29.984 PASS 11N20SISO 2462 30 10000 100 300 -0.54 -0.91 -48.20 -54.12 <- 30.54 <- 30.91 PASS 11N20SISO 2462 10000 26000 100 300 -0.542 -0.907 -43.864 -44.679 <- 30.542 <- 30.907 PASS 11N40SISO 2422 30 10000 100 300 -2.54 -2.79 -51.58 -53.97 <- 32.54 <- 32.79 PASS 11N40SISO 2422 10000 26000 100 300 -2.541 -2.793 -44.276 -44.492 <- 32.541 <- 32.793 PASS 11N40SISO 2437 30 10000 100 300 -2.62 -3.19 -50.94 -54.13 <- 32.62 <- 33.19 PASS 11N40SISO 2437 10000 26000 100 300 -2.622 -3.185 -44.468 -44.206 <- 32.622 <- 33.185 PASS 11N40SISO 2452 30 10000 100 300 -3.27 -3.36 -51.79 -53.14 <- 33.27 <- 33.36 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 11N40SISO 2452 10000 26000 100 300 -3.265 -3.359 -44.431 -43.291 <- 33.265 <- 33.359 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11B_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11B_2437_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11G_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11G_2437_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2437_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N40SISO_2422_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2437_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11B_2412_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11B_2437_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11G_2412_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11G_2437_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11G_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2412_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2437_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N40SISO_2422_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N20SISO_2437_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch RF Conducted Spurious Emissions_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 7.Duty Cycle Test Mode Test Channel Duty Cycle[%] 10log(1/x) Factor[dB] Ant1 Ant2 Ant1 Ant2 11B 2412 100.00 100.00 0.00 0.00 11B 2437 100.00 100.00 0.00 0.00 11B 2462 100.00 100.00 0.00 0.00 11G 2412 100.00 100.00 0.00 0.00 11G 2437 100.00 100.00 0.00 0.00 11G 2462 100.00 100.00 0.00 0.00 11N20SISO 2412 100.00 100.00 0.00 0.00 11N20SISO 2437 100.00 100.00 0.00 0.00 11N20SISO 2462 100.00 …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101914601 Page: 1 of 59 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM1911019146CR FCC ID: SVNDH-IPC-TX6E Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Manufacturer: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Manufacturer: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): EUT Name: CONSUMER CAMERA Model No.: IPC-T26EP; IPC-T26EN; IPC-T26EP-imou; IPC-T26EN-imou; IPC-T26E; ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2019-11-25 Date of Test: 2019-11-26 to 2019-12-05 Date of Issue: 2019-12-06 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101914601 Page: 2 of 59 Revision Record Version Description Date Remark 00 Original 2019-12-06 / Authorized for issue by: Vincent Zhu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101914601 Page: 3 of 59 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Custome r Declarati on Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Note: Declaration of EUT Family Grouping: There are series models mentioned in this report and they are the similar in electrical and electronic characters. Only the model IPC-T26EP was tested since their differences are model number, trade name and appearance. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101914601 Page: 4 of 59 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY ....................................................................................................................................... 7 4.7 DEVIATION FROM STANDARDS ................................................................................................................ 7 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 7 5 EQUIPMENT LIST ....................................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................... 9 6.1 ANTENNA REQUIREMENT ........................................................................................................................ 9 7 RADIO SPECTRUM…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 Test Setup Photos-FCC Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): Product Name: CONSUMER CAMERA Model No.: IPC-T26EP SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................. 3 2.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup ......... 3 2.2 RF Conducted Test Setup ................................................................................. 3 2.3 Spurious emissions ........................................................................................... 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 2.2 RF Conducted Test Setup SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 2.3 Spurious emissions 30MHz-1GHz Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 Zoom: End
