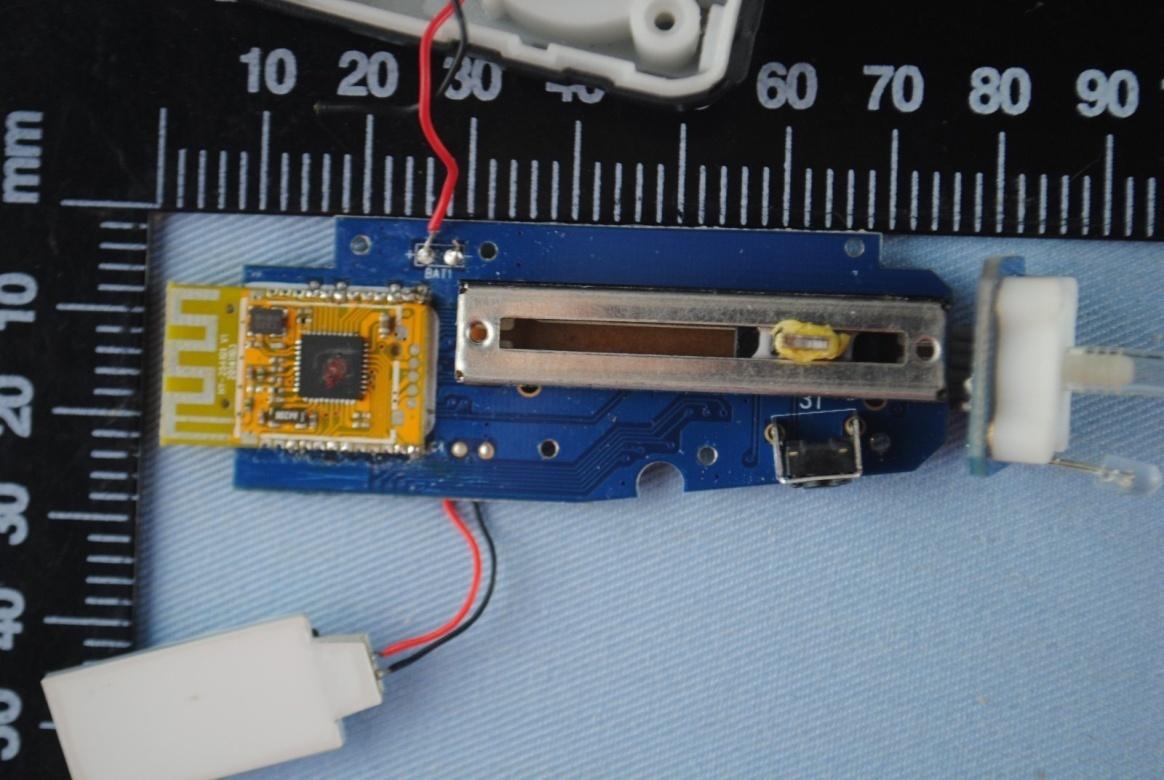

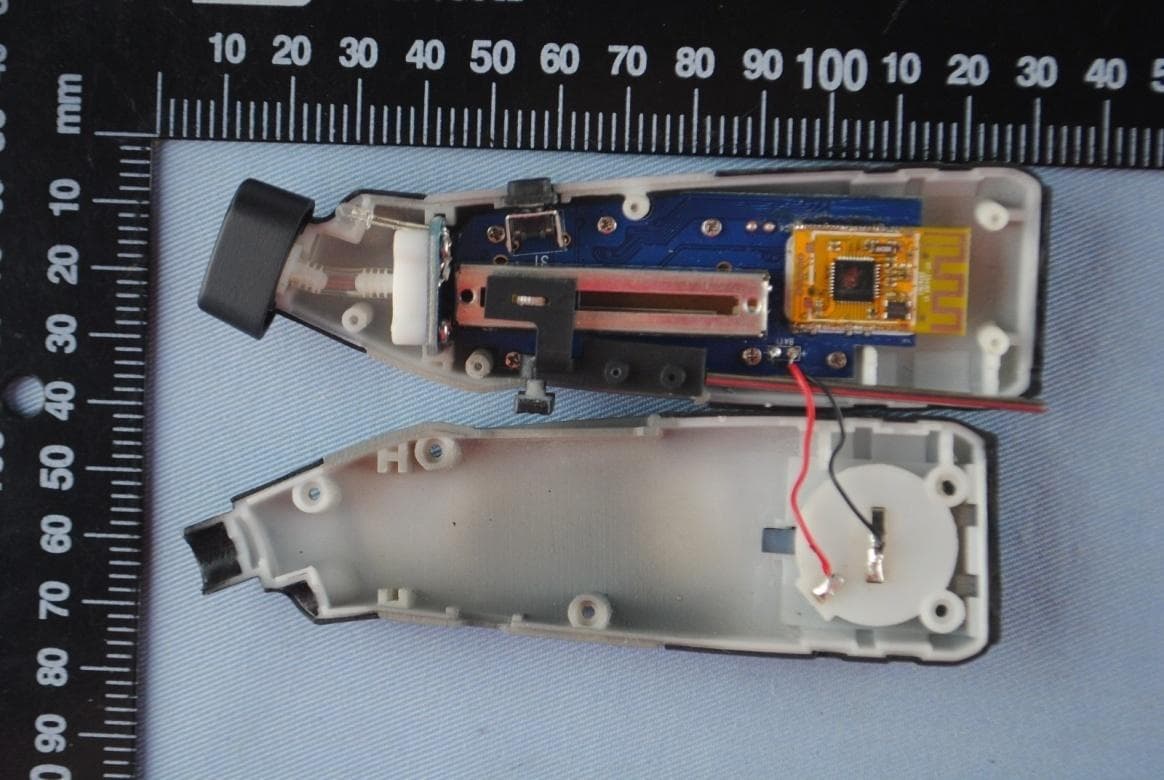

SWTTG-510Tire Pressure/Tread Depth gauge with Bluetooth

PRODUCT RND PLANNING TG-510 TIRE GAUGE/THRED DEPTH WITH BLUETOOTH A：FUNCTION 1: Blue Tooth 4.0 equipment 2: Tire Pressure Gauge, and conversion setting. 3: Tread Depth Measurement, and conversion setting. 4: 4 tires ,and conversion setting. 5: LCD white backlight remind function 6: LED flashlight lighting function 7: Low Battery Indication function 8: Auto off 9: User thread zero correction(additional functions) B: Measurement Range and Accuracy 1: Tire Pressure Measurement Range: 3PSI-150PSI 2: Tire Pressure Measurement Accuracy: ±1 PSI 3: Tire Gauge Unit: PSI、KPA、BAR、KG/CM 2 4: Tread Depth Measurement Range: 0 mm—25mm 5: Tread Depth Accuracy: ±2 mm 6: Tread Depth Unit: MM, Inch 7: Compatible for Blue Tooth 4.0 8: Operation Environment Temperature Range: 0°C—50°C 9: Storage Temperature Range: -10°C—60°C C: LCD Size: 13.5*25.8mm(By the structure determination) D: LCD Content 1: Blue Tooth Icon 2: Tread Depth Icon 3: Tire Pressure Icon 4: Low Battery Icon 5: Left Front Tire Icon 6: Right Front Tire Icon 7: Left Rear Tire Icon 8: Right Rear Tire Icon 9: Tire Pressure BAR Unit Icon 10: Tread Depth INCH Unit Icon 11: Tire Pressure KPA Unit Icon 12: Tread Depth MM Unit Icon 13: Tire Pressure PSI Unit Icon 14: Tire Pressure KG/CM 2 Unit Icon 15: Tire Pressure/Thread Depth Measuring Data E: Buttons 1: key Tire Pressure / Tread measurement mode conversion key; long press for more than 3 seconds is shutdown button; Confirmation Key during setting process. 2: key: Flashlight On/Off Key. 3: key: Tire selection buttons; Press 3 seconds or more is unit setting button. F: Operating Guide 1: On/Off When power off, press button once, turn on the product; Press button more than 3s, the product automatically shut down. When power on, LCD full display for one second, When turned on, after 90 seconds if no operation is automatically forced shutdown, enter a low-power, to protect the battery saving. 2: Bluetooth coding When power on, the product automatically to code for Bluetooth connectivity, Bluetooth icon flashing prompt; if not connect successfully, no Bluetooth icon is displayed; if the connection is successful, the Bluetooth icon lights long. 3: Tire / Tread conversion When power on, press key once, automatically convert between tire pressure measurement mode or tread measurement mode , while the corresponding icon lights. 4 Tire Pressure/Tread Measurement Operation: A: After power on, press key to select tire pressure measurement mode, measure them directly, LCD displays the corresponding tire pressure value and locks the reading after measuring successful,. B: If a Bluetooth connection is successful, it automatically uploads data in 2 seconds. Then uploads data every 3 seconds if no other operations done. 5: Tire Tread Measurement A: After power on, press key to select tire tread measurement mode. If LCD shows”—“,please move the slider to 0mm to unlock, then start tire tread measuring. B: Under tire pressure tread measurement, LCD shows the corresponding tire tread depth directly. Display no change after 2 seconds means measurement succeed, reading locks for convenient view. To take another measurement, please move the slider to 0mm for unlocking and measuring again. C: If a Bluetooth connection is successful, it automatically uploads data in 2 seconds. Then uploads data every 3 seconds if no other operations done. D: Remark: To avoid moving the slider accidently and data sent faulty. Unlock function is added. 6: Tire Selection When power on, press key for 1 time, the measurement converts automatically in left front tire the right front tire the left rear tire ,the right rear tire on after another, the corresponding icon lights up. 7: Measuring unit conversion A: When power on, press key 3 seconds above, the product automatically set the units under tire pressure measurement mode .When one of the four unit icons blinks, press once, pops out in order, press to set the unit you need, B: Under Tire Depth Tread Mode , one of the two unit icons blinks, press once, pop out in order; C: Press to set the unit you need D: Remark: The initial units are set PSI and MM. 8: Flashlight On/Off When power on, press the key, LED flashlight is on for lighting. Press again, LED is Off. Flashlight shuts off automatically after 60 seconds for low-power, battery saving.. 9: Backlight LED When power on, LCD backlight will turn on automatically; or when an operation, LCD backlight turns on automatically as well. If no operation in 8 seconds, backlight turns off into the low-power, to protect the battery saving automatically. 10: Low Battery Indication: When the product is in low power, low power icon long lights, please replace the battery. 11: Tire Depth Tread Zero Calibration The long-term use, all mechanical fatigue or other reasons, it is possible to cause measured tread depth of non return to zero, This function is for users self correction: Shutdown, long press the button for more than 5 seconds, LCD 0.0 flicker, sliding products measured tread rod on a platform surface measured tread depth (plane, normal should be a value of 0) and after operation OK, please press the button to confirm. Automatically save exit after confirmation Bluetooth Data Structure After a measurement is made data will be sent via Bluetooth in the correct UUID below. After 3 seconds the measurement will be sent again to ensure the app got the data. 1. The data can be picked up by looking up the following UUID: a. a32bdfa7-9952-4e54-8d5b-44b7be5fbba5 2. The data will be only 7 Bytes in ASCII format, and is broken down as follow: 3. Unit of measurement: a. BAR byte 1 shows as 42 hex for tire pressure measurement b. Inch byte 1 shows as 49 hex for thread depth measurement c. KPA byte 1 shows as 4B hex for pressure measurement d. mm byte 1 shows as 4D hex for thread depth measurement e. PSI byte 1 shows as 50 hex for tire pressure measurement f. Kg/cm2 byte 1 shows as 6B hex for tire pressure measurement 4. LCD Digit 1, 2, 3, 4 shows on Byte 2, 3, …
