SWUDE-600SRF Card Reader

DE-600S (RF CARD READER) User ́s Manual DUALi INC. Made in KOREA Table of Contents 1. Specifications 2. Overview 3. Product Contents 4. Installation5. Operation 6. Dimension and Characteristic7. Technical Support ( Document Number : EP13-04-001) USB 2.0(1.1) Host Communication ISO 14443 Type-A (Include MIFARE) and Type-B, ISO 7816 Contact Card or SIM Type Compatible Card 65 ☓ 100 ☓ 40(mm) Size 0ﾟC 〜 50ﾟC Operating Environment USB Power (DC 5V), Max 200mA Power Consumption 13.56Mhz Frequency Inside 10 cm Read Range AVR Atmega128 CPU 1. Specifications 2. Overview 1.1 DE-600S- Support read / wr ite the ISO14443 Type A & B RF-Card, Mifare Card Protocol. - Host Communication : USB1.2 Caution - Do not expose to t he hot temperature, hot sunny, wet condition. - Fragile on the shake, outside damage.- Sensitive to the i nstalled environment, do not expose in the iron metal around the reader, it shoul d cause the fatal defection 3. Product Contents READER USB CABLE 4. Installation - USB communicat ion : Download USB Driver from www.duali.com - Provided communication protocol: STX(02h) + Length high + Length low + Command or Response Code + Data + LRC - Sample working test program- Ask to the Service provider ( Program provider ) for more command and function protocol USB CABLE PC 5. Operation - You can test it wit h Duali test program to read / write on the specific card. - You can develop many different program such as Access, t ime & attendance, card issuing, PC security with the provided Duali D LL and Protocol. - Functions.* Mifare card Read/Write* ISO 14443 A-Type Card Read/Write * ISO 14443 B-Type Card Read/Write * ISO 7816 T=0 (Con tact or SIM Type) * Buzzer On/Off* LED On/Off 6. Dimension an d Characteristic 5.1 Dimension 65mm 100mm 40mm Antenna Power LED USB connector 5.2 Characteristic - Operation Temperature : 0°C 〜 60°C- Input Volatge : DC 5V (USB)- Card Reading Rang e : Inside 10 Cm 7. Technical Support - Address : Room 505 Samsung Technopark, #471 Wonchen, Youngtong, Suwon, Gyeonggi 443380, Korea. - URL : www.duali.com - Tel : +82-31-213-0074 ! Changes or mod ifications not expressly approv ed by the party responsible for comp liance could void the user's authority to operate the equipment.

#505, Samsung Technopark, 471, Woncheon-dong, Yungtong-gu, Suwon, Korea TEL No : +82-31-213-0078 FAX No : +82-31-213-0074 July 27, 2006 Federal Communications Commision Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : DUALi INC. FCC ID : SWUDE-600S Request for Confidentiality Gentlemen : In accordance with 0.457 and 0.459 of CFR 47, DUALi INC. Hereby requests confidentiality of the Schematics, Block diagram, Part list and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which DUALi INC.Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, DUALi INC.Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, TAEYANG-HA/ Team manager

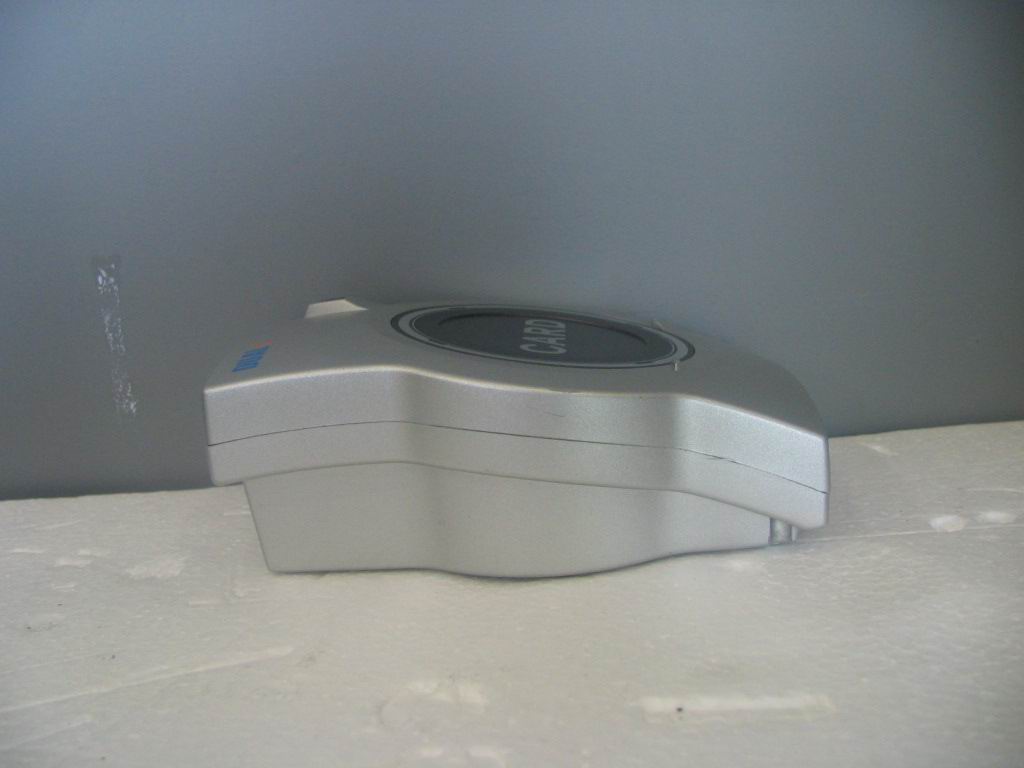

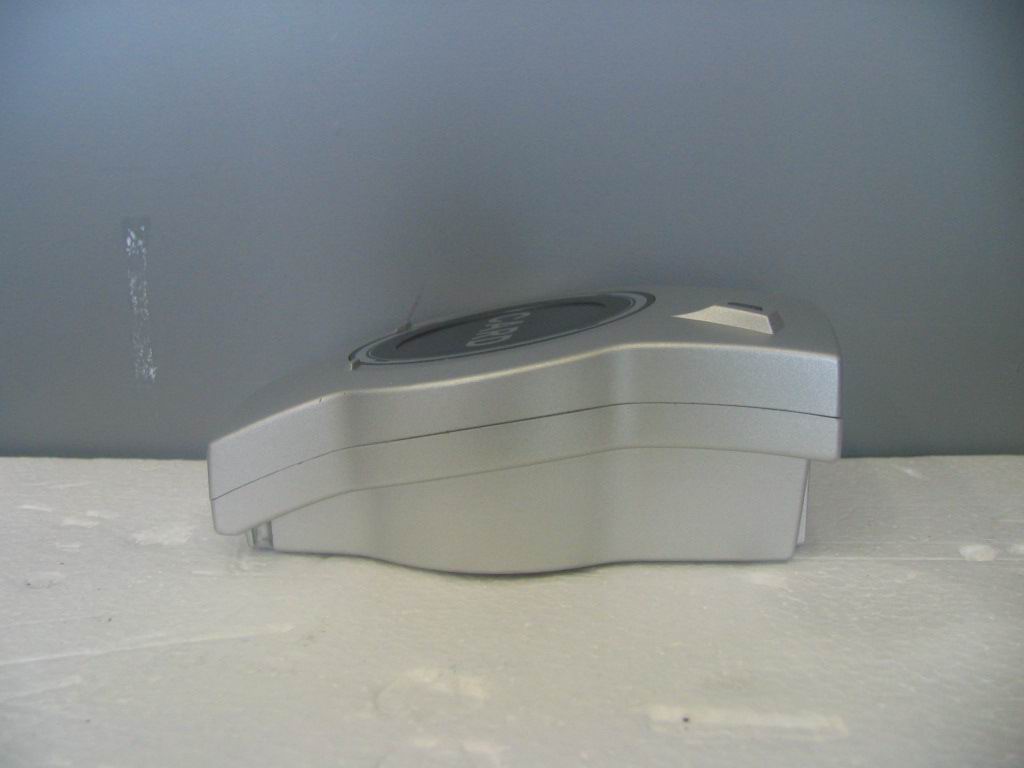

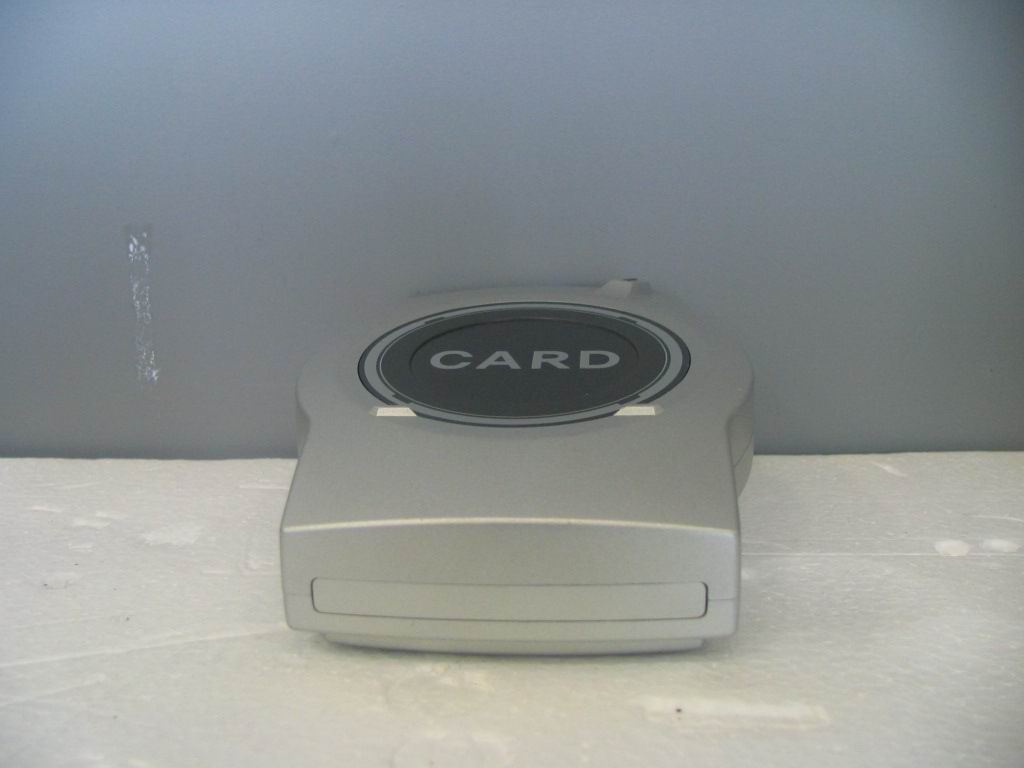

BWS TECH Inc. 1 of 4 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea Appendix 2. External Photographs of EUT BWS TECH Inc. 2 of 4 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea BWS TECH Inc. 3 of 4 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea BWS TECH Inc. 4 of 4 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea BWS TECH Inc. 5 of 4 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea BWS TECH Inc. 6 of 4 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea

BWS TECH Inc. 1 of 1 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea Appendix 10. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and information to the user are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) DUALi INC. RF CARD READER Model : DE-600S FCC ID : SWUDE-600S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label

BWS TECH Inc. 1 of 3 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea Appendix 3. Internal Photographs of EUT BWS TECH Inc. 2 of 3 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea BWS TECH Inc. 3 of 3 #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea

Report No: BWS-06-RF-0018 Page Number : Page 2 of 15 BWS TECH Inc. FCC Test Report Test Date : June 7 to July 20, 2006 FCC test report DUALi INC. 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6 5. Test Condition 8 6. Test Results 10 7. Test Equipment List 25 Appendix 1 Test Setup Photos Appendix 2 External Photos of EUT Appendix 3 Internal Photos of EUT Appendix 4 Block Diagram Appendix 5 Schematics Appendix 6 User Manual Appendix 7 Part list Appendix 8 Operational Description Appendix 9 Statement request Appendix 10 FCC ID Label and location Report No: BWS-06-RF-0018 Page Number : Page 3 of 15 BWS TECH Inc. FCC Test Report Test Date : June 7 to July 20, 2006 FCC test report DUALi INC. FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer z EUT Type : RF CARD READER z Model Number : DE-600S z FCC Identifier : SWUDE-600S z S/N : Prototype z Freq. Range : 13.56MHz z Number of Channels : 1 z Modulation Method : ASK z FCC Rule Part(s) : Part 15 Subpart C Section 15.225 z Test Procedure : ANSI C63.4-2000 z Dates of Tests : June 7 to July 20, 2006 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : BWS-06-RF-0018 Company Name : DUALi INC. Company Address : #505, Samsung Technopark, 471, Woncheon-dong, Yungtong-gu, Suwon, Korea Phone/Fax : Phone : +82-31-213-0078 Fax : +82-31-213-0074 Company Name : DUALi INC. Company Address : #505, Samsung Technopark, 471, Woncheon-dong, Yungtong-gu, Suwon, Korea Phone/Fax : Phone : +82-31-213-0078 Fax : +82-31-213-0074 Report No: BWS-06-RF-0018 Page Number : Page 4 of 15 BWS TECH Inc. FCC Test Report Test Date : June 7 to July 20, 2006 FCC test report DUALi INC. 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated emissions from the DUALi INC. Model : DE-600S. Report No: BWS-06-RF-0018 Page Number : Page 5 of 15 BWS TECH Inc. FCC Test Report Test Date : June 7 to July 20, 2006 FCC test report DUALi INC. 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the DUALi INC. Model : DE-600S. (FCC ID : SWUDE-600S). - Support read / write the ISO14443 Type A & B RF-Card, Mifare Card Protocol. - Host Communication : USB 3.2 General Specification Functions -Mifare card read/write -ISO 14443 A-Type card read/write -ISO 14443 B-Type card read/write -Buzzer ON/OFF Characteristic -Operation Temperature : -20°C~60°C -Input Volatge : DC 5V(USB) -Card Reading Range : Inside 10 Cm 3.3 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.4 Additional information related to Testing 5 Note. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the laboratory. The results in this report is only applied to the sample(s) tested. 5 Note. Please refer to the duties and responsibilities of the Responsible Party attached. Report No: BWS-06-RF-0018 Page Number : Page 6 of 15 BWS TECH Inc. FCC Test Report Test Date : June 7 to July 20, 2006 FCC test report DUALi INC. 4. Description of Tests 4.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2000. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50Ω/50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" within a bandwidth of 9KHz. The line-conducted emission test is conducted inside a shielded anechoic chamber room with 1m x 1.5m x 0.8m wooden table, which is placed 40cm away from the vertical wall, and 1.5m away from the sidewall of the chamber room. Two LISNs are bonded to the shielded room. The EUT is powered from the PMM LISN and the support equipment is powered from the LISN. Power to the LISNs is filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and these supply lines will be connected to the LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling (serpentine fashion) to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. The RF output of the LISN was connected to the S…
