SWUDE-ABCMSMART CARD READER

DE-ABCM US ER’S GUIDE Confidential Notation The original copy DE-ABCM USER’S GUIDE DUALi Inc. Document Version: 1.01 Last Revised Date: 27 Dec. 2010 DE-ABCM US ER’S GUIDE Copyright ⓒ 20 09 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this document in part or as a whole for any purposes other than those for which this document is disclosed. This document is co pyrighted an d c ontains co nfidential i nformation a nd other i ntellectual property ri ghts of D UALi Inc. A ny unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property rights. DUALi Inc. reserves the right to make changes to its applications or services or to discontinue any application or service at any time without notice. DUALi provides customer assistance in various technical areas, but does not have full access to data concerning the use and applications of customer's products. Therefore, DUALi assumes no liability and is not responsible for customer applications or soft ware design or performance relating to systems or applications incorporating DUALi products. In addition, DUALi assumes no liability and is not responsible for infringement of patents and/or any other intellectual or industrial property rights of third parties, which may result from assistance provided by DUALi. Composition of the information in this manual ha s been done to the best of our knowledge. DUALi does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips. We have our development center in South Korea to provide technical support. For any technical assistan ce can contact our technical support team as below; Tel: +82 31 213 0074 e-mail : [email protected] DE-ABCM US ER’S GUIDE Contents 1 SUMMARY.....................................................................................................................4 2 STRUCTURE...................................................................................................................4 2. 1 The St ructure of equipment.......................................................................................4 2.2 The block diagram of main Module, sub board(Epass12) and antenna.............................. 5 2.3 Descrip tion of main Module......................................................................................5 2.4 Description of sub SDK board(Epass12) and SDK antenna.......................................... 5 3 THE DESCRIPTION OF SURFACE.................................................................................... 6 3.1 The picture of device surface.....................................................................................6 3. 2 The size of e quipment surface....................................................................................6 4 Connector pin assignment................................................................................................... 7 4.1 USB Connector....................................................................................................... 7 5 The Description of electricity..............................................................................................7 5.1 The Descri ption of power..........................................................................................7 5.2 The using electric current.......................................................................................... 7 5.3 The Descri ption of USB communication.....................................................................7 6 THE DESCRIPTION OF FUNCTION.................................................................................. 7 6.1 Protocol Specification.............................................................................................. 7 6.2 Control Code Specification....................................................................................... 7 6.3 Download.............................................................................................................. 7 7 PROPERT Y.....................................................................................................................8 7.1 Environment to use.................................................................................................. 8 7.2 Environment to keep................................................................................................ 8 8 Warning and Notice........................................................................................................... 8 DE-ABCM US ER’S GUIDE 1 SUMMARY Smart Card Interface Contactless Smart Card (ISO 14443 A/B), MIFARE, FeliCa 2 SAM CARD (ISO7816, T=0,T=1) Host Interface USB 2.0 Full Speed (12Mbps), also support USB 1.1 Host Communication PC/SC or Proprietary CPU ARM 32-bit Cortex-M3(72MHz), 64Kbytes Flash, 20Kbytes SRAM Power Voltage 5V, USB Bus powered Current MAX 250mA depend on antenna size Connection 4pin * 2mm for USB 5pin * 2mm for RS-232 Size 70(W) * 45(L) * 8(H)mm Antenna Matching Direct matching Certification CE, Fcc, RoHS compliance Operating Temperature -20~60°C 2 STRUCTURE 2.1 The Stru cture of equipment - DE-ABCM (RF module) itself contains all circuits include antenna, SAMs and connectors. (USB 2.0) Host PC (DE-ABCM) DE-ABCM US ER’S GUIDE 2.2 The block diagram of main Module, sub board(Epass12) and antenna PN512 RF IC (U2) SAM Socket(SAM1) SAM Socket(SAM2) Antenna (2mm 4Pin) USB Connector 2 LEDs (ST-ARM 32-bit Cortex-M3) CPU 2.3 Descriptio n of main Module CPU : 32bit RISC CPU, It is stm32f103 which is ARM-based 32-bit MCU with Flash, USB, CAN, seven 16-bit timers. This CPU has 64Kbyte Flash memory, 20Kbyte SRAM, 2 UART, USB 2.0 interface. - PN5 12 RF IC : This Philips IC can control RF card like MIFARE card, type A/B…

Text truncated - open the document above for the full version.

DUALi Inc. #505, Samsung Technopark, 471, Woncheon-dong, Yungtong-gu, Suwon-City, 443-824, South Korea, TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ January 17, 2011 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize SK TECH Co., Ltd.(Mr. Jongsoo, Yoon) to act on our behalf in all matters relating to application for equipment authorization. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). APPLICANT/AGENT CERTIFICATION AND AGREEMENT: All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. Sincerely, Ha Tae Yang/ Director

DUALi Inc. #505, Samsung Technopark, 471, Woncheon-dong, Yungtong-gu, Suwon-City, 443-824, South Korea, TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ January 17, 2011 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, DUALi Inc. requests confidentiality for the following products: FCC ID Number Product Description (Model) SWUDE-ABCM SMART CARD READER(DE-ABCM) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain DUALi Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Ha Tae Yang/ Director

DUALi Inc. #505, Samsung Technopark, 471, Woncheon-dong, Yungtong-gu, Suwon-City, 443-824, South Korea, TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ January 24, 2011 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL TO WHOM IT MAY CONCERN We, DUALi Inc., hereby requests for part 15 unlicensed limited modular transmitter approval of our DE-ABCM module, described as follows: Model name: DE-ABCM FCC ID: SWUDE-ABCM 1. The modular transmitter must have its own shielding. The product is a complete RF transmitter. The product does not have its own shielding, however the product itself complies with the FCC part 15B and 15C requirements. The product does NOT rely upon the shielding provided by the device into which it is installed for RF shielding. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit inside of the main IC. It buffers the data inputs from USB interface. 3. The modular transmitter must have its own power supply regulation The EUT contains USB interface (DC 5 V input) and own low noise LDO regulator (U3). In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204 The transmitter shall only be used with the tested antenna that is integral PCB antenna. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The module was connected with the notebook PC via USB interface, during the test. See also the test report and Test setup photos. 6. The modular transmitter must be labeled with its own FCC ID number The EUT will be labeled with its own FCC ID number. The label is specified in Label Information document. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. AC, DC, and data input/output lines must not contain ferrites, unless they will be marketed with the module. The EUT contains ferrites on the USB cable, however the USB cable will be marketed with the module. 8. The modular transmitter must comply with any specific rule or operating requirements The EUT is compliant with all applicable FCC rules. Detail instructions are given in the product Instruction Manual. 9. The modular transmitter must comply with any applicable RF exposure requirements. The EUT is a 13.56 MHz RFID device, and radiates extremely low RF power level. It is categorically excluded from RF exposure requirements. Sincerely, Ha Tae Yang/ Director

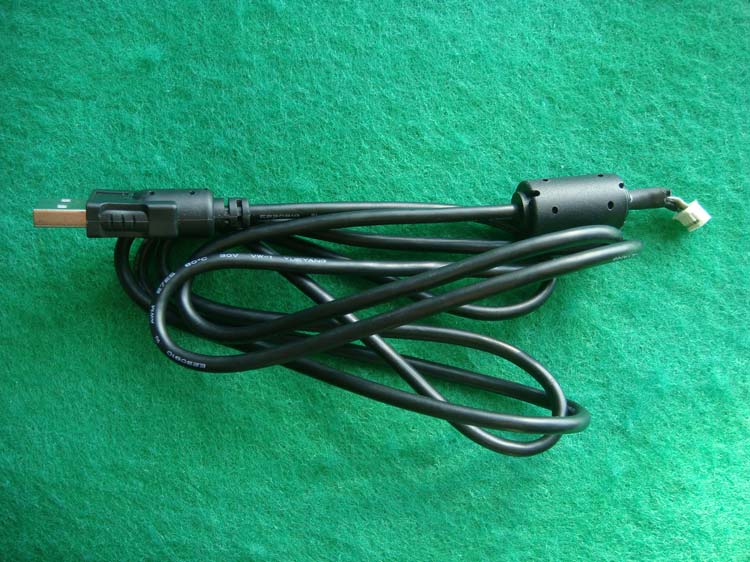

SK TECH CO., LTD. Page 1 of 2 SKTRFC-110117-002 FCC ID: SWUDE-ABCM, IC: 9445A-DEABCM External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View> SK TECH CO., LTD. Page 2 of 2 SKTRFC-110117-002 FCC ID: SWUDE-ABCM, IC: 9445A-DEABCM < Photograph 3: External - USB cable> <Photograph 4: RFID tag tested with the EUT> Front view (A type) Rear view (A type) Front view (B type) Rear view (B type)

ID Label Location & Sample LABEL LOCATION: Label will be attached to the Rear of the product LABEL Drawing: 40 mm 30 mm

ID Label Location & Sample LABEL LOCATION: Label will be attached to the Rear of the product LABEL Drawing: 40 mm 30 mm

SK TECH CO., LTD. Page 1 of 2 SKTRFC-110117-002 FCC ID: SWUDE-ABCM, IC: 9445A-DEABCM Internal Photographs <Photograph 1: RF board - Front view> SK TECH CO., LTD. Page 2 of 2 SKTRFC-110117-002 FCC ID: SWUDE-ABCM, IC: 9445A-DEABCM <Photograph 2: RF board - Rear view> RFID ANTENNA

SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 2 of 23 NVLAP Lab. Code: 200220-0 REVISION HISTORY Rev. # Changes of Content Section Affected Reviewed by Date 0 Original Release All S. H. Yoon Jan. 07, 2011 SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 3 of 23 NVLAP Lab. Code: 200220-0 SUMMARY OF TEST RESULT EMISSION STANDARD ITEM CLASS/SEVERITY RESULT AC Power line Conducted Emission Test Meets Class B limits and minimum passing margin is 14.37 dB at 15.160 MHz. PASS ANSI C63.4 / 2009 FCC Part 15 Subpart B / ICES-003 Radiated Emission Test Meets Class B limits and minimum passing margin is 3.62 dB at 40.68 MHz. PASS SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 4 of 23 NVLAP Lab. Code: 200220-0 》 Table of Contents 《 i Cover Page 1 ii Revision History 2 iii Summary of Test Results 3 iv Table of Contents 4 1. General 5 2. Facilities and Accreditations 5 2.1 Facilities 5 2.2 Accreditations 5 2.3 Test and Measurement Instruments Used 6 3. EUT Description 7 4. EUT Operating Condition 8 4.1 EUT Operating Modes 8 4.2 Ancillary Equipment 8 4.3 Interconnection and I/O cable 9 4.4 Configuration 9 4.5 Uncertainty 10 5. Test Results EMISSION 11 5.1 Conducted Disturbance at mains terminals 11 5.2 Radiated Disturbance 14 Appendices A1 Photographs of the test set-up A2 EUT Photographs SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 5 of 23 NVLAP Lab. Code: 200220-0 1. General The tests listed in this report have been performed and the results recorded by SK Tech Co., Ltd. in accordance with the procedures stated in each test requirement and specification. As a result, the subject product has been verified to comply with each test specification. The test results relate only to the items tested. We attest to the accuracy of data. All measurements reported herein were performed by SK TECH Co., Ltd. and were made under Technical Manager’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Facilities and Accreditations 2.1 Facilities All of the measurements described in this report were performed at SK Tech Co., Ltd located in 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea. The test site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. It complies with the Normalized Site Attenuation requirements given in ANSI/IEEE C63.4. The measuring equipment conforms to CISPR 16 requirements for Electromagnetic Noise and Field Strength Instrumentation. 2.2 Accreditations Our testing laboratories are accredited by the following accreditation bodies in accordance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. Korea : KOLAS No.191 Germany : DAKKS DAT-P-076/97-02 USA : NVLAP Lab Code: 200220-0 The laboratories have been also notified to FCC by RRL as a Conformity Assessment Body, and designated to perform compliance testing on equipment subject to Declaration of Conformity(DOC) and Certification under Parts 15 and 18 of the FCC Rules. SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 6 of 23 NVLAP Lab. Code: 200220-0 2.3 Test and Measurement Instruments Used • Conducted Disturbance Name of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 07.2011 Artificial Mains Network ESH2-Z5 834549/011 07.2011 Artificial Mains Network ESH3-Z5 836679/018 07.2011 Impedance Stabilization Network ISN T8 24806 09.2011 • Radiated Disturbance Name of Equipment Type S/N Calibrated until EMI Receiver ESVS10 834468/008 07.2011 Amplifier 8447F 3113A05153 07.2011 Trilog-Broadband Antenna VULB9168 9168-230 07.2011 Antenna Turntable Driver 5907 91X518 N/A Antenna Turntable controller 5906 91X519 N/A EMI TEST RECEIVER ESPI7 101206 07.2011 Horn Antenna (1G~18G) 3115 00040723 04.2011 Pre-Amplifier AFS44-00101800- 25-10P-44 1116321 10.2011 SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 7 of 23 NVLAP Lab. Code: 200220-0 3. EUT Description The following information has been supplied by the applicant. Product Specification Smart Card Interface Contactless Smart Card (ISO 14443 A/B), MIFARE, FeliCa 2 SAM CARD (ISO7816, T=0,T=1) Host Interface USB 2.0 Full Speed (12Mbps), also support USB 1.1 Host Communication PC/SC or Proprietary CPU ARM 32-bit Cortex-M3(72MHz), 64Kbytes Flash, 20Kbytes SRAM Input Voltage 5V, USB Bus powered Transmitting frequency 13.56 MHz (nominal) Current MAX 250mA depend on antenna size Connection 4 pin * 2 mm for USB 5 pin * 2 mm for RS-232 Size 70(W) * 45(L) * 8(H)mm Antenna Matching Direct matching Operating Temperature -20~60°C SK Tech Co., Ltd. http://www.skemc.co.kr SKTEFC-110107-002 SK Tech Co., Ltd. 820-2, Wolmoon-Ri, Wabu-Up Namyangju-Si, Kyunggi-Do, 472-905, Korea Phone: +82-31-576-2204 Fax: +82-31-576-2205 Page 8 of 23 NVLAP Lab. Code: 200220-0 4. EUT Operating Conditions During testing, the EUT was powered with DC 5 V USB Bus. The worst case test configuration and mode of operation was used all testing. Unless otherwise noted elsewhere in this report, this selection will apply to all testing. 4.1 EUT Operation Modes The EUT is connected …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKTEFC-110107-002 FCC ID: SWUDE-ABCM Test set up photos <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 2 of 2 SKTEFC-110107-002 FCC ID: SWUDE-ABCM <AC Power Line Conducted Emissions - Front View> <AC Power Line Conducted Emissions - Rear View>
