SWX-AF3XDigital Point-to-Point Radio

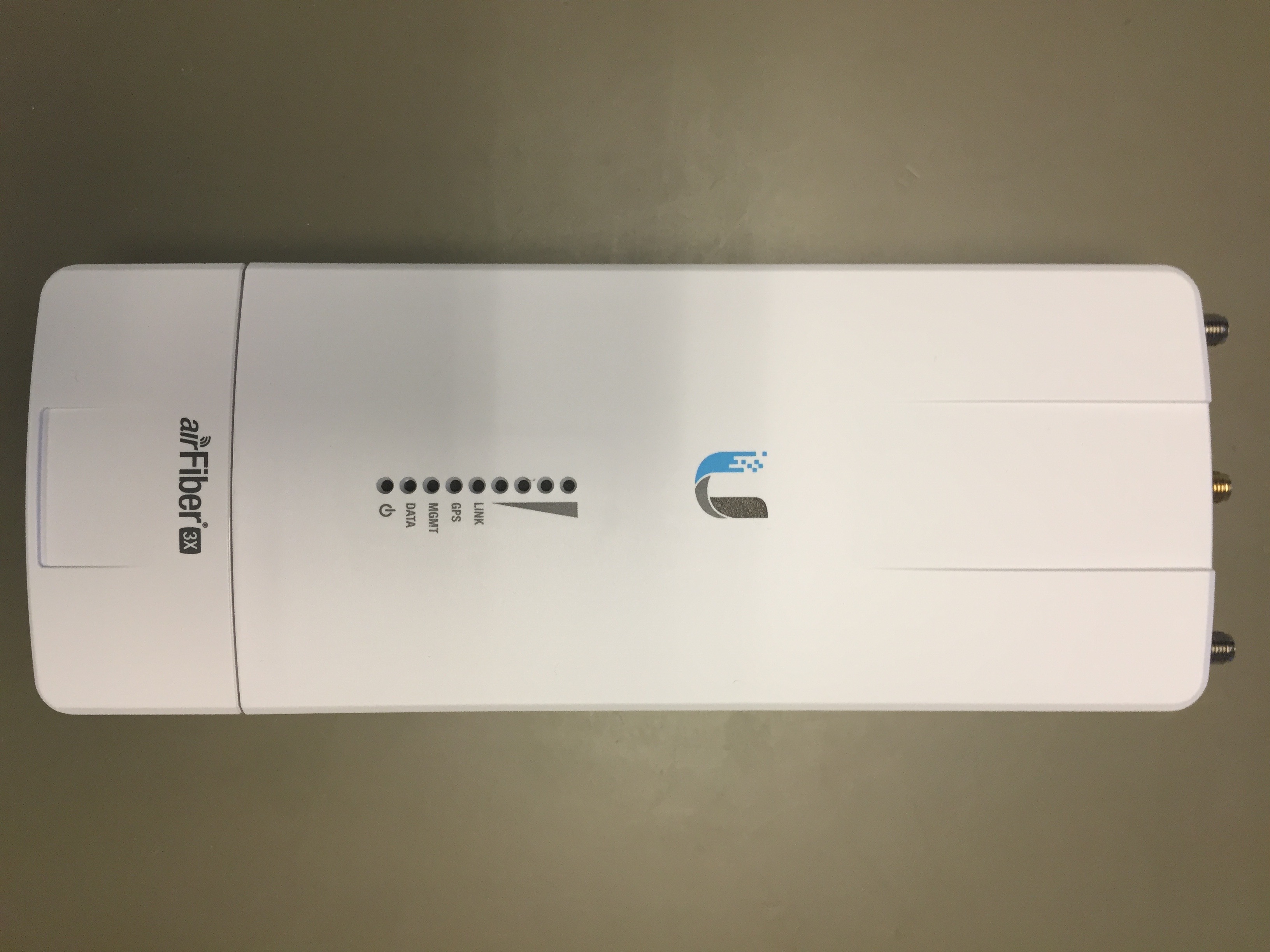

3 GHz Carrier Backhaul Radio Model: AF-3X DATA MGMT GPS LINK DATA MGMT GPS LINK Introduction Thank you for purchasing the Ubiquiti Networks® airFiber® 3 GHz Carrier Backhaul Radio. This Quick Start Guide is designed to guide you through the installation, show you how to access the airFiber Configuration Interface, and explain how to set up an airFiber link. This Quick Start Guide is for use with the airFiber AF-3X. Warranty terms, safety notices, and compliance information are in the airFiber AF-3X User Guide, available at: downloads.ubnt.com Package Contents DATA MGMT GPS LINK airFiber AF-3XGPS Antenna Mount External GPS Antenna Metal Strap 3 GHz Carrier Backhaul Radio Model: AF-3X DATA MGMT GPS LINK DATA MGMT GPS LINK Cable Ties (Qty. 2) airFiber PoE Adapter with Mounting Bracket (24V, 1A) Power CordQuick Start Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. Installation Requirements The airFiber AF-3X radio is designed for use with the airFiber X AF-3G26-S45 antenna. Other Requirements • Clear line of sight between airFiber radios • Clear view of the sky for proper GPS operation • Vertical mounting orientation • Mounting point: • At least 1 m below the highest point on the structure • For tower installations, at least 3 m below the top of the tower • Ground wires – min. 10 AWG (5 mm 2 ) and max. length: 1 m. As a safety precaution, ground the airFiber radio to grounded masts, poles, towers, or grounding bars. WARNING: Failure to properly ground your airFiber radio will void your warranty. • (Recommended) 2 Outdoor Gigabit PoE surge protectors Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. • Outdoor, shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired Ethernet connections. Hardware Overview DATA MGMT GPS LINK Port Cover LED Panel Connects to External GPS Antenna Chain 1: Connects to - 45° on airFiber Antenna Chain 0: Connects to + 45° on airFiber Antenna Ports Reset Button Management Port Data Port Management Port 10/100 Mbps, secured Ethernet port for configuration. In-Band Management is enabled by default in the airFiber Configuration Interface. When In-Band Management is disabled, the MGMT port is the only port that can monitor, configure, and/or update firmware. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on. Data Port Gigabit PoE port for handling all user traffic and powering the device. LEDs Signal LEDs Signal 4 LED will light blue when on. Signal 3 LED will light green when on. Signal 2 LED will light yellow when on. Signal 1 LED will light red when on. Bootup to airOS When powering on, the Power, GPS, LINK, and Signal 1-4 LEDs light on. Once the CPU code takes over, the GPS, LINK, and Signal 1-3 LEDs turn off. Signal 4 LED remains on to indicate the boot sequence is underway. Initializing airFiber Software When the airFiber application begins to boot under airOS, the Signal 4 LED goes from solidly on to a 2.5 Hz flash. This continues until the AF-3X is fully booted. Signal Level Once fully booted, the Signal 1-4 LEDs act as a bar graph showing how close the AF-3X is to ideal aiming. This is auto-scaled based on the link range, the antenna gains, and the configured TX power of the remote AF-3X. Each Signal LED has three possible states: On, Flashing, and Off. All Signal LEDs would be solidly on in an ideal link. If the link has a 1 dB loss, the Signal 4 LED will flash; a 2 dB loss and the Signal 4 LED will turn off. The full bar graph LED states are shown below. dB loss 0-1-2-3-4-5-6-7-8-9-10-11-12-13 1F000000000000 111F0000000000 11111FF0000000 1111111111FFF0 0 = Off, 1 = On, F = Flashing Additional LEDs LEDStateStatus LINK OffRF Off Short Flash*Syncing Normal Flash*Beaconing Long Flash*Registering OnOperational GPS OffNo GPS Synchronization Normal Flash*Non-Operational (Weak Signal) OnOperational (Strong Signal) MGMT OffNo Ethernet Link OnEthernet Link Established Random FlashingEthernet Activity DATA OffNo Ethernet Link OnEthernet Link Established Random FlashingEthernet Activity OffNo Power OnPowered On * Short Flash (1:3 on/off cycle) Normal Flash (1:1 on/off cycle) Long Flash (3:1 on/off cycle) Installation Overview We recommend that you configure your paired AF-3X radios before site installation. The overview below summarizes the installation procedure, and the subsequent sections provide detailed installation information. • Connect the airFiber PoE Adapter to the D ATA port, and connect your computer to the MGMT port. • Configure the AF-3X. • Install a ground wire and mount the AF-3X on an airFiber X antenna. • At the installation site, install the airFiber X antenna with the mounted AF-3X radio (see the antenna’s Quick Start Guide for installation instructions). • Secure the ground wire and mount the GPS antenna. • Establish and optimize the RF link. Connecting Power over Ethernet 1. Lift the release latch on the bottom of the AF-3X and slide the Port Cover off. 2. Connect an Ethernet cable to the D ATA port. 3. Connect the Ethernet cable from the D ATA port to the Ethernet port labeled POE on the airFiber PoE Adapter. WARNING: Use only the included airFiber PoE Adapter, Model: GP-H240-100G-4. Failure to do so can damage the unit and void the product warranty. 4. Connect the Power Cord to the power port on the airFiber PoE Adapter. Connect the other end of the Power Cord to a power source. airFiber Configuration The instructions in this section explain how to access the airFiber Configuration Interface and configure…

Text truncated - open the document above for the full version.

2580 Orchard Parkway • San Jose, CA 95131 • www.ubnt.com Date:2015/6/19 MET Laboratories, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230-3453 RE: Request for Confidentiality In reference to the application under FCC ID: SWX-AF3X, and pursuant to Sections 0.457(d)1(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks hereby requests permanent confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Theory of Operation Parts List & Placement/BOM Software Security Description Antenna Specifications The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Ubiquiti Networks and provide unjustified benefits to its competitors. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the important rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short term confidentiality on the following attachments until 180 days from grant date. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Ubiquiti Networks understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ubiquiti Networks, Inc. Compliance Contact

RF Exposure Requirements RF Exposure Requirements: §90.1335, §1.1307(b), 2.1091, 2.1093: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1307: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Test Results: The EUT was compliant with the requirements of this section. Test Engineer(s): Djed Mouada Test Date(s): 06/12/15 12 dBi Antenna MPE Limit Calculation: EUT’s operating frequencies @ 3650-3700 MHz; highest conducted power = 1463.525 mW (i.e. 31.654 dBm) (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm2 or 10 W/m2 EUT maximum antenna gain = 12 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4ΠR2 where, S = Power Density (1 mW/cm2) P = Power Input to antenna (1463.525 mW) G = Antenna Gain (15.85 numeric) R = Distance to the center of Radiation of the antenna P = 1463.525 mW R = 43 cm G = 15.85 S = 1463.525 *15.85 / 4(3.1416)(43)^2 S = 1 mW/cm^2 Therefore, EUT meets the Uncontrolled Exposure limit at 43 cm 26 dBi Antenna MPE Limit Calculation: EUT’s operating frequencies @ 3650-3700 MHz; highest conducted power = 62.373 mW (i.e. 17.95 dBm) (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm2 or 10 W/m2 EUT maximum antenna gain =26 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4ΠR2 where, S = Power Density (1 mW/cm2) P = Power Input to antenna (62.373 mW) G = Antenna Gain (398.1 numeric) R = Distance to the center of Radiation of the antenna P = 62.373 mW R = 45 cm G = 398.107 S = 62.373*398.107 / 4(3.1416)(45)^2 S = 0.97 mW/cm^2 Therefore, EUT meets the Uncontrolled Exposure limit at 45 cm 29 dBi Antenna MPE Limit Calculation: EUT’s operating frequencies @ 3650-3700 MHz; highest conducted power = 31.28 mW (i.e. 14.953dBm) (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm2 or 10 W/m2 EUT maximum antenna gain =29 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4ΠR2 where, S = Power Density (1 mW/cm2) P = Power Input to antenna (31.282 mW) G = Antenna Gain (794.328numeric) R = Distance to the center of Radiation of the antenna P = 62.373 mW R = 45cm G = 794.328lin S = 31.282*794.328 / 4(3.1416)(45)^2 S = 0.97 mW/cm^2 Therefore, EUT meets the Uncontrolled Exposure limit at 45 cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230-3432 • PHONE (410) 354-3300 • FAX (410) 354-3313 33439 WESTERN AVENUE • UNION CITY, CALIFORNIA 94587 • PHONE (510) 489-6300 • FAX (510) 489-6372 3162 BELICK STREET • SANTA CLARA, CA 95054 • PHONE (408) 748-3585 • FAX (510) 489-6372 13501 MCCALLEN PASS • AUSTIN, TEXAS 78753 • PHONE (512) 287-2500 • FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory July 15, 2015 Ubiquiti Networks 1250 S. Grove Ave., Suite 100 Barrington, IL 60010 Dear Alexandros Pavlos, Enclosed is the EMC test report for compliance testing of the Ubiquiti Networks, AirFiber 3X, tested to the requirements of Title 47 of the Code of Federal Regulations (CFR), Part 90 Subpart Z and RSS-197, Issue 1, February 2010 for Land Mobile Radio Services. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ubiquiti Networks\EMC85689-FCC90Z Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. This letter of transmittal is not a part of the attached report MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230-3432 • PHONE (410) 354-3300 • FAX (410) 354-3313 33439 WESTERN AVENUE • UNION CITY, CALIFORNIA 94587 • PHONE (510) 489-6300 • FAX (510) 489-6372 3162 BELICK STREET • SANTA CLARA, CA 95054 • PHONE (408) 748-3585 • FAX (510) 489-6372 13501 MCCALLEN PASS • AUSTIN, TEXAS 78753 • PHONE (512) 287-2500 • FAX (512) 287-2513 DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Ubiquiti Networks Model AirFiber 3X Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Z & RSS-197, Issue 1, February 2010 for Private Land Mobile Radio Services MET Report: EMC85689-FCC90Z Rev. 2 July 15, 2015 Prepared For: Ubiquiti Networks 1250 S. Grove Ave., Suite 100 Barrington, IL 60010 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Ubiquiti Networks Cover Page AirFiber 3X CFR Title 47 Part 90 Subpart Z; RSS-197, Issue 1 MET Report: EMC85689-FCC90Z Rev. 2 © 2015, MET Laboratories, Inc. Page ii of xix DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Ubiquiti Networks Model AirFiber 3X Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Z & RSS-197, Issue 1, February 2010 for Private Land Mobile Radio Services MET Report: EMC85689-FCC90Z Rev. 2 Djed Mouada Jennifer Warnell Project Engineer, Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is / is not capable of operation in accordance with the requirements of Part 90, Subpart Z of the FCC Rules and RSS-197, Issue 1, February 2010 of Industry Canada Standards under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status AirFiber 3X CFR Title 47 Part 90 Subpart Z; RSS-197, Issue 1 MET Report: EMC85689-FCC90Z Rev. 2 © 2015, MET Laboratories, Inc. Page iii of xix DOC-EMC700 7/9/04 Report Status Sheet Revision Report Date Reason for Revision  June 29, 2015 Initial Issue. 1 July 13, 2015 Engineer corrections. Electromagnetic Compatibility Ubiquiti Networks Table of Contents AirFiber 3X CFR Title 47 Part 90 Subpart Z; RSS-197, Issue 1 MET Report: EMC85689-FCC90Z Rev. 2 © 2015, MET Laboratories, Inc. Page iv of xix DOC-EMC700 7/9/04 Table of Contents 1. Executive Summary .................................................................................................................................................... 1 1.1. Testing Summary ................................................................................................................................................... 2 2. Equipment Configuration........................................................................................................................................... 3 2.1. Overview ................................................................................................................................................................ 4 2.2. Test Site ................................................................................................................................................................. 5 2.3. Description of Test Sample .................................................................................................................................... 5 2.4. Ports and Cabling Information ............................................................................................................................... 5 2.5. Mode of Operation ................................................................................................................................................. 6 2.6. Method of Monitoring EUT Operation .................................................................................................................. 6 2.7. Modifications ......................................................................................................................................................... 6 2.7.1. Modifications to EUT ..............…

Text truncated - open the document above for the full version.

Photograph 1. Radiated Spurious Emissions, Test Setup
