SWX-AF5Digital Transmission System

5 GHz Point to Point 1.0+ Gbps Radio Models: AF5, AF5U 1 Introduction Introduction Thank you for purchasing the Ubiquiti Networks ™ airFiber® 5 GHz Point-to-Point 1.0+ Gbps Radio. This Quick Start Guide is designed to guide you through the installation, show you how to access the airFiber Configuration Interface, and explain how to set up an airFiber link. This Quick Start Guide also includes the warranty terms and is for use with the following models: ModelDescriptionOperating Frequency* AF5Supports mid-band frequencies5470 - 5950 MHz AF5USupports high-band frequencies5725 - 6200 MHz * Refer to the Specifications section for more information. Package Contents airFiber AF5I-BracketUpper Mount Bracket with Elevation Rod Lower Mount Bracket Pole Clamps (Qty. 2) M10x150 Carriage Bolts (Qty. 4) M10x100 Carriage Bolts (Qty. 2) M8x14 Serrated Flange Bolts (Qty. 4) Azimuth Support Brackets (Qty. 2) Flat Washers (M10, Qty. 6) Lock Washers (M10, Qty. 6) Hex Nuts (M10, Qty. 6) 5 GHz Point to Point 1+ Gbps Radio Models: AF5, AF5U Cable Ties (Qty. 2) GigE PoE Adapter (50V, 1.2A) Power CordQuick Start Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. 2 airFiber® AF5/AF5U Quick Start Guide Hardware Overview Side Grounding Point Elevation Rod Hex Nut to adjust Elevation Rod Pre-Installed M10 x25 Flanged Bolts Lanyard Attachment Loop Lanyard Attachment Loop Assembled View 3 Hardware Overview Interfaces InterfaceDescription Reset Button To reset to factory defaults, press and hold the Reset button for more than five seconds while the unit is already powered on. Remote Display Displays the received signal strength in dBm of the remote airFiber radio. Local Display Displays the received signal strength in dBm of the local airFiber radio. Management Port 10/100 Mbps, secured port for configuration. By default, this is the only port that can monitor, configure, and/or update firmware. Aux PortPort for audio tone aiming. Data Port10/100/1000 Mbps port handles all user traffic. 4 airFiber® AF5/AF5U Quick Start Guide LEDs LEDStateStatus GPS OffNo GPS Synchronization OnOperational (Strong Signal) Normal Flash*Non-Operational (Weak Signal) Master OffSlave mode OnMaster mode Link Status OffRF Off Short Flash*Syncing Normal Flash*Beaconing Long Flash*Registering OnOperational RemoteOn Displays the received signal strength in dBm of the remote airFiber radio. 5 Hardware Overview LEDStateStatus LocalOn Displays the received signal strength in dBm of the local airFiber radio. OverloadFast FlashOverload Condition (reserved)–– 8xOn256QAM MIMO 6xOn64QAM MIMO 4x to 0.25x On16QAM MIMO Long Flash*QPSK MIMO Normal Flash*1x QPSK xRT ™ ** Short Flash*¼x QPSK xRT** * Short Flash (1:3 on/off cycle) Normal Flash (1:1 on/off cycle) Long Flash (3:1 on/off cycle) ** xtr eme Range Technology Port LEDs LEDStateStatus Management Act OffNo Ethernet Link OnEthernet Link Established Random FlashingEthernet Activity Speed Off10 Mbps On100 Mbps Data Act OffNo Ethernet Link OnEthernet Link Established Random FlashingEthernet Activity Speed Off10/100 Mbps On1000 Mbps 6 airFiber® AF5/AF5U Quick Start Guide Installation Requirements Pre-Assembly Tool • 13 mm (½") wrench Pole-Mounting Tool • 17 mm (11/16") wrench Other Requirements • Clear line of sight between airFiber radios • Clear view of the sky f or proper GPS operation • Ver tical mounting orientation • Mounting location with < 0.5° displacement due to twist and sway under wind loading • Mounting point: • At least 1 m (3.28 f t) below the highest point on the structure • For t ower installations, at least 3 m (9.84 ft) below the top of the tower • Ground wir es – min. 10 AWG (5 mm 2 ) and max. length: 1 m (3.28 ft). As a safety precaution, ground the airFiber radios to grounded masts, poles, towers, or grounding bars. WARNING: Failure to properly ground your airFiber units will void your warranty. • (Recommended) 2 Outdoor GigE PoE surge protectors Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. • Outdoor , shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired Ethernet connections. 7 Installation Overview Installation Overview We recommend that you configure your paired airFiber radios before mounting. Below is an overview of the installation with specific details in the following instructions: • Connect Power over Ethernet to the Data port, and connect an Ethernet cable between your computer and the Management port. • Configur e the device settings in the airFiber Configuration Interface. • Once configuration is complete, disconnect the cables to move the airFiber radios. • Pre-assemble the mounting hardware. • Install the airFiber r adios at the site. • Establish and optimize the RF link. Note: The AF5 and AF5U models share the same installation and configuration instructions. Connecting Power over Ethernet 1. Push the button and slide the port cover down to access cable ports. (The port cover cannot be completely removed.) 8 airFiber® AF5/AF5U Quick Start Guide 2. Connect an Ethernet cable to the Data port. 3. Connect the other end of the Ethernet cable from the Data port to the Ethernet port labeled POE on the GigE PoE Adapter. 4. Connect the Power Cord to the power port on the GigE PoE Adapter. Connect the other end of the Power Cord to a power source. 9 airFiber Configuration airFiber Configuration The instructions in this section explain how to access the airFiber Configuration Interface and configure the following settings: • Wireless Mode Configure one airFiber radio as the Master and the other as the Slave. • Duplex The …

Text truncated - open the document above for the full version.

Date:2013/9/9 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 RE: Request for Confidentiality In reference to the application under FCC ID: SWX-AF5, and pursuant to Sections 0.457(d)1(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks hereby requests permanent confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Theory of Operation Parts List & Placement/BOM Software Security Description Antenna Specifications The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Ubiquiti Networks and provide unjustified benefits to its competitors. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the important rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short term confidentiality on the following attachments until 180 days from grant date. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Ubiquiti Networks understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, UBiQuiTi Networks Compliance Manager

RF Exposure Compliance Company: Ubiquiti Networks, Inc. Model: AF5 Formal Name: Air Fiber 5 - 5.4 and 5.8 GHz Radio Rule Part: RSS-102 Issue 4 March 2010 Section 4.2 4.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Test Procedure: RF exposure evaluation based on measured RF conducted output power and calculated power density. Limits: The RSS-102 power density limit in the frequency range 1500-15000 MHz is 10 W/m 2 . 10 W/m 2 = 1 mW/cm 2 Results: Power Density (mW/cm 2 ): 푆= 푃퐺 4휋푅 2 S = Power Density (mW/cm 2 ) P = Power Input to the antenna (mW) G = Numeric Power Gain of the antenna R = Distance to the center of the radiation of the antenna (cm) Input Frequency = 5823MHz P = 29.99335dBm G = 23dBi R = 126cm π 3.14159 Transmit Frequency (MHz) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (numeric) Distance (cm) Power Density (mW/cm²) Power Density Limit (mW/cm²) Margin 582329.99335998.4699523199.526231260.99861.00.001 RF Exposure Calculation Summary of Results: With a minimum separation distance of 126 cm, the Ubiquiti Networks Air Fiber 5 - 5.4 and 5.8 GHz Radio meets the RF exposure evaluation requirements for maximum permissible exposure to any radiating structure and the general population / uncontrolled exposure. Conclusion: The Ubiquiti Networks Air Fiber 5 - 5.4 and 5.8 GHz Radio operating under RSS-210 complies with the requirements of RSS-102 Issue 4 for RF Exposure Evaluation. Supporting data to follow... Test Date: 11-05-2013 Company: Ubiquiti Networks EUT: Air Fiber 5 - 5.8GHz WiFi Radio Test: Maximum peak conducted output power - Conducted Operator: Lillian Li Test Procedure used: KDB 558074 D01 v01r03 – 9.2.3.1) – Method AVGPM Limit: [15.247(b)(3); RSS-210 A8.4(4)]: < 1 Watt (30 dBm) Operating Mode: Point-to-Point; Antenna Gain = 23 dBi EUT Limit[15.247(c)(1)(ii) PTP]: ≤ 30dBm 10MHz Operating Bandwidth: FCC Maximum Conducted Output Power 10M FCC limit =1W(30dBm) mW QPSK 16QAM 64QAM 256QAM 1024Q EUT FCC limit:[15.247(b)(4)] 1,000.00 1,000.00 1,000.00 1,000.00 1,000.00 HCH = 5844 MHz TX0 (mW) 486.29 484.32 483.93 484.56 495.02 TX1 (mW) 495.84 494.52 493.38 495.56 495.24 total(mW) 982.13 978.84 977.31 980.12 990.26 Margin(mW) 17.87 21.16 22.69 19.88 9.74 MCH = 5785 MHz TX0 497.52 497.53 495.68 496.12 496.81 TX1 496.31 496.35 496.58 496.21 497.45 total(mW) 993.83 993.88 992.26 992.33 994.26 Margin(mW) 6.17 6.12 7.74 7.67 5.74 LCH = 5731 MHz TX0 470.12 467.85 466.89 467.87 467.32 TX1 490.56 490.36 489.56 491.56 490.62 total(mW) 960.68 958.21 956.45 959.43 957.94 Margin(mW) 39.32 41.79 43.55 40.57 42.06 20MHz Operating Bandwidth: FCC Maximum Conducted Output Power 20M FCC limit =1W(30dBm) mW QPSK 16QAM 64QAM 256QAM 1024Q EUT FCC limit:[15.247(b)(4)] 1,000.00 1,000.00 1,000.00 1,000.00 1,000.00 HCH = 5838 MHz TX0 (mW) 483.12 471.96 471.56 472.56 483.31 TX1 (mW) 492.22 491.87 491.45 491.06 491.97 total(mW) 975.34 963.83 963.01 963.62 975.28 Margin(mW) 24.66 36.17 36.99 36.38 24.72 MCH = 5785 MHz TX0 487.82 486.39 485.32 485.92 498.12 TX1 497.85 497.62 497.56 497.34 497.33 total(mW) 985.67 984.01 982.88 983.26 995.45 Margin(mW) 14.33 15.99 17.12 16.74 4.55 LCH = 5737 MHz TX0 495.23 493.72 492.41 492.15 492.37 TX1 499.82 499.24 498.56 499.32 499.32 total(mW) 995.05 992.96 990.97 991.47 991.69 Margin(mW) 4.95 7.04 9.03 8.53 8.31 40MHz Operating Bandwidth: FCC Maximum Conducted Output Power 40M FCC limit =1W(30dBm) mW QPSK 16QAM 64QAM 256QAM 1024Q EUT FCC limit:[15.247(b)(4)] 1,000.00 1,000.00 1,000.00 1,000.00 1,000.00 HCH = 5828 MHz TX0 (mW) 476.54 478.68 476.68 475.51 476.39 TX1 (mW) 494.16 489.78 487.92 487.95 487.36 total(mW) 970.70 968.46 964.60 963.46 963.75 Margin(mW) 29.30 31.54 35.40 36.54 36.25 MCH = 5785 MHz TX0 471.56 470.78 469.82 472.56 470.18 TX1 487.66 488.56 488.42 488.78 488.92 total(mW) 959.22 959.34 958.24 961.34 959.10 Margin(mW) 40.78 40.66 41.76 38.66 40.90 LCH = 5727 MHz TX0 485.78 483.12 483.21 482.98 495.23 TX1 493.13 491.56 491.85 492.39 491.78 total(mW) 978.91 974.68 975.06 975.37 987.01 Margin(mW) 21.09 25.32 24.94 24.63 12.99 50MHz Operating Bandwidth: FCC Maximum Conducted Output Power 50MHz FCC limit =1W(30dBm) mW QPSK 16QAM 64QAM 256QAM 1024Q EUT FCC limit:[15.247(b)(4)] 1,000.00 1,000.00 1,000.00 1,000.00 1,000.00 HCH = 5823 MHz TX0 (mW) 500.12 499.85 499.87 499.89 499.72 TX1 (mW) 495.23 498.22 497.23 498.55 498.75 total(mW) 995.35 998.07 997.10 998.44 998.47 Margin(mW) 4.65 1.93 2.90 1.56 1.53 MCH = 5785 MHz TX0 474.48 475.25 474.98 475.34 487.52 TX1 495.23 491.75 490.25 490.23 490.34 total(mW) 969.71 967.00 965.23 965.57 977.86 Margin(mW) 30.29 33.00 34.77 34.43 22.14 LCH = 5752 MHz TX0 485.24 484.03 484.13 483.53 483.24 TX1 489.78 488.79 487.92 488.92 491.34 total(mW) 975.02 972.82 972.05 972.45 974.58 Margin(mW) 24.98 27.18 27.95 27.55 25.42 Test Date: 10-22-2013 Company: Ubiquiti Networks EUT: Air Fiber 5 - 5.4GHz WiFi Radio Test: Maximum conducted output power – Conducted Operator: Lillian L Test Procedure used: KDB 789033 D01 v01r03 – E)3)a) Method PM Limit: [RSS-210 A9.2(3)]: lesser of 250mW or 11dBm+10log B (B=99% OBW) Operat ing Mode: Point-to-Point; Antenna Gain = 23 dBi EUT conducted limit: = Limit - (23 dBi - 6 dB ) 10MHz Opera ting Bandwidth: IC Max OP PWR: IC limit<24dBm 10M (Adjustment for duty cycle =10log1/x = 0.13) EUT limits dBm QPSK 16QAM 64QAM 256QAM 1024Q IC limit 3.87 3.85 3.85 3.85 3.85 HCH = 5719 MHz TX0 (mW) 1.07 1.08 1.08 1.09 1.09 TX1 (mW) 1.2 1.21 1.2 1.22 1.19 total(mW) 2.27 2.29 2.28 2.31 2.28 Total(dBm) 3.69 3.73 3.71 3.77 3.71 MCH = 5575 MHz TX0 1.11 1.12 1.1 1.12 1.1 TX1 1.19 1.19 1.19 1.18 1.21 total(mW) 2.30 2.31 2.29 2.30 2.31 Total(dBm) 3.75 3.77 3.73 3.75 3.77 LCH = 5476 MHz TX0 1 1.04 1.05 1.05 1.02 TX1 1.32 1.27 1.27 1.29 1.3 total(mW) 2.32 2.31 2.32 2.34 2.32 Total(dBm) 3.78 3.77 3.78 3.82 3.78 Test Date: 10-22-2013 Company: Ubiquiti Networks EUT: Air Fiber 5 - 5.4GHz WiFi Radio Test: Maximum conducted output power – Conducted Operator: Lilli…

Text truncated - open the document above for the full version.

Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 1 of 185 i. Cover Page Code of Federal Regulations 47 Part 15 – Radio Frequency Devices Subpart C – Intentional Radiators Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. Part 1 - 10 & 20 MHz Bandwidth Data THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Air Fiber 5 - 5.8GHz Radio Kind of Equipment: Point-to-P oint Digital Transmission Transceiver Frequency Range: 5731 to 5844 MHz Test Configuration: Pole Mounted Model Number(s): AF5 (Please see the note on page 6 concerning the similarity to AF5U) Model(s) Tested: AF5 Serial Number(s): RF Conducted Unit: MAC address: 02:27:22:DA:5F:24 Radiated Unit: MAC address: 02:27:22:DA:5F:29 Date of Tests: October & November, 2013 Test Conducted For: Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd Taipei, Taiwan NOTICE: “This test report relates only to the items tested and must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Description of Test Sample" page listed inside of this report. © Copyright 1983 – 2013, D.L.S. Electronic Systems, Inc. COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 2 of 185 ii. Signature Page SIGNATURE PAGE Tested By: Craig Brandt Senior Test Engineer Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 3 of 185 iii. Table of Contents Table of Contents i. Cover Page ..............................................................................................................................................1 ii. Signature Page .........................................................................................................................................2 iii. Table of Contents ....................................................................................................................................3 iv. NVLAP Certificate of Accreditation .......................................................................................................4 1.0 Summary of Test Report ..................................................................................................................5 2.0 Introduction ......................................................................................................................................6 3.0 Test Facilities ...................................................................................................................................6 4.0 Description of Test Sample ..............................................................................................................6 5.0 Test Equipment ................................................................................................................................8 6.0 Test Arrangements ...........................................................................................................................9 7.0 Test Conditions ................................................................................................................................9 8.0 Modifications Made To EUT for Compliance ...............................................................................10 9.0 Additional Descriptions .................................................................................................................10 10.0 Results ............................................................................................................................................10 11.0 Conclusion .....................................................................................................................................10 Appendix A – Test Photos .........................................................................................................................11 Appendix B – Measurement Data ..............................................................................................................18 B1.0 DTS Bandwidth – 6 dB bandwidth - Conducted ...................................................................... 18 B2.0 Fundamental Emission Output Power - Conducted .................................................................. 50 B3.0 Maximum Power Spectral Density – Conducted ...................................................................... 52 B4.0 Maximum Unwanted Emission Levels – Radiated ................................................................... 85 B5.0 Band -Edge Measurements - Conducted ................................................................................. 115 B6.0 Max Unwanted Emission Levels into Restricted Frequency Bands - Radiated ..................... 137 B6.0a - 30 to 1000MHz ..................................................................................................................... 138 B6.0b - 1 to 26GHz ........................................................................................................................... 144 B6.0c - 26 to 40GHz ....................................................................................................................... 168 B7.0 Duty Cycle of Test Unit .......................................................................................................... 169 B8.0 AC Line Conducted Emissions ............................................................................................... 176 Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 5…

Text truncated - open the document above for the full version.

Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 2 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 1 of 153 i. Cover Page Code of Federal Regulations 47 Part 15 – Radio Frequency Devices Subpart C – Intentional Radiators Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. Part 2 - 40 & 50 MHz Bandwidth Data THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Air Fiber 5 - 5.8GHz Radio Model Number(s): AF5 (Please see the note on page 6 concerning the similarity to AF5U) Kind of Equipment: Point-to-P oint Digital Transmission Transceiver Test Conducted For: Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd Taipei, Taiwan This part of the report includes the 40 MHz & 50 MHz Bandwidth Data Only Further descriptions of the equipment under test and the test setup photos will be found in Part 1 of test report # 19544. NOTICE: “This test report relates only to the items tested and must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Description of Test Sample" page listed inside of this report. © Copyright 1983 – 2013, D.L.S. Electronic Systems, Inc. COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 2 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 2 of 153 ii. Signature Page SIGNATURE PAGE Tested By: Craig Brandt Senior Test Engineer Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 2 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 3 of 153 iii. Table of Contents Table of Contents i. Cover Page ..............................................................................................................................................1 ii. Signature Page .........................................................................................................................................2 iii. Table of Contents ....................................................................................................................................3 iv. NVLAP Certificate of Accreditation .......................................................................................................4 1.0 DTS Bandwidth – 6 dB bandwidth - Conducted ........................................................................ 7 2.0 Fundamental Emission Output Power - Conducted .................................................................. 39 3.0 Maximum Power Spectral Density – Conducted ...................................................................... 41 4.0 Maximum Unwanted Emission Levels – Radiated ................................................................... 74 5.0 Band-Edge Measurements - Conducted ................................................................................... 92 6.0 Max Unwanted Emission Levels into Restricted Frequency Bands - Radiated ..................... 114 6.0a - 30 to 1000MHz ..................................................................................................................... 115 6.0b - 1 to 26GHz ........................................................................................................................... 121 6.0c - 26 to 40GHz ......................................................................................................................... 145 7.0 Duty Cycle of Test Unit .......................................................................................................... 146 Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 2 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 4 of 153 iv. NVLAP Certificate of Accreditation Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 2 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 5 of 153 Applicable Technical Requirements Tested Section Description Procedure Note Compliant? FCC 15.247(a)(2) 6 dB Emission Bandwidth - Conducted FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Section 8.1 Option 1 1 Yes FCC 15.247(b)(3) Fundamental Emission Output Power – Conducted FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Section 9.2.3.1-AVGPM 1 Yes FCC 15.247(e) Maximum Power Spectral Density - Conducted FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Section 10.3-AVGPSD-1 1 Yes FCC 15.247(d) Maximum Unwanted Emission Levels – Radiated FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Sections 11.0, 11.2, 11.3 2 Yes FCC 15.247(d) Band Edge Measurements - Conducted FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Section 11.1(b) 1 Yes FCC 15.247(d), FCC 15.205 Restricted Band Measurements - Radiated FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Section 12.0 & 12.1 2 Yes FCC 15.35(c) Duty Cycle of Test Unit FCC Publication KDB 558074 D01 DTS Meas Guidance v03r01 Section 6.0(b) 1 NA FCC 15.207(a) AC Line Conducted Emissions ANSI C63.10-2009 Section 6.2 3 Yes Note 1: RF conducted measurement. Note 2: Radiated emission measurement. Note 3: AC Line Conducted measurements - reported in Part 1 of Report #19544. Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 2 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 6 of 153 Description of Test Sample The Ubiquiti Networks model AirFiber 5 is a 5.4Ghz and 5.8GHz Point-to-Point radio that uses OFDM with a 50MHz/40MHz/20MHz/10MHz bandwidth configuration. The EUT would be used outdoors and pole mounted. It is powered from a POE adapter. The integral antenna has a 23 dBi gain. This is an uncorrelated MIMO software defined radio. The AF5 radio product is based on the AF5U radio with FCC ID: SWX-AF5U. The radios have identical RF filter…

Text truncated - open the document above for the full version.

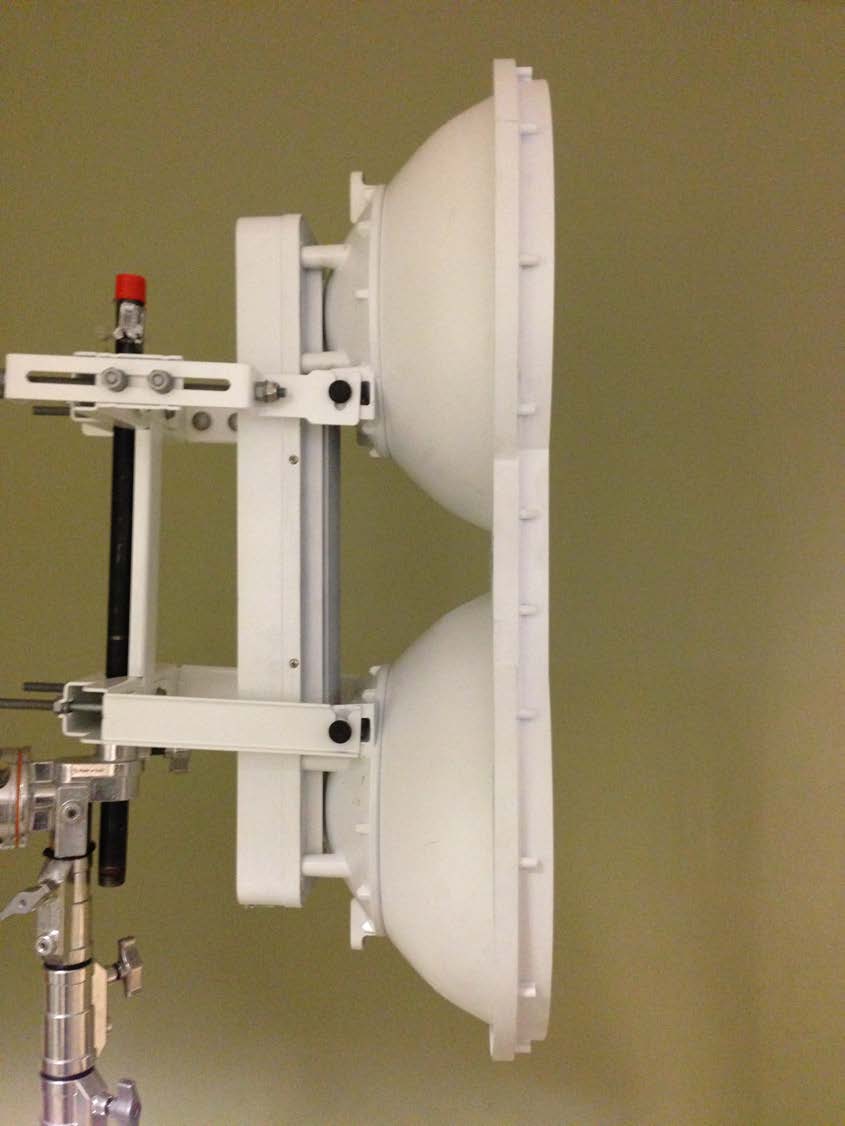

Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 11 of 185 Appendix A – Test Photos Photo Information and Test Setup: Item0: Air Fiber 5 - 5.8GHz Radio, Model: AF5 Item1: Shielded Power Over Ethernet Cable, 15 meters long Radiated - Below 1 GHz - front Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 12 of 185 Appendix A – Test Photos Radiated - Below 1 GHz - Back Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 13 of 185 Appendix A – Test Photos Radiated - above 1 GHz Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 14 of 185 Appendix A – Test Photos RF Conducted / Output Power Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 15 of 185 Appendix A – Test Photos RF Conducted Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 16 of 185 Appendix A – Test Photos AC Line Conducted with Ubiquiti Power Supply GP-C500-120G Company: Ubiquiti Networks, Inc. Model Tested: AF5 Report Number: 19544 Part 1 DLS Project: 6172 166 South Carter, Genoa City, WI 53128 Page 17 of 185 Appendix A – Test Photos AC Line Conducted with Ubiquiti Power Supply PSA60M-500(G)-R
