Ubiquiti Networks International Limited Taiwan Branch FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Ubiquiti Networks, Inc. Addresss 12F, No. 105, Song Ren Rd., Sin Yi District, City Taipei City Country Ta i w a n request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: SWX -AGW of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) xOperational Description xBlock Diagrams xSchematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei City, Taiwan 2013/01/25 Jocelyn Wang Compliance Manager

Ubiquiti Networks International Limited Taiwan Branch FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Ubiquiti Networks, Inc. Addresss 12F, No. 105, Song Ren Rd., Sin Yi District, City Taipei City Country Ta i w a n declare that the following representative (agent): Name (person) Sophia Lin Company name Cerpass Technology Corporation Addresss No.3, 2F-11, YuanQu St., City Taipei City Country Taiwan is hereby authorized to apply the following equipment for certification on our behalf: Product Description AirGateWay Type or Model(s) AirGateWay Tradename or Brand(s) Ubiquiti We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei City, Taiwan 2013/01/25 Jocelyn Wang Compliance Manager

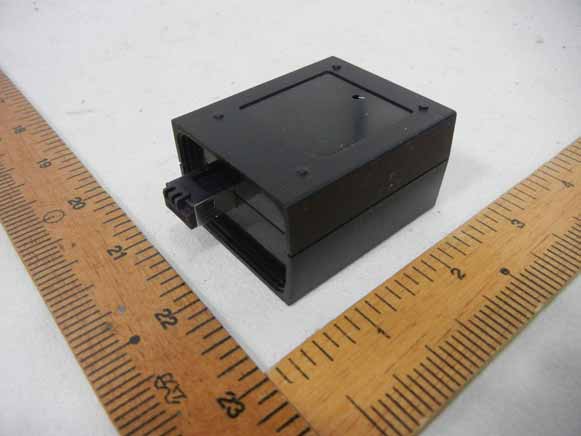

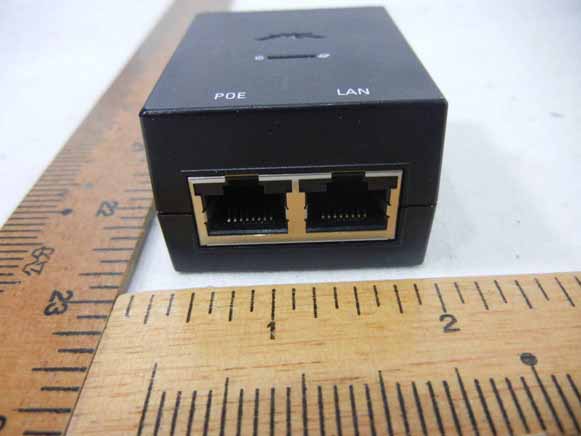

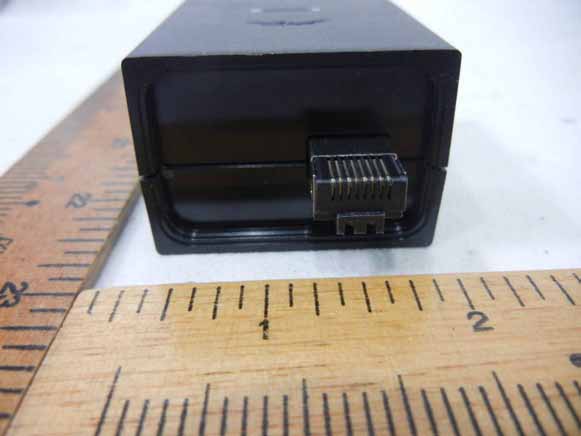

CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A7 FCC ID : SWX-AGW Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A7 FCC ID : SWX-AGW

CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A7 FCC ID : SWX-AGW CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A7 FCC ID : SWX-AGW CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A7 FCC ID : SWX-AGW CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A7 FCC ID : SWX-AGW CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued Date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A7 FCC ID : SWX-AGW

CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : SWX-AGW Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT AirGateWay Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 19.89 dBm (94.6 mW) 802.11g: 19.35 dBm (86.1 mW) 802.11n (20MHz): 19.30 dBm (85.1 mW) 802.11n (40MHz): 19.18 dBm (82.8 mW) Antenna gain (Max) 1 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 19.89 dBm (94.6 mW) at 2437 MHz (withnumeric 2.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : SWX-AGW TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : SWX-AGW Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 19.89 1 20 0.024 1 802.11g 2412-2462 19.35 1 20 0.022 1 802.11n (20MHz) 2412-2462 19.30 1 20 0.021 1 802.11n (40MHz) 2422-2452 19.18 1 20 0.021 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 87 FCC ID : SWX-AGW FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Ubiquiti Networks, Inc. Address : 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Equipment : AirGateWay Model No. : AirGateWay FCC ID : SWX-AGW Trade Name : Ubiquiti ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 87 FCC ID : SWX-AGW Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission ............................................................................................................... 20 5.1 Test Limit .................................................................................................................................. 20 5.2 Test Procedures ....................................................................................................................... 20 5.3 Typical Test Setup .................................................................................................................... 21 5.4 Measurement Equipment ......................................................................................................... 21 5.5 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 21 5.6 Test Result and Data ................................................................................................................ 22 5.7 Test Photographs (30MHz~1GHz) ........................................................................................... 58 5.8 Test Photographs (1GHz~25GHz) ........................................................................................... 59 6. 6dB Bandwidth Measurement Data ................................................................................................. 60 6.1 Test Limit .................................................................................................................................. 60 6.2 Test Procedures ....................................................................................................................... 60 6.3 Test Setup Layout .................................................................................................................... 60 6.4 Measurement Equipment ......................................................................................................... 60 6.5 Test Result and Data ................................................................................................................ 60 7. Maximum Peak and Average Output Power ................................................................................... 67 7.1 Test Limit ...........................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 87 FCC ID : SWX-AGW 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 87 FCC ID : SWX-AGW 5.7 Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1211174 Cerpass Technology Corp. Issued date : Jan. 21, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 59 of 87 FCC ID : SWX-AGW 5.8 Test Photographs (1GHz~25GHz) Front View Rear View
