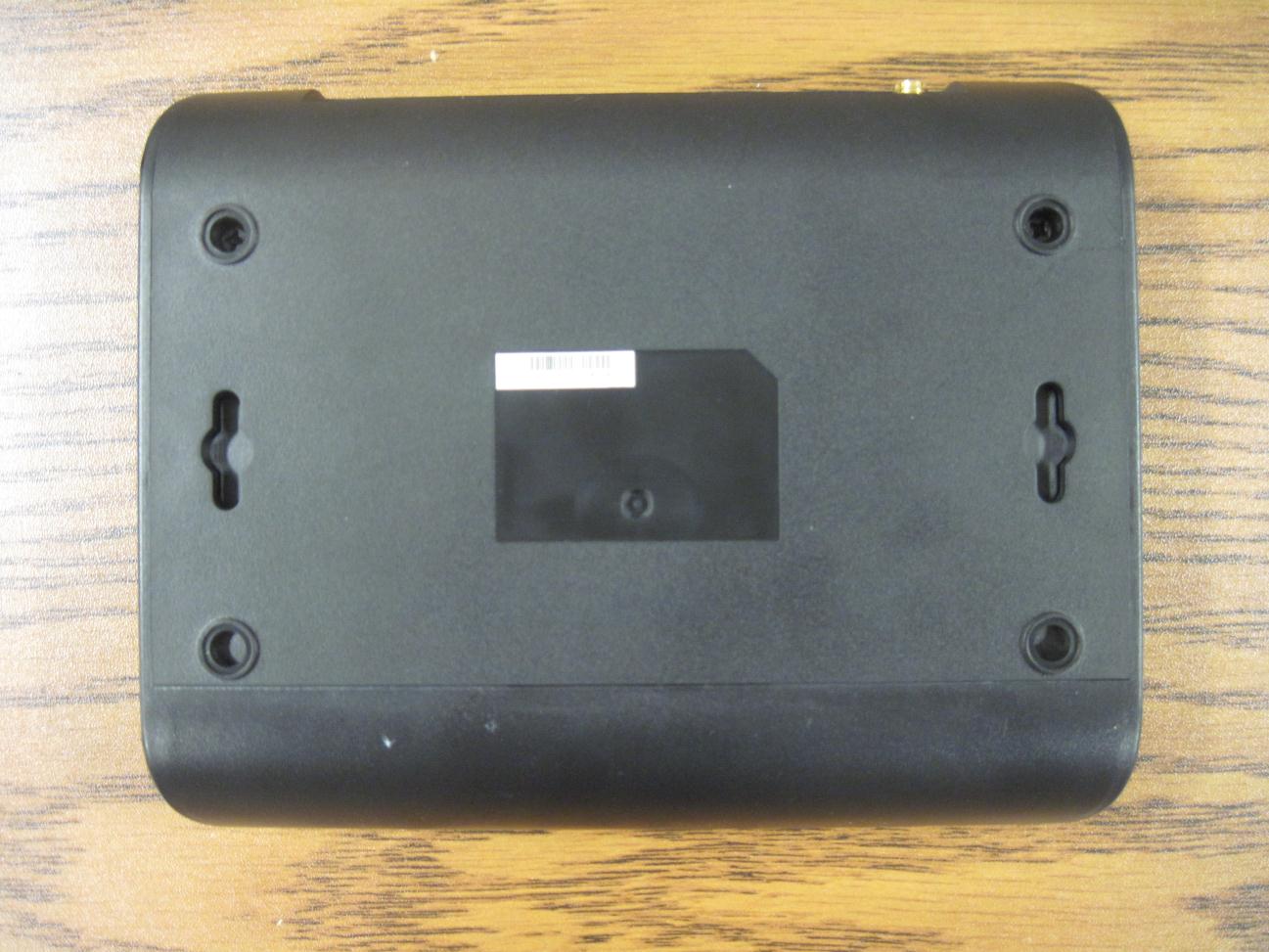

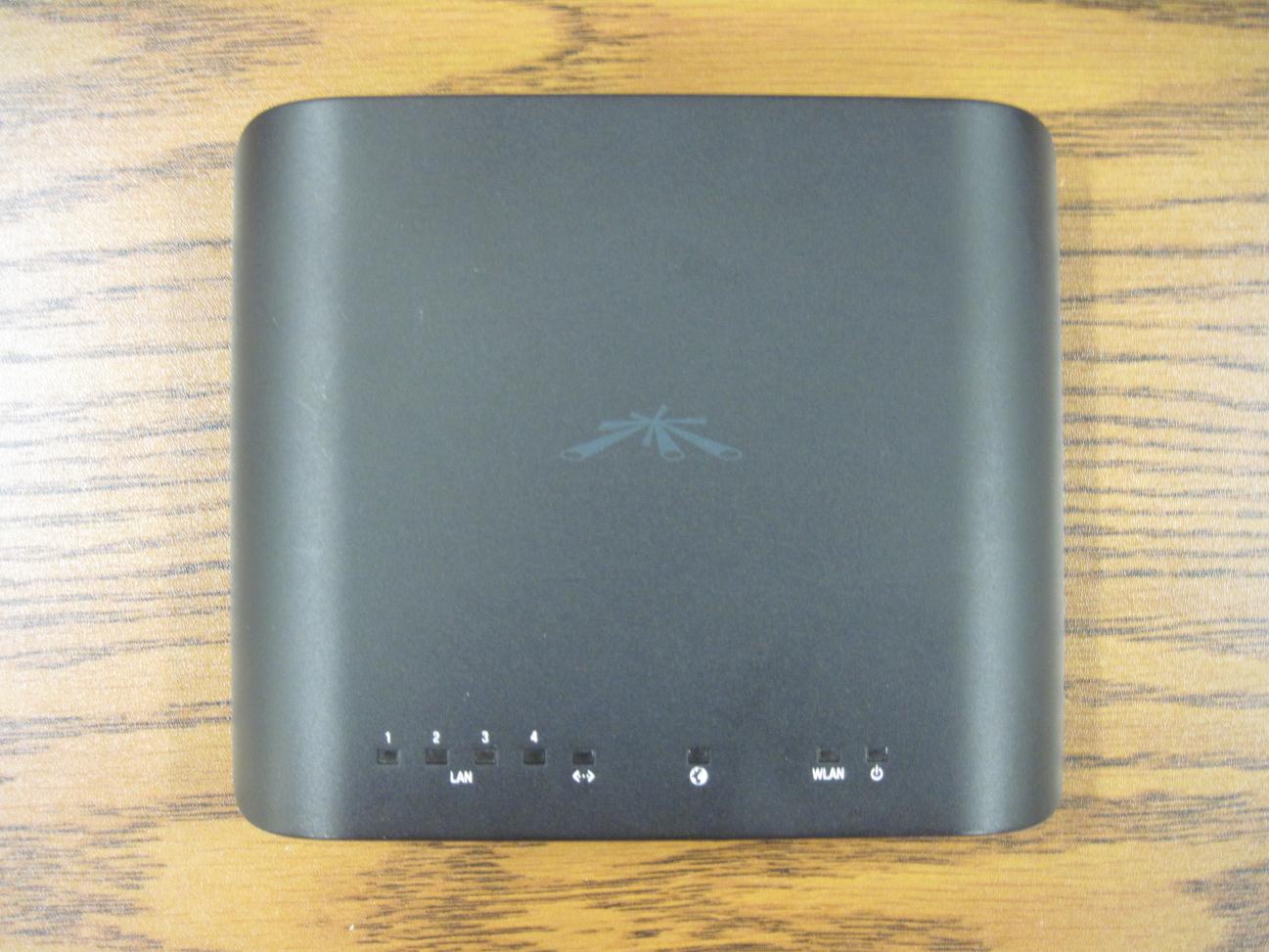

SWX-ARHP802.11n Wireless Router

1 Package Contents Package Contents AirRouter HPAntennaEthernet Cable 5V/2A PoE AdapterQuick Start Guide System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, Linux, or Mac OS X • Java Runtime Environment 1.6 (or above) for the AirView utility • Web Browser: Mozilla Firefox, Apple Safari, or Microsoft Internet Explorer 2 AirRouter HP 802.11n Wireless Router Hardware Installation To install the AirRouter HP, perform the following steps: 1. Connect the antenna to the antenna connector on the AirRouter HP by rotating it clockwise. 2. Raise the antenna to an upright position. 3 Hardware Installation 3. Connect the power adapter to a power outlet. 4. Connect an Ethernet cable to the Ethernet port on the power adapter. 5. Connect the other end of the Ethernet cable to the (WAN) port on the AirRouter HP. The Power LED will light up on the front of the AirRouter HP. 4 AirRouter HP 802.11n Wireless Router 6. Connect the Ethernet connector on the power adapter to your broadband modem. Connect another Ethernet cable from your computer to a LAN port (1, 2, 3, or 4) on the AirRouter HP. Broadband Modem WAN Port LAN Port 1, 2, 3, or 4 Ethernet Port on Computer 7. Launch your Web browser and type http://192.168.1.1 in the address field and press enter (PC) or return (Mac). Note: Your computer needs to be on the 192.168.1.x subnet. If you have DHCP enabled on your Ethernet adapter, it should receive an address automatically. If not, you will need to set a static IP address in the 192.168.1.2 - 192.168.1.254 range. 5 Hardware Installation 8. The login screen will appear. Enter ubnt in the Username and Password fields and click Login. 9. The AirOS interface will appear. Go to the Wireless tab. Wireless tab 6 AirRouter HP 802.11n Wireless Router 10. Customize your wireless network and secure your network by entering the basic wireless network information: a. Enter a name for your wireless network in the SSID field. b. Select the type of security that you want to use for your wireless network from the Security drop-down. Note: WPA2-AES security is the srongest wireless security method. If all of your devices support this option, it is recommended that you select it. c. Enter a passphrase in the WPA Preshared Key field. You can click the Show option to see the characters that you are typing. d. Click Change. You will be prompted to apply the changes. To proceed, click Apply. Congratulations! Basic router installation is complete. The next page provides information for connecting wireless clients. For additional information on configuring and using the AirRouter HP, refer to the User Guide on our website at: www.ubnt.com/airrouter 7 Connecting a Wireless Client to the AirRouter HP Connecting a Wireless Client to the AirRouter HP Windows 1. Go to Connect to Network. -Windows 7 Right-click on the Network icon. -Windows Vista Go to Start > Connect To. -Windows XP Right-click the Wireless Network icon in the System Tray (lower right corner of the screen) and then click View Available Wireless Networks. 2. Select the wireless network (SSID) that you entered in the SSID field in step 7a and then click Connect. 3. Type the passphrase that you entered in the WPA Preshared Key field in step 7c and click OK or Connect. 4. Launch your web browser to begin browsing the web. Mac 1. Click the AirPort icon in the menu bar (top left side of the screen). 2. Select the wireless network (SSID) that you entered in the SSID field in step 7a. 3. Type the passphrase that you entered in the WPA Preshared Key field in step 7c and click OK. 4. Once connected the AirPort icon will change from gray to solid black. The number of black lines indicates the signal strength. Launch your web browser to begin browsing the web. 8 AirRouter HP 802.11n Wireless Router General Warranty UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and warrants that the Products furnished hereunder shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS sole and exclusive obligation under the foregoing warranty shall be to repair or replace, at its option, any defective Product that fails during the warranty period. The expense of removal and reinstallation of any item is not included in this warranty. The foregoing warranty is exclusive and in lieu of all other warranties, express or implied, including the implied warranties of merchantability and fitness for a particular purpose and any warranties arising from a course of dealing, usage or trade practice with respect to the products. Repair or replacement in the manner provided herein shall be the sole and exclusive remedy of Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid). No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned to Buyer freight collect. UBIQUITI NETWORKS shall have no obligation to make repairs or replacement necessitated by catastrophe, fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or any other parties. The warranty period of any repaired or replaced. Product shall not extend beyond its original term. Warranty Conditions The foregoing warranty shall apply only if: (I) The Product has not been subjected to misuse, neglect or unusual physical, electrical or electromagnetic stress, or some other type of accident. (II) No modification, alteration or addition has been made to the Product by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S authorized representatives or otherwise approved …

Text truncated - open the document above for the full version.

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 October 18, 2011 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR AirRouterHP(FCC ID: SWX-ARHP) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We request that the schematics, block diagram and theory of operation required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

§ 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz; highest conducted power = 28.84 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (765.60mW) G = Antenna Gain (3.162 numeric) R = Minimum Distance between User and Antenna (20 cm) S = (765.60*3.162)/(4*3.14*20 2 ) = 2420.83/5024 = 0.482 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory October 20, 2011 Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 Dear Jennifer Sanchez, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, Inc., AirRouterHP as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ubiquiti Networks, Inc.\EMCS32997-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks, Inc. Cover Page AirRouterHP CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS32997-FCC247 © 2011, MET Laboratories, Inc. Page ii of xii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks, Inc. AirRouterHP Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMCS32997-FCC247 October 20, 2011 Prepared For: Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks, Inc. Cover Page AirRouterHP CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS32997-FCC247 © 2011, MET Laboratories, Inc. Page iii of xii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks, Inc. AirRouterHP Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Lionel Gabrillo, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks, Inc. Report Status AirRouterHP CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS32997-FCC247 © 2011, MET Laboratories, Inc. Page iv of xii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  October 20, 2011 Initial Issue. Electromagnetic Compatibility Ubiquiti Networks, Inc. Table of Contents AirRouterHP CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS32997-FCC247 © 2011, MET Laboratories, Inc. Page v of xii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................6 E. Equipment Configuration ....................................................................................................................................7 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................8 H. Mode of Operation ....................................................................................................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emission, Test Setup, 30 MHz – 1 GHz Photograph 3. Conducted Emissions, 15.207(a), Test Setup Photograph 4. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 5. Radiated Spurious Emissions, Test Setup, 1 GHz – 18 GHz
