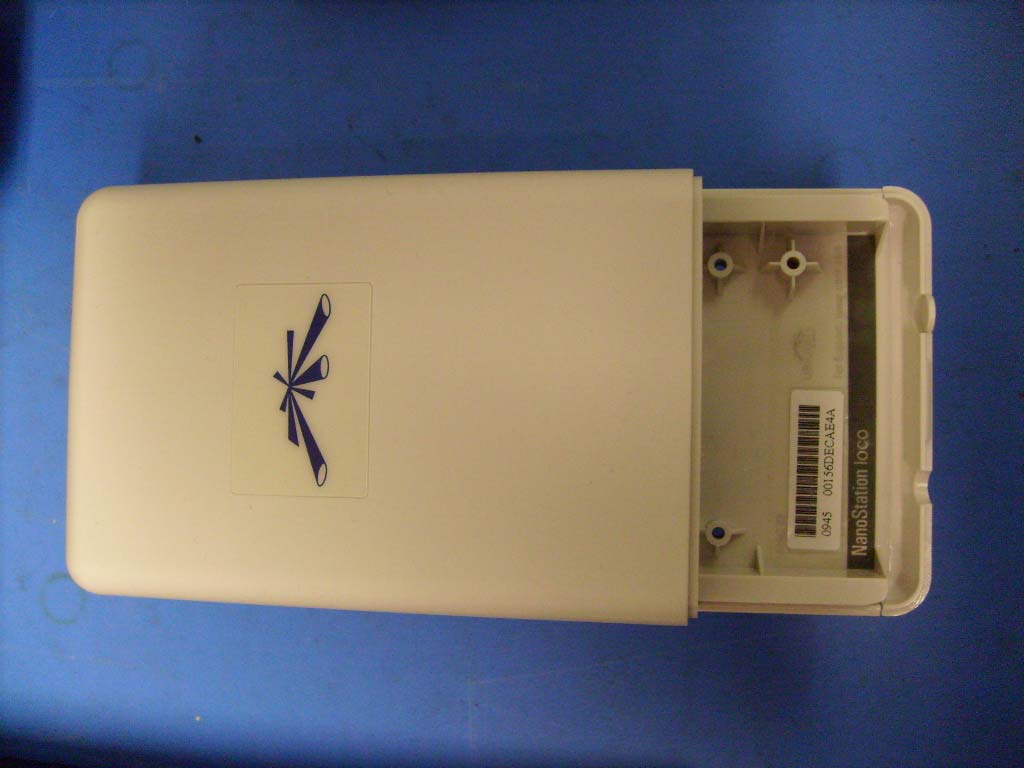

SWX-L2802.11 radio

L2 OEM Users Guide TECH SPECS DataRateTX PowerToleranceDataRateSensitivityTolerance 1Mbps20 dBm+/-1dB1Mbps-95 dBm+/-1dB 2Mbps20 dBm+/-1dB2Mbps-94 dBm+/-1dB 5.5Mbps20 dBm+/-1dB5.5Mbps-93 dBm+/-1dB 11Mbps20 dBm+/-1dB11Mbps-90 dBm+/-1dB 6Mbps20 dBm+/-1dB6Mbps-92 dBm+/-1dB 9Mbps20 dBm+/-1dB9Mbps-91 dBm+/-1dB 12Mbps20 dBm+/-1dB12Mbps-89 dBm+/-1dB 18Mbps20 dBm+/-1dB18Mbps-88 dBm+/-1dB 24Mbps20 dBm+/-1dB24Mbps-84 dBm+/-1dB 36Mbps18 dBm+/-1dB36Mbps-81 dBm+/-1dB 48Mbps16 dBm+/-1dB48Mbps-75 dBm+/-1dB 54Mbps15 dBm+/-1dB54Mbps-72 dBm+/-1dB 802.11b 802.11g OFDM802.11g OFDM TX SPECIFICATIONSRX SPECIFICATIONS Wireless ApprovalsFCC Part 15.247, IC RS210, CE RADIO OPERATING FREQUENCY 2412-2462 MHz 802.11b REGULATORY / COMPLIANCE INFORMATION SYSTEM INFORMATION Processor SpecsAtheros MIPS 4KC, 180MHz Memory Information16MB SDRAM, 4MB Flash Networking Interface1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface RoHS ComplianceYES PHYSICAL / ELECTRICAL / ENVIRONMENTAL Enclosure Size16.3 cm. length x 3.1 cm. height x 8cm. width Weight0.18kg Enclosure CharacteristicsOutdoor UV Stabalized Plastic Mounting KitPole Mounting Kit included Max Power Consumption4 Watts Power Supply12V, 1A (12 Watts). Supply and injector included Shock and VibrationETSI300-019-1.4 Power MethodPassive Power over Ethernet (pairs 4,5+; 7,8 return) Operating Temperature -20C to +70C Operating Humidity5 to 95% Condensing COMPLIANCE INFORMATION FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The antennas used for this transmitter must be installed to provide a separation distance of at least following from all users: 20cm INDUSTRY CANADA This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. The device has been designed to operate with the antennas listed below and having a maximum gain of 8dBi. Antennas not included in this list or having a gain greater than 8dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. This device must be professionally installed and is designed strictly for for outdoor point- to-point wireless links.

Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 5/19/10 Attn: MET laboratories 914 West Patapsco Ave. Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR M2 (FCC ID: SWX-L2) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We have requested that the schematics, block diagrams, theory of operation, and internal photos required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

L2 FCC ID: SWX-L2 IC: 6545A-L2 Ubiquiti Networks This device complies with Part15 of FCC rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference and, 2.) This device must accept any interference received, including interference that maay cause undesired operation www.ubnt.com

Loco2 Antenna 8dBi

Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 © 2010, MET Laboratories, Inc. Page 38 of 83 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412-2462 MHz ; highest conducted power = 24.54dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 8dBi Integrated Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (284.44mW) G = Antenna Gain (63.1 numeric) S = (284.44*63.1 / 4*3.14*20.0 2 )= (1794.734/ 5024) = 0.357 mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory July 22, 2010 Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Dear Robert Pera, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, L2 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Ubiquiti Networks\EMCS82080A-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks Cover Page L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page ii of ix DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks L2 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS82080A-FCC247 Rev. 1 July 22, 2010 Prepared For: Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page iii of ix DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks L2 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Minh Ly, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page iv of ix DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  June 23, 2010 Initial Issue. 1 July 22, 2010 Editorial corrections. Electromagnetic Compatibility Ubiquiti Networks Table of Contents L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page v of ix DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................5 E. Equipment Configuration....................................................................................................................................7 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................7 H. Mode of Operation..............................................................................................................................................8 I. Method of Monitoring…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 © 2010, MET Laboratories, Inc. Page 13 of 83 DOC-EMC702 6/18/2009 Conducted Emission Limits Test Setup Photograph 1. Conducted Emissions, Test Setup Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 © 2010, MET Laboratories, Inc. Page 18 of 83 DOC-EMC702 6/18/2009 Radiated Emission Limits Test Setup Photograph 2. Radiated Emission, 30MHz – 1GHz Test Setup Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 © 2010, MET Laboratories, Inc. Page 19 of 83 DOC-EMC702 6/18/2009 Radiated Emission Limits Test Setup Photograph 3. Radiated Emission, above 1GHz Test Setup Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 © 2010, MET Laboratories, Inc. Page 25 of 83 DOC-EMC702 6/18/2009 15.207 Conducted Emissions Test Setup Photograph Photograph 4. Conducted Emissions, 15.207, Test Setup Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators L2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82080A-FCC247 © 2010, MET Laboratories, Inc. Page 51 of 83 DOC-EMC702 6/18/2009 Radiated Spurious Emissions Test Setup Photographs Photograph 5. Radiated Spurious Emission, Test Setup
