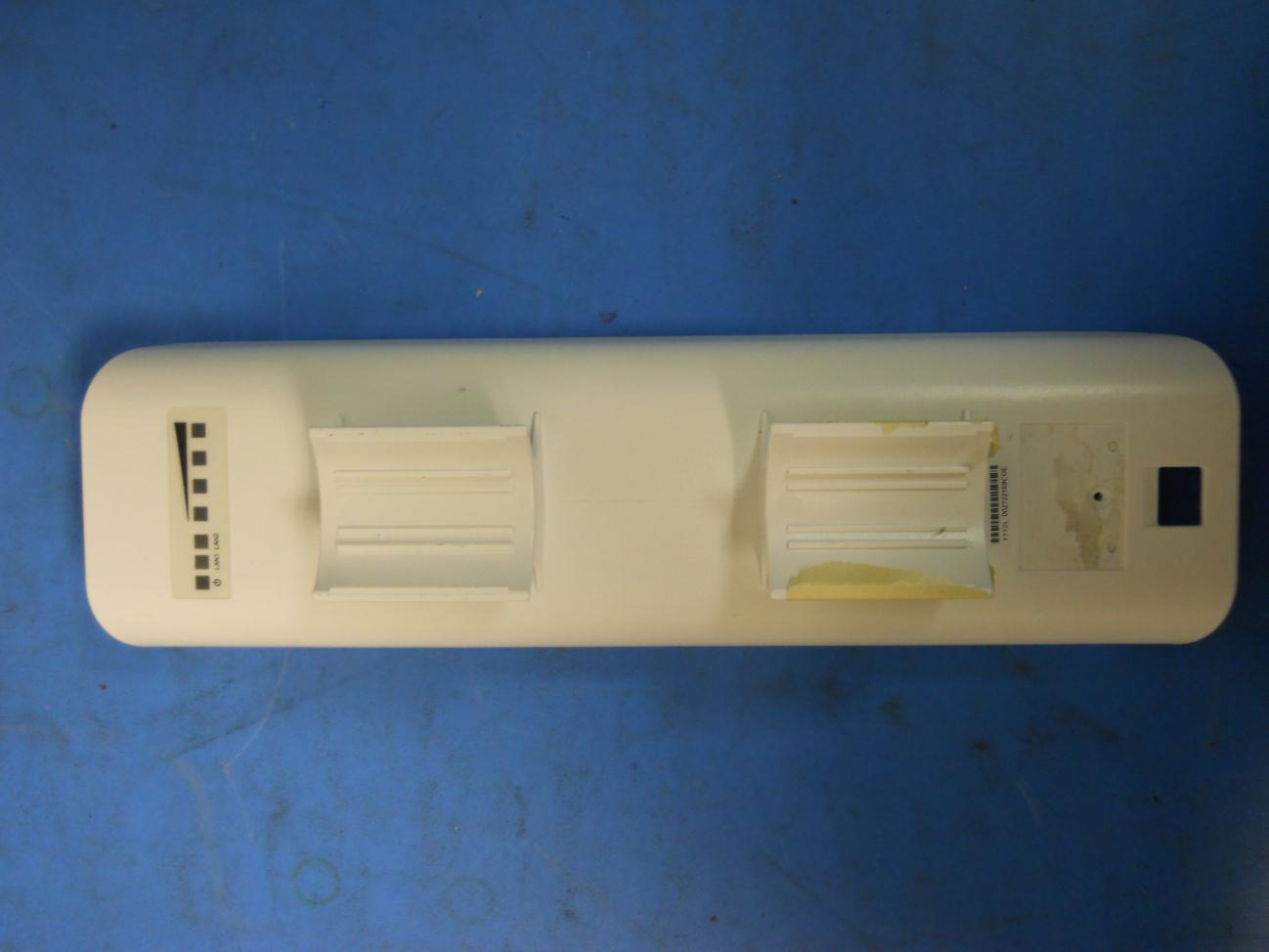

SWX-M2N2.4GHz Hi-Power 2x2 MIMO AirMax Station

Models: NanoStation M2/M5 NanoStation Loco M2/M5/M900 1 Introduction Introduction Thank you for purchasing a Nanostation M series product. This is a point-to-point CPE wireless device. This Quick Start Guide is for use with the following models: ModelOperating FrequencyEthernet Ports NanoStation M22403-2475 MHz2 NanoStation M55170-5875 MHz*2 NanoStation Loco M22402-2482 MHz1 NanoStation Loco M55170-5875 MHz*1 NanoStation Loco M900902-928 MHz1 * Only 5745-5850 MHz is supported in the USA and Canada Package Contents U B I Q U I T I N N E T W O R K S U B I Q U I T I N E T U B I Q U I T I N N E T W O R K S U B I Q U I T I N E T NanoStation24v PoE Adapter Power CordMounting Ties * Products may be different from pictures and are subject to change without notice. Installation Requirements • 10 mm wrench • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable 2 Quick Reference Guide Hardware Overview * Secondary Ethernet Port included only on NanoStation M2 & M5 Secondary Main Reset Secondary Ethernet Port* Main Ethernet Port Note: Secondary Ethernet Port is capable of 24V Power over Ethernet output which can provide power to a secondary device. It can be enabled using the AirOS interface. LEDs LAN1LAN2 Power The Power LED will light steady green when properly connected to a power source. LAN1WAN/Main Ethernet The LAN1 Ethernet LED will light steady green when an active Ethernet connection is made to the Primary Ethernet Port and flash when there is activity. LAN2LAN/Secondary Ethernet The LAN2 Ethernet LED (on NanoStation M2/M5 only) will light steady green when an active Ethernet connection is made to the Secondary Ethernet Port. Signal These LEDs display the signal strength. 3 Typical Deployment Typical Deployment LAN or Computer to Ethernet Port labeled LAN on PoE Adapter Ethernet Port on Ubiquiti Device to Ethernet Port labeled POE on PoE Adapter Connect the Power Cord to the PoE Adapter and a power outlet Note: Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. 4 Quick Reference Guide Accessing AirOS 1. Make sure that your host machine is connected via Ethernet to the Ubiquiti Networks device (as shown on previous page). 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (e.g. 192.168.1.100). 3. Launch your Web browser and type http://192.168.1.20 in the address field and press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Select your country from the Select Your Country drop-down. To use the product you must agree to the terms of use. To do so, click I agree to these terms of use. Click Login. 5. The AirOS Interface will appear allowing you to customize your settings as needed. 5 Ubiquiti Networks Wiki and Forum Ubiquiti Networks Wiki and Forum Ubiquiti Networks has an online Wiki with Manuals, Guides, and Information. It is located at www.ubnt.com/wiki. Another great resource is the Ubiquiti Networks Forum. You can post and view comments, questions, and answers with other forum members and Ubiquiti staff at www.ubnt.com/forum. 6 Quick Reference Guide Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. Note: This product is locked to the US Country Code to ensure compliance with FCC regulations. 7 Specifications Specifications NanoStation M Enclosure Size 29.4 x 8 x 3 cm Weight 0.5 kg Max Power Consumption 8 Watts Power Supply 24V, 1A PoE Supply Included Power Method Passive PoE (Pairs 4, 5+; 7,8 return) Operating Temperature -30° to 75° C Operating Frequency M2 2403 MHz - 2475 MHz M5 5470 MHz - 5825 MHz Networking Interface 2 10/100BASE-TX Ethernet Ports NanoStation Loco M Enclosure Size 163 x 31 x80 mm Weight 0.18kg Max Power Consumption 5.5 Watts Power Supply 24V, 0.5A PoE Supply Included Power Method Passive PoE (Pairs 4, 5+; 7,8 return) Operating Temperature -30° to 80° C Operating Frequency Loco M900 902 - 928 MHz Loco M2 2412 MHz - 2462 MHz Loco M5 5470 MHz - 5825 MHz Networking Interface 1 10/100BASE-TX Ethernet Ports 8 Quick Reference Guide Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. 3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requi…

Text truncated - open the document above for the full version.

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 June 1, 2011 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR NanoStationM2(FCC ID: SWX-M2N) & NanoStationLocoM2 (FCC ID: SWX-M2LB) This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the schematics, block diagrams and theory of operation required to be submitted with this application be permanently withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 May 26, 2011 MET Laboratories 914 W. Patapsco Ave Baltimore, MD 21230 RE: Professional Installation for Ubiquiti Networks Models NanoStationM2 and NanoStationLocoM2 To Whom It May Concern: This product is designed for outdoor point to point broadband wireless. It is available through special distribution channels worldwide serving system integrators in the Wireless Internet Service Provider Industry. A professional installer with experience in extended Ethernet cable deployment, tower mounting, and Ubiquiti AirMax system knowledge will be required to properly enable the equipment. Please contact me if there is any information you may need. Sincerely, Robert J. Pera President

34.5mm 24.5mm 1X1 LAN1LAN2 NanoStation 2 2.4GHz Indoor/Outdoor MIMO 11dBi CPE This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SWX-M2N IC: 6545A-M2N 24V 0.5A POE Compliant RoHS www.ubnt.com NanoStation 2 2.4GHz Indoor/Outdoor MIMO 11dBi CPE This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SWX-M2N IC: 6545A-M2N 24V 0.5A POE Compliant RoHS www.ubnt.com

§ 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz; highest conducted power = 28.81 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 11.2 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (760.3mW) G = Antenna Gain (13.8 numeric) R = (760.3*13.8/ 4*3.14*1.0) 1/2 = (10002.3 / 12.56) 1/2 = 28.22cm

Compact, Hi-Power, 2x2 MIMO AirMax TDMA Station Models: NSM2, NSM3, NSM365, NSM5, LOCOM2, LOCOM5, LOCOM9 Cost Effective, Hi-Performance Powerful integrated Antenna Compact and Versatile Design NanoStation NanoStation Datasheet | NanoStation NanoStation The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors along with integrated AirMax (MIMO TDMA Protocol) Technology. The low cost, hi-performance, and small form factor of NanoStation M and NanoStation Loco M make them extremely versatile and ideal in several different applications (see diagrams on right for some usage examples). Leading Edge Industrial Design 02 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Overview Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless access. Scalability High capacity and scalability. Long Distance Capable of high speed 50km+ links Latency Multiple features dramatically reduce noise. Integrated AirMax Technology Usage Examples NanoStation M as powerful clients in an AirMax PTMP (point to multi-point) network setup. Use two NanoStation M to create a PTP link.NanoStation M as a powerful wireless client. PTMP CLIENT LINKS PTP LINK Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter (sold separately). Remote Reset Intelligent POE The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration. Dual Ethernet Connectivity * Only NanoStation M models. ** Remote reset is an additional option. Nanostation M comes standard as 24V without remote reset. *** Datasheet | NanoStation NanoStation 03 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Models [top] NSM2 (2.4GHz, 10.4-11.2dBi), NSM3 (3.4-3.7GHz, 12.2-13.7dBi), NSM365 (3.65GHz, 12.2-13.7dBi), NSM5 (5GHz, 14.6-16.1dBi) [bottom left] LOCOM9 (900MHz, 8dBi) [bottom right] LOCOM2 (2.4GHz, 8.5dBi), LOCOM5 (5GHz, 13dBi) Datasheet | NanoStation NanoStation AirOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance outdoor multipoint networking. Protocol Support Ubiquiti Channelization Spectral Width Adjust ACK Auto-Timing AAP Technology Multi-Language Support 04 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Software View OS Integrated on all Ubiquiti M products, AirView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. Waterfall Aggregate energy over time for each frequency. Waveform Aggregate energy collected. Real-time Energy is shown real-time as a function of frequency. Recording Automize AirView to record and report results. Contro l AirControl is a powerful and intuitive web based server network management application which allows operators to centrally manage entire networks of Ubiqutii devices. Network Map Monitor Device Status Mass Firmware Upgrade Web UI Access Manage Groups of Devices Task Scheduling www.ubnt.com/aircontrol www.ubnt.com/airview www.ubnt.com/airos Datasheet | NanoStation NanoStation 05 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Specifications Max Power Consumption8 Watts5.5 Watts6.5 Watts PolarizationDual Linear RF Connector--External RP-SMA Antenna Gain11 dBi (M2) 13.7 dBi (M3/M365) 16 dBi (M5) 8 dBi (M2) 13 dBi (M5) 8 dBi System Information Memory Information64MB SDRAM, 8MB Flash32MB SDRAM, 8MB Flash Regulatory / Compliance Information LOCOM9M2, M5**NSM365NSM3 LOCOM9LOCOM, NSM Networking Interface1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet LOCOMNSM Wireless ApprovalsFCC Part 15.247, IC RS210FCC Part 15.247, IC RS210, CEFCC Part 90Z- RoHS ComplianceYES Physical / Electrical / Environmental / Antenna Weight0.18 kg0.9 kg0.4 kg 0.5 kg (M3/M365) Enclosure CharacteristicsOutdoor UV Stabilized Plastic Mounting KitPole Mounting Kit included Power MethodPassive Power over Ethernet (pairs 4, 5+; 7, 8 return) Operating Temperature-30C to 75C Operating Humidity5 to 95% Condensing Shock and VibrationETSI300-019-1.4 Processor SpecsAtheros MIPS 24KC, 400MHz Dimensions164 x 72 x 199 mm LOCOM9 163 x 31 x 80 mm LOCOM 294 x 31 x 80 mm NSM Power Supply (included)24V, 0.5A POE 24V, 1A POE (M3/M365) 24V, 0.5A POE24V, 1A POE Operating Frequency Summary (MHz) M2** 2402-2482 NSM3 3400-3700 NSM365 3650-3675 M5** 5470-5825* LOCOM9 902-928 * Only 5745 - 5825 MHz is supported in the USA ** Applies to both NanoStation M and NanoStation Loco M models Datasheet | NanoStation NanoStation NanoStation Loco M9 - Operating Frequency 902-928 MHz AirMax OUTPUT POWER: 28 dBm 900 MHz TX POWER SPECIFICATIONS MCS028 dBm+/- 2 dB MCS128 dBm+/- 2 dB MCS228 dBm+/- 2 dB MCS328 dBm+/- 2 dB MCS428 dBm+/- 2 dB MCS524 dBm+/- 2 dB MCS622 dBm+/- 2 dB MCS721 dBm+/- 2 dB MCS828 dBm+/- 2 dB MCS928 dBm+/- 2 dB MCS1028 dBm+/- 2 dB MCS1128 dBm+/- 2 dB MCS1228 dBm+/- 2 dB MCS1324 dBm+/- 2 dB MCS1422 dBm+/- 2 dB MCS1521 dBm+/- 2 dB …

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory June 28, 2011 Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Dear Jennifer Sanchez, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, NanoStationM2 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ubiquiti Networks\EMC30567-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks Cover Page NanoStationM2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC30567-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page ii of xvi DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks NanoStationM2 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMC30567-FCC247 Rev. 1 June 28, 2011 Prepared For: Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page NanoStationM2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC30567-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page iii of xvi DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks NanoStationM2 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status NanoStationM2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC30567-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page iv of xvi DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  June 13, 2011 Initial Issue. 1 June 28, 2011 Revised to reflect engineer corrections. Electromagnetic Compatibility Ubiquiti Networks Table of Contents NanoStationM2 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC30567-FCC247 Rev. 1 © 2011, MET Laboratories, Inc. Page v of xvi DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 6 E. Equipment Configuration .................................................................................................................................... 8 F. Support Equipment ............................................................................................................................................. 8 G. Ports and Cabling Information ............................................................................................................................ 8 H. Mode of Operation ...............................................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup, GME Power Supply Photograph 2. Conducted Emissions, Test Setup, Cetus Power Supply Photograph 3. Radiated Emission, Test Setup, GME Power Supply Photograph 4. Radiated Emission, Test Setup, Cetus Power Supply Photograph 5. Conducted Emissions, 15.207(a), Test Setup, GME Power Supply Photograph 6. Conducted Emissions, 15.207(a), Test Setup, Cetus Power Supply Photograph 7. Radiated Harmonic/Spurious Emissions, Test Setup, Horn Photograph 8. Radiated Harmonic/Spurious Emissions, Test Setup, Bilog Photograph 9. Radiated Harmonic/Spurious Emissions, Test Setup Photograph 10. Radiated Band Edge Emissions, Test Setup, 3m
