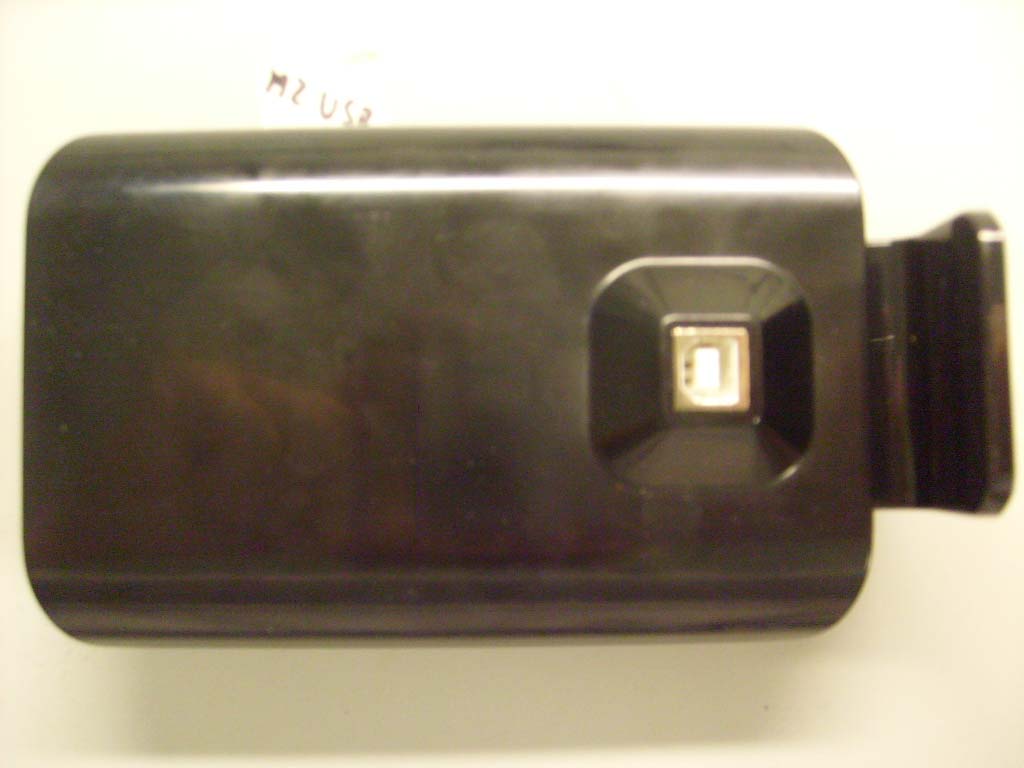

SWX-M2USB802.11 g/n 1x1 MIMO radio

M2USB Users Guide TECH SPECS DataRateAvg. TXToleranceDataRateSensitivityTolerance MCS020 dBm+/-2dBMCS0-96 dBm+/-2dB MCS120 dBm+/-2dBMCS1-95 dBm+/-2dB MCS220 dBm+/-2dBMCS2-92 dBm+/-2dB MCS320 dBm+/-2dBMCS3-90 dBm+/-2dB MCS419 dBm+/-2dBMCS4-86 dBm+/-2dB MCS517 dBm+/-2dBMCS5-83 dBm+/-2dB MCS616 dBm+/-2dBMCS6-77 dBm+/-2dB MCS715 dBm+/-2dBMCS7-74 dBm+/-2dB Shock and VibrationETSI300-019-1.4 Power MethodPassive Power over Ethernet (pairs 4,5+; 7,8 return) Operating Temperature -30C to 75C Operating Humidity5 to 95% Condensing Mounting KitPole Mounting Kit included Max Power Consumption3.5 Watts Power Supply5V USB+POE Adapter Included Enclosure Size16cm length x 8cm width x 3cm height Weight0.5 kg Enclosure CharacteristicsOutdoor UV Stabalized Plastic PHYSICAL / ELECTRICAL / ENVIRONMENTAL Airmax 11n Airmax11n OPERATING FREQUENCY 2412MHz-2462MHz TX POWER SPECIFICATIONSRX SPECIFICATIONS REGULATORY / COMPLIANCE INFORMATION Wireless ApprovalsFCC Part 15.247, IC RS210, CE RoHS ComplianceYES SYSTEM INFORMATION Processor SpecsAtheros MIPS 24KC, 400MHz Memory Information32MB SDRAM, 8MB Flash Networking Interface1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface COMPLIANCE INFORMATION FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The antennas used for this transmitter must be installed to provide a separation distance of at least following from all users: 20cm This product is for point-to-point operation INDUSTRY CANADA This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 5/24/10 Attn: MET laboratories 914 West Patapsco Ave. Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR M2 (FCC ID: SWX-M2USB) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We have requested that the schematics, block diagrams, theory of operation, and internal photos required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

M2USB Antenna

Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82105-FCC247_Rev1 © 2010, MET Laboratories, Inc. Page 43 of 94 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412-2412 MHz ; highest conducted power = 29.98dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 6dBi. Integral Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (995.4054mW) G = Antenna Gain (3.98numeric) S = (995.4*3.98 4*3.14*20.0 2 ) = (3962.78/ 5024) = 0.788mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory May 11, 2010 Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Dear Robert Pera, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, M2 USB as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Ubiquiti Networks\EMCS82105-FCC247_Rev1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks Cover Page M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82105-FCC247_Rev1 © 2010, MET Laboratories, Inc. Page ii of ix DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks M2 USB Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS82105-FCC247_Rev1 May 11, 2010 Prepared For: Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82105-FCC247_Rev1 © 2010, MET Laboratories, Inc. Page iii of ix DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks M2 USB Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82105-FCC247_Rev1 © 2010, MET Laboratories, Inc. Page iv of ix DOC-EMC702 2/18/2010 Report Status Sheet Revision Report Date Reason for Revision  May 5, 2010 Initial Issue. 1 May 11, 2010 Rev 1 Electromagnetic Compatibility Ubiquiti Networks Table of Contents M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82105-FCC247_Rev1 © 2010, MET Laboratories, Inc. Page v of ix DOC-EMC702 2/18/2010 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................8 H. Mode of Operation..............................................................................................................................................9 I. Method of Monitoring…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Conducted Emission Limits Test Setup Photograph 2. Conducted Emissions, Test Setup MET Report: EMCS82105-FCC247 © 2010, MET Laboratories, Inc. Page 14 of 94 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Emission Limits Test Setup Photograph 3. Radiated Emission, Test Setup, 30MHz – 1GHz MET Report: EMCS82105-FCC247 © 2010, MET Laboratories, Inc. Page 19 of 94 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Emission Limits Test Setup Photograph 4. Radiated Emission, Test Setup, above 1GHz MET Report: EMCS82105-FCC247 © 2010, MET Laboratories, Inc. Page 20 of 94 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 15.207 Conducted Emissions Test Setup Photo Photograph 5. Conducted Emissions, 15.207, Test Setup MET Report: EMCS82105-FCC247 © 2010, MET Laboratories, Inc. Page 26 of 94 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Spurious Emissions Test Setup Photograph 6. Radiated Spurious Emissions, 3 meter Test Setup MET Report: EMCS82105-FCC247 © 2010, MET Laboratories, Inc. Page 67 of 94 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M2 USB CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Harmonics Emissions Test Setup Photograph 7. Radiated Harmonics Emissions, 1 meter Test Setup MET Report: EMCS82105-FCC247 © 2010, MET Laboratories, Inc. Page 68 of 94 DOC-EMC702 2/18/2010
