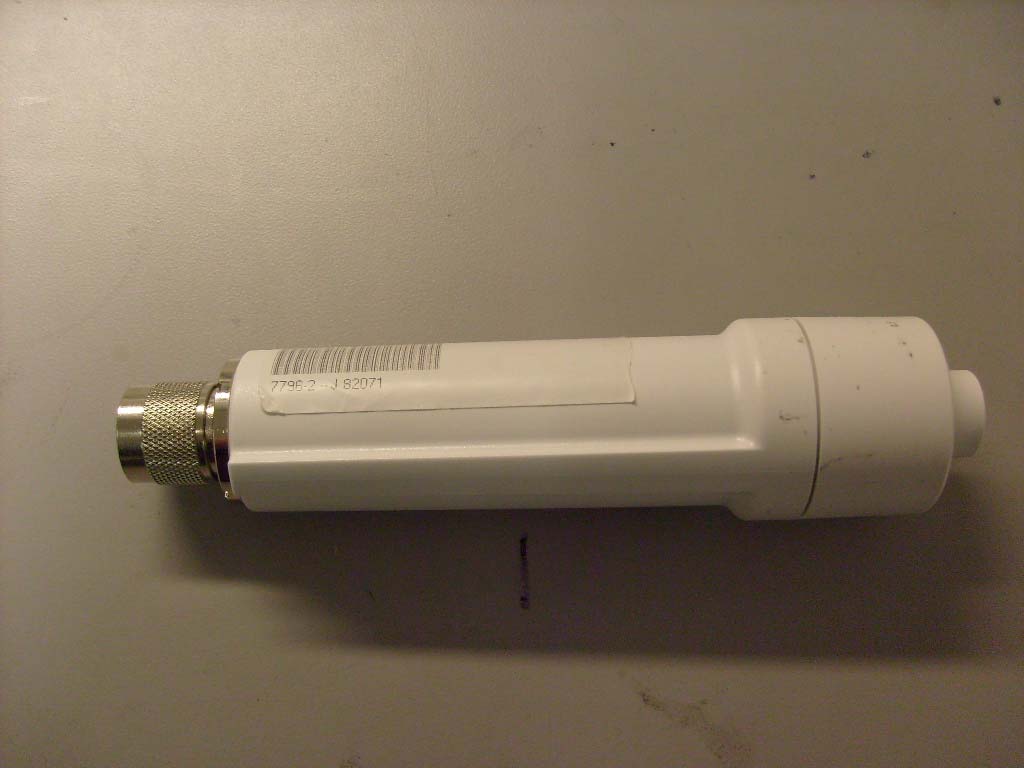

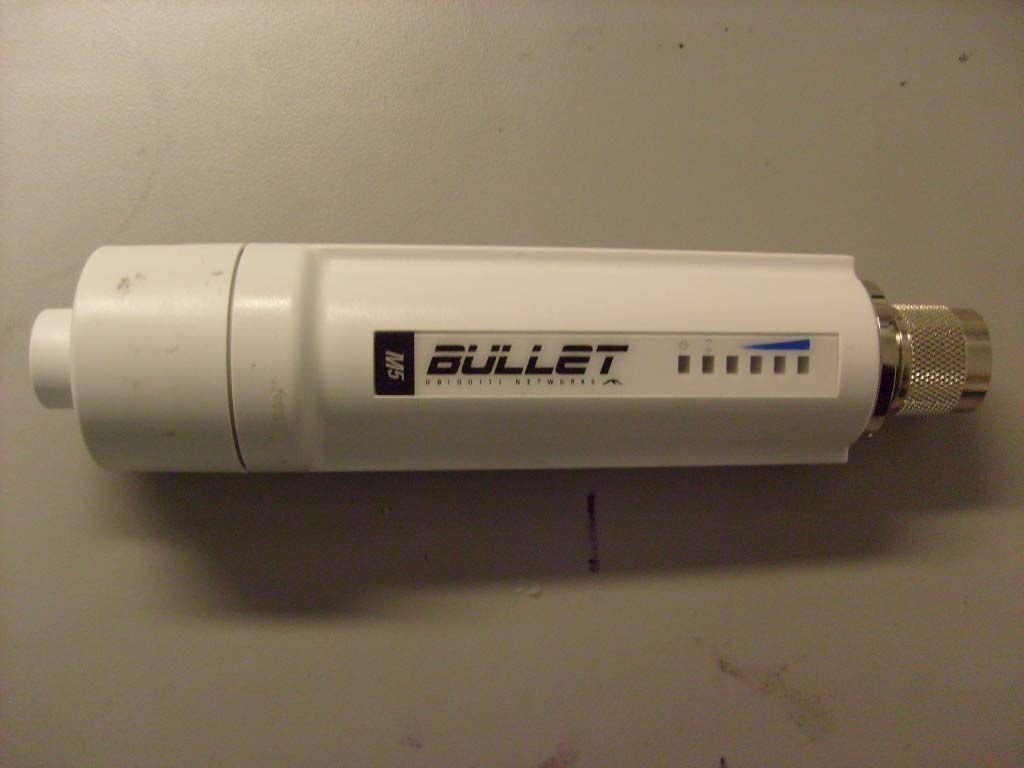

SWX-M5B802.11 a/n 1x1 MIMO radio

M5B OEM Users Guide TECHNICAL SPECIFICATIONS DataRateAvg. TXToleranceDataRateSensitivityTolerance 1-24Mbps25 dBm+/-2dB1-24Mbps-97 dBm min.+/-2dB 36Mbps24 dBm+/-2dB36Mbps-80 dBm+/-2dB 48Mbps23 dBm+/-2dB48Mbps-77 dBm+/-2dB 54Mbps21 dBm+/-2dB54Mbps-75 dBm+/-2dB MCS025 dBm+/-2dBMCS0-96 dBm+/-2dB MCS125 dBm+/-2dBMCS1-95 dBm+/-2dB MCS225 dBm+/-2dBMCS2-92 dBm+/-2dB MCS325 dBm+/-2dBMCS3-90 dBm+/-2dB MCS424 dBm+/-2dBMCS4-86 dBm+/-2dB MCS522 dBm+/-2dBMCS5-83 dBm+/-2dB MCS621 dBm+/-2dBMCS6-77 dBm+/-2dB MCS720 dBm+/-2dBMCS7-74 dBm+/-2dB Shock and VibrationETSI300-019-1.4 Power MethodPassive Power over Ethernet (pairs 4,5+; 7,8 return) Operating Temperature -30C to 75C Operating Humidity5 to 95% Condensing Max Power Consumption6 Watts Power SupplyPOE up to 24V DC (sold separately) Enclosure Size16cm length x 8cm width x 3cm height Weight0.5 kg PHYSICAL / ELECTRICAL / ENVIRONMENTAL 5GHz 11n 5GHz 11n OPERATING FREQUENCY 5475MHz-5825MHz 5GHz TX POWER SPECIFICATIONS5GHz RX SPECIFICATIONS 11a 11a REGULATORY / COMPLIANCE INFORMATION Wireless ApprovalsFCC Part 15.247, IC RS210, CE RoHS ComplianceYES SYSTEM INFORMATION Processor SpecsAtheros MIPS 24KC, 400MHz Memory Information32MB SDRAM, 8MB Flash Networking Interface1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface COMPLIANCE INFORMATION FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The antennas used for this transmitter must be installed to provide a separation distance of at least following distance from all persons and must not be located or operating in conjunction with any other antenna or transmitter. 20cm distance for the Omni Antenna INDUSTRY CANADA This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. The device has been designed to operate with the antennas listed below and having a maximum gain of 6dBi. Antennas not included in this list or having a gain greater than 6 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms This device must be professionally installed and is designed for for outdoor point-to-point wireless links.

Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 12/28/09 Attn: MET laboratories 914 West Patapsco Ave. Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR M5 (FCC ID: SWX-M5B) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We have requested that the schematics, block diagrams, theory of operation, and internal photos required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Additionally, the mechanical enclosure locking is proprietary and not possible to open by general public Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

Jennifer Sanchez From: Jennifer Sanchez Sent: Tuesday, February 16, 2010 11:17 AM To: Dusmantha Tennakoon Cc: Jenn Warnell; Shawn McMillen; Jennifer Sanchez Subject: RE: Technical Review Request: 82071 Ubiquiti Networks - FCC/IC TCB (M5B) Importance: High 2/16/2010 Hi Dusmantha, Please see response below: FCC RT: 1. There appears to be conducted emissions that were not measured during the radiated testing. Please confirm that these conducted emissions were not seen during the radiated spurious emissions testing. <Confirmed, the conducted emissions were not found during radiated spurious testing.> 2.The internal pictures are blurred. Please retake these pictures so that individual components are clearly seen. <Please refer to revised file Internal Photos_Rev1.pdf> 3.The RF safe distance and the listed antennas are incorrect in the User manual. <Please refer to revised file User_guide_M5B_Rev1.pdf> 4.Editorial errors on page 47 of 99 under test procedures. <Please refer to revised report EMCS82071B-FCC247_Rev1.pdf> 5.The units listed in the distance correction columns in the radiated spurs sections are incorrect. Also, the raw amplitude column needs units. <Please refer to revised report EMCS82071B- FCC247_Rev1.pdf > 6.RF conducted spurious emissions seems to have been performed conducted. However, the test procedures state that it was measured radiated. Please correct this typo. <Please refer to revised report EMCS82071B-FCC247_Rev1.pdf > 7.The theory of operation document calls the unit “the M2G”. This appears to be a typo. <Please refer to revised file block_theory_M5B_Rev1.pdf> IC RT: 1.The IC label is incorrect. It should read “IC: xxx” and not “IC ID: xxx”. <Customer is aware and will update label. > 2. The RF evaluation in the IC package should list General Public Use. <Please refer to revised form 82071 Ubiquiti Networks - IC Package_M5B_Rev1.doc > 3. Please refer to the check sheet for the correct worst case transmitter and receiver spurs. <Please refer to revised form 82071 Ubiquiti Networks - IC Package_M5B_Rev1.doc > All revised documents have been saved in the appropriate folders. Regards, J. Sanchez TCB Administrator MET Laboratories, Santa Clara CA 408-207-4785 Office 408-829-1603 Cell [email protected]

IC 5 M5B M5B

5GHz Antenna M5B Ubiquiti O-5G-6 Gain: 6dBi Dimensions: Length: 197mm

Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 45 of 99 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 27.99dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 6dBi Omni Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (629.50mW) G = Antenna Gain (3.98 numeric) S = (629.50*3.98 / 4*3.14*20.0 2 )= (2506.109/ 5024) = 0.498 mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 February 16, 2010 Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Dear Robert Pera, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, M5B as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Ubiquiti Networks\EMCS82071B-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. The Nation’s First Licensed Nationally Recognized Testing Laboratory Electromagnetic Compatibility Ubiquiti Networks Cover Page M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page ii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks M5B Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS82071B-FCC247 February 16, 2010 Prepared For: Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page iii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks M5B Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page iv of viii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  January 26, 2010 Initial Issue. 1 February 8, 2010 Final Issue 2 February 16, 2010 Revision 1 Electromagnetic Compatibility Ubiquiti Networks Table of Contents M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page v of viii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................5 E. Equipment Configuration....................................................................................................................................7 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................7 H. Mode of Operation..............................................................................................................................................8 I. M…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Conducted Emission Limits Test Setup Photograph 1. Conducted Emissions, Test Setup MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 13 of 99 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Emission Limits Test Setup Photograph 2. Radiated Emission, 30MHz – 1GHz Test Setup MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 18 of 99 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Emission Limits Test Setup Photograph 3. Radiated Emission, above 1GHz Test Setup MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 19 of 99 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Photograph 5. Conducted Emissions, 15.207, Test Setup (Side View) MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 26 of 99 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Spurious Emissions Test Setup Photographs Photograph 6. Radiated Spurious Emission, Test Setup MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 56 of 99 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators M5B CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Spurious Emissions Test Setup Photographs Photograph 7. Radiated Spurious Emission, Test Setup MET Report: EMCS82071B-FCC247 © 2010, MET Laboratories, Inc. Page 57 of 99 DOC-EMC702 6/18/2009
