SWX-MFIMPWMFI INWALL OUTLET

In-Wall Manageable Outlet Model: mFi-MPW Introduction Thank you for purchasing the Ubiquiti Networks ™ mFi® Outlet, model mFi-MPW. The mFi Outlet is designed for integration with the mFi Controller software and features energy monitoring and configuration via Wi-Fi. This Quick Start Guide is designed to guide you through the hardware installation and software configuration. The warranty terms are also included in this Quick Start Guide. For details on configuring the mFi Controller or to download the mFi Controller software, visit www.ubnt.com/mfi Package Contents mFi OutletWall Plate In-Wall Manageable Outlet Model: mFi-MPW Wire Nuts (Qty. 3) Quick Start Guide TERMS OF USE: It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements. Installation Requirements • Phillips screwdriver • Wire stripper/cutter • Needle-nose pliers (optional) IMPORTANT: The mFi Outlet is to be installed by a qualified electrician in accordance with local electrical codes and regulations. WARNING: TO AVOID FIRE, SHOCK OR DEATH; turn off power at the circuit breaker or fuse before installing. Wiring Overview Neutral (White) Ground (Green) 120V, 60 Hz Hot (Black) The mFi Outlet supports up to 15 amps per socket, with a total combined load of 15 amps. Hardware Overview Reset Button Initialize Button Status LED Wall Plate Mounting Slots InterfaceDescription LED The Status LED has four primary states: • Solid yellow When first powered on in factory default mode. • Flashing yellow Connecting to a Wi-Fi network. • Solid blue Successfully connected to mFi Controller. • Flashing blue Connecting to mFi Controller. RESET Reset Button Press and release the button to power reset the device. INIT Initialize Button Press and hold until the LED alternates colors to restore the device to the factory default settings. Hardware Installation 1. Turn off power at the circuit breaker or fuse panel, and verify that the power is off. 2. Identify and label the wiring in the wall box. There should be two wires and a ground wire. Hot Neutral Ground Electrical Outlet Wall Box Note: Wiring colors may be different from the illustration. Be sure to verify the wiring before continuing. 3. Prepare the wiring in the wall box by stripping away 12 mm (½") of insulation from the end of each wire. 12 mm (½") 4. Connect the mFi Outlet wires to the wall box wires and secure each connection with a Wire Nut. a. Connect the Black wire of the mFi Outlet to the Hot wire of the wall box. b. Connect the White wire of the mFi Outlet to the Neutral wire of the wall box. c. Connect the Green wire of the mFi Outlet to the Ground wire of the wall box. *720-00078-01* 720-00078-01 5. Bend and form the wires to fit into the wall box. Ensure the wires are properly positioned to allow adequate room for the mFi Outlet. 6. Place the mFi Outlet inside the wall box and ensure the yoke is mounted flush with the wall for proper fitting of the Wall Plate. Secure the mFi Outlet with the two screws. Note: Do not over-tighten or rely on the force of the screws to pull the mFi Outlet into the wall box. If the wall box does not have enough room to accommodate the mFi Outlet and the wiring, replace the wall box with a deeper or wider box. 7. Mount the Wall Plate by aligning the mounting clips with the Wall Plate Mounting Slots on the mFi Outlet. Press the Wall Plate into position until the mounting clips snap into place. If you are using your own wall plate, secure it with two screws. 8. Turn on power at the circuit breaker or fuse panel. Configuring the mFi Outlet via Wi-Fi To configure the mFi Outlet, you must access it via Wi-Fi from a computer. The mFi Outlet has a default SSID (wireless network name) labeled mFi followed by the last six characters of the MAC address. Windows 1. Go to Connect to Network. -Windows 8 Click the Network icon. -Windows 7 Right-click the Network icon. -Windows Vista Go to Start > Connect To. -Windows XP Right-click the Wireless Network icon in the System Tray (lower right corner of the screen). Click View Available Wireless Networks. 2. Select the wireless network (SSID) that begins with mFi and then click Connect. Go to Accessing the Configuration Portal. Mac 1. Click the AirPort icon in the menu bar (top right side of the screen). 2. Select the wireless network (SSID) that begins with mFi. Once connected, the AirPort icon will change from gray to solid black. Accessing the Configuration Portal 1. Launch your web browser. Type https://192.168.2.20 in the address field. Press enter (PC) or return (Mac). 2. You may receive a security certificate warning. Click Proceed Anyway. 3. The Configuration Portal will appear. Select the wireless network name (SSID) of your existing wireless network from the drop-down list. To refresh the list, click the blue arrows on the right. 4. Enter your Wi-Fi security credentials. The options that appear are based on the encryption method used on your Wi-Fi network. 5. Enter your mFi Controller settings: • Address The IP address and http port used by the Controller. ( The port is usually 6080, for example: 1.1.1.1:6080 or mfi.acme.com:6080). • User The username used to log in to the Controller. • Password The password used to log in to the Controller. Note: Remove the Controller checkmark if you need to enter the Controller settings later. This can be done via the embedded UI or layer 2 adoption. 6. Click Apply. 7. A flashing yellow checkmark will appear while the mFi Outlet is attempting to connect to the Wi-Fi network. It will appear green once the mFi Outlet is connected. 8. If a Controller was specified, a flashing yellow checkmark will appear while the mFi Outlet is attempting to connect to the Controller. It will appear green once the mFi Outlet is connected. 9. Reconnect your computer to your wireless network by selecting the SSID from your wireless networ…

Text truncated - open the document above for the full version.

Rev. 1/1/03 Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: November 21, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: SWX-MFIMPW Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jocelyn Wang [email protected]

Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: November 21, 2013 Power of Attorney To whom it may concern, Please be notified that I, Jocelyn Wang, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SWX-MFIMPW If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Jocelyn Wang [email protected]

1/1 Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: November 21, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SWX-MFIMPW To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Ubiquiti Networks, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jocelyn Wang [email protected]

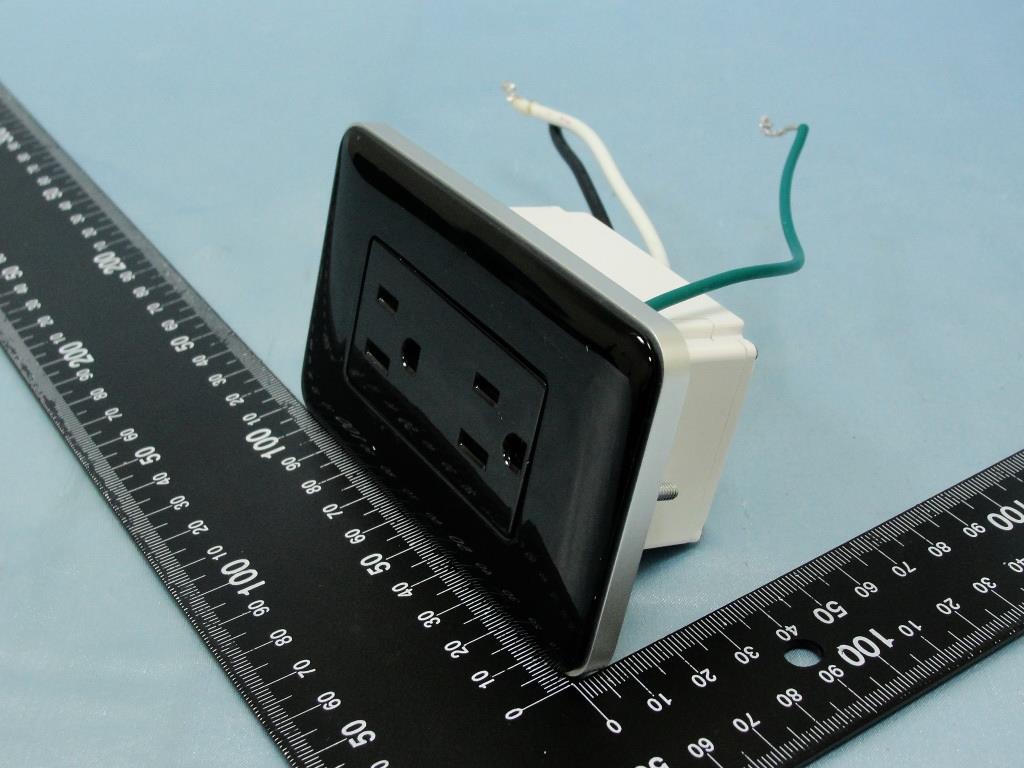

Photographs of EUT Report No.: EP352811 Brand Name: / Model Name: mFi-MPW SPORTON INTERNATIONAL INC. Page Number : 1 of 18 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: SWX-MFIMPW IC: 6545A-MFIMPW 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP352811 Brand Name: / Model Name: mFi-MPW SPORTON INTERNATIONAL INC. Page Number : 2 of 18 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: SWX-MFIMPW IC: 6545A-MFIMPW 720510
