SWX-MICROVideo Camera

Model: UVC-Micro Quick Start Guide ® Package Contents UVC-Micro Camera UVC-Micro Base Power Adapter Flat Base Plate Corner Base Plate Mounting Tape Screws (Qty. 5) Screw Anchors (Qty. 5) Cable Clips (Qty. 6) Hardware Overview LED Reset LED When connected and powered by the UVC-Micro Base, the LED will light steady blue during the boot up process. After boot up is finished, the LED will glow a breathing pattern to indicate that Wi-Fi is ready. Note: The LED can be disabled in the Camera Configuration Interface. Reset To reset to factory defaults, press and hold the Reset button for more than 5 seconds until the LED flashes. Installation Install the UVC-Micro within 5 m (16') of a power outlet. The camera has a magnetic base that can be used to mount it on a metal surface and includes mounting kits for standard wall or corner mounting. Follow the appropriate steps for your installation. Mount on Metal Surface 1. Attach the power cable and the UVC- Micro Camera to the UVC-Micro Base. 2. Attach the camera assembly to a metal (steel) surface. Wall Mounting Mount with tape or with screws: Mounting with Tape 1. Remove the paper from one side of the Mounting Tape, and center the tape on the back of the Flat Base Plate. 2. Remove the paper from the other side of the Mounting Tape and attach the Flat Base Plate to the wall. Mounting with Screws 1. Place the Flat Base Plate at the desired location and mark the two mounting holes. Note: If you are running the power cable inside the ceiling or wall, then mark the cable feed opening below the mounting holes. 2. Use a 3 mm drill bit to drill a hole at each mark, and insert a Screw Anchor into each hole. 3. (Optional) When running the power cable inside the wall or ceiling, cut the hole for the power cable. Then feed the cable through the hole and the Flat Base Plate. 4. Attach the Flat Base Plate to the surface by fastening a Screw to each Screw Anchor. *640-00157-01* 640-00157-01 Corner Mounting 1. Place the Corner Base Plate at the desired location and mark the two mounting holes. 2. Use a 3 mm drill bit to drill a hole at each mark, and insert a Screw Anchor into each hole. 3. Feed the power cable through the back of the Corner Base Plate. 4. Secure the Corner Base Plate by fastening a Screw to each Screw Anchor. Attaching the Camera 1. Attach the power cable to the back of the UVC-Micro Base. 2. Connect the UVC-Micro Base to the Base Plate by inserting the mounting tabs into the slots on the base. 3. Rotate the UVC-Micro Base to lock it. 4. Attach the UVC-Micro Camera to the UVC-Micro Base, and pivot the camera to the desired angle. Connecting Power The included Power Adapter has a 5 m (16') power cable that is hidden inside the adapter casing. Extend the power cable as needed, by following these steps: 1. Hold the outer casing of the Power Adapter with the Ubiquiti® U logo facing toward you, and push in the center of the logo until the adapter releases from the outer casing. 2. Unwind the power cable to extend it to the desired length. Then lock the cable into the notch located under the bottom of the U logo. 3. Slide the outer casing back onto the adapter until it snaps into place. 4. Plug the Power Adapter into a power outlet. To secure the connection, use the outlet cover plate screw to fasten the Power Adapter to the outlet. (Optional) Note: (6) Cable Clips with adhesive tape are included to help hold the power cable in place. Remove the paper backing on each clip to expose the adhesive tape. Connect via Wi-Fi Access the Camera Configuration Interface using Wi-Fi and a web browser to configure the camera. 1. Connect your host machine Wi-Fi to the SSID labeled UVC-Micro-xxxx (where xxxx is the last four characters of the MAC address of the UVC-Micro) 2. Launch a web browser and go to: https://192.168.1.20 3. The login screen will appear. Enter ubnt in the Username and Password fields and click Login. 4. The Main screen will appear and you should see a live video stream from the camera. 5. Click the Device tab. 6. Under Wireless Network Settings section, enter the SSID and Security settings of your network that is running the UniFi Video software. 7. Click Save Changes. 8. The UVC-Micro will reboot and connect to your network. UniFi Video Ensure that you are running UniFi Video software version 3.1.0 or higher. The latest version of the UniFi Video software is available at downloads.ubnt.com/unifivideo Once the UVC-Micro and the UniFi Video software are connected to the same network, the UniFi Video auto-management feature should automatically detect and install your new camera(s). For details on using the UniFi Video software, refer to the User Guide at documentation.ubnt.com/unifivideo Specifications UVC-Micro Dimensions (Camera and Base) 40.7 x 40.7 x 40.8 mm (1.61 x1.61 x 1.61") Weight (Camera and Base) 53 g (1.87oz) Network Interface2.4/5 GHz Dual-Band Wi-Fi Sensor Progressive Scan RGB CMOS 1/4" LensEFL=2.38 mm / F2.4 View Angle79.13° (H), 54.15° (V), 88.45° (D) Night Mode Infrared LEDs with Mechanical IR Cut Filter Video CompressionH.264 Resolution720p HD (1280 x 720) Max. Frame Rate30 FPS MicrophoneYe s SpeakerYe s Flash Memory SupportmicroSD (Max. 32 GB) Power Supply 5.5V Adapter with 5 m (16') Power Cable Max. Power Consumption 3.2W MountingWall/Ceiling/Corner Kit Included Operating Temperature 0 to 35° C (32 to 95° F) Operating Humidity20 to 90% Noncondensing Safety Notices 1. Read, follow, and keep instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper op…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2014-11-11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Ubiquiti Networks, Inc _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description: Video Camera Model name: UVC-Micro FCC ID: SWX-MICRO We affirm that between SIEMIC and ____ Ubiquiti Networks, Inc ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature : Name and Job Title. : Ted Hsiao E-mail : [email protected] Tel. : (886)2-2758-1657 x144/107

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 2014-10-11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SWX-MICRO We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. security form - e.g. Schematic - e.g. Block diagram - e.g. Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature : Name and Job Title. : Ted Hsiao E-mail : [email protected] Tel. : (886)2-2758-1657 x144/107 SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 To: Federal Communications Commission Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: SWX-MICRO To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - User Manual - User Manual Insert - Internal Photo - External Photo - Test Setup Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Signature : Signature : Name and Job Title. : Ted Hsiao E-mail : [email protected] Tel. : (886)2-2758-1657 x144/107

Ubiquiti Networks 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Telephone: (886)2-2758-1657 Fax No.: (886)2-2758-1637 DTS‐UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID : SWX‐MICRO, IC: 6545A‐MICRO (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 5745-5825 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No 5180-5240 Yes , No Yes , No Yes , No Yes , No 5260-5320 Yes , No Yes , No Yes , No Yes , No 5500-5700 Yes , No Yes , No Yes , No Yes , No 5190-5230 Yes , No Yes , No Yes , No Yes , No 5270-5310 Yes , No Yes , No Yes , No Yes , No 5510-5670 Yes , No Yes , No Yes , No Yes , No This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Signature ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Ted Hsiao / Manager Ubiquiti Networks Telephone: (886)2-2758-1657 Fax No.: (886)2-2758-1637 Email: [email protected]

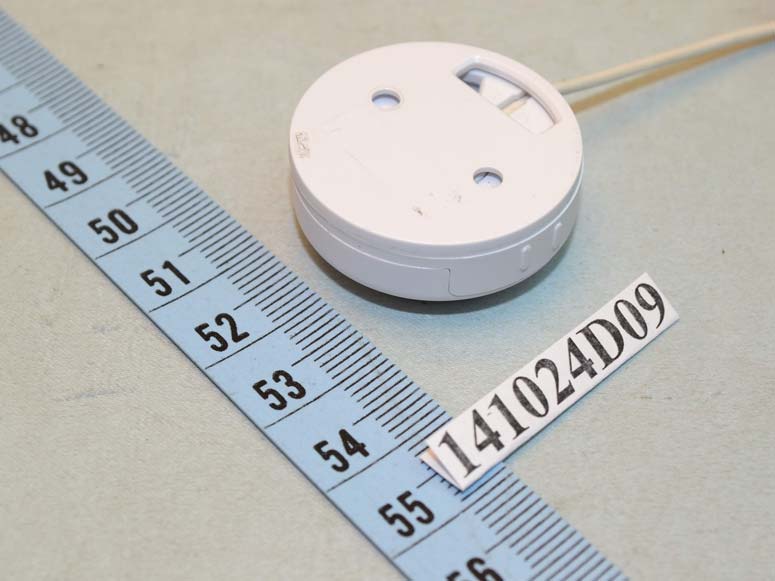

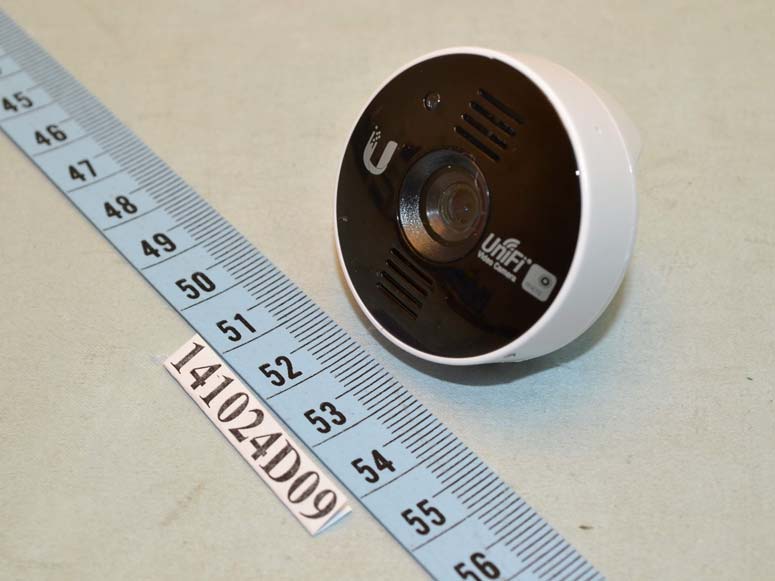

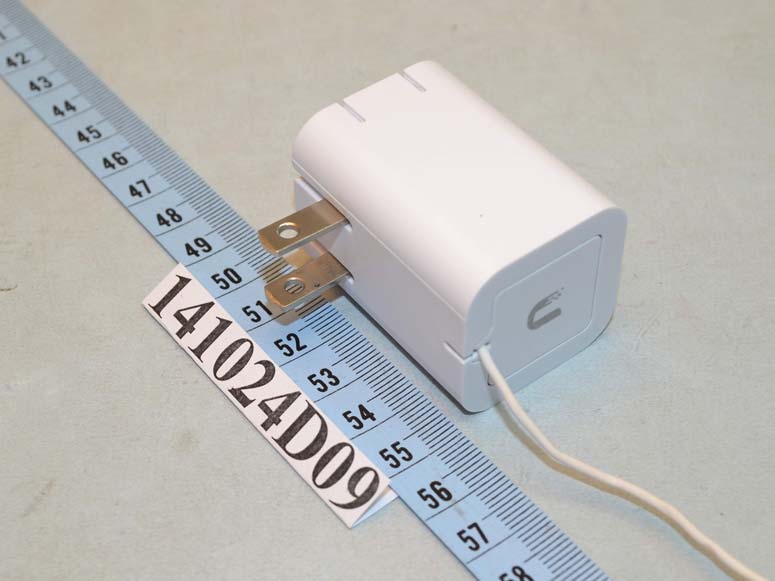

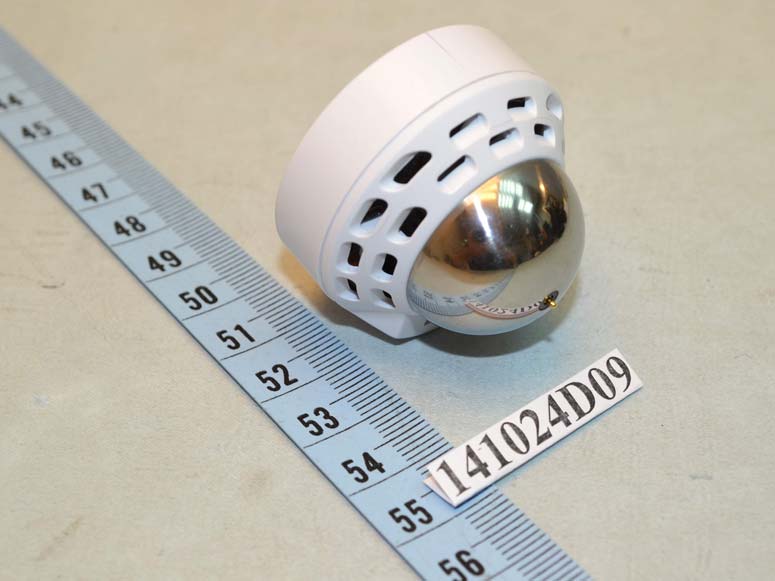

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

Report No.: SA141024D09 1 of 6 Report Format Version 5.0.1 RF EXPOSURE REPORT REPORT NO.: SA141024D09 MODEL NO.: UVC-Micro FCC ID: SWX-MICRO RECEIVED: Oct. 27, 2014 TESTED: Nov. 3 ~ Dec. 11, 2014 ISSUED: Dec. 12, 2014 APPLICANT: Ubiquiti Networks, Inc. ADDRESS: 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA141024D09 2 of 6 Report Format Version 5.0.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION ........................................................................................... 4 2. RF EXPOSURE LIMIT .................................................................................. 5 3. MPE CALCULATION FORMULA .................................................................. 5 4. CLASSIFICATION ......................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ............... 6 Report No.: SA141024D09 3 of 6 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA141024D09 Original release Dec. 12, 2014 Report No.: SA141024D09 4 of 6 Report Format Version 5.0.1 1. CERTIFICATION PRODUCT: Video Camera MODEL NO.: UVC-Micro APPLICANT: Ubiquiti Networks, Inc. TESTED: Nov. 3 ~ Dec. 11, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Dec. 12, 2014 ( Annie Chang / Supervisor ) APPROVED BY : , DATE:Dec. 12, 2014 ( Rex Lai / Assistant Manager ) Report No.: SA141024D09 5 of 6 Report Format Version 5.0.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA141024D09 6 of 6 Report Format Version 5.0.1 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) TUNE UP MAX. POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2.4GHz 14.66 17.16 1 20 0.0130 1.00 5.0GHz 17.47 19.97 1 20 0.0249 1.00 Note: 1. The 2.4G and 5G frequency can’t transmit at the same time. 2. Tune up tolerance= 2.5 --- END --- CONCULSION: Both of the modules can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. BLUETOOTH + WLAN =0.0003 /1 + 0.0665 /1 = 0.0668 OR PIFA ANTENNA 1. WLAN (2.4G) + WLAN (5.0G BAND 1) = 0.0726/1 + 0.0051/1 = 0.0777 2. WLAN (2.4G) + WLAN (5.0G BAND 4) = 0.0726/1 + 0.0168/1 = 0.0894 Therefore, the maximum calculation of this situation is 0.0894, which is less than the “1” limit.

Report No.: RF141024D09 1 of 52 Report Format Version 5.2.0 FCC TEST REPORT REPORT NO.: RF141024D09 MODEL NO.: UVC-Micro FCC ID: SWX-MICRO RECEIVED: Oct. 27, 2014 TESTED: Nov. 3 ~ Dec. 11, 2014 ISSUED: Dec. 12, 2014 APPLICANT: Ubiquiti Networks, Inc. ADDRESS: 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RF141024D09 2 of 52 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 4 1. CERTIFICATION .......................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 6 3. GENERAL INFORMATION .......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................. 9 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 11 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 12 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 13 4. TEST TYPES AND RESULTS ................................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 14 4.1.2 TEST INSTRUMENTS ............................................................................................... 15 4.1.3 TEST PROCEDURES ............................................................................................... 16 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 16 4.1.5 TEST SETUP ............................................................................................................. 17 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 17 4.1.7 TEST RESULTS ........................................................................................................ 18 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 31 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 31 4.2.2 TEST INSTRUMENTS ............................................................................................... 31 4.2.3 TEST PROCEDURES ............................................................................................... 32 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 32 4.2.5 TEST SETUP ............................................................................................................. 32 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 32 4.2.7 TEST RESULTS ........................................................................................................ 33 4.3 6DB BANDWIDTH MEASUREMENT ........................................................................ 35 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ..................................................... 35 4.3.2 TEST SETUP ............................................................................................................. 35 4.3.3 TEST INSTRUMENTS ............................................................................................... 35 4.3.4 TEST PROCEDURE .................................................................................................. 35 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 35 4.3.6 EUT OPERATING CONDITIONS .............................................................................. 35 4.3…

Text truncated - open the document above for the full version.

1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 of 3 RADIATED EMISSION TEST 3 of 3 DFS TEST Master UUT Receiver Antenna to S.A.
