SWX-NBE5AC19Access Point

High-Performance 19 dBi airMAX ® ac CPE Model: NBE-5AC-19 Introduction Thank you for purchasing the Ubiquiti Networks® NanoBeam® ac. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents NanoBeam5acBall Joint Mount Lock Ring High-Performance 19 dBi airMAX ® ac CPE Model: NBE-5AC-19 Metal StrapGigabit PoE Adapter (24V, 0.5A) Power Cord Quick Start Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. Installation Requirements The NanoBeam can be mounted on a pole or to a wall. A Metal Strap (included) is used for pole-mounting. For wall-mounting, a suitable fastener such as a screw or bolt (not included) is required. • Pole-mounting: 7 mm socket wrench or screwdriver • Wall-mounting: wall fastener (not included) • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable, TOUGHCable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview LEDs Reset ButtonEthernet Port (10/100/1000 Mbps) Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the NanoBeam is already powered on. Alternatively, the NanoBeam may be reset remotely via a Reset button located on the bottom of the Gigabit PoE Adapter. Ethernet Port This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by any of the following: • Gigabit PoE Adapter (included) • Ubiquiti Networks EdgeSwitch ™ • Ubiquiti Networks EdgeRouter ™ PoE LEDs Power The Power LED will light blue when the device is connected to a power source. Ethernet The Ethernet LED will light steady blue when an active Ethernet connection is made and flash when there is activity. Signal The default values are shown below: LED will light blue when the wireless signal strength is equal to or above -94 dBm. LED will light blue when the wireless signal strength is equal to or above -80 dBm. LED will light blue when the wireless signal strength is equal to or above -73 dBm. LED will light blue when the wireless signal strength is equal to or above -65 dBm. Hardware Installation The NanoBeam can be mounted on a pole or to a wall. Perform the steps for the appropriate installation: Pole-Mount 1. Insert the Ball Joint Mount into the Lock Ring with the threads of the Lock Ring facing the ball joint. 2. Open the Metal Strap and feed it through the base of the Ball Joint Mount. *640-00127-08* 640-00127-08 3. Wrap the Metal Strap around the pole. Use a 7 mm socket wrench to turn the screw clockwise and securely fasten the clamp to the pole. 4. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it. Keep the Lock Ring loose enough to allow the NanoBeam to pivot for aiming. Wall-Mount The NanoBeam must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam Wall Mount Kit, model NBE-WMK (sold separately). Note: Center screw included. Two optional screws (not included) provide additional stability. Installation Instructions 1. Mark the desired location of the mounting point. 2. If needed, drill a pilot hole for the fastener (not included). 3. Insert the Ball Joint Mount into the Lock Ring with the threads of the Lock Ring facing the ball joint. 4. If you are using the optional NanoBeam Wall Mount Kit, then skip to step b. a. To attach the Ball Joint Mount to the wall, insert a fastener (not included) through the center of the ball joint, and into the wall. Securely tighten the fastener. Proceed to step 5. b. To attach the Ball Joint Mount to the wall, insert the Wall Mount Kit screw through the center of the ball joint, through the Wall Mount Kit plate, and into the wall. Securely tighten the screw. 5. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it. Keep the Lock Ring loose enough to allow the NanoBeam to pivot for aiming. Aiming 1. Ensure the opening of the Ethernet cable is pointed towards the ground. 2. Aim the front of the NanoBeam towards the other end of the wireless link. 3. Hand-tighten the Lock Ring to lock the aim. Note: Do not use a tool to tighten the Lock Ring. Tighten the Lock Ring by hand only. Connecting to the PoE Adapter 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Connect an Ethernet cable to the Ethernet port. 3. Replace the port cover. 4. Connect the other end of the Ethernet cable from the NanoBeam to the Ethernet port labeled POE on the Gigabit PoE Adapter. 5. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the Gigabit PoE Adapter. 6. Connect the Power Cord to the power port on the Gigabit PoE Adapter. Connect the other end of the Power Cord to a power outlet. Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser and type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of…

Text truncated - open the document above for the full version.

f¡ I UBIOUITI" NETWORKS December 22,2014 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ852A4 RE: LETTER OF AGENT AUTHORIZATION To Whom lt May Concern: We, the undersigned, hereby authorize Compliance Testing LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, MichaelTaylor Compliance Manager 2580 Orchard Parkway San Jose, CA 9513'l USA 408-942-3085 x442 [email protected]

u UBIOUITI' N€I'WOFIKS April T ,2015 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ852A4 RE: Short Term Confidentiality Request For NanoBeam 5AC-19 (NBE-5AC-19, SWX- NBE5AC19) To Whom lt May Concern: ln accordance with sections 0.457 and 0.459 of CFR 47, Ubiquiti Networks, lnc. requests short- term Confidentiality of following sections of this application for a period of 45 days after grant is issued. 1. Test setup photos 2. External photos 3. lnternal photos 4. User's manual These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and othensise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Grantee will not market or distribute product during the period requested. Once product is available for marketing, Grantee will notify FCC or TCB. Please contact me if there is any information you may need Sincerely, MichaelTaylor Compliance Manager 2580 Orchard Parkway SanJose, CA95131, USA 408-942-3085 [email protected]

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 1 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p14a0020-Ubiquiti\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: SWX-NBE5AC19 IC ID: CT Project: P14a0020 From: Shawn McMillen Date: 04/24/2015 Client: The RF exposure distances for the end user’s in the manual is inconsistent with the calculated MPE. 4/24/15 - Mike: Updated manual provided. CT - Response by: Submitted by: Date:

May 8, 2015 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: CONFIDENTIALITY REQUEST FOR NanoBeam 5AC-19, NBE-5AC-19, FCC ID: SWX- NBE5AC19 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the following documents required to be submitted with this application be permanently withheld from public review.  Block Diagram  Schematics  Theory of Operation  Parts List/BOM  U-NII Security Exhibit These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Michael Taylor Compliance Manager 2580 Orchard Parkway San Jose, CA 95131, USA 408-942-3085 [email protected]

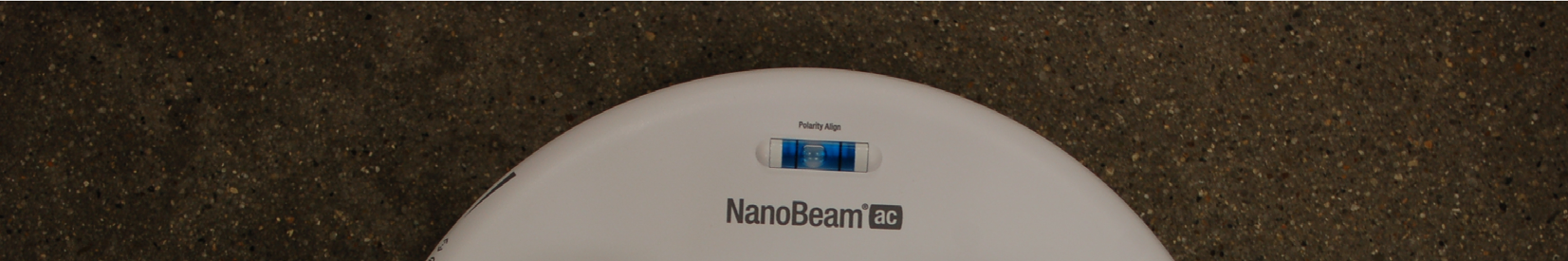

COVER VIEW NBE-5AC-19 Silkscreen Artwork File Name: Date: Revision: Designer: NBE-5AC-19 Silkscreen Artwork v04 11/20/14 v04 - Change FCC and IC IDs Vivian Liu ME: PM: Arena Number: Shawn Chen Letitia Chiu 388-00036 Colors: PANTONE Cool Gray 9 C PANTONE 299 C PROCESS BLACK 100.89 mm 15 mm 13.347 mm centered centered centered PMS Cool Gray 9 C PMS Cool Gray 9 C PMS Cool Gray 9 C 6.04 mm PMS 299 C Process Black PMS Cool Gray 9 C RESET RESET Polarity Align This device complies with Part 15 of FCC rules. Operation is subject to the following 2 conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. M/N: NBE-5AC-19 24V 0.5A GigEPOE FCC ID: SWX- NBE5AC19 IC: 6545A-NBE5AC19 Polarity Align This device complies with Part 15 of FCC rules. Operation is subject to the following 2 conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. M/N: NBE-5AC-19 24V 0.5A GigEPOE FCC ID: SWX- NBE5AC19 IC: 6545A-NBE5AC19

p14a0020_FCC_Part 1.1310_UNII-1_Rev 1.0 Page 1 of 6 Test Report Prepared for: Ubiquiti Networks, Inc Model: NBE-AC5-19 Description: NanoBeam AC5 FCC ID: SWX-NBE5AC19 To FCC Part 1.1310 Date of Issue: April 20, 2015 On the behalf of the applicant: Ubiquiti Networks, Inc 91 E. Tasman Drive San Jose, CA 95134 Attention of: Michael Taylor, Compliance Manager Ph: (408) 942-3085 E-mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14a0020 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p14a0020_FCC_Part 1.1310_UNII-1_Rev 1.0 Page 2 of 6 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 17, 2015 Greg Corbin Original Document p14a0020_FCC_Part 1.1310_UNII-1_Rev 1.0 Page 3 of 6 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A EUT Description Model: NBE-AC5-19 Description: Nanobeam AC5 Firmware: N/A Software: N/A Serial Number: N/A Additional Information: The EUT was tested conducted mode with RF connectors mounted on the EUT at the antenna input. When the test cable is plugged into the RF connector mounted to the EUT it disables the antenna connection. The EUT is powered by POE (Power Over Ethernet). The different data rates were evaluated and the worst case data rate was chosen for all the testing. p14a0020_FCC_Part 1.1310_UNII-1_Rev 1.0 Page 4 of 6 Source Based Time Averaged Power Calculation Average Power calculations Average Power = Peak Power * duty-cycle% Tuned Frequency (MHz) Conducted Peak Output power (mW) Duty Cycle Average Power (mW) 5200 186.2 mW 100 186.2 mW p14a0020_FCC_Part 1.1310_UNII-1_Rev 1.0 Page 5 of 6 MPE Evaluation This is a fixed/mobile device used in uncontrolled /general population exposure environment. Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 5200 Power, Conducted, mW (P) 186.2 Antenna Gain Isotropic 19 dBi Antenna Gain Numeric (G) 79.43 Antenna Type Point to Point Distance (R) 20 cm 푆= 푃∗퐺 4휋푟 2 Power Density (S) mw/cm 2 Power mW (P) Numeric Gain (G) Distance (r 2 ) cm 2.942 186.2 79.43 20 Power Density (S) = 2.942 Limit =(from above table) = 1.0 The Power Density of 2.942 mw/cm 2 is over the limit of 1.0 mw/cm 2 for the uncontrolled /general population exposure environment so Minimum Safe Distance was calculated on the next page. p14a0020_FCC_Part 1.1310_UNII-1_Rev 1.0 Page 6 of 6 Minimum Safe Distance Evaluation This is a fixed/mobile device used in uncontrolled /general population exposure environment Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 5200 Power, Conducted, mW (P) 186.2 Antenna Gain Isotropic 19 dBi Antenna Gain Numeric (G) 79.43 Antenna Type Point to point Limit (L) 1.0 R=√(PG/4πL) Distance (R) cm Power mW (P) Numeric Gain (G) Limit (L) 34.31 cm 186.2 79.43 1.0 The minimum safe distance is 34.3 cm. END OF TEST REPORT

p14a0020_FCC_Part 1.1310_UNII-3_Rev 1.0 Page 1 of 6 Test Report Prepared for: Ubiquiti Networks, Inc Model: NBE-AC5-19 Description: NanoBeam AC5 FCC ID: SWX-NBE5AC19 To FCC Part 1.1310 Date of Issue: April 20, 2015 On the behalf of the applicant: Ubiquiti Networks, Inc 91 E. Tasman Drive San Jose, CA 95134 Attention of: Michael Taylor, Compliance Manager Ph: (408) 942-3085 E-mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14a0020 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p14a0020_FCC_Part 1.1310_UNII-3_Rev 1.0 Page 2 of 6 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 17, 2015 Greg Corbin Original Document p14a0020_FCC_Part 1.1310_UNII-3_Rev 1.0 Page 3 of 6 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A EUT Description Model: NBE-AC5-19 Description: Nanobeam AC5 Firmware: N/A Software: N/A Serial Number: N/A Additional Information: The EUT was tested conducted mode with RF connectors mounted on the EUT at the antenna input. When the test cable is plugged into the RF connector mounted to the EUT it disables the antenna connection. The EUT is powered by POE (Power Over Ethernet). The different data rates were evaluated and the worst case data rate was chosen for all the testing. p14a0020_FCC_Part 1.1310_UNII-3_Rev 1.0 Page 4 of 6 Source Based Time Averaged Power Calculation Average Power calculations Average Power = Peak Power * duty-cycle% Tuned Frequency (MHz) Conducted Peak Output power (mW) Duty Cycle Average Power (mW) 5790 354.8 100 354.8 p14a0020_FCC_Part 1.1310_UNII-3_Rev 1.0 Page 5 of 6 MPE Evaluation This is a fixed/mobile device used in uncontrolled /general population exposure environment. Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz Limit [mW/cm²] = 100 1.34-30 MHz Limit [mW/cm²] = (180/f²) 30-300 MHz Limit [mW/cm²] = 0.2 300-1500 MHz Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 5790 Power, Conducted, mW (P) 354.8 Antenna Gain Isotropic 19 Antenna Gain Numeric (G) 79.43 Antenna Type Point to Point Distance (R) 20 cm 푆= 푃∗퐺 4휋푟 2 Power Density (S) mw/cm 2 Power mW (P) Numeric Gain (G) Distance (r 2 ) cm 5.607 354.8 79.43 20 Power Density (S) = 5.607 Limit =(from above table) = 1.0 The Power Density of 5.607 mw/cm 2 is over the limit of 1.0 mw/cm 2 for the uncontrolled /general population exposure environment so Minimum Safe Distance was calculated on the next page. p14a0020_FCC_Part 1.1310_UNII-3_Rev 1.0 Page 6 of 6 Minimum Safe Distance Evaluation This is a fixed/mobile device used in uncontrolled /general population exposure environment Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 5790 Power, Conducted, mW (P) 354.8 Antenna Gain Isotropic 19 Antenna Gain Numeric (G) 79.43 Antenna Type Point to Point Limit (L) 1.0 R=√(PG/4πL) Distance (R) cm Power mW (P) Numeric Gain (G) Limit (L) 47.4 354.8 79.43 1.0 The minimum safe distance is 47.4 cm. END OF TEST REPORT

p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 1 of 24 Test Report Prepared for: Ubiquiti Networks, Inc Model: NBE-AC5-19 Description: NanoBeam AC5 FCC ID: SWX-NBE5AC19 To FCC Part 15.407 Date of Issue: April 20, 2015 On the behalf of the applicant: Ubiquiti Networks, Inc 91 E. Tasman Drive San Jose, CA 95134 Attention of: Michael Taylor, Compliance Manager Ph: (408) 942-3085 E-mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14a0020 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 2 of 24 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 16, 2015 Greg Corbin Original Document p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 3 of 24 Table of Contents Description Page Standard Test Conditions Engineering Practices 6 Test Results Summary 9 Peak Output Power 10 Transmitter Power Spectral Density 12 Undesirable Emissions Conducted 14 Undesirable Emissions Radiated 16 Occupied Bandwidth 18 Frequency Stability 19 RF Exposure 20 A/C Powerline Conducted Emission 23 Test Equipment Utilized 24 p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 4 of 24 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 5 of 24 The applicant has been cautioned as to the following 15.21 - Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a) - Special Accessories Equipment marked to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 6 of 24 Standard Test Conditions Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.10-2013 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherwise noted, are worst-case measurements. Environmental Conditions Temperature (ºC) Humidity (%) Pressure (mbar) 23.0 – 26.5 22.7 – 36.5 962.9 – 972.7 EUT Operation during Tests EUT Description Model: NBE-AC5-19 Description: Nanobeam AC5 Firmware: N/A Software: N/A Serial Number: N/A Additional Information: The EUT was tested conducted mode with RF connectors mounted on the EUT at the antenna input. When the test cable is plugged into the RF connector mounted to the EUT it disables the antenna connection. The EUT is powered by POE (Power Over Ethernet). The different data rates were evaluated and the worst case data rate was chosen for all the testing. p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 7 of 24 EUT Specifications EUT Specifications 15.407 Equipment Code NII FCC ID SWX-NBE5AC19 Model(s)Tested NBE-AC5-19 Model(s) Covered NBE-AC5-19 Maximum Conducted Output Power 22.7 dBm Frequency Ranges covered 5150 – 5250 MHz EUT temperature range -40°C to 80°C Bandwidths 10/20/30/40/50/60/80 MHz Data Rates 6, 9, 12, 18, 24, 36, 48, 54, MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7, MCS8, MCS9 Modulations BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Antenna List No. Manufacturer Part # Antenna Type Peak Gain 1 Ubiquiti NBE-5AC-19 Dish 19 dBi 15.203: Antenna Requirement: The antenna is permanently attached to the EUT The antenna uses a unique coupling X The EUT must be professionally installed The antenna requirement does not apply p14a0020_FCC_15.407_UNII-1_Rev 1.0 Page 8 of 24 Accessories: Qty Description Manufacturer Model S/N 1 Switching Gigabit…

Text truncated - open the document above for the full version.

p14a0020_FCC_15.407_UNII-3_Rev 1.0 Page 1 of 23 Test Report Prepared for: Ubiquiti Networks, Inc Model: NBE-AC5-19 Description: NanoBeam AC5 FCC ID: SWX-NBE5AC19 To FCC Part 15.407 Date of Issue: April 20, 2015 On the behalf of the applicant: Ubiquiti Networks, Inc 91 E. Tasman Drive San Jose, CA 95134 Attention of: Michael Taylor, Compliance Manager Ph: (408) 942-3085 E-mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14a0020 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p14a0020_FCC_15.407_UNII-3_Rev 1.0 Page 2 of 23 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 17, 2015 Greg Corbin Original Document p14a0020_FCC_15.407_UNII-3_Rev 1.0 Page 3 of 23 Table of Contents Description Page Standard Test Conditions Engineering Practices 6 Test Results Summary 9 Peak Output Power 10 Transmitter Power Spectral Density (PSD) 12 Undesirable Emissions 14 Undesirable Emissions Radiated 15 Occupied Bandwidth 17 Frequency Stability 18 RF Exposure 19 A/C Powerline Conducted Emission 22 Test Equipment Utilized 23 p14a0020_FCC_15.407_UNII-3_Rev 1.0 Page 4 of 23 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p14a0020_FCC_15.407_UNII-3_Rev 1.0 Page 5 of 23 The applicant has been cautioned as to the following 15.21 - Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a) - Special Accessories Equipment marked to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p14a0020_FCC_15.407_UNII-3_Rev 1.0 Page 6 of 23 Standard Test Conditions Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with C63.10-2013 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherwise noted, are worst-case measurements. Environmental Conditions Temperature (ºC) Humidity (%) Pressure (mbar) 23.0 – 26.5 22.7 – 36.5 962.9 – 972.7 EUT Operation during Tests EUT Description Model: NBE-AC5-19 Description: Nanobeam AC5 Firmware: N/A Software: N/A Serial Number: N/A Additional Information: The EUT was tested conducted mode with RF connectors mounted on the EUT at the antenna input. When the test cable is plugged into the…

Text truncated - open the document above for the full version.
