SWX-NBEM5ACAccess Point

High-Performance Integrated InnerFeed ™ airMAX ® Bridge Model: NBE-M5AC-500 Introduction Thank you for purchasing the Ubiquiti Networks ™ NanoBeam ™ . This Quick Start Guide is designed to guide you through the installation, and show you how to access the airOS® Configuration Interface. This Quick Start Guide also includes the warranty terms and is for use with the NanoBeamM5AC, model NBE-M5AC-500. Package Contents Dish ReflectorRadomeAntenna Feed 20 10 10 0 Rear HousingDish BracketPole ClampU-Bolt High-Performance Integrated InnerFeed ™ airMAX ® Bridge Model: NBE-M5AC-500 Flange Nuts (M8, Qty. 2) Gigabit PoE Adapter (24V, 0.5A) Power CordQuick Start Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. Hardware Overview Bottom View Cable Door Rear Housing Technology Ethernet Port Release Button Slot Dish Bracket Release Button Dish Reflector Alignment Pins Reset Button Antenna Feed Radome Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the NanoBeam is already powered on. Alternatively, the NanoBeam may be reset remotely via a Reset button located on the bottom of the Gigabit PoE Adapter. RESET MODELMODELOGPA240050G : .:INPUTENTRADA/100240V5060HzMAX 0 3A /:.OUTPUTSAÍDADC24V0 5A +,),-(,)(45pins78pins ITEPOWERSUPPLY... XXXXXXXXXXX- 3 9 PW E325 8 0 9 BRASILOCP0004 A R G E N T I N A R E P U E L I C A Rheinland TUV S A F E T Y S E G U R A N C A R Rheinland Argentina S A .. A R G E N T I N A R E P U B L I C A TUV A5 2 V LPS... SwitchingGigabitPowerSupplyPOE PARAUTILIZAÇÃO COM EQUIPAMENTO IS C O D E C H O Q UE ELÉCTRICO DETECNOLOGIA DE INFORMAÇÃO APEN AS U T IL IZ A ÇÃO E M LO C A IS S E COS WAR N ING IS K O F E L E C TRIC SHOCK DO NOTOPEN MADE IN CHINA UbiquitiNetworksInc Reset Button Release Button After you assemble the NanoBeam, check the Release button; it should be fully engaged in the Release Button Slot of the Rear Housing. This ensures that the Antenna Feed is locked into place. If you need to remove the Antenna Feed, you must depress the Release button first. LEDs Signal In airOS, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below: LED will light blue when the wireless signal strength is above -65 dBm. LED will light blue when the wireless signal strength is above -73 dBm. LED will light blue when the wireless signal strength is above -80 dBm. LED will light blue when the wireless signal strength is above -94 dBm. Ethernet The Ethernet LED will light steady blue when an active Ethernet connection is made and flash when there is activity. Power The Power LED will light blue when the device is connected to a power source. Application Examples The NanoBeam mounted outdoors with the Dish Reflector installed provides directional outdoor coverage (gain is reflector‑dependent). The NanoBeam mounted outdoors without the Dish Reflector installed provides outdoor‑to‑indoor coverage using the 3 dBi Antenna Feed only. Installation Requirements • 13 mm or ½" wrench • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Installation 1. Align and insert the tabs of the Dish Bracket into the slots of the Dish Reflector. Rotate the Dish Bracket counter‑clockwise until the tabs lock into place. 20 10 10 0 2. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Dish Bracket. Insert the pins and push until they lock into place. 20 10 10 0 *720-00075-01* 720-00075-01 3. Push in the sides of the Cable Door and detach it from the Rear Housing. 20 10 0 10 4. Attach the Antenna Feed: a. Insert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b. Lightly pull the Antenna Feed to ensure that it is locked into place and the Release button is fully engaged. Release Button Bottom View 5. Connect the Ethernet cable: a. Connect an Ethernet cable to the Ethernet Port of the Antenna Feed. b. Re-attach the Cable Door to the Rear Housing. 20 10 0 10 6. Slide the Pole Clamp onto the Dish Bracket. 20 10 10 0 7. Insert the U-Bolt into the Pole Clamp and Dish Bracket. Secure each end of the U-Bolt with a Flange Nut. 20 10 10 0 25 N-m (18 lb-ft) Note: The mounting assembly can accommodate a Ø 1.25" - 2.2" pole. 8. Align the arrows on the bottoms of the Radome and Dish Reflector so the Drain Holes on the Radome point downward. Snap the Radome onto the Dish Reflector. 9. Connect the other end of the Ethernet cable from the NanoBeam to the Ethernet port labeled POE on the PoE Adapter. 10. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the Gigabit PoE Adapter. 11. Connect the Power Cord to the power port on the Gigabit PoE Adapter. Connect the other end of the Power Cord to a power outlet. Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser and type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Us…

Text truncated - open the document above for the full version.

Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: January 20, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: SWX-NBEM5AC To Whom It May Concern: We, Ubiquiti Networks, Inc., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Jocelyn Wang [email protected]

Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: January 20, 2014 Power of Attorney To whom it may concern, Please be notified that I, Jocelyn Wang, have designated Jones Tsai in Sporton International Inc. and as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: SWX-NBEM5AC If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Jocelyn Wang [email protected]

Rev. 1/1/03 Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: January 24, 2014 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: SWX-NBEM5AC Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jocelyn Wang [email protected]

1/1 Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: January 20, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SWX-NBEM5AC To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jocelyn Wang [email protected]

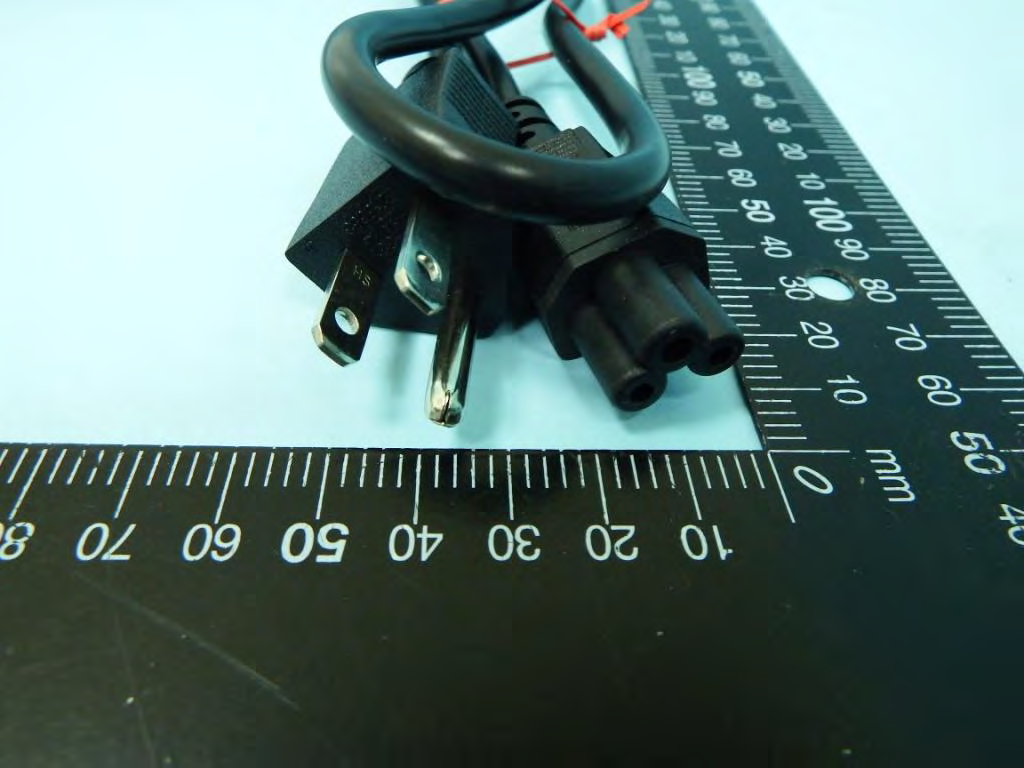

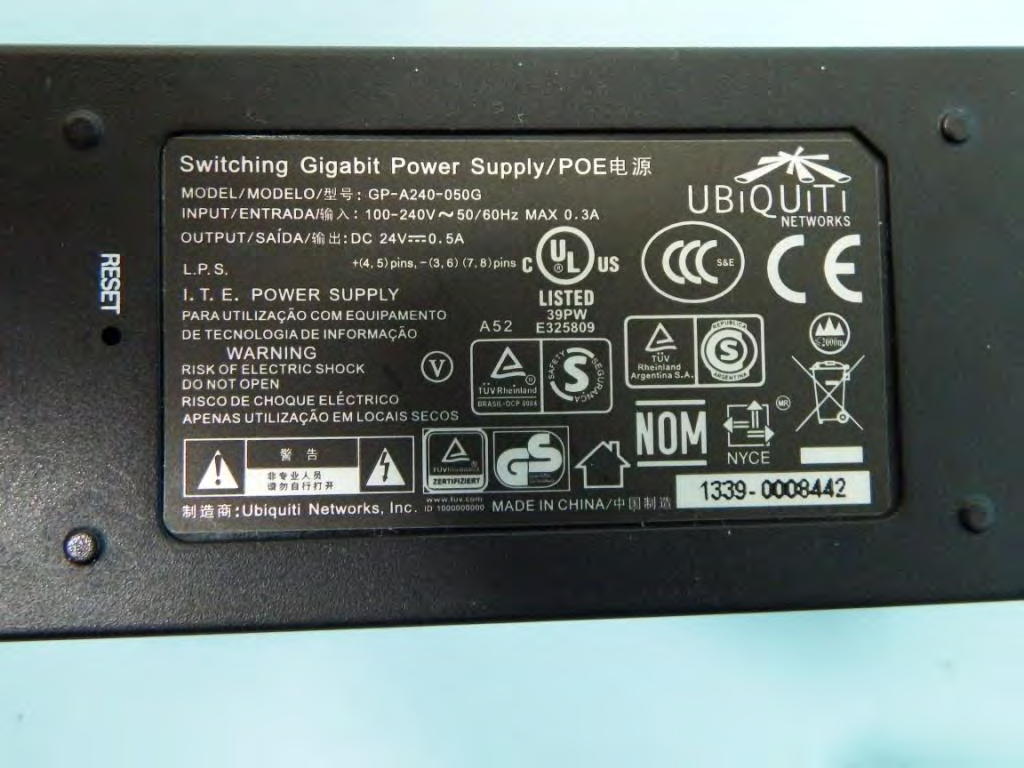

FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B1 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B2 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B3 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B4 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B5 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B6 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B12 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B13 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B14 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B7 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B8 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B9 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B10 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N0519-03 SPORTON International Inc. PAGE NUMBER : B11 OF B14 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA3N0519-03 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA3N0519-03 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA3N0519-03 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) a 1 1 Correlated 17.67 n(HT20) 2 2 Uncorrelated 19.31 n(HT40) 2 2 Uncorrelated 22.01 ac(VHT20) 2 2 Uncorrelated 20.59 ac(VHT40) 2 2 Uncorrelated 20.70 ac(VHT80) 2 2 Uncorrelated 22.95 Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment Controlled Use Devices (Controlled Environment) Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) a 1 17.67 - 17.67 20.00 37.67 1.16361 n(HT20) 2 16.18 16.40 19.31 20.00 39.31 1.69584 n(HT40) 2 18.92 19.07 22.01 20.00 42.01 3.16096 ac(VHT20) 2 17.45 17.70 20.59 20.00 40.59 2.27995 ac(VHT40) 2 17.52 17.85 20.70 20.00 40.70 2.33890 ac(VHT80) 2 20.02 19.84 22.95 20.00 42.95 3.91954 Maximum Permissible Exposure Limit (mW/cm²) 5 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : 1 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Access Point Brand Name : UBIQUITI Model No. : NBE-M5AC-500 FCC ID : SWX-NBEM5AC Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz Equipment Class : DTS Applicant Manufacturer : Ubiquiti Networks,Inc. 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan The product sample received on Nov. 05, 2013 and completely tested on Feb. 07, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : 2 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Transmitter Bandedge Emissions ........................................................................................................ 24 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 61 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : 3 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1834550MHz 25.14 (Margin 29.19dB) - AV 41.20 (Margin 23.13dB) - QP FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth [MHz] a / n(HT20):16.41 n(HT40):35.64 ac(VHT20):17.58 ac(VHT40):35.64 ac(VHT80): 75.04 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:27.95 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]:-9.39 PSD [dBm/MHz]:17 replace 8dBm/3kHz Complied 3.5 15.247(c) Transmitter Bandedge Emissions Non-Restricted Bands: 5724.990MHz: 29.44dB Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 1m]:11550MHz 82.53 (Margin 1.01dB) - PK 61.05 (Margin 2.49dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : 4 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR3N0519-03AI Rev. 01 Initial issue of report Feb. 12, 2014 FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : 5 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 5725-5850 a 5745-5825 149-165 [5] 1 22.65 5725-5850 n(HT20) 5745-5825 149-165 [5] 2 24.25 5725-5850 n(HT40) 5755-5795 151-159 [2] 2 27.21 5725-5850 ac(VH…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR3N0519-03AI SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
