SWX-NBM2HPDual band 802.11n WLAN

High-Performance airMAX ™ Bridge Models: NBE-M2, NBE-M5 Introduction Thank you for purchasing the Ubiquiti Networks ™ NanoBeam ™ . This Quick Start Guide is designed to guide you through the installation of the NanoBeam and show you how to access the airOS ™ Configuration Interface. This Quick Start Guide also includes the warranty terms and is for use with the NanoBeamM2, model NBE-M2, and the NanoBeamM5, model NBE-M5. If you want to add a radome to enclose the Dish Reflector, Ubiquiti Networks offers the NanoBeam Radome, 400 mm, model NBE-RAD-400 as an optional accessory. Product details are available on our website at http://www.ubnt.com Package Contents or Dish ReflectorNanoBeamM2 Antenna Feed NanoBeamM5 Antenna Feed Rear HousingDish BracketPole ClampM8 U-Bolt M8 Flange Nuts (Qty. 2) PoE Adapter (24V, 0.5A) Power CordQuick Start Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. Hardware Overview Bottom View Cable Door Rear Housing Antenna Feed Ethernet Port Release Button Slot L-Bracket Release Button Dish Reflector Alignment Pins Reset Button Antenna Feed The NanoBeamM2 Antenna Feed is shown; however, the NanoBeamM5 Antenna Feed has the same layout for the Ethernet Port, Reset button, and Release button. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the NanoBeam is already powered on. Release Button After you assemble the NanoBeam, check the Release button; it should be fully engaged in the Release Button Slot of the Rear Housing. This ensures that the Antenna Feed is locked into place. If you need to remove the Antenna Feed, you must depress the Release button first. LEDs Signal In airOS, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below: LED will light green when the wireless signal strength is above -65 dBm. LED will light green when the wireless signal strength is above -73 dBm. LED will light amber when the wireless signal strength is above -80 dBm. LED will light red when the wireless signal strength is above -94 dBm. Ethernet The Ethernet LED will light steady green when an active Ethernet connection is made and flash when there is activity. Power The Power LED will light green when the device is connected to a power source. Application Examples The NanoBeam mounted outdoors with the Dish Reflector installed provides directional outdoor coverage (gain is reflector-dependent). The NanoBeam mounted outdoors without the Dish Reflector installed provides outdoor-to-indoor coverage using the 3 dBi Antenna Feed only. Installation Requirements • 13 mm or ½" wrench • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Installation The installation instructions show the NanoBeamM2; however, the same instructions apply to the NanoBeamM5. 1. Align and insert the tabs of the Dish Bracket into the slots of the Dish Reflector. Rotate the Dish Bracket counter-clockwise until the tabs lock into place. 2. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Dish Bracket. Insert the pins and push until they lock into place. 3. Push in the sides of the Cable Door and detach it from the Rear Housing. 4. Attach the Antenna Feed: a. Insert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b. Lightly pull the Antenna Feed to ensure that it is locked into place and the Release button is fully engaged. Release Button Bottom View 5. Connect the Ethernet cable: a. Connect an Ethernet cable to the Ethernet Port of the Antenna Feed. b. Re-attach the Cable Door to the Rear Housing. 6. Slide the Pole Clamp onto the Dish Bracket. 7. Insert the M8 U-Bolt into the Pole Clamp and Dish Bracket. Secure each end of the M8 U-Bolt with a M8 Flange Nut. 9 N-m (80 lb-in) Note: The mounting assembly can accommodate a Ø 1.25" - 2.2" pole. 8. Optional: If you have the NanoBeam Radome (optional accessory), then align the arrows on the bottoms of the Radome and Dish Reflector so the Drain Holes on the Radome point downward. Snap the Radome onto the Dish Reflector. 9. Connect the other end of the Ethernet cable from the NanoBeam to the Ethernet port labeled POE on the PoE Adapter. 10. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the PoE Adapter. 11. Connect the Power Cord to the power port on the PoE Adapter. Connect the other end of the Power Cord to a power outlet. Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser. Type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Login. Note: U.S. product versions are locked to the U.S. Country Code to ensure compliance with FCC regulations. 5. Select the NanoBeam Dish Reflector size: a. Click the Wireless tab. b. From the Antenna drop-down list, select the appropriate option. c. Click Change to save. d. Click OK t…

Text truncated - open the document above for the full version.

Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan TEL: +886-2-27581657 FAX:+886-2-27581637 BABT TCB Forsyth House, Churchfield Road, Walton-on -Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: SWX -NBM2HP Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Telephone Number: +886 -2-27581657 Email : [email protected]

Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan TEL: +886-2-27581657 FAX:+886-2-27581637 Date: 2013.08.15 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Ubiquiti Networks, Inc., hereby authorize A Test Lab Techno Corp., address: No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C., phone: +886-3-2710188 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2014.1.31 Sincerely, ___________________________________ Jocelyn Wang/ Compliance Manager Tel: +886-2-27581657 E-mail: [email protected]

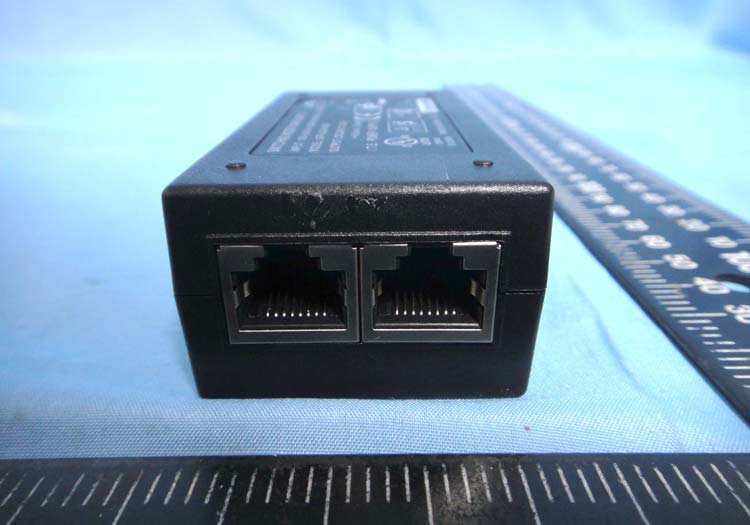

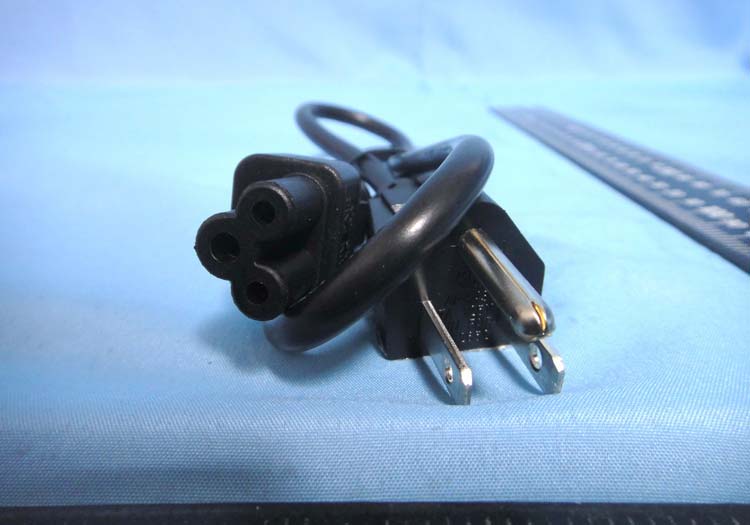

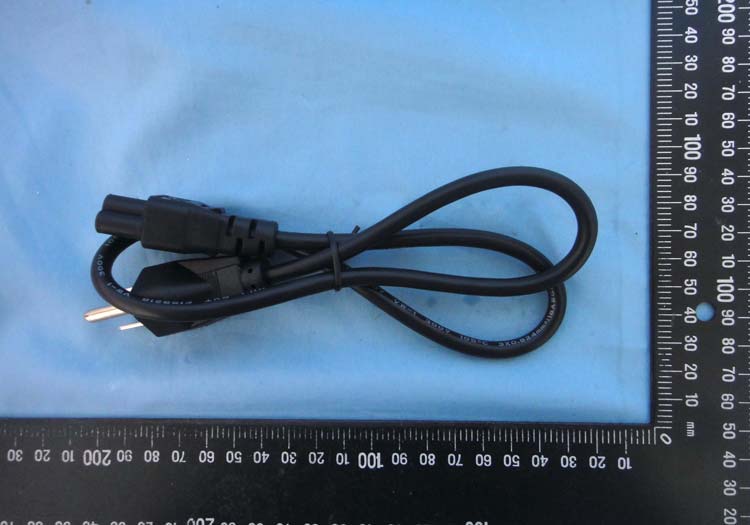

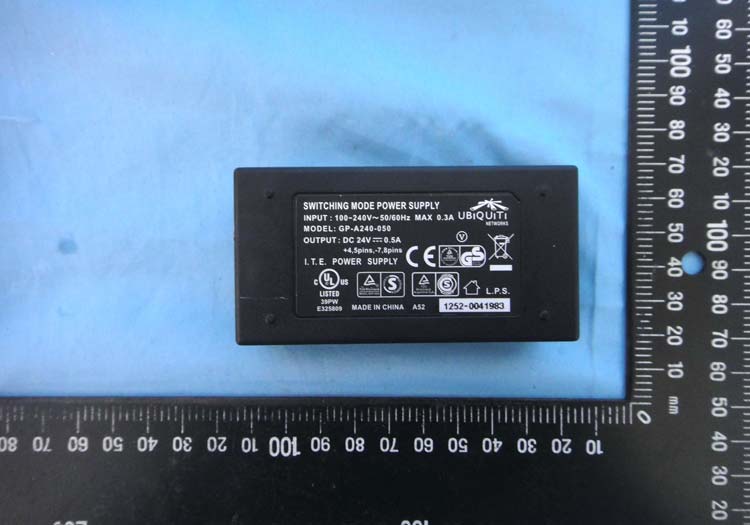

1 of 11 External Photos Model Number: NBE-M2 FCC ID: SWX-NBM2HP 2 of 11 EUT Photo 1 ) EUT Photo 2 ) 3 of 11 EUT Photo 3 ) EUT Photo 4 ) 4 of 11 EUT Photo 5 ) EUT Photo 6 ) 5 of 11 EUT Photo 7 ) EUT Photo 8 ) 6 of 11 EUT Photo 9 ) EUT Photo 10 ) 7 of 11 EUT Photo 11 ) EUT Photo 12 ) 8 of 11 EUT Photo 13 ) EUT Photo 14 ) 9 of 11 EUT Photo 15 ) EUT Photo 16 ) 10 of 11 EUT Photo 17 ) EUT Photo 18 ) 11 of 11 EUT Photo 19 )

FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

1 of 3 Internal Photos Model Number: NBE-M2 FCC ID: SWX-NBM2HP 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 ) EUT Photo 4 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1308FS13 Applicant ： Ubiquiti Networks, Inc. Manufacturer ： Ubiquiti Networks, Inc. Product Type ： NBE-M2 Trade Name ： UBiQUiTi Model Number ： NBE-M2 Date of Received ： Apr. 11, 2013 Test Period ： Aug. 01, 2013 Date of Issued ： Aug. 19, 2013 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) Report Number: 1308FS13Page 1 of 7 ©2013 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................7 Report Number: 1308FS13Page 2 of 7 ©2013 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Ubiquiti Networks, Inc. Applicant Address 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Manufacturer Ubiquiti Networks, Inc. Manufacturer Address 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Product Type NBE-M2 Trade Name UBiQUiTi Model Number NBE-M2 FCC ID SWX-NBM2HP Frequency Range IEEE 802.11b / IEEE 802.11g / 802.11n 2.4GHz (20MHz): 2412 ~ 2462 MHz IEEE 802.11n 2.4GHz (40MHz): 2422 ~ 2452 MHz Transmit Power IEEE 802.11b: 0.020 W / 13.07 dBm (conducted power) IEEE 802.11g: 0.012 W / 10.86 dBm IEEE 802.11n 2.4GHz (20MHz): 0.012 W / 10.81 dBm IEEE 802.11n 2.4GHz (40MHz): 0.005 W / 6.75 dBm Antenna Gain 18 dBi Antenna Designation Dish Antenna Temperature Range -30 ~ +70°C The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1308FS13Page 3 of 7 ©2013 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1308FS13Page 4 of 7 ©2013 A Test Lab Techno Corp. 3. RF Output Power Time-Avg. Conducted power (dBm) Band Date Rate CH Frequency (MHz) Antenna 1 Antenna 2 1 2412.0 13.07 11.09 6 2437.0 12.92 11.16 1M 11 2462.0 12.43 10.83 2M 6 2437.0 12.86 11.12 5.5M 6 2437.0 12.84 11.10 IEEE 802.11b 11M 6 2437.0 12.80 11.08 1 2412.0 10.86 9.29 6 2437.0 10.56 9.31 6M 11 2462.0 10.10 9.08 9M 6 2437.0 10.50 9.21 12M 6 2437.0 10.52 9.24 18M 6 2437.0 10.49 9.17 24M 6 2437.0 10.53 9.23 36M 6 2437.0 10.51 9.20 48M 6 2437.0 10.47 9.25 IEEE 802.11g 54M 6 2437.0 10.45 9.21 6.5M 6 2437.0 10.47 9.12 13M 6 2437.0 10.54 9.20 19.5M 6 2437.0 10.52 9.21 26M 6 2437.0 10.50 9.18 39M 6 2437.0 10.55 9.15 52M 6 2437.0 10.50 9.20 58.5M 6 2437.0 10.48 9.23 65M 6 2437.0 10.51 9.18 1 2412.0 10.81 9.50 6 2437.0 10.57 9.25 13M 11 2462.0 10.25 9.00 26M 6 2437.0 10.53 9.10 39M 6 2437.0 10.52 9.16 52M 6 2437.0 10.48 9.13 78M 6 2437.0 10.52 9.11 104M 6 2437.0 10.49 9.15 117M 6 2437.0 10.47 9.21 IEEE 802.11n (2.4GHz) 20MHz 130M 6 2437.0 10.53 9.14 Report Number: 1308FS13Page 5 of 7 ©2013 A Test Lab Techno Corp. Time-Avg. Conducted power (dBm) Band Date Rate CH Frequency (MHz) Antenna 1 Antenna 2 13.5M 6 2437.0 6.61 5.16 2…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： NBE-M2 Applicant ： Ubiquiti Networks, Inc. Address ： 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Trade Name ： UBiQUiTi Model Number ： NBE-M2 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Receive Date ： Apr. 11, 2013 Test Period ： Jun. 10 ~ Aug. 01, 2013 Issue Date ： Aug. 19, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1308FR14 1 of 69 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Aug. 19, 2013 Initial Issue Report Number: 1308FR14 2 of 69 A Test Lab Techno Corp. Verification of Compliance Issued Date: 08/19/2013 Product Type : NBE-M2 Applicant : Ubiquiti Networks, Inc. Address : 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Trade Name : UBiQUiTi Model Number : NBE-M2 FCC ID : SWX-NBM2HP EUT Rated Voltage : DC 24V, 0.5A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) Report Number: 1308FR14 3 of 69 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Test Setup............................................................................................................................................. 10 4.4. Test Procedure ......................................................................................................................................11 4.5. Test Result............................................................................................................................................ 12 5 Radiated Emission Measurement............................................................................................................... 14 5.1. Limit ...................................................................................................................................................... 14 5.2. Test Instruments ................................................................................................................................... 14 5.3. Setup .................................................................................................................................................... 15 5.4. Test Procedure ..................................................................................................................................... 16 5.5. Test Result............................................................................................................................................ 18 6 Maximum Conducted Output Power Measurement.................................................................................. 26 6.1. Limit ...................................................................................................................................................... 26 6.2. Test Setup.................................................................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 1308FR14 1 of 3 A Test Lab Techno Corp. Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1308FR14 2 of 3 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1308FR14 3 of 3 A Test Lab Techno Corp.
