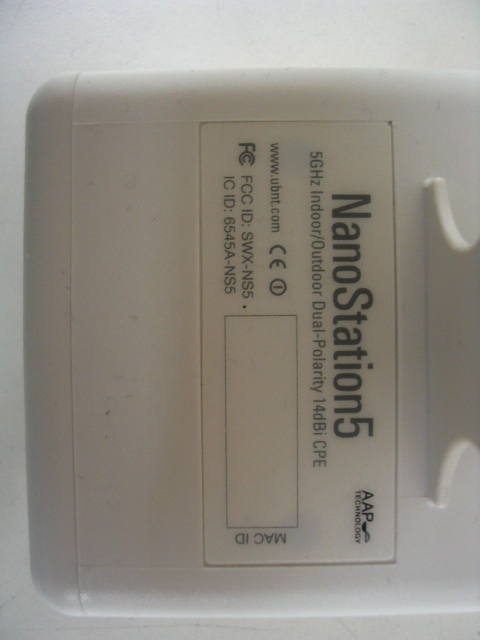

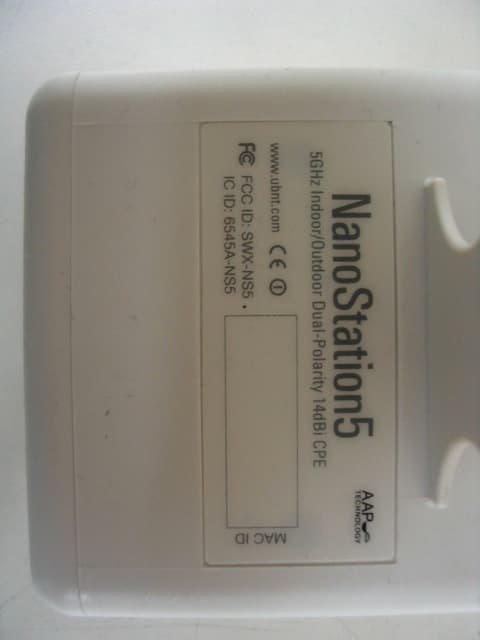

SWX-NS5NanoStation5

www.ubnt.com NanoStation5 User Guide USER INSTRUCTIONS 1. Launch web browser and type 192.168.1.20 to access NanoStation 2. Enter "UBNT" for both username and password www.ubnt.com TECHNICAL SPECIFICATIONS DataRateAvg.PowerToleranceDataRateSensitivityTolerance 6Mbps24 dBm+/-1.5dB6Mbps-94 dBm+/-1.5dB 9Mbps24 dBm+/-1.5dB9Mbps-93 dBm+/-1.5dB 12Mbps24 dBm+/-1.5dB12Mbps-91 dBm+/-1.5dB 18Mbps24 dBm+/-1.5dB18Mbps-90 dBm+/-1.5dB 24Mbps26 dBm+/-1.5dB24Mbps-86 dBm+/-1.5dB 36Mbps22 dBm+/-1.5dB36Mbps-83 dBm+/-1.5dB 48Mbps21 dBm+/-1.5dB48Mbps-77 dBm+/-1.5dB 54Mbps19 dBm+/-1.5dB54Mbps-74 dBm+/-1.5dB 802.11a OFDM 802.11a OFDM RANGE PERFORMANCE TX SPECIFICATIONSRX SPECIFICATIONS ANTENNA Outdoor (BaseStation Antenna Dependent):Over 10km Wireless Modular ApprovalsFCC Part 15.247, IC RS210, CE RADIO OPERATING FREQUENCY 5.475-5.825GHz SYSTEM INFORMATION Processor SpecsAtheros AR2313 SOC, MIPS 4KC, 180MHz Memory Information16MB SDRAM, 4MB Flash Networking Interface10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface Gain14dBi RoHS ComplianceYES REGULATORY / COMPLIANCE INFORMATION Multi-PolarizedVSWR1.4:1 Polarization SelectionSoftware ControlledFront to Back Ratio30dB+ Polarization 3dB Beamwidth Azimuth55 degrees3dB Beamwidth Elevation18 degrees 12V, 1A (12 Watts). Supply and injector included Operating Temperature -20C to +70C Operating Humidity5 to 95% Condensing Shock and Vibration Power Supply AzimuthElevation PHYSICAL / ELECTRICAL / ENVIRONMENTAL Enclosure Size26.4 cm x 8 cm x 3cm Weight0.4kg ETSI300-019-1.4 Enclosure CharacteristicsOutdoor UV Stabalized Plastic Mounting KitPole Mounting Kit included Power MethodPassive Power over Ethernet (pairs 4,5+; 7,8 return) Max Power Consumption5 Watts www.ubnt.com NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. ! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ADDITIONAL INFORMATION AND COMPLIANCE This is a Point-to-Point CPE Wireless Device.

Ubiquiti Networks, Inc. 495-499 Montague Expwy Milpitas, CA 95035 02/12/2008 Attn: MET Laboratories, Inc. 914 West Patapsco Ave, Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR NanoStation5 (FCC ID: SWX-NS5) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested that the schematics, block diagrams, and theory of operation required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745 - 5825 MHz ; highest conducted power = 29.65dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 14 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (922.5mW) G = Antenna Gain (25.11 numeric) R = (922.5*25.11/ 4*3.14*1.0) 1/2 = (23173.95 / 12.56) 1/2 = 43cm

NS5 ANTENNA GAIN=14dBi Horizontal Plane Vertical Plane

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks Model NS5 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C & Industry Canada RSS-210, Issue 7, June 2007 for Intentional Radiators and FCC Part 15 Subpart B and Industry Canada ICES-003, Issue 4, February 2004 for Unintentional Radiators MET Report: EMC80544B-FCC247 January 29, 2008 Prepared For: Ubiquiti Networks 495-499 Montague Expressway Milpitas, CA 95035 Prepared By: MET Laboratories, Inc. 3162 Belick Street Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Page iii of vii Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks Model NS5 Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C & Industry Canada RSS-210, Issue 7, June 2007 for Intentional Radiators and FCC Part 15 Subpart B and Industry Canada ICES-003, Issue 4, February 2004 for Unintentional Radiators Minh Ly, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.247 & 15B, of the FCC Rules and ICES-003, RSS-210 of the Industry Canada Rules under normal use and maintenance. Shawn McMillen, Wireless Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Page iv of vii Report Status Sheet Revision Report Date Reason for Revision ∅ January 29, 2008 Initial Issue. Electromagnetic Compatibility Ubiquiti Networks Table of Contents NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Page v of vii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................9 H. Mode of Operation..............................................................................................................................................9 I. Method of Monitoring EUT Operation ...............................................................................................................9 J. Modifications ......................................................................................................................................................9 a) Modifications to EUT....................................................................................................................9 b) Modifications to Test Standard......................................................................................................9 K. Disposition of EUT .............................................................................................................................................9 III. Electromagnetic Compatibility Criteria for Unintentional Radiators ..............................................................10 § 15.107(a) Conducted Emissions Limits.............................................................................................................. 11 § 15.109(a) Radiated Emission Limits .................................................................................................................. 15 § 15.09(a) Radiated Emissions Limits............................................................................................…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Conducted Emission Limits Test Setup Photograph 1. Conducted Emissions Test Setup Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Radiated Emission Limits Test Setup Photograph 2. Radiated Emission Test Setup 30 MHz - 2 GHz Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Conducted Emissions – Test Setup Photo Photograph 3. Conducted Emissions Test Setup Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators NS5 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80544B-FCC247 © 2008, MET Laboratories, Inc. Photograph 4. Test Equipment and setup for various Radiated Measurements
