SWX-R5MUOutdoor Wireless Access Device

Carrier Class airMAX ® BaseStation Models: M900/M2/M3/M365/M5/M6 Introduction Thank you for purchasing the Ubiquiti Networks® Rocket ™ . This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents RocketMetal StrapPoE Adapter (24V, 1A) Carrier Class airMAX ® BaseStation Models: M900/M2/M3/M365/M5/M6 Power CordQuick Start Guide Installation Requirements Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable, TOUGHCable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. Hardware Overview Antenna Connectors Port Cover LAN Ethernet Port Reset Button Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the Rocket is already powered on. LEDs Power The Power LED will light green when the device is connected to a power source. Ethernet The Ethernet LED will light steady green when an active Ethernet connection is made and flash when there is activity. Signal In airOS, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below: LED will light red when the wireless signal strength is above ‑94 dBm. LED will light amber when the wireless signal strength is above ‑80 dBm. LED will light green when the wireless signal strength is above ‑73 dBm. LED will light green when the wireless signal strength is above ‑65 dBm. Hardware Installation 1. Remove the Port Cover by lifting the release latch on the bottom of the Rocket and sliding the Port Cover off. 2. Connect an Ethernet cable to the LAN port. 3. Replace the Port Cover. *720-00025-02* 720-00025-02 4. Attach the RF cables to the connectors labeled Chain 0 and Chain 1 on the Rocket. 5. Attach the Rocket to an antenna. Align the mounting tabs on the Rocket with the mounting slots on the antenna. Slide the Rocket down until it locks into place. (For pole‑mounting, refer to the Pole‑Mounting section.) Mounting on a Dish AntennaMounting on a Sector Antenna 6. Attach the RF cables from the Rocket to the connectors on the antenna. Connecting to a Dish AntennaConnecting to a Sector Antenna 7. Attach the Protective Shroud. Align the hash mark on the top of the shroud with the notch on the RocketDish. Rotate the shroud clockwise until it locks into place. Slide the Protective Shroud down over the Rocket until it locks into place on the Sector Antenna. Pole‑Mounting To mount the Rocket on a pole, use the included Metal Strap and perform the following steps: 1. Open the Metal Strap by turning the screw counter‑clockwise. You can loosen it by hand or use a flathead screwdriver. 2. Straighten out the end of the Metal Strap and slide it through the back of the Rocket. 3. Wrap the Metal Strap around the pole. To tighten the strap, turn the screw clockwise using a flathead screwdriver. Connecting Power over Ethernet 1. Connect the other end of the Ethernet cable from the Rocket to the Ethernet port labeled POE on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 3. Connect the Power Cord to the power port on the PoE Adapter. Connect the other end of the Power Cord to a power outlet. Accessing airOS Verify connectivity in the airOS Configuration Interface. 4. Make sure that your host system is connected via Ethernet to the RocketM. 5. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 6. Launch your web browser. Type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 7. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Login. Note: U.S. product versions are locked to the U.S. Country Code to ensure compliance with FCC regulations. The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For additional details on the airOS Configuration Interface, refer to the User Guide available at documentation.ubnt.com/airmax Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. Specifications RocketM Dimensions (Mount Included)160 x 80 x 30 mm (6.30 x 3.15 x 1.18") Weight (Mount Included)500 g (1.1 lb) Operating Frequency RocketM900 RocketM2 RocketM3 RocketM365 RocketM5 RocketM6 902 ‑ 928 MHz 2402 ‑ 2462 MHz 3370 ‑ 3730 MHz * 3650 ‑ 3675 MHz Worldwide: 5170 ‑ 5875 MHz USA: 5150 ‑ 5250, 5725 ‑ 5850 MHz 5955 ‑ 6400 MHz Port(1) 10/100 Ethernet Port RF Connectors(2) RP‑SMA (Waterproof ) EnclosureOutdoor UV Stabilized Plastic Max. Power Consumption RocketM900/2/3/365 RocketM5/6 6.5W 8W Power Supply24V, 1A PoE Adapter (Included) Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return) CertificationsCE, FCC, IC Operating Temperature‑30 to 75° C (‑22 to 167° F) Operating Humidity5 to 95% Noncondensing Shock and VibrationETSI300‑019‑1.4 * RocketM3 n…

Text truncated - open the document above for the full version.

June 29, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Ubiquiti Networks, Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these mat- ters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal bene- fits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, ! Michael Taylor Compliance Manager 2580 Orchard Parkway San Jose, CA 95131, USA 408-942-3085 [email protected]

FCC Confidential Authorization June 29, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: SWX-R5MU In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Ubiquiti Networks, Inc. hereby requests long-term confidential treatment of information accompanying this applica- tion as outlined below: • Block Diagram • Schematics • Operation Description As well as short-term confidential treatment of information accompanying this application as out- lined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competi- tors in the market. Sincerely, ! Michael Taylor Compliance Manager 2580 Orchard Parkway San Jose, CA 95131, USA 408-942-3085 [email protected]

QA-FR-170-B FCC Professional Installation Justification August 24, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Professional Installation Justification regarding application for certification of FCC ID: SWX-R5MU To whom it may concern: The Rocket M5 is sold through a network of distributors to wireless service providers. These products are not marketed or sold to end users. This product requires a trained professional, and is installed outdoors as part of the network infrastructure of the wireless service provider. The Rocket M-series Quick Start Guide installation requirements clearly state the requirement for professional installation, and reminds the professional installer of their legal obligations under Part 15. Ubiquiti offers training programs for professional installers. The FCC Part 15 requirements will be followed by the installers. Sincerely Yours, Michael Taylor Compliance Manager 2580 Orchard Parkway San Jose, CA 95131 USA 408-942-3085 x442 [email protected]

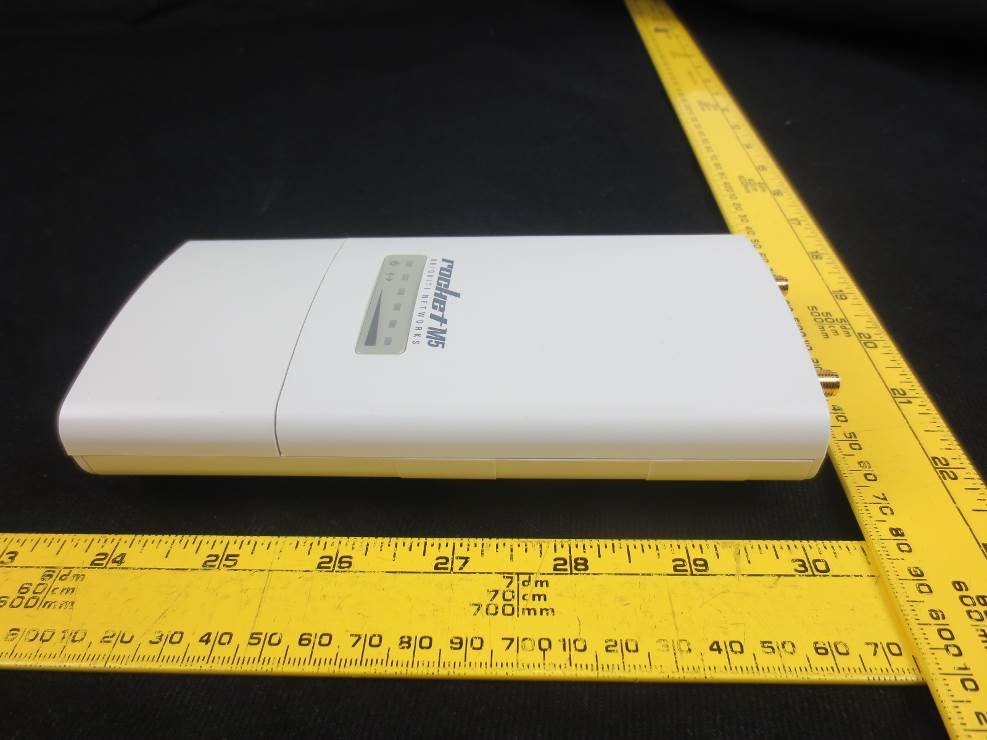

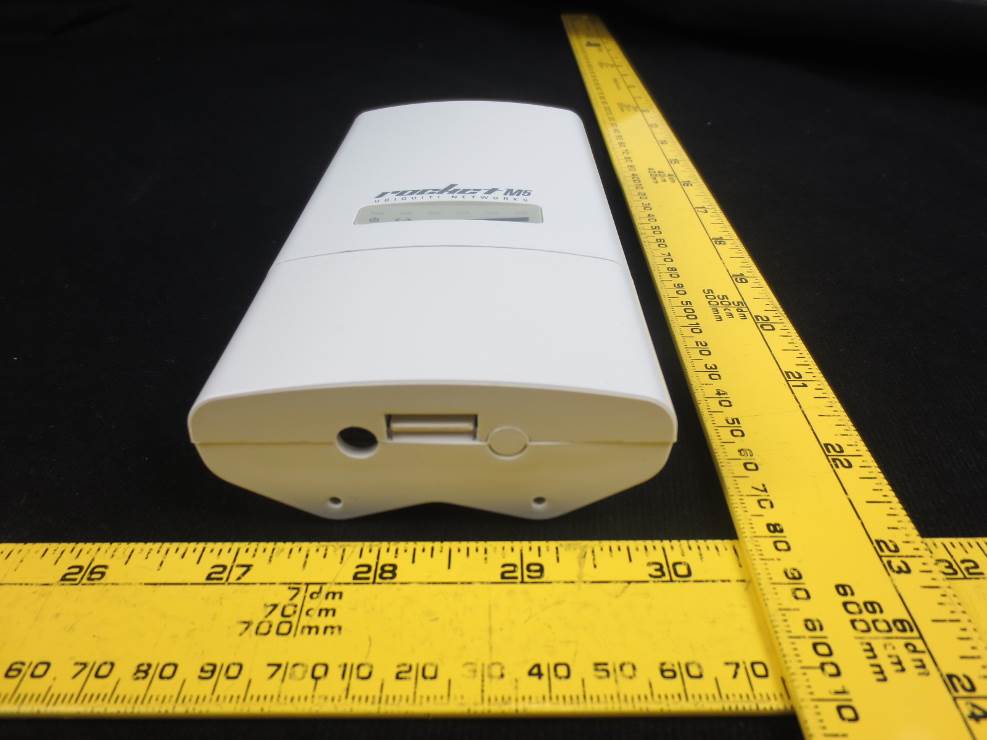

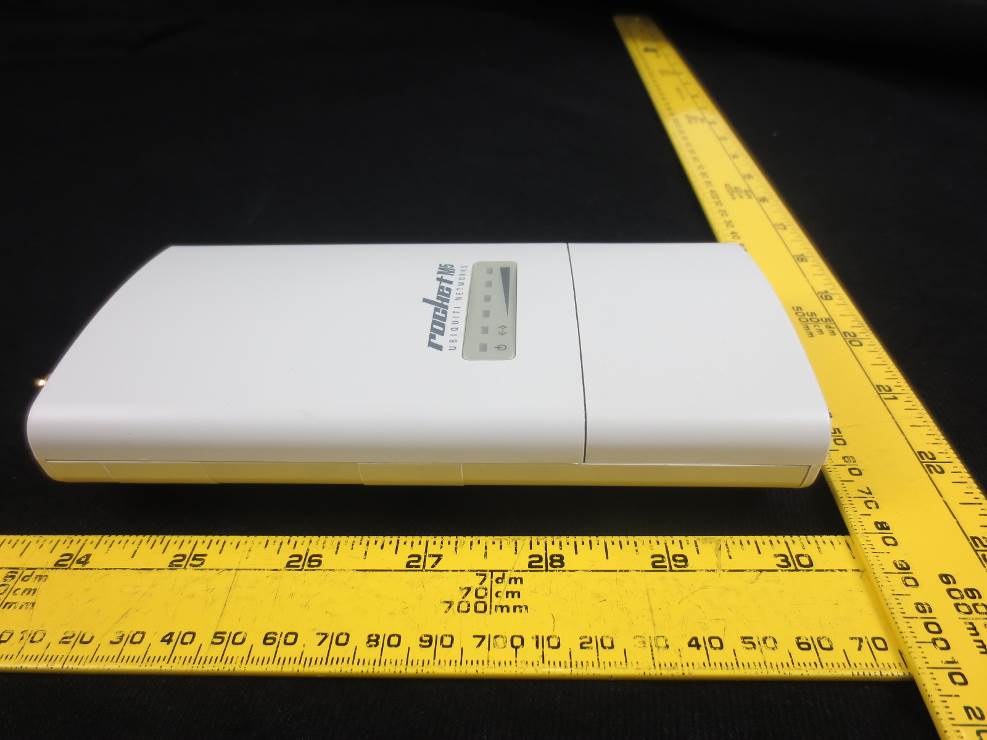

Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 101 of 107 FCC Part 15.407 Test Report 14 Exhibit C – EUT Photographs 14.1 EUT – Front View 14.2 EUT – Rear View Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 102 of 107 FCC Part 15.407 Test Report 14.3 EUT – Top View 14.4 EUT – Bottom View Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 103 of 107 FCC Part 15.407 Test Report 14.5 EUT – Left View 14.6 EUT – Right View

FCC ID Label Contents and Location Label Location (Back Side of Device)

Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 104 of 107 FCC Part 15.407 Test Report 14.7 EUT – Cover off View 1 14.8 EUT – Cover off View 2 Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 105 of 107 FCC Part 15.407 Test Report 14.9 EUT – Main Board Top View 14.10 EUT – Main Board Top Shielding off View Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 106 of 107 FCC Part 15.407 Test Report 14.11 EUT – Main Board Bottom View 14.12 EUT – Power Adapter Top View Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 107 of 107 FCC Part 15.407 Test Report 14.13 EUT – Power Adapter Bottom View --- END OF REPORT ---

Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 10 of 107 FCC Part 15.407 Test Report 4 FCC §2.1091 & §15.407(f) - RF Exposure 4.1 Applicable Standard According to FCC §15.407(f) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 11 of 107 FCC Part 15.407 Test Report 4.3 MPE Results Power Setting 1 – Omni Antenna, Sector Antenna Maximum peak output power at antenna input terminal (dBm): 22.17 Maximum peak output power at antenna input terminal (mW): 164.82 Prediction distance (cm): 20 Prediction frequency (MHz): 5785 Maximum Antenna Gain, typical (dBi): 13.8 Maximum Antenna Gain (numeric): 23.99 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.787 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.787 mW/cm 2 . Limit is 1.0 mW/cm 2 . Power Setting 2 - Dish Antenna Maximum peak output power at antenna input terminal (dBm): 5.55 Maximum peak output power at antenna input terminal (mW): 3.585 Prediction distance (cm): 20 Prediction frequency (MHz): 5735 Maximum Antenna Gain, typical (dBi): 29.5 Maximum Antenna Gain (numeric): 891.25 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.636 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.636 mW/cm 2 . Limit is 1.0 mW/cm 2 .

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.407 TEST AND MEASUREMENT REPORT For Ubiquiti Networks, Inc. 2580 Orchard Parkway, San Jose, CA 95131, USA FCC ID: SWX-R5MU Report Type: Original Report Product Type: Outdoor Fixed Wireless Access Prepared By: Ronak Patel Test Engineer Report Number: R1506114-407 W58 Report Date: 2015-08-11 Reviewed By: Bo Li RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 2 of 107 FCC Part 15.407 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ......................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................. 5 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 5 1.3 OBJECTIVE ............................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY .............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................... 5 1.7 TEST FACILITY ........................................................................................................................................................ 6 2 EUT TEST CONFIGURATION .................................................................................................................................. 7 2.1 JUSTIFICATION ......................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE ...................................................................................................................................... 7 2.3 SPECIAL EQUIPMENT ............................................................................................................................................... 7 2.4 EQUIPMENT MODIFICATIONS ................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT .................................................................................................................................. 8 2.6 EUT INTERNAL CONFIGURATION DETAILS .............................................................................................................. 8 2.7 INTERFACE PORTS AND CABLES .............................................................................................................................. 8 2.8 POWER SUPPLY LIST AND DETAILS ......................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 4 FCC §2.1091 & §15.407(F) - RF EXPOSURE .......................................................................................................... 10 4.1 APPLICABLE STANDARD ........................................................................................................................................ 10 4.2 MPE PREDICTION .................................................................................................................................................. 10 4.3 MPE RESULTS ....................................................................................................................................................... 11 5 FCC §15.203 – ANTENNA REQUIREMENTS ........................................................................................................ 12 5.1 APPLICABLE STANDARD ........................................................................................................................................ 12 5.2 ANTENNA DESCRIPTION ........................................................................................................................................ 12 6 FCC §15.207 - AC POWER LINE CONDUCTED EMISSIONS ............................................................................ 13 6.1 APPLICABLE STANDARDS ...................................................................................................................................... 13 6.2 TEST SETUP ........................................................................................................................................................... 13 6.3 TEST PROCEDURE .................................................................................................................................................. 13 6.4 TEST SETUP BLOCK DIAGRAM ............................................................................................................................... 14 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .............................................…

Text truncated - open the document above for the full version.

Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 96 of 107 FCC Part 15.407 Test Report 13 Exhibit B - EUT Setup Photographs 13.1 AC Line Conducted Emission Front View 13.2 AC Line Conducted Emission Side View Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 97 of 107 FCC Part 15.407 Test Report 13.3 Radiated Emission below 1 GHz Front View at 3m with Sector Antenna 13.4 Radiated Emission below 1 GHz Rear View at 3m with Sector Antenna Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 98 of 107 FCC Part 15.407 Test Report 13.5 Radiated Emission above 1 GHz Front View at 3m with Sector Antenna 13.6 Radiated Emission above 1 GHz Rear View at 3m with Sector Antenna Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 99 of 107 FCC Part 15.407 Test Report 13.7 Radiated Emission below 1 GHz Front View at 3m with Dish Antenna 13.8 Radiated Emission below 1 GHz Rear View at 3m with Dish Antenna Ubiquiti Networks, Inc. FCC ID: SWX-R5MU Report Number: R1506114-407 W58 Page 100 of 107 FCC Part 15.407 Test Report 13.9 Radiated Emission above 1 GHz Front View at 3m with Dish Antenna 13.10 Radiated Emission above 1 GHz Rear View at 3m with Dish Antenna
