Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
RF_160, Issue 03 Ubiquiti Networks.,Inc Declaration of Authorization We Name: Ubiquiti Networks.,Inc Address: 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan City: Taipei . Country: Taiwan. . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Access Point FCC ID: SWX-RM5ACPTMP Trademark: UBIQUITI on our behalf. Date: 2014/07/14 .. City: Taipei .. Name: Jocelyn Wang .. (2) Function: .........Compliance Manager............ Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.
Confidentiality Request Letter Date: 2014/7/15 Federal Communications Commission Authorization and Evaluation Division FCC ID:SWX-RM5ACPTMP Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Ubiquiti Networks, Inc. Applicant’s company address : 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Signature : Job Title and Dept. : Jocelyn Wang E-mail : [email protected] Tel. : (886)2-2758-1657 x144/107
1/1 Ubiquiti Networks, Inc. 12F, No105, Song Ren Rd., SinYi District, Taipei, Taiwan Tel: 886-2-17581657 ; Fax: 886-2-27581637 Date: 2014-07-14 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : SWX-RM5ACPTMP To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45days: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jocelyn Wang [email protected]
Ubiquiti Networks.,Inc FCC ID.: SWX-RM5ACPTMP 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan.Tel : +886 2 17581657 Federal Communications Commission July 14, 2014 Authorization and Evaluation Division ATTESTATION FCC ID: SWX-RM5ACPTMP Product: Access Point Model: RM5-AC-PTMP, R5AC-PTMP We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------ Jocelyn Wang / Compliance Manager Ubiquiti Networks.,Inc
Model Difference Letter Date: 2014/7/15 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. I am therefore responsible for the contents of the application. The radio equipment has two model numbers which listed below, and to declare that the two models are identical due to marketing requirement. IC: SWX-RM5ACPTMP Product name: Access Point Brand: UBIQUITI Model number: RM5-AC-PTMP, R5AC-PTMP Applicant : UBIQUITI NETWORKS Address : 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Signature : Name and Job Title. : Jocelyn Wang E-mail [email protected] Te l . (886)2-2758-1657 x144/107

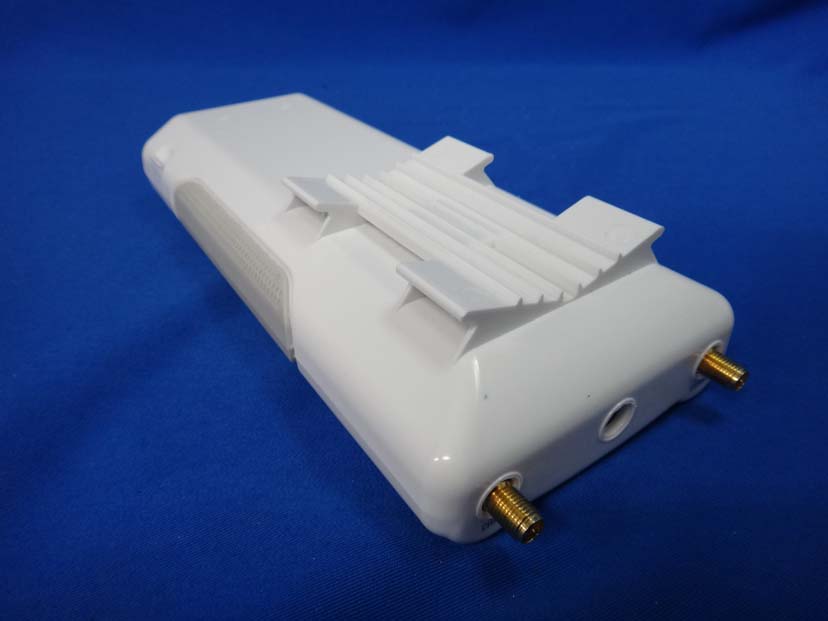

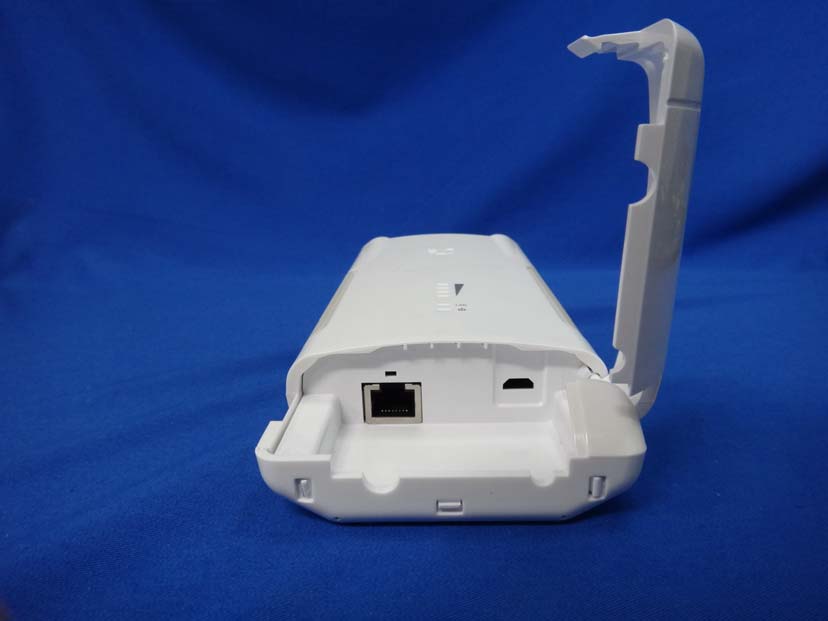

Report No.: 1430290R-RFUSP08V00-A Page : 1 of 17 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 2 of 17 (3) EUT Photo (4) EUT Photo
Ubiquiti Networks.,Inc FCC ID.: SWX-RM5ACPTMP 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan.Tel : +886 2 17581657 The FCC ID Label will be placed on the equipment as shown in the photograph below.
Ubiquiti Networks.,Inc FCC ID.: SWX-RM5ACPTMP 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan.Tel : +886 2 17581657 FCC ID Label
Report No.: 1430290R-RFUSP08V00-A Page : 3 of 17 (5) EUT Photo (6) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 4 of 17 (7) EUT Photo (8) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 5 of 17 (9) EUT Photo (10) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 6 of 17 (11) EUT Photo (12) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 7 of 17 (13) EUT Photo (14) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 8 of 17 (15) EUT Photo (16) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 9 of 17 (17) EUT Photo (18) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 10 of 17 (19) EUT Photo (20) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 11 of 17 (21) EUT Photo (22) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 12 of 17 (23) EUT Photo (24) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 13 of 17 (25) EUT Photo (Sector Antenna: AMO-5G20) (26) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 14 of 17 (27) EUT Photo (Dish Antenna: AMO-5G13) (28) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 15 of 17 (29) EUT Photo (Omni Antenna: AMO-5G13) (30) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 16 of 17 (31) EUT Photo (32) EUT Photo Report No.: 1430290R-RFUSP08V00-A Page : 17 of 17 (33) EUT Photo (34) EUT Photo
Report No. 1430290R-RFUSP08V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Access Point Model No. RM5-AC-PTMP, R5AC-PTMP FCC ID SWX-RM5ACPTMP Applicant Ubiquiti Networks.,Inc Address 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Date of Receipt Mar. 14, 2014 Date of Declaration July 14, 2014 Report No. 1430290R-RFUSP08V00 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF any agency of the U.S. Government Report No. 1430290R-RFUSP08V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. Report No. 1430290R-RFUSP08V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Access Point Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency Range 5745~5825MHz, 5755~5795MHz, 5755MHz Output Power Into Antenna & RF Exposure Evaluation Distance: (Dish antenna: 34dBi) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1.5311 0.765122 Power density is lower than the limit (1 mW/cm 2 ). Output Power Into Antenna & RF Exposure Evaluation Distance: (Sector antenna: 20dBi) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38.9045 0.773981 Power density is lower than the limit (1 mW/cm 2 ). Output Power Into Antenna & RF Exposure Evaluation Distance: (Omni antenna: 13dBi) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 191.8669 0.761606 Power density is lower than the limit (1 mW/cm 2 ).
Report No. 1430290R-RFUSP08V00-A Page: 1 of 173 FCC Test Report Product Name Access Point Model No RM5-AC-PTMP, R5AC-PTMP FCC ID SWX-RM5ACPTMP Applicant Ubiquiti Networks.,Inc Address 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Date of Receipt Mar. 14, 2014 Issued Date July 03, 2014 Report No. 1430290R-RFUSP08V00-A Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1430290R-RFUSP08V00-A Page: 2 of 173 Test Report Issued Date: July 03, 2014 Report No.: 1430290R-RFUSP08V00-A Product Name Access Point Applicant Ubiquiti Networks.,Inc Address 12F, No. 105, Song Ren Rd., Sin Yi District, Taipei 110, Taiwan Manufacturer Ubiquiti Networks.,Inc Model No. RM5-AC-PTMP, R5AC-PTMP FCC ID. SWX-RM5ACPTMP EUT Rated Voltage DC 24V (Power by POE) EUT Test Voltage AC 120V/60Hz Trade Name UBIQUITI Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2014 ANSI C63.10: 2009, KDB 789033 D02 General UNII Test Procedures New Rules v01 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Director / Vincent Lin ) Report No. 1430290R-RFUSP08V00-A Page: 3 of 173 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Maximun conducted output power ..........................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................19 3.4. Test Procedur ...............................................................................................................................20 3.5. Uncertainty ..................................................................................................................................20 3.6. Test Result of Maximum conducted output power......................................................................21 4. Peak Power Spectral Density....................................................................................................36 4.1. Test Equipment............................................................................................................................36 4.2. Test Setup ....................................................................................................................................36 4.3. Limits ..........................................................................................................................................36 4.4. Test Procedure .............................................................................................................................37 4.5. Uncertainty ..................................................................................................................................37 4.6. Test Result of Peak Power Spectral Density ...............................................................................38 5. Radiated Emission .....................................................................................................................71 5.1. Test Equipment............................................................................................................................71 5.2. Test Setup ....................................................................................…
Text truncated - open the document above for the full version.
Report No. 1430290R-RFUSP08V00-A Page: 62 of 173 Product : Access Point Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW-14.4Mbps) - Omni Antenna Channel Number Frequency (MHz) Chain PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result A 15.374 18.384 <23 Pass 149 5745 B 15.922 18.932 <23 Pass A 15.442 18.452 <23 Pass 157 5785 B 15.722 18.732 <23 Pass A 15.943 18.953 <23 Pass 165 5825 B 15.930 18.940 <23 Pass Note 1: The quantity 10*log 2 (two antennas) is added to the spectrum peak value according to document 662911 D01. Channel 149 – Chain A Report No. 1430290R-RFUSP08V00-A Page: 63 of 173 Channel 157 – Chain A Channel 165 – Chain A Report No. 1430290R-RFUSP08V00-A Page: 64 of 173 Channel 149 – Chain B Channel 157 – Chain B Report No. 1430290R-RFUSP08V00-A Page: 65 of 173 Channel 165 – Chain B Report No. 1430290R-RFUSP08V00-A Page: 66 of 173 Product : Access Point Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW-30Mbps) - Omni Antenna Channel Number Frequency (MHz) Chain PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result A 12.344 15.354 <23 Pass 151 5755 B 12.522 15.532 <23 Pass A 12.985 15.995 <23 Pass 159 5795 B 12.002 15.012 <23 Pass Note 1: The quantity 10*log 2 (two antennas) is added to the spectrum peak value according to document 662911 D01. Channel 151 – Chain A Report No. 1430290R-RFUSP08V00-A Page: 67 of 173 Channel 159 – Chain A Channel 151 – Chain B Report No. 1430290R-RFUSP08V00-A Page: 68 of 173 Channel 159 – Chain B Report No. 1430290R-RFUSP08V00-A Page: 69 of 173 Product : Access Point Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11ac-80BW-65Mbps) - Omni Antenna Channel Number Frequency (MHz) Chain PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result A 12.270 15.280 <23 Pass 155 5775 B 12.056 15.066 <23 Pass Note 1: The quantity 10*log 2 (two antennas) is added to the spectrum peak value according to document 662911 D01. Channel 155: CHAIN A Report No. 1430290R-RFUSP08V00-A Page: 70 of 173 Channel 155: CHAIN B Report No. 1430290R-RFUSP08V00-A Page: 71 of 173 5. Radiated Emission 5.1. Test Equipment The following test equipments are used during the radiated emission test: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. X Loop Antenna Teseq HLA6120 / 26739 Jul., 2014 X Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2013 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2013 X Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2014 X Pre-Amplifier QTK QTK-AMP-03 / 0003 May, 2014 X Pre-Amplifier QTK AP-180C / CHM_0906076 Sep., 2013 X Pre-Amplifier MITEQ AMF-4D-180400-45-6P/ 925975 Mar, 2014 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2014 X Test Receiver R & S ESCS 30/ 825442/018 Sep., 2013 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2014 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 5.2. Test Setup Radiated Emission Below 1GHz EUT FRP Dome Test Receiver The height of broad band antenna was scanned from 1m to 4m. The distance between antenna and turn table was 3m.. To Controller To Receiver Fully soldered Metal Ground Non-Conducted Table 3m 1m to 4m 80cm Report No. 1430290R-RFUSP08V00-A Page: 72 of 173 Radiated Emission Above 1GHz 5.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. FCC Part 15 Subpart C Paragraph 15.209(a) Limits Frequency MHz Field strength (microvolts/meter) Measurement distance (meter) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Remarks: E field strength (dBuV/m) = 20 log E field strength (uV/m) EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Am plifier Report No. 1430290R-RFUSP08V00-A Page: 73 of 173 5.4. Test Procedure The EUT was setup according to ANSI C63.10, 2009 and tested according to FCC KDB-789033 test procedure for compliance to FCC 47CFR 15. 407 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.10, 2009 on radiated measurement. The resolution bandwidth below 30MHz setting on the field strength meter is 9kHz and 30MHz~1GHz is 120kHz and above 1GHz is 1MHz. Radiated emission measurements below 30MHz are made using Loop Antenna and 30MHz~1GHz are made using broadband Bilog antenna and above 1GHz are made using Horn Antennas. The measurement is divided into the Preliminary Measurement and the Final Measurement. The suspected frequencies are searched for in Preliminary Measurement with the measurement antenna kept pointed at the source of the emission both in azimuth and elevation, with the polarization of the antenna oriented for maximum response. The antenna is pointed at an angle towards the source of the emission, and the EUT is rotated in both height and polarization to maximize the measured emission. The emission is kept within the ill…
Text truncated - open the document above for the full version.
Report No. 1430290R-RFUSP08V00-A Page: 151 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW-14.4Mbps) (5825MHz) - Sector Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 17650 >500 Pass Figure Channel 165: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 17700 >500 Pass Figure Channel 165: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 152 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW-30Mbps) (5755MHz) - Sector Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 5755.00 36200 >500 Pass Figure Channel 151: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 5755.00 36500 >500 Pass Figure Channel 151: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 153 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW-30Mbps) (5795MHz) - Sector Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 5795.00 36500 >500 Pass Figure Channel 159: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 5795.00 36500 >500 Pass Figure Channel 159: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 154 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11ac-80BW-65Mbps) (5775MHz) - Sector Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 155 5775.00 76500 >500 Pass Figure Channel 155: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 155 5775.00 75900 >500 Pass Figure Channel 155: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 155 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) (5745MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 5745.00 16450 >500 Pass Figure Channel 149: Report No. 1430290R-RFUSP08V00-A Page: 156 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) (5785MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 5785.00 16450 >500 Pass Figure Channel 157: Report No. 1430290R-RFUSP08V00-A Page: 157 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) (5825MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 16450 >500 Pass Figure Channel 165: Report No. 1430290R-RFUSP08V00-A Page: 158 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW-14.4Mbps) (5745MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 5745.00 17650 >500 Pass Figure Channel 149: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 5745.00 17650 >500 Pass Figure Channel 149: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 159 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW-14.4Mbps) (5785MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 5785.00 17650 >500 Pass Figure Channel 157: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 5785.00 17650 >500 Pass Figure Channel 157: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 160 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW-14.4Mbps) (5825MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 17650 >500 Pass Figure Channel 165: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 17650 >500 Pass Figure Channel 165: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 161 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW-30Mbps) (5755MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 5755.00 36500 >500 Pass Figure Channel 151: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 5755.00 36400 >500 Pass Figure Channel 151: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 162 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW-30Mbps) (5795MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 5795.00 36500 >500 Pass Figure Channel 159: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 5795.00 36500 >500 Pass Figure Channel 159: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 163 of 173 Product : Access Point Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11ac-80BW-65Mbps) (5775MHz) - Omni Antenna Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 155 5775.00 75500 >500 Pass Figure Channel 155: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 155 5775.00 74200 >500 Pass Figure Channel 155: (Chain B) Report No. 1430290R-RFUSP08V00-A Page: 164 of 173 8. Frequency Stability 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer …
Text truncated - open the document above for the full version.
Report No.: 1430290R-RFUSP08V00-A Page : 1 of 10 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test – Dish Antenna Back View of Conducted Test – Dish Antenna Report No.: 1430290R-RFUSP08V00-A Page : 2 of 10 Front View of Radiated Test – Dish Antenna Back View of Radiated Test – Dish Antenna Report No.: 1430290R-RFUSP08V00-A Page : 3 of 10 Front View of Radiated Test (Horn) - Dish Antenna Back View of Radiated Test (Horn) - Dish Antenna Report No.: 1430290R-RFUSP08V00-A Page : 4 of 10 Front View of Radiated Test (Horn) - Dish Antenna Back View of Radiated Test (Horn) - Dish Antenna Report No.: 1430290R-RFUSP08V00-A Page : 5 of 10 Front View of Radiated Test – Sector Antenna Back View of Radiated Test – Sector Antenna Report No.: 1430290R-RFUSP08V00-A Page : 6 of 10 Front View of Radiated Test (Horn) – Sector Antenna Back View of Radiated Test (Horn) - Sector Antenna Report No.: 1430290R-RFUSP08V00-A Page : 7 of 10 Front View of Radiated Test (Horn) - Sector Antenna Back View of Radiated Test (Horn) - Sector Antenna Report No.: 1430290R-RFUSP08V00-A Page : 8 of 10 Front View of Radiated Test – Omni Antenna Back View of Radiated Test – Omni Antenna Report No.: 1430290R-RFUSP08V00-A Page : 9 of 10 Front View of Radiated Test (Horn) – Omni Antenna Back View of Radiated Test (Horn) - Omni Antenna Report No.: 1430290R-RFUSP08V00-A Page : 10 of 10 Front View of Radiated Test (Horn) - Omni Antenna Back View of Radiated Test (Horn) - Omni Antenna
Taiwan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15E | 5.78 GHz - 5.78 GHz | 141.60 mW |
