SWX-SR4CSuper Range 4 Public Safety 4.9Ghz mini-PCI module

Hardware Information Guide Super Range 4 Cardbus Public Safety 4.9Ghz Cardbus module For more detailed information and software integration help, please contact [email protected] Regulatory Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inteference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no gurantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Consult the dealer or an experienced radio/TV technician for help To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter CAUTION 1.) To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. 2.) This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter Limited End User Product Warranty Pursuant to all provisions described herein, Ubiquiti Networks products are warranted for (1) year from the date of purchase against defects in the build materials and workmanship. Ubiquiti or its reseller shall use commercially reasonable efforts to promptly correct a nonconformity. The above warranty is voide if the alleged defect cannot be verified by Ubiquiti or if, as determined by Ubiquiti, the product failure was due to tampering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual, if the product has been altered in any way, or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Ubiquiti immediately voids this warranty. This warranty applies only to the original End User purchaser of the product and may not be transferred to any other individual or entity. By using the product, the original End User purchaser agrees to and is bound by these terms and conditions. In the event that a product fails to meet this warranty and Ubiquiti’s authorized reseller is notified in writing of such failure within the warranty period, Ubiquiti shall, at its own discretion, either repair the product or replace it with the same or a functionally-equivalent product free of charge. Replacement products may contain refurbished materials in whole or in part. Ubiquiti will honor this warranty provided the product is returned through an authorized Ubiquiti reseller or dealer with shipping charges prepaid, along with a proof of purchase describing the original purchase date and product serial numbers if applicable. The authorized reseller must acquire a Return Materials Authorization (RMA) number from Ubiquiti prior to returning any product. Ubiquiti does not accept shipments of defective products without shipping charges prepaid.

QuickTime™ and a TIFF (Uncompressed) decompressor are needed to see this picture. Hardware Information Guide Super Range 4 Public Safety 4.9Ghz mini-PCI module *The above power table is based on average power. Maximum peak power is up to 32.6dBm For more detailed information and software integration help, please contact [email protected] ANTENNA LIMITATIONS: Please note that the SR4C certification covers limited antenna use. Please follow the guidelines below. *Note the RF Exposure guidelines on the following page must also be followed Regulatory Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inteference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no gurantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Consult the dealer or an experienced radio/TV technician for help To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter CAUTION 1.) To comply with FCC RF exposure compliance requirements, a separation distance of at least 33.9cm must be maintained between the user and antenna when the product is used with a 9dBi antenna. For point-to-point use with a 26dBi antenna, this distance must be increased to a user separation distance of 240cm. 2.) This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter Limited End User Product Warranty Pursuant to all provisions described herein, Ubiquiti Networks products are warranted for (1) year from the date of purchase against defects in the build materials and workmanship. Ubiquiti or its reseller shall use commercially reasonable efforts to promptly correct a nonconformity. The above warranty is voide if the alleged defect cannot be verified by Ubiquiti or if, as determined by Ubiquiti, the product failure was due to tampering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual, if the product has been altered in any way, or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Ubiquiti immediately voids this warranty. This warranty applies only to the original End User purchaser of the product and may not be transferred to any other individual or entity. By using the product, the original End User purchaser agrees to and is bound by these terms and conditions. In the event that a product fails to meet this warranty and Ubiquiti’s authorized reseller is notified in writing of such failure within the warranty period, Ubiquiti shall, at its own discretion, either repair the product or replace it with the same or a functionally-equivalent product free of charge. Replacement products may contain refurbished materials in whole or in part. Ubiquiti will honor this warranty provided the product is returned through an authorized Ubiquiti reseller or dealer with shipping charges prepaid, along with a proof of purchase describing the original purchase date and product serial numbers if applicable. The authorized reseller must acquire a Return Materials Authorization (RMA) number from Ubiquiti prior to returning any product. Ubiquiti does not accept shipments of defective products without shipping charges prepaid.

Ubiquiti Networks, Inc. 495-499 Montague Expwy. Milpitas, CA 95035 Attn:Reviewing Engineer MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, 5/20/06 Robert J. Pera Senior RF Engineer

Ubiquiti Networks, Inc. 495-499 Montague Expwy Milpitas, CA 95035 5/20/06 Attn: MET laboratories 914 West Patapsco Ave. Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR SuperRange4 Cardbus (FCC ID: SWX-SR4C) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematics, block diagrams, Bill of Materials, tune-up procedure, and theory of operation required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrafice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

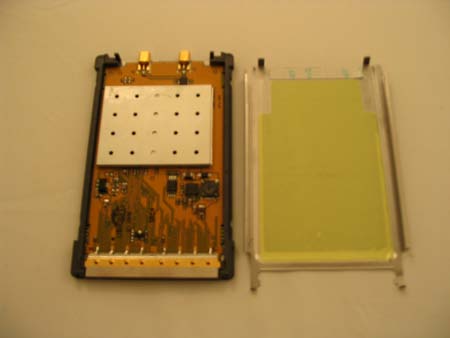

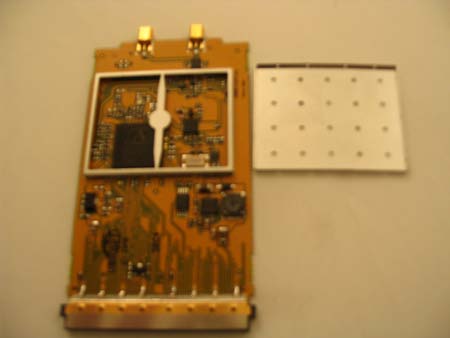

Ubiquiti Networks, Inc. 495-499 Montague Expwy Milpitas, CA 95035 September 27, 2007 Dear Application Examiner, Ubiquiti Networks FCC ID: SWX-SR4C, would like to have your authorization as a modular approval specific to Mini PCI module. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Device is equipped with metal shielding to cover RF section. Refer to external photos 2. “The modular transmitter must have buffered modulation/data inputs.”: All inputs to the modules are buffered through logic or microprocessor inputs. 3. “The modular transmitter must have its own power supply regulation.”: Internal 2.5V/3.3V power regulator. Refer to block diagram. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).”: The device is equipped with a unique antenna connector. Refer to external photos. 5. “The modular transmitter must be tested in a stand-alone configuration”: The device was tested in an adapter which exposed it outside that of a host laptop. 6. “The modular transmitter must be labeled with its own FCC ID number.”: There is one FCC ID submitter. A second FCC ID will be obtained by OEM customers for use in their hosts. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.”: There are specific EEPROM settings inside the module that prohibit illegal usage. 8. “The modular transmitter must comply with any applicable RF exposure requirements.”: The module is NOT a portable device for laptops. Can only be used in mobile applications. Please contact me if you have any further questions. Regards, Robert J. Pera Senior RF Engineer

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 October 2, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Ubiquiti Networks, FCC ID: SWX-SR4C To Whom It May Concern: MET Laboratories, Inc. would like to request the above FCC ID be placed in audit mode so that we may upload the Modular Approval Letter exhibit. The Modular Approval Letter was inadvertently left out of the original e-filing. If you need any additional information, please let me know. Thank you, Jennifer Sanchez TCB Administrator MET Laboratories, Inc., Santa Clara, CA 408-213-2359 [email protected] [email protected]

FCCID: SWX-SR4C

Plot 1. Occupied Bandwidth 5 MHz Plot 2. Occupied Bandwidth 10 MHz Plot 3. Occupied Bandwidth 20 MHz

Ubiquiti Networks Electromagnetic Compatibility SR4C CFR Title 47, Part 90, Subpart Y MET Report: EMCS19815-FCC90 © 2006, MET Laboratories, Inc. Page 53 of 63 DOC-EMC700 7/9/04 Electromagnetic Compatibility RF Exposure Requirements §1.1307 RF Exposure Requirements RF Exposure Requirements: §90.1217, §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 4940-4990 MHz ; highest conducted power = 32.6dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 26 dBi. EUT Minimum antenna gain = 9 dBi. Equation from page 18 of OET 65, Edition 97-01 EUT with 26dBi Antenna S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (1819.7mW) G = Antenna Gain (398.1 numeric) R = (1819.7*398.1/4*3.14) 1/2 = (724422.9/12.56) 1/2 = 240.1cm _ in order to comply with 1 mW/cm 2 EUT with 9dBi Antenna S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (1819.7mW) G = Antenna Gain (7.94 numeric) R = (1819.7*7.94/4*3.14) 1/2 = (14448.4/12.56) 1/2 = 33.9cm _ in order to comply with 1 mW/cm 2

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory May 17, 2006 Ubiquiti Networks 495-499 Montague Expressway Milpitas, CA 95035 Dear Robert Pera, Enclosed is the EMC test report for compliance testing of the Ubiquiti Networks, SR4C, tested to the requirements of Title 47 of the Code of Federal Regulations (CFR), Part 90 for a Class A Digital Device. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Boonmanus Seelapasay Documentation Department Reference: (\Ubiquiti Networks\EMCS19815-FCC90) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Ubiquiti Networks SR4C Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Y for Private Land Mobile Radio Services MET Report: EMCS19815-FCC90 May 17, 2006 Prepared For: Ubiquiti Networks 495-499 Montague Expressway Milpitas, CA 95035 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 Ubiquiti Networks Electromagnetic Compatibility SR4C CFR Title 47, Part 90, Subpart Y MET Report: EMCS19815-FCC90 © 2006, MET Laboratories, Inc. Page ii of vi DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Ubiquiti Networks SR4C Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Y for Private Land Mobile Radio Services MET Report: EMCS19815-FCC90 Shawn McMillen Boonmanus Seelapasay Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is / is not capable of operation in accordance with the requirements of Part 90, Subpart Y of the FCC Rules under normal use and maintenance. Tony Permsombut, Lab Manager Electromagnetic Compatibility Lab Ubiquiti Networks Electromagnetic Compatibility SR4C CFR Title 47, Part 90, Subpart Y MET Report: EMCS19815-FCC90 © 2006, MET Laboratories, Inc. Page iii of vi DOC-EMC700 7/9/04 Report Status Sheet Revision Report Date Reason for Revision ∅ May 17, 2006 Initial Issue. Ubiquiti Networks Electromagnetic Compatibility SR4C CFR Title 47, Part 90, Subpart Y MET Report: EMCS19815-FCC90 © 2006, MET Laboratories, Inc. Page 1 of 59 DOC-EMC700 7/9/04 Table of Contents I. Testing Summary ................................................................................................................................................... 1 A. Testing Summary ................................................................................................................................................ 2 II. Equipment Configuration...................................................................................................................................... 1 A. Overview ............................................................................................................................................................. 2 B. Test Site ............................................................................................................................................................... 3 C. Description of Test Sample ................................................................................................................................. 3 D. Equipment Configuration .................................................................................................................................... 4 E. Support Equipment .............................................................................................................................................. 4 F. Ports and Cabling Information ............................................................................................................................. 5 G. Mode of Operation .............................................................................................................................................. 7 H. Method of Monitoring EUT Operation................................................................................................................ 7 I. Modifications ........................................................................................................................................................ 7 a.) Modifications to EUT .............................................................................................................................. 7 b.) Modifications to Test Standard................................................................................................................ 7 J. Disposi…
