SWX-SRCUbiquiti Super Range Cardbus Card

Hardware User’s Guide Super Range Cardbus Regulatory Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inteference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no gurantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Consult the dealer or an experienced radio/TV technician for help To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter CAUTION 1.) To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. 2.) This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter Limited End User Product Warranty Pursuant to all provisions described herein, Ubiquiti Networks products are warranted for (1) year from the date of purchase against defects in the build materials and workmanship. Ubiquiti or its reseller shall use commercially reasonable efforts to promptly correct a nonconformity. The above warranty is voide if the alleged defect cannot be verified by Ubiquiti or if, as determined by Ubiquiti, the product failure was due to tampering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual, if the product has been altered in any way, or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Ubiquiti immediately voids this warranty. This warranty applies only to the original End User purchaser of the product and may not be transferred to any other individual or entity. By using the product, the original End User purchaser agrees to and is bound by these terms and conditions. In the event that a product fails to meet this warranty and Ubiquiti’s authorized reseller is notified in writing of such failure within the warranty period, Ubiquiti shall, at its own discretion, either repair the product or replace it with the same or a functionally-equivalent product free of charge. Replacement products may contain refurbished materials in whole or in part. Ubiquiti will honor this warranty provided the product is returned through an authorized Ubiquiti reseller or dealer with shipping charges prepaid, along with a proof of purchase describing the original purchase date and product serial numbers if applicable. The authorized reseller must acquire a Return Materials Authorization (RMA) number from Ubiquiti prior to returning any product. Ubiquiti does not accept shipments of defective products without shipping charges prepaid. THE SUPER RANGE 802.11a/b/g CARDBUS CARD The Super Range Cardbus (SRC) is the world’s first hi-power a/b/g cardbus card with external antenna connectors that is capable of working at both 2.4 GHz (2412-2462 Channels) and 5.8 GHz (5745-5805 Channels). The design is based on the Atheros 4 th Generation chipset and boasts superior high-data rate and receive sensitivity performance. The SRC was specifically designed to work with single board computer platforms for outdoor Access Point applications. Among the possible SBC’s available to pair the SRC with are the Mikrotik Routerboard, Soekris SBC, and PC Engines’ WRAP platform. (all shown below). For more detailed information regarding integration of the SRC with these platforms, please inquire with the host system manufacturer. SPECIFICATIONS Model Super Range Cardbus Protocol 802.11a/b/g Encryption 40/64 Bit, 104/128 bit WEP keys 128 bit, 256 bit ES Keys Wireless Interface 2.4 GHz spectrum 2412-2462 MHz (Channels 1-11) TX Power: Up to 25dBm output and 31dBm radiated 5 GHz spectrum 5745-5805 MHz (Channels 149-161) TX Power: Up to 20dBm output and 21.5dBm radiated Antennas Certified with Joymax IC-6350 2.4 GHz gain = 5.5 dBi 5.8 GHz gain = 1.5 dBi Environmental Specifications -Operating temperature: 0 to 70 C -Storage temperature: -40 to 80 C -Humidity (non-condensing) 5%-95% -Storage humidity (non-condensing) 10%- 90% Warranty One year limited warranty Dimensions: 3.2’ x 2” x 0.3” Weight: 0.3 lbs

Ubiquiti Networks, Inc. 1111 Weyburn Ln, Ste. #41 San Jose CA 95129 Phone (408) 873-8760 Fax (408) 351-4973 August 31, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: SWX-SRC and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation . These documents contain detailed system and equipment description and related information about the product that Ubiquiti Networks considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Ubiquiti Networks considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Sincerely Yours, Ram Malasani Senior Engineer Ubiquiti Networks, Inc.

Ubiquiti Networks, Inc. 1111 Weyburn Ln, Ste. #41 San Jose CA 95129 Phone (408) 873-8760 Fax (408) 351-4973 August 31, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize American TCB to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by American TCB on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Ram Malasani Senior Engineer Ubiquiti Networks, Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 21, 2005 RE: Ubiquiti Networks, Inc. FCC ID: SWX-SRC I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The Manual is very short and has much of the required compliance information correctly identified. However, one item that is not available to check is the channels settings available for this device. Is this WiFi product capable of 13 channels in the 2400 MHz band? If so, then how will only the permitted channels of 1-11 be available in North America? 2.) Does this device employ “passive scanning”? 3.) The labeling on this device [see External Photographs] identifies this as a 300mW transmitter. However, the Test Report and Form 731 show in excess of 600mW. Is the Form 731 and Test Report correct? 4.) Assuming the 600mW setting is correct, I have some questions about the restricted band edge test at 2483.5MHz when set to channel 11. Assuming an output power of +25dBm feeding an antenna of +5dBi gain, I would expect to see the peak radiated field strength easily in excess of +120dBuV. [+25dBm + 5dBi + 107db -11.7db] The maximum field strength seen in your test report Section 5.6 is only 112dBuV. This makes me question whether the device was properly rotated and optimized to find the peak values before measurements of peak and average emissions. If I have mis-understood the Test Report, my apologies – kindly show me where my assumptions are incorrect. An example calculation would be helpful. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 William Graff From: Micki Ho [???] [[email protected]] Sent: Thursday, September 22, 2005 8:03 PM To: William Graff; George Chen [???] Cc: [email protected]; [email protected] Subject: Re: www.AmericanTCB.com ATCB002786 | SWX-SRC | | | SWX-SRC_ATCB002786 Importance: High Dear Bill Thanks for your e-mail, and below is our reply for your comments. 1.) In page 5 of manual, the specification of the wireless interface only has the permitted channels of 1-11. The EEPROM of the card is only configured to be functional in channels 1-11. 2.) By default it is passive right now. 3.) The labeling on this device is based on Ubiquiti's internal lab measurements and is not a peak value. 4.) Peak power measurements are an integrated measurement made over 20MHz signal BW. Peak radiated measurements is confined to 1MHz BW. Hence, there could be approx. 13dB power (26dB Voltage) difference you might not be accounting for. That would then satisfy your 120dBuV+ expectation. Please kindly inform me if above reply satisfies your inquiries. Thank you~ Micki ----- Original Message ----- From: "William Graff" <[email protected]> To: <[email protected]>; <[email protected]>; <[email protected]>; <[email protected]> Cc: <[email protected]>; <[email protected]> Sent: Thursday, September 22, 2005 5:47 AM Subject: www.AmericanTCB.com ATCB002786 | SWX-SRC | | | SWX-SRC_ATCB002786 > Regarding www.AmericanTCB.com application: > ATCB ID: ATCB002786 > FCC ID: SWX-SRC > IC ID: > NB ID: > Account name: khung > > Please see attached comments. > > Best Regards, > > Bill > > ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ > ~ William H. Graff, NARTE Certified > ~ President and Director of Engineering ~ AmericanTCB, Inc. > ~ 6731 Whittier Ave, > ~ McLean, VA 22101 > ~ mailto:[email protected] > ~ Direct Phone: (703) 880-6337 > ~ Direct Mobile: (480) 459-6706 2 > ~ Corporate Phone: (703) 847-4700 > ~ Corporate FAX: (703) 847-6888 > ~ Taiwan Mobile: +886 920399260 > ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ > >

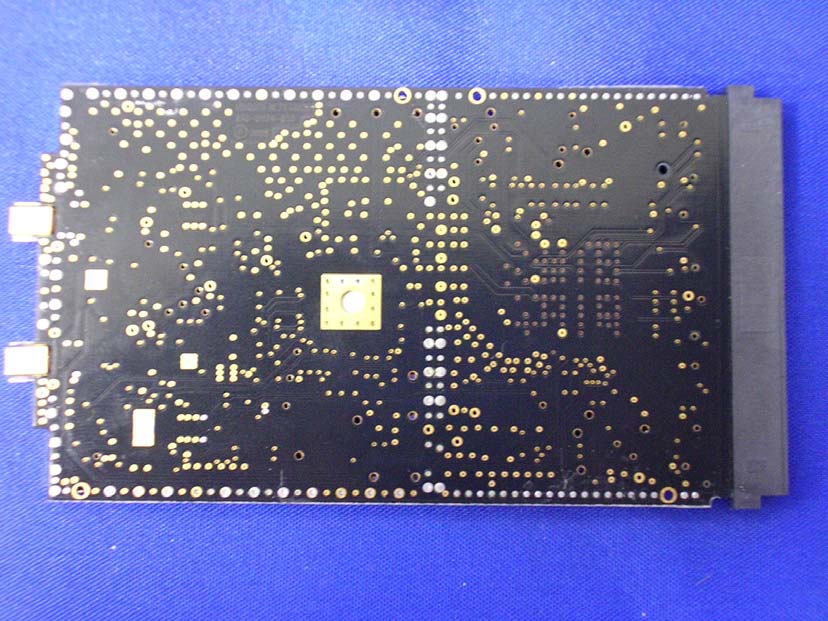

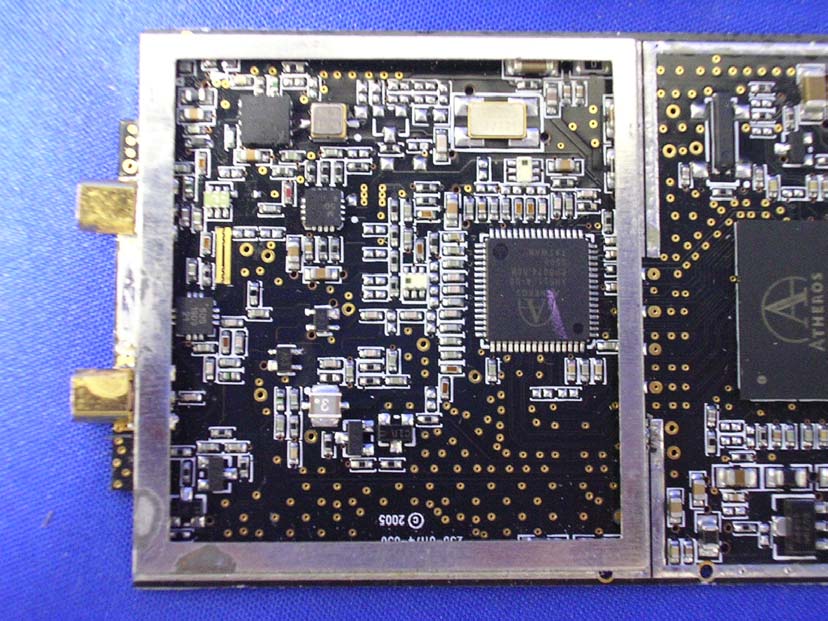

Report No.: 059L096FI Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 059L096FI Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 059L096FI Page : 5 of 5 Version:1.0 (9) EUT Photo (10) EUT Photo

Ubiquiti Networks, Inc. FCC ID.: SWX-SRC 778 North First St., Ste. 202, San Jose, CA 95112, United States . Tel : 886-3-358-8576 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Ubiquiti Super Range Cardbus Model No.: SRC Ubiquiti Super Range Cardbus Model No.: SRC F F C C C C I I D D : : S S W W X X - - S S R R C C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Ubiquiti Networks, Inc. FCC ID.: SWX-SRC 778 North First St., Ste. 202, San Jose, CA 95112, United States . Tel : 886-3-358-8576 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Ubiquiti Super Range Cardbus Model No.: SRC Ubiquiti Super Range Cardbus Model No.: SRC F F C C C C I I D D : : S S W W X X - - S S R R C C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 059L096FI Page : 2 of 5 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 059L096FI Page : 3 of 5 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 059L096FI Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 059L096FI Page : 5 of 5 Version:1.0 (9) EUT Photo (10) EUT Photo

Report No. 059L096FI Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Ubiquiti Super Range Cardbus Model No. : SRC FCC ID SWX-SRC Applicant : Ubiquiti Networks, Inc. Address : 778 North First St., Ste. 202, San Jose, CA 95112, United States Date of Receipt : Sep. 14, 2005 Date of Declaration: Sep. 15, 2005 Report No. : 059L096FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 059L096FI Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 059L096FI Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Ubiquiti Super Range Cardbus Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5.5dBi in linear scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (5.5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 352.3709 0.2487 6 2437.00 370.6807 0.2617 11 2462.00 396.2780 0.2797 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (5.5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 566.2393 0.3997 6 2437.00 572.7960 0.4043 11 2462.00 619.4411 0.4373 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 059L096FI Page: 4 of 4 Version: 1.0 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.5dBi in linear scale. 802.11a Output Power Into Antenna & RF Exposure Evaluation Distance (1.5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 5725-5825MHz CH1 5745.00 133.0454 0.0374 5725-5825MHz CH3 5785.00 141.9058 0.0399 5725-5825MHz CH4 5805.00 148.2518 0.0417 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 059L096FI Page: 1 of 71 Version:1.0 Test Report Product Name : Ubiquiti Super Range Cardbus Model No. : SRC FCC ID : SWX-SRC Applicant : Ubiquiti Networks, Inc. Address : 778 North First St., Ste. 202, San Jose, CA 95112, United States Date of Receipt : Sep. 14, 2005 Issued Date : Sep. 15, 2005 Report No. : 059L096FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 059L096FI Page: 2 of 71 Version:1.0 Test Report Certification Issued Date : Sep. 15, 2005 Report No. : 059L096FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Ubiquiti Super Range Cardbus Applicant : Ubiquiti Networks, Inc. Address : 778 North First St., Ste. 202, San Jose, CA 95112, United States Manufacturer : Ubiquiti Networks, Inc. Model No. : SRC Rated Voltage : AC 120V/60Hz Working Voltage : DC 3.3V Trade Name : Super Range Applicable Standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2005 ANSI C63.4: 2003 Test Result : Complied Documented By : ( Rita Huang ) Tested By : ( Tom Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 059L096FI Page: 3 of 71 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................18 3.4. Uncertainty ..................................................................................................................................18 3.5. Test Result of Peak Power Output...............................................................................................19 4. Radiated Emission .....................................................................................................................22 4.1. Test Equipment............................................................................................................................22 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 Report No. 059L096FI Page: 4 of 71 Version:1.0 4.6. Test Result of Radiated Emission................................................................................................25 5. Band Edge ..................................................................................................................................37 5.1. Test Equipment............................................................................................................................37 5.2. Test Setup .................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 059L096FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 059L096FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 059L096FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
