SWX-U6EPIWDigital Transmission Radio

E-Label User Information FCC ID: SWX-U6EPIW IC ID: 6545A-U6EPIW Ubiquiti Inc. will be incorporating the E-Label procedures per FCC KDB 784748-D02. The information below is what will be included in the E-Labeling. E-label and warning statements can be found in the device/controller GUI under Device > Settings > About. Detailed compliance information including Declaration of Conformity is available at the following internet address: ui.com/compliance FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generated, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user bill be required to correct the interference at his own expense. • FCC regulations restrict the operation of this device to indoor use only. • The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. • Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. ISED Canada CAN ICES-3 (A) / NMB-3 (A) This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (A) / NMB-3 (A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilize en conflit avec tout autre antenne ou transmetteur.

Date:06/01/2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: SWX-U6EPIW We, Ubiquiti Inc., attest that this device under FCC ID SWX-U6EPIW complies with device protocol requirements and operational restrictions: for indoor access point 6ID. Indoor Access Point 6ID: 1. Protocol attestation statement: a. An 11ax IEEE device’s Transmit Power Envelope element has information fields for the power limits for connection client/subordinate devices. The TPE information is contained in the device signals and used by connecting client/subordinate to ensure that it knows the regulatory TX powers it is allowed to transmit at. There is a regulatory info fields in this device beacon and probe response frames which details this device type when the client/subordinate associates to this device. 2. Statement acknowledging device restrictions: a. Low-power indoor Access Point. Access Point operating in the 5.925-7.125 GHz band shall be supplied power from a wired connection, has an integrated antenna, is not battery powered, and does not have a weatherized enclosure. b. This device's operation will not be allowed on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. c. Indoor access points are prohibited for control of or communications with unmanned aircraft systems, including drones. Ubiquiti Inc. Compliance Manager 685 3 RD AVE. • NEW Y0RK, NY 10071 • www.ui.com

Date:06/01/2022 TIMCO Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 RE: Request for Confidentiality In reference to the application under FCC ID: SWX-U6EPIW, and pursuant to Sections 0.457(d)1(ii) and 0.459 of the Commission’s Rules, Ubiquiti Networks hereby requests permanent confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Ubiquiti Networks and provide unjustified benefits to its competitors. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the important rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short term confidentiality on the following attachments until 180 days from grant date. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Ubiquiti Networks understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mark Feil Ubiquiti lnc. Compliance Manager 685 3 RD AVE. • NEW Y0RK, NY 10071 • www.ui.com

685 3 RD AVE. • NEW Y0RK, NY 10071 • www.ui.com Date: 10 June 2022 Federal Communications Commission 7435 Oakland Mills Rd. Columbia, MD 21046 RE: Request for Class II Permissive Change – FCC: SWX-U6EPIW It is hereby requested that Ubiquiti Inc. obtain FCC Class II Permissive Change certification of a radio apparatus on the Ubiquiti Inc. product U6-Enterprise. The associated FCC: number is listed above. There have been no hardware changes, and that the application seeks to add a new Equipment Class (6ID) to an existing composite grant, consistent with the requirements of KDB Publication 987594 D03, Answer 8. The Class II Permissive Change certification is to add UNII-5, UNII-6, UNII-7 and U-NII-8 frequencies bands. The U6-Enterprise-IW is an in-wall mounted access point with four-stream WiFi 6 that provides up to 5.3+ Gbps aggregate throughput rate. The U6-Enterprise-IW has 2.4 GHz (2x2), 5 GHz (4x4) and 6 GHz (4x4) transmitters. The U6-Enterprise-IW has an Ethernet port for data transfer and is powered by an 802.3at PoE Power Adapter. The U6-Enterprise-IW has a Bluetooth management radio to achieve setup and operation. The U6-Enterprise-IW is designed for indoor use. Sincerely, Mark Feil Ubiquiti lnc. Compliance Manager

Power of Attorney Date: 2021/01/20 Dear Sir or Madam, I hereby have entrusted the following entity to be an authorized agent regarding application for Type Certification. Ubiquiti Inc. also authorizes the following entity to be a proxy to handle all certification matters. Unified Compliance Laboratories Address : 427 W 12800 South Draper Utah 84020 e-mail : [email protected] Applicant : Ubiquiti Inc. Address : 685 Third Avenue ,New York NY 10017 United States Of America Name and Job Title. : Mark Feil / Compliance Director E-mail : [email protected] Tel. : 385-200-1617

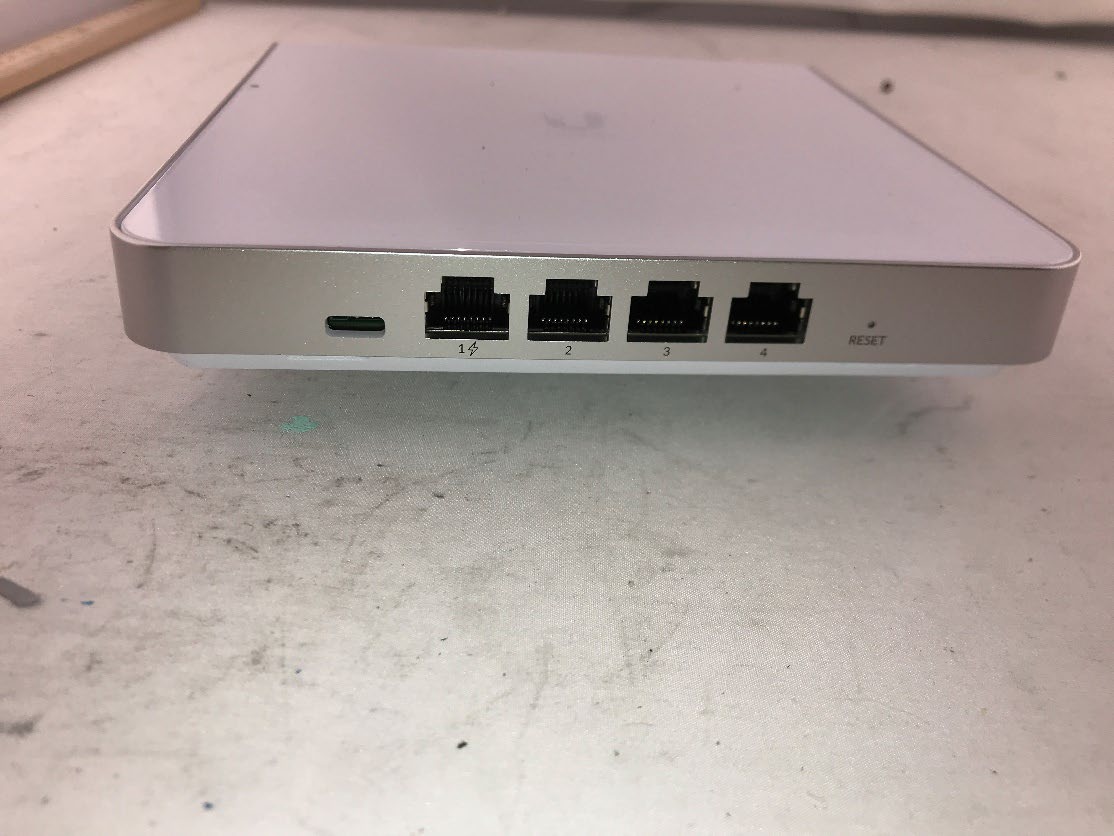

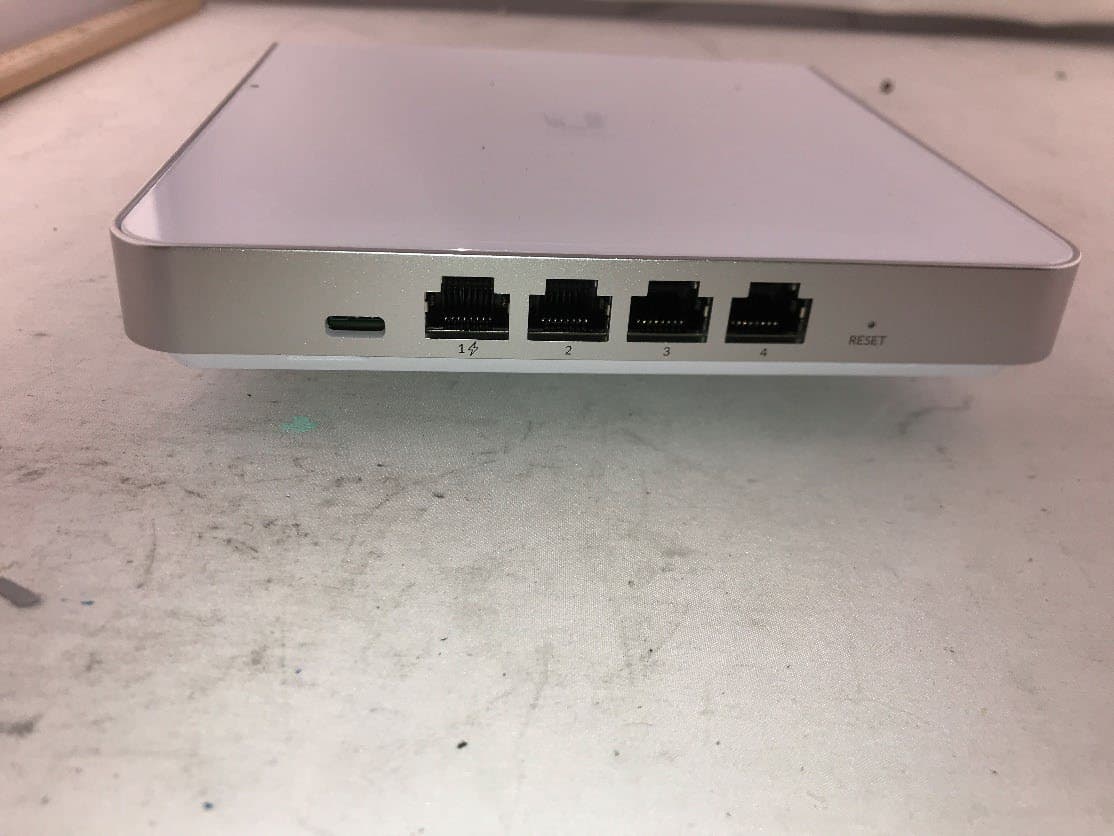

427 West 12800 South Draper, UT 84020 Test Report Annex External Photographs FCC ID SWX-U6EPIW ISED ID 6545A-U6EPIW Equipment Under Test U6-Enterprise-IW Report Issue Date May, 19, 2022 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10017 U.S.A. 427 West 12800 South, Draper, UT 84020 External_Photos Page 2 of 3 PROPRIETARY Bottom / Side 1 / Front Top / Side 2/ Rear 427 West 12800 South, Draper, UT 84020 External_Photos Page 3 of 3 PROPRIETARY Output Ports Input Port

427 West 12800 South Draper, UT 84020 Test Report Annex Internal Photographs FCC ID SWX-U6EPIW ISED ID 6545A-U6EPIW Equipment Under Test U6-Enterprise-IW Report Issue Date May, 18, 2022 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10017 U.S.A. 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 2 of 12 PROPRIETARY DUT Faceplate removed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 3 of 12 PROPRIETARY 6G Module removed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 4 of 12 PROPRIETARY Top Heatsink Removed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 5 of 12 PROPRIETARY DUT Disassembled 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 6 of 12 PROPRIETARY Main PCB Top EMI can(s) installed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 7 of 12 PROPRIETARY Main PCB Top EMI can(s) removed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 8 of 12 PROPRIETARY Main PCB Bottom EMI can(s) installed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 9 of 12 PROPRIETARY Main PCB Bottom EMI can(s) removed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 10 of 12 PROPRIETARY 6G PCB Top EMI can(s) installed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 11 of 12 PROPRIETARY 6G PCB Top EMI can(s) removed 427 West 12800 South, Draper, UT 84020 Internal_Photo Page 12 of 12 PROPRIETARY 6G PCB Bottom

§ 15.247, § 15.407, UNII-1, UNII-3, UNII-5, UNII-6, UNII-7, UNII-8 § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies 15.247 Bluetooth @ 2402 – 2480 MHz; 15.247 Wi-Fi @ 2412 – 2462 MHz; 15.407 UNII-1 @ 5180 – 5240 MHz; 15.407 UNII-3 @ 5745 – 5825 MHz; 15.407 UNII-5 @ 6115 – 6415 MHz, 15.407 UNII-6 @ 6435 – 6515 MHz, 15.407 UNII-7 @ 6535 – 6875 MHz, 15.407 UNII-8 @ 6895 – 7115 MHz Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 UNII-5 S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) Test Results: FCC Frequency (MHz) Con. Pwr. (dBm) Con. Pwr. (mW) Ant. Gain (dBi) Ant. Gain numeric Pwr. Density (mW/cm 2 ) Limit (mW/cm 2 ) Margin Distance (cm) Result 2402 12.5 17.78 * 4.0 2.51 0.01 1.0 -0.99 20 Pass 2442 24.46 279.25 * 4.0 2.51 0.14 1.0 -0.86 20 Pass 5240 28.99 792.50 * 5.8 3.8 0.60 1.0 -0.40 20 Pass 5775 28.01 632.41 5.8 3.8 0.48 1.0 -0.52 20 Pass 6325 23.57 227.51 5.8 3.8 0.17 1.0 -0.83 20 Pass 6505 23.74 236.59* 5.8 3.8 0.18 1.0 -0.82 20 pass 6825 23.66 232.27 5.8 3.8 0.18 1.0 -0.82 20 pass 6985 23.22 209.89 5.8 3.8 0.16 1.0 -0.84 20 pass * The U6-Enterprise-IW may have simultaneously transmission of the 15.247 Bluetooth, 15.247 2.4 GHz WiFi, 15.407 UNII-1, UNII-3, UNII-5, UNII-6, UNII-7 or UNII-8 and. Asterisk notes the worst case of the possible simultaneously transmitter combinations. Simultaneously Transmitters Summed: 0.01 (Bluetooth) + 0.14 (2.4 GHz WiFi) + 0.60 (UNII-1) + 0.18 (UNII-6) = 0.93 Limit of 1.0 – 0.93 (summed value) = -0.07 Margin The safe distance for SWX-U6EPIW where Power Density is less than the MPE Limit listed above was found to be 20 cm.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-U6EPIW ISED ID 6545A-U6EPIW Equipment Under Test U6-Enterprise-IW Test Report Serial Number TR7176_03 Date of Test(s) 9, 11, 12, 15 November 2021; 4 January and 6 May 2022 Report Issue Date 8 June 2022 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10017 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR7176_U6-Enterprise-IW_FCC_15.407_UNII-5_03 Page 2 of 31 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified C ompliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name UniFi Model Number U6-Enterprise-IW FCC ID SWX-U6EPIW ISED ID 6545A-U6EPIW On this 8 th day of June 2022, I individually and for Unified C ompliance Laboratory certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified C ompliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. federal government. Unified C ompliance Laboratory Written By: Joseph W. Jackson Reviewed By: Richard L. Winter 427 West 12800 South, Draper, UT 84020 TR7176_U6-Enterprise-IW_FCC_15.407_UNII-5_03 Page 3 of 31 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 16 May 2022 02 Added test setup info to CBP section and statement on RU’s 8 June 2022 03 Added EIRP column 10 June 2022 427 West 12800 South, Draper, UT 84020 TR7176_U6-Enterprise-IW_FCC_15.407_UNII-5_03 Page 4 of 31 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 6 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location .............................................................................................................................. 10 4 Test Equipment ................................................................................................................................... 11 4.1 Conducted Emissions at Mains Ports .......................................................................................... 11 4.2 Direct Connect at the Antenna Port Tests ................................................................................... 12 4.3 Radiated Emissions ..................................................................................................................... 13 4.4 Contention Based Protocol.......................................................................................................... 14 4.5 Equipment Calibration ................................................................................................................ 15 4.6 Measurement Uncertainty ........................................................................................................... 15 5 Test Results ......................................................................................…

Text truncated - open the document above for the full version.

1 / 44 U6-Enterprise UNII-5 Annex 2 / 44 Summary Test Frequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB 6115.000 24.0 20.000000 PASS RF output power 6115.000 24.0 20.000000 PASS In-Band Emissions 6115.000 24.0 20.000000 PASS Occupied Channel Bandwidth 99% 6115.000 24.0 20.000000 PASS Frequency Stability 6115.000 24.0 20.000000 PASS Emission Bandwidth 26 dB 6195.000 24.0 20.000000 PASS In-Band Emissions 6195.000 24.0 20.000000 PASS Occupied Channel Bandwidth 99% 6195.000 24.0 20.000000 PASS Emission Bandwidth 26 dB 6415.000 24.0 20.000000 PASS In-Band Emissions 6415.000 24.0 20.000000 PASS Occupied Channel Bandwidth 99% 6415.000 24.0 20.000000 PASS Emission Bandwidth 26 dB 6125.000 24.0 40.000000 PASS In-Band Emissions 6125.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 6125.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 6205.000 24.0 40.000000 PASS In-Band Emissions 6205.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 6205.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 6405.000 24.0 40.000000 PASS In-Band Emissions 6405.000 24.0 40.000000 PASS Occupied Channel Bandwidth 99% 6405.000 24.0 40.000000 PASS Emission Bandwidth 26 dB 6145.000 24.0 80.000000 PASS In-Band Emissions 6145.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 6145.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 6225.000 24.0 80.000000 PASS In-Band Emissions 6225.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 6225.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 6385.000 24.0 80.000000 PASS In-Band Emissions 6385.000 24.0 80.000000 PASS Occupied Channel Bandwidth 99% 6385.000 24.0 80.000000 PASS Emission Bandwidth 26 dB 6185.000 24.0 160.000000 PASS In-Band Emissions 6185.000 24.0 160.000000 PASS Occupied Channel Bandwidth 99% 6185.000 24.0 160.000000 PASS Tx Spurious Emission 6185.000 24.0 160.000000 PASS Emissions in restricted frequency bands (Average) 6185.000 24.0 160.000000 PASS Emissions in restricted frequency bands (Peak) 6185.000 24.0 160.000000 PASS Emission Bandwidth 26 dB 6325.000 24.0 160.000000 PASS In-Band Emissions 6325.000 24.0 160.000000 PASS Occupied Channel Bandwidth 99% 6325.000 24.0 160.000000 PASS Tx Spurious Emission 6325.000 24.0 160.000000 PASS Emissions in restricted frequency bands (Average) 6325.000 24.0 160.000000 PASS Emissions in restricted frequency bands (Peak) 6325.000 24.0 160.000000 PASS Emission Bandwidth 26 dB (6115 MHz; 24.000 dBm; 20 MHz) 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Limit Min BE L 6115.000000 22.000000 --- 320.000000 6103.750000 --- DUT Frequency (MHz) Band Edge Right (MHz) Limit Max BE R (MHz) Max Level (dBm) Result 6115.000000 6125.750000 --- -6.1 PASS 3 / 44 Bandwidth Measurement Setting Instrument Value Target Value Start Frequency 6.09500 GHz 6.09500 GHz Stop Frequency 6.13500 GHz 6.13500 GHz Span 40.000 MHz 40.000 MHz RBW 200.000 kHz ~ 200.000 kHz VBW 1.000 MHz >= 600.000 kHz SweepPoints 400 ~ 400 Sweeptime 28.477 μs AUTO Reference Level 10.000 dBm 10.000 dBm Attenuation 30.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off -40 -30 -20 -10 0 5 6.095 6.1 6.105 6.11 6.115 6.12 6.125 6.13 6.135 Level in dBm Frequency in GHz 26 dB Bandwidth 22.000 MHz 4 / 44 RF output power (6115 MHz; 24.000 dBm; 20 MHz) Result DUT Frequency (MHz) Gated EIRP (dBm) Limit Max (dBm) Gated RMS (dBm) DutyCycle (%) Result 6115.000000 14.2 24.0 14.2 85.488 PASS OSP PowerMeter settings Setting Instrument Value Target Value Measurement Time 1.000 s 1.000 s Points 1000000 1000000 Time resolution 1.000 μs 1.000 μs In-Band Emissions (6115 MHz; 24.000 dBm; 20 MHz) Result DUT Frequency (MHz) Result 6115.000000 PASS Inband Peak Frequency (MHz) Level (dBm) 6122.850000 -6.5 Measurements Frequency (MHz) Level (dBm) Margin (dB) Limit (dBm) Result 6122.850000 -6.5 0.0 -6.5 PASS 6123.750000 -6.8 0.3 -6.5 PASS 6123.850000 -6.9 0.4 -6.5 PASS 6121.350000 -7.1 0.6 -6.5 PASS 6123.150000 -7.1 0.6 -6.5 PASS 6120.050000 -7.1 0.6 -6.5 PASS 6120.750000 -7.2 0.6 -6.5 PASS 6121.650000 -7.2 0.7 -6.5 PASS 6122.950000 -7.2 0.7 -6.5 PASS 6123.250000 -7.3 0.7 -6.5 PASS 6122.550000 -7.3 0.8 -6.5 PASS 6123.550000 -7.3 0.8 -6.5 PASS 6121.950000 -7.3 0.8 -6.5 PASS 6122.450000 -7.4 0.8 -6.5 PASS 6121.050000 -7.4 0.9 -6.5 PASS -60 -50 -40 -30 -20 -10 6.0656.07 6.08 6.09 6.1 6.11 6.12 6.13 6.14 6.15 6.166.165 Level in dBm Frequency in GHz In Band LevelLimitFail 5 / 44 Measurement 1 Setting Instrument Value Target Value Start Frequency 6.06500 GHz 6.06500 GHz Stop Frequency 6.16500 GHz 6.16500 GHz Span 100.000 MHz 100.000 MHz RBW 200.000 kHz ~ 200.000 kHz VBW 500.000 kHz ~ 600.000 kHz SweepPoints 1000 ~ 1000 Sweeptime 1.050 ms AUTO Reference Level 0.000 dBm 0.000 dBm Attenuation 20.000 dB 20.000 dB Detector RMS RMS SweepCount 100 100 Filter 3 dB 3 dB Trace Mode Average Power Average Power Sweeptype Sweep Sweep Preamp off off Occupied Channel Bandwidth 99% (6115 MHz; 24.000 dBm; 20 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Limit Min BE L (MHz) 6115.000000 17.800000 --- 320.000000 6106.150000 5925.000000 DUT Frequency (MHz) Band Edge Right (MHz) Limit Max BE R (MHz) Result 6115.000000 6123.950000 7125.000000 PASS Bandwidth -40 -30 -20 -10 0 5 6.095 6.1 6.105 6.11 6.115 6.12 6.125 6.13 6.135 Level in dBm Frequency in GHz 99 % Bandwidth 17.800 MHz 6 / 44 Measurement Setting Instrument Value Target Value Start Frequency 6.09500 GHz 6.09500 GHz Stop Frequency 6.13500 GHz 6.13500 GHz Span 40.000 MHz 40.000 MHz RBW 200.000 kHz >= 200.000 kHz VBW 1.000 MHz >= 600.000 kHz SweepPoints 400 ~ 400 Sweeptime 28.477 μs AUTO Reference Level 10.000 dBm 10.000 dBm Attenuation 30.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off Frequency Stability (6115 MHz; 24.000 dBm; 20 MH…

Text truncated - open the document above for the full version.

427 West 12800 South Draper, UT 84020 Test Report Certification FCC ID SWX-U6EPIW ISED ID 6545A-U6EPIW Equipment Under Test U6-Enterprise-IW Test Report Serial Number TR7177_03 Date of Test(s) 9, 11, 12, 15 November 2021; 4 January and 6 May 2022 Report Issue Date 16 May 2022 Test Specification Applicant 47 CFR FCC Part 15, Subpart E Ubiquiti Inc. 685 Third Avenue New York, NY 10017 U.S.A. NVLAP LAB CODE 600241-0 427 West 12800 South, Draper, UT 84020 TR7177_U6-Enterprise-IW_FCC_15.407_UNII-6_03 Page 2 of 29 PROPRIETARY Certification of Engineering Report This report has been prepared by Unified C ompliance Laboratory (UCL) to document compliance of the device described below with the requirement of Federal Communication Commissions (FCC) Part 15, Subpart E. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Ubiquiti Inc. Manufacturer Ubiquiti Inc. Brand Name UniFi Model Number U6-Enterprise-IW FCC ID SWX-U6EPIW ISED ID 6545A-U6EPIW On this 8 th day of June 2022, I individually and for Unified C ompliance Laboratory certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge and are made in good faith. Although NVLAP has accredited the Unified C ompliance Laboratory testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. federal government. Unified C ompliance Laboratory Written By: Joseph W. Jackson Reviewed By: Richard L. Winter 427 West 12800 South, Draper, UT 84020 TR7177_U6-Enterprise-IW_FCC_15.407_UNII-6_03 Page 3 of 29 PROPRIETARY Revision History Revision Description Date 01 Original Report Release 16 May 2022 02 Added test setup info to CBP section and statement on RU’s 8 June 2022 03 Added EIRP column 10 June 2022 427 West 12800 South, Draper, UT 84020 TR7177_U6-Enterprise-IW_FCC_15.407_UNII-6_03 Page 4 of 29 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Description of EUT ....................................................................................................................... 6 2.3 EUT and Support Equipment ........................................................................................................ 6 2.4 Interface Ports on EUT ................................................................................................................. 7 2.5 Operating Environment ................................................................................................................. 7 2.6 Operating Modes ........................................................................................................................... 7 2.7 EUT Exercise Software ................................................................................................................. 7 2.8 Block Diagram of Test Configuration .......................................................................................... 8 2.9 Modification Incorporated/Special Accessories on EUT .............................................................. 8 2.10 Deviation, Opinions Additional Information or Interpretations from Test Standard .................... 8 3 Test Specification, Method and Procedures .......................................................................................... 9 3.1 Test Specification .......................................................................................................................... 9 3.2 Methods & Procedures .................................................................................................................. 9 3.3 FCC Part 15, Subpart E ................................................................................................................. 9 3.4 Results ........................................................................................................................................... 9 3.5 Test Location .............................................................................................................................. 10 4 Test Equipment .................................................................................................................................…

Text truncated - open the document above for the full version.
