SWX-UAG2MUniFi Access Reader G2 Mini

Datasheet UA-G2-Mini Access Reader G2 Mini UA-G2-Mini Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ui.com/support/warranty ©2022 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, UniFi, and UniFi Access are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. Mechanical Hardware Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") Weight 210 g (7.4 oz) Enclosure material Polycarbonate, glass Mounting In wall, gang box Weatherproong IP-55 Networking interface (1) 10/100 MbE RJ45 port Connectivity BLE 4.1 Power method PoE Supported voltage range 48V Max. power consumption 5W ESD/EMP protection Air: ±15KV, contact: ±8KV Sensors Proximity sensor Radar sensor Speaker (1) IP67, 8 ohm, 0.7W LEDs R/G/B/W Flash Button (1) Factory-reset NFC frequency 13.56 Mhz NFC read range < 30 mm NFC standards ISO 14443A, 14443B, 15693 NFC technology NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire Operating temperature -30 to 45° C (-22 to 113° F) Operating humidity 5 to 95% noncondensing Certications FCC, IC FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help." ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio ex- empts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20(FCC/IC) cm from all persons and must not be located or operating in con junction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une dis tance de séparation de toute personnes d’aumoins 20 (FCC/IC) cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.`

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: Ubiquiti Inc. Address: 685 Third Avenue City: 10017 New York Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SWX-UAG2M Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: For marketing purpose Planned Release Date STC: 180 days from the date of grant. (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: December 22, 2022 Name and signature of applicant: Alex Macon Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Grant deferral request letter Date: 2023/1/17 Grant deferral request regarding application for certification of FCC ID: SWX-UAG2M To whom it may concern: We, Ubiquiti Inc., would like to request the approval of our FCC grant for the application with FCC ID: SWX-UAG2M be deferred until 25 th January 2023. Yours sincerely, FCC grantee contact person information. Name/Title: Alex Macon / Compliance Manager Company Name: Ubiquiti Inc. Address: 685 Third Avenue, New York, NY, United States, 10017 TEL: 408-942-3084 FAX: 408-904-5255 Email: [email protected]

Ubiquiti Inc. DATE : 2023/01/17 FCC ID: SWX-UAG2M Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., Taoyuan City, 33848, Taiwan(R.O.C.) Name: Nina Hsu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by TIMCO Engineering Inc., still resides with us. Signature FCC grantee contact person information. Name/Title: Alex Macon / Compliance Manager Company Name: Ubiquiti Inc. Address: 685 Third Avenue, New York, NY, United States, 10017 TEL: 408-942-3084 FAX: 408-904-5255 Email: [email protected]

RF_160, Issue 04 Declaration of Authorization We Name: Ubiquiti Inc. Address: 685 Third Avenue City: 10017, New York Country: USA Declare that: Name Representative of agent: Nina Hsu (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu District City: Taoyuan City Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: UniFi Access Reader G2 Mini Type designation: UA-G2-Mini Trademark: UBIQUITI Validity/ expiry date on our behalf. Date: December 22, 2022 City: New York Name: Alex Macon (2) Function: Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

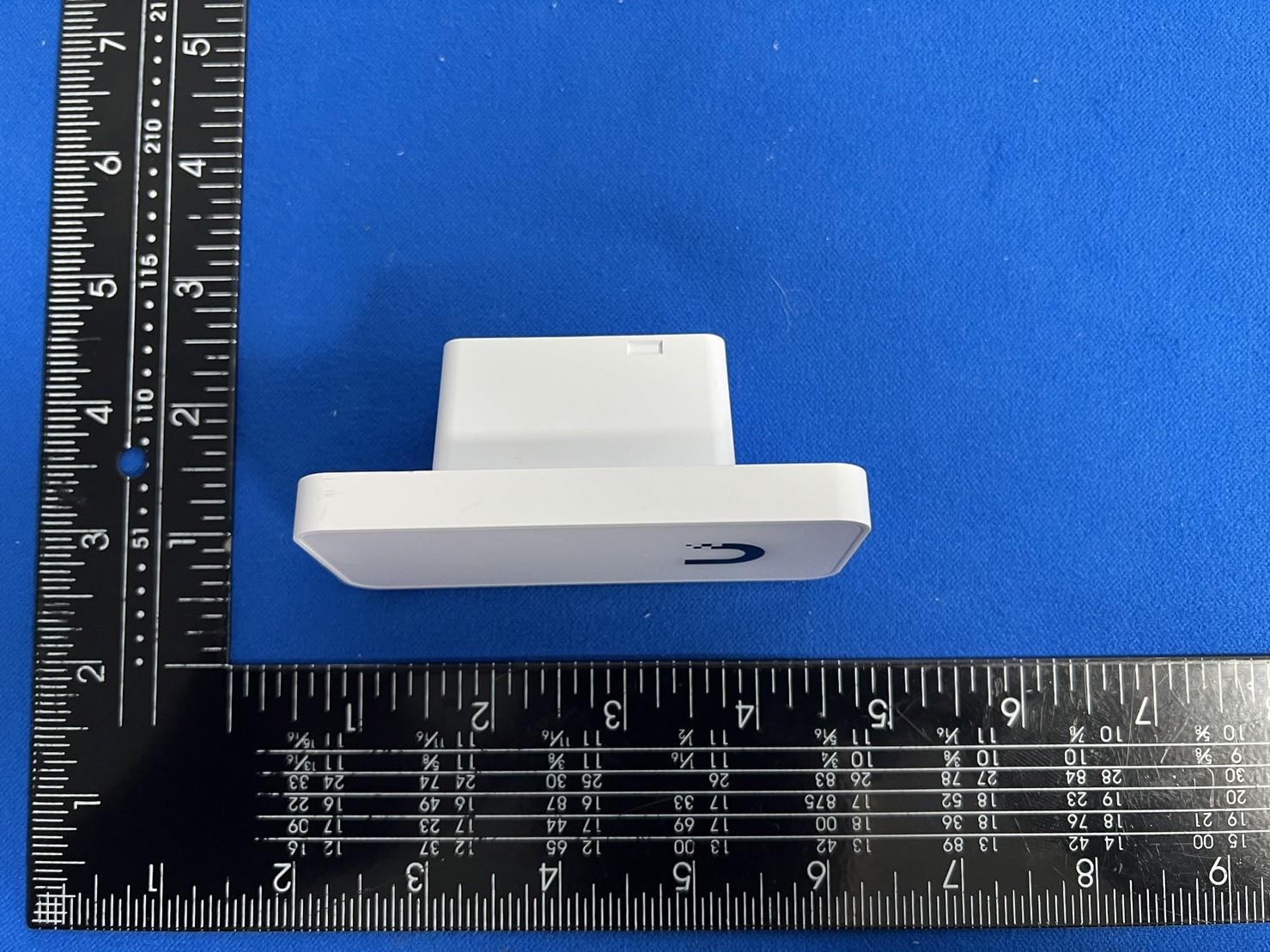

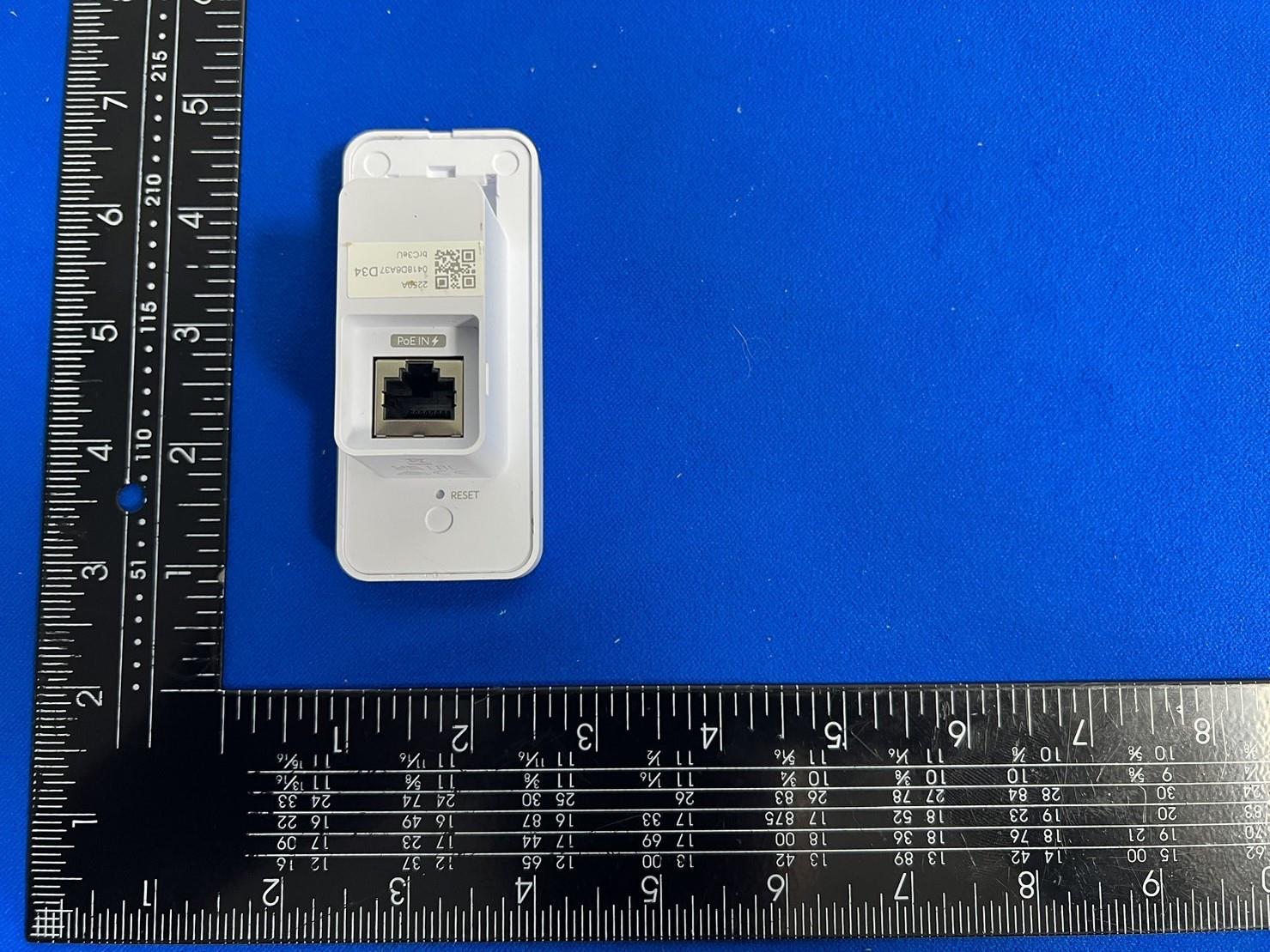

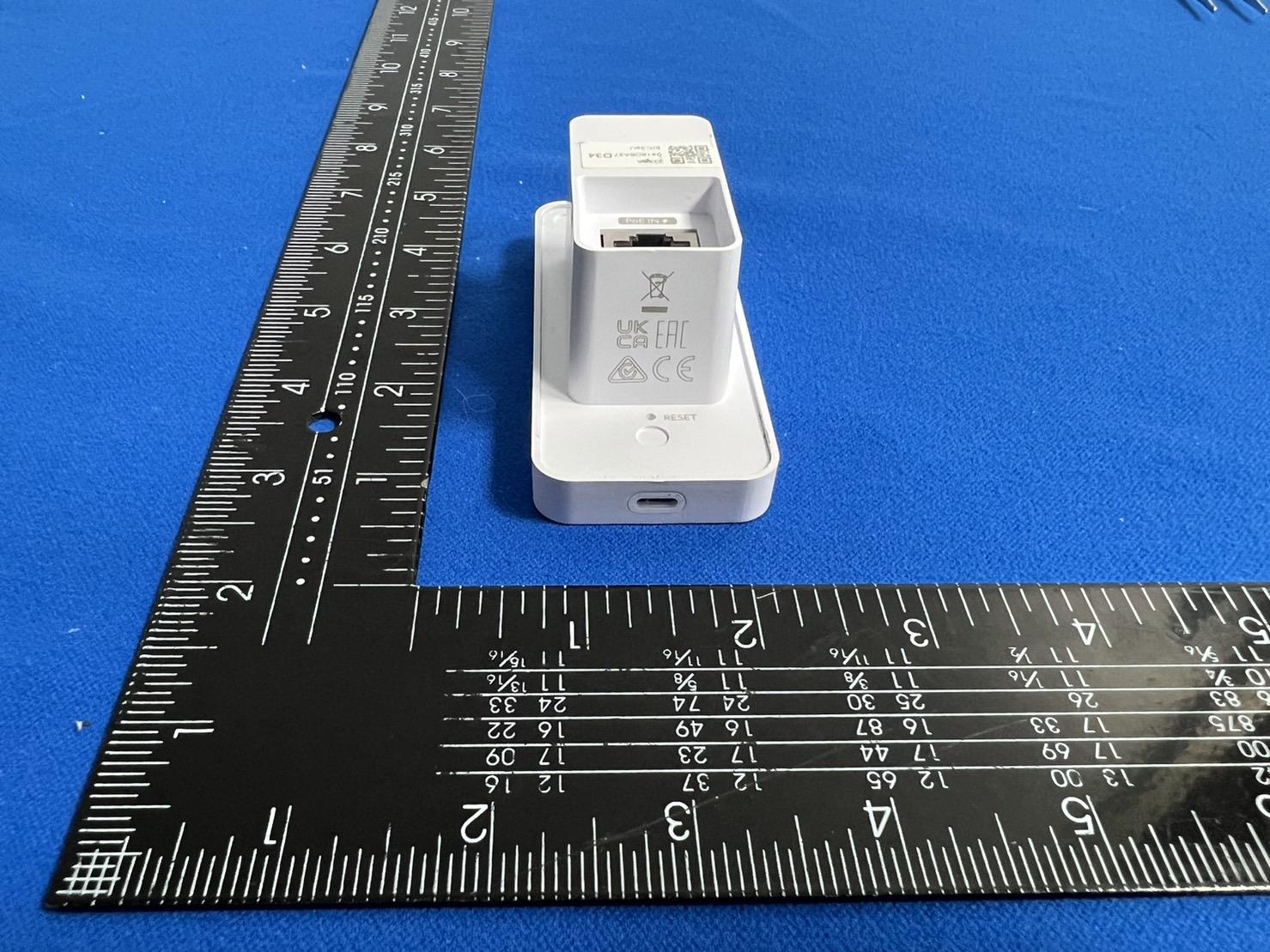

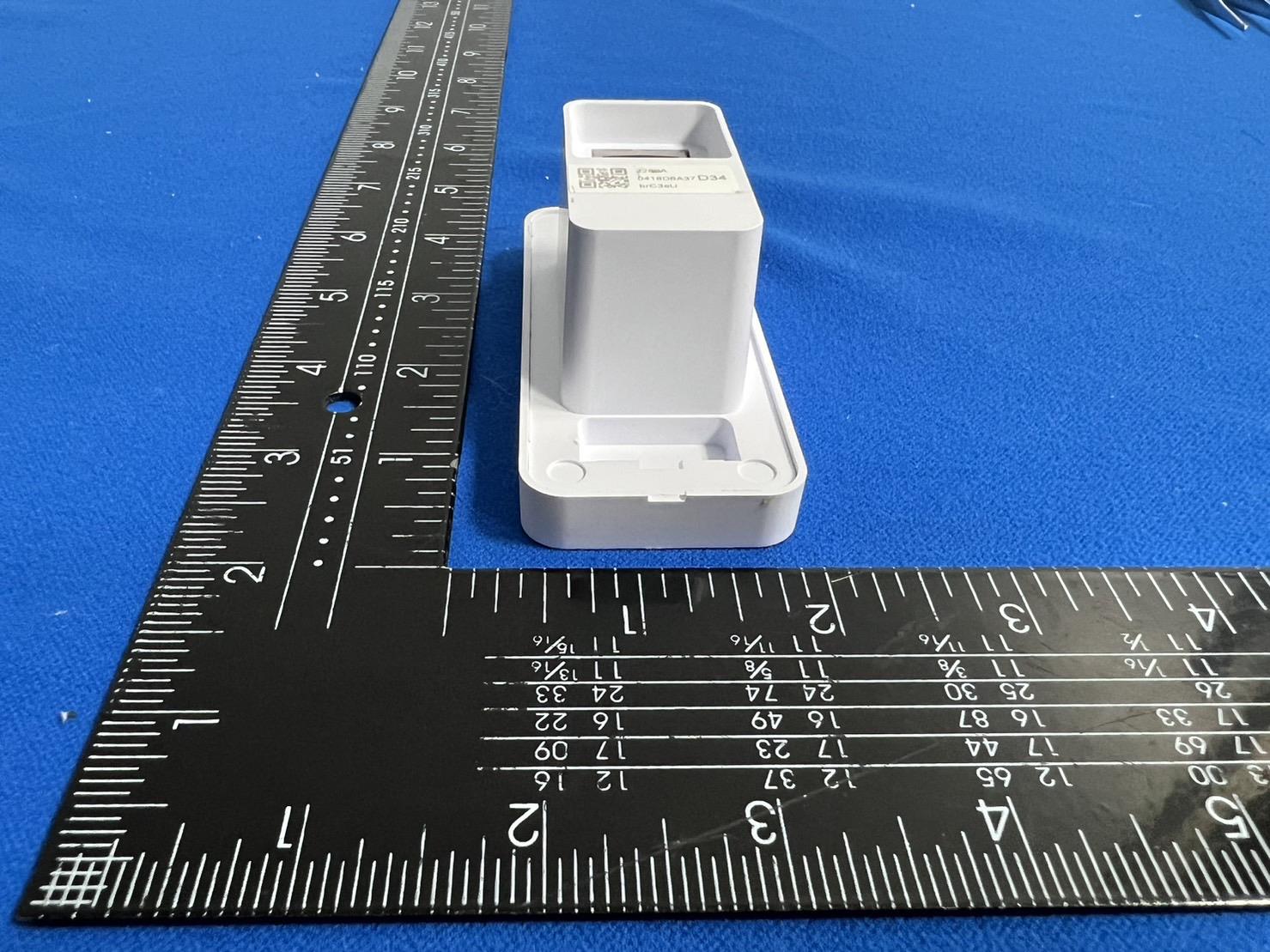

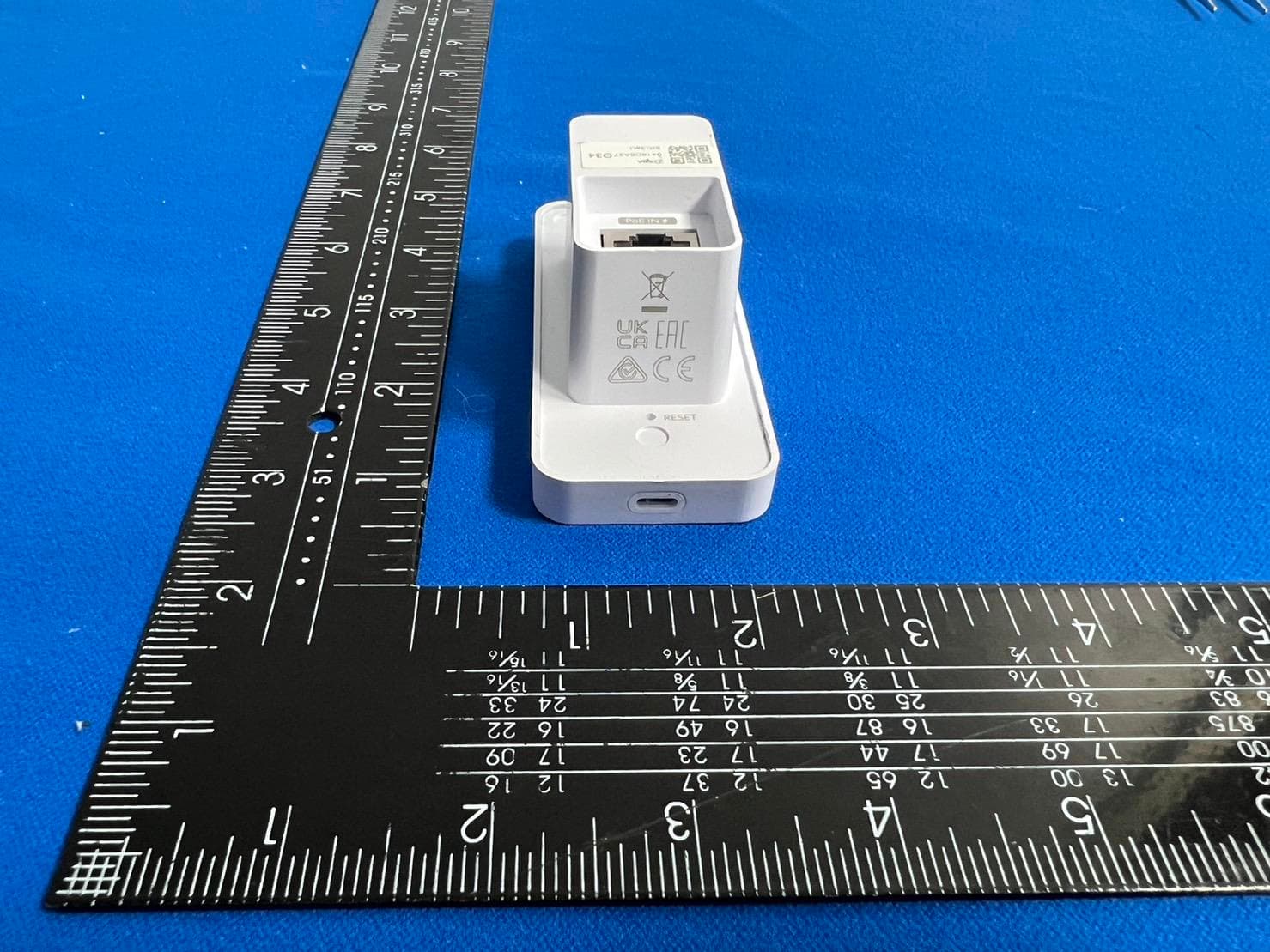

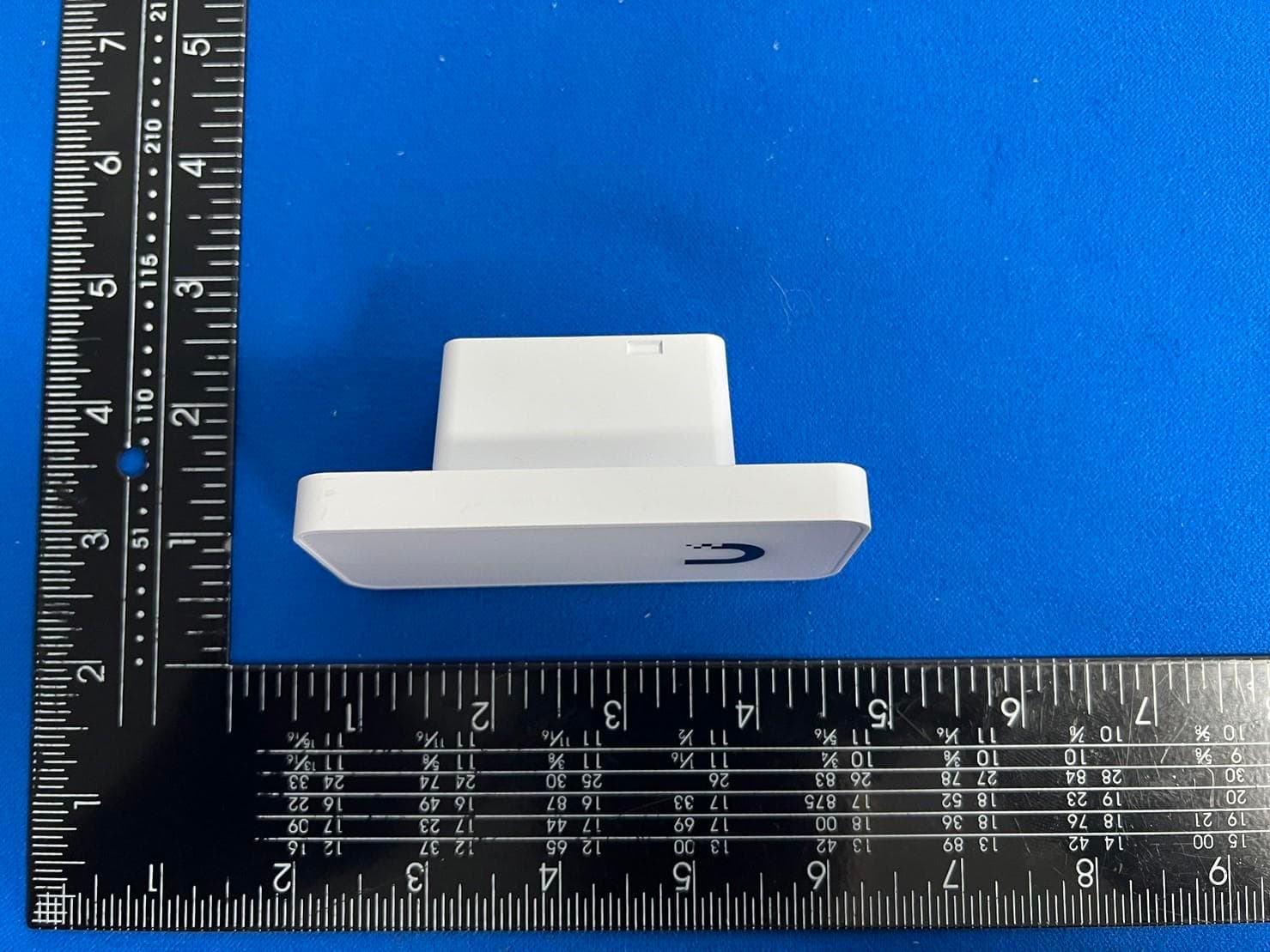

CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 1 of 18 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 2 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 3 of 18

Label & location Label Here: Rear side of EUT

CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 11 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 12 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 13 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 14 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 15 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 16 of 18 Antenna For BLE CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 17 of 18 Antenna For NFC CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 18 of 18

CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 4 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 5 of 18 NFC Antenna position BLE Antenna position CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 6 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 7 of 18 RF Chip For BLE CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 8 of 18 RF Chip For NFC CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 9 of 18 CERPASS TECHNOLOGY CORP. Report No.: 22120187 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 Page No. : 10 of 18

CERPASS TECHNOLOGY CORP. Report No.: 22120187-TRFCC02 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 T-FD-506-0 Ver 1.5 Page No. : 46 of 47 FCC ID. : SWX-UAG2M 12. Radio Frequency Exposure 12.1 Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance , R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 22120187-TRFCC02 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 T-FD-506-0 Ver 1.5 Page No. : 47 of 47 FCC ID. : SWX-UAG2M 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 9.36dBm (14.83mW) at 2440MHz (with 4.00dBi antenna gain.) 12.3 Result Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 2440 9.36 9.86 4 11.71 14.83 3060 No non-compliance noted. ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22120187-TRFCC02 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 T-FD-506-0 Ver 1.5 Page No. : 1 of 47 FCC ID. : SWX-UAG2M FCC RADIO TEST REPORT Applicant : Ubiquiti Inc. Address : 685 Third Avenue, New York, New York 10017, USA Equipment : UniFi Access Reader G2 Mini Model No. : UA-G2-Mini Trade Name : UBIQUITI FCC ID : SWX-UAG2M I HEREBY CERTIFY THAT : The sample was received on Dec. 21, 2022 and the testing was completed on Dec. 28, 2022 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22120187-TRFCC02 Cerpass Technology Corp. Issued Date : Jan. 16, 2023 T-FD-506-0 Ver 1.5 Page No. : 2 of 47 FCC ID. : SWX-UAG2M CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Antenna Requirements ..................................................................................................................... 13 4.1 Standard Applicable ................................................................................................................. 13 4.2 Antenna Construction and Directional Gain ............................................................................. 13 5. Test of AC Power Line Conducted Emission ................................................................................. 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 14 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data ................................................................................................................ 16 5.5 Test Photographs ..................................................................................................................... 18 6. Test of Spurious Emission (Radiated) ............................................................................................ 20 6.1 Test Limit .................................................................................................................................. 20 6.2 Test Procedures ....................................................................................................................... 21 6.3 Typical Test Setup .................................................................................................................... 22 6.4 Test Result and Data (9kHz ~ 30MHz)..................................................................................... 24 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 24 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 26 6.7 Restricted Bands of Operation ................................................................................................. 32 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 33 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 34 7. Test of Spurious Emission (Conducted)......................................................................................... 36 7.1 Test Limit .................................................................................................................................. 36 7.2 Test Procedure ......................................................................................................................... 36 7.3 Test Setup Layout .................................................................................................................... 36 7.4 Test Result and Data ................................................................................................................ 36 8. On Time, Duty Cycle and Measurement methods ......................................................................... 39 8.1 Test Limit .................................................................................................................................. 39 8.2 Test Procedure .......................................................…
