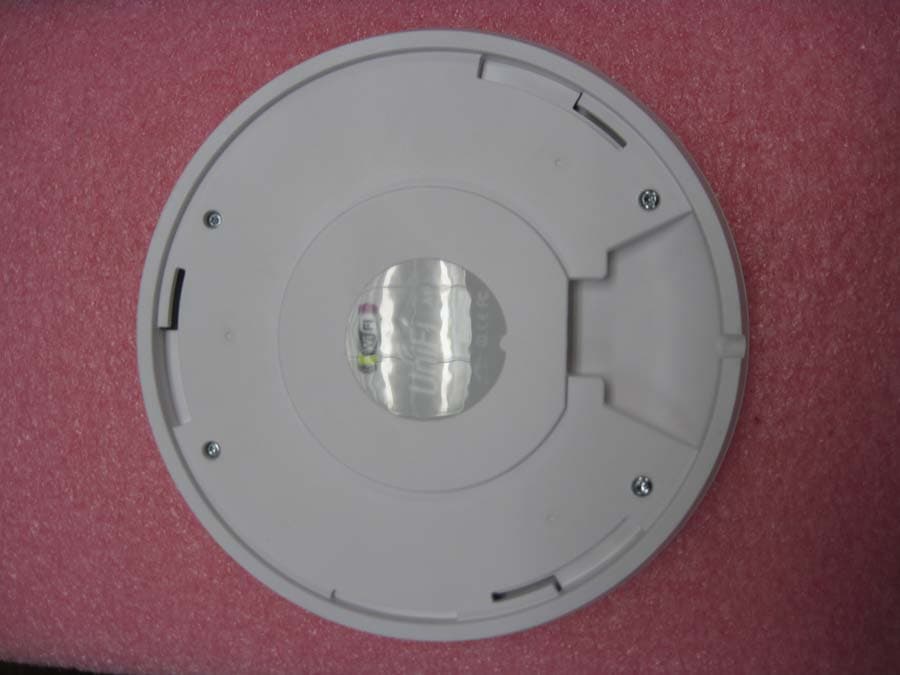

SWX-UAP802.11n radio with 20 and 40MHz bandwidths

Enterprise WiFi System 1 Package Contents Package Contents Wall Mount UniFi Enterprise APWall-Mount BracketCeiling-Mount Plate Enterprise WiFi System UniFi Controller CD with User Guide Quick Start Guide 24v PoE Adapter Power Cord M3X30 Flat Head Screw (Qty. 3) M3 Nut with Tooth Washer (Qty. 3) M2.9x20 Self Tapping Screw (Qty. 3) M3x20 Screw Anchor (Qty. 3) 2 UniFi Enterprise WiFi System System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, or Mac OS X • Java Runtime Environment 1.6 (or above) • Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or above) Network Topology Requirements • A DHCP-enabled network (for AP to obtain an IP as well as for the wireless clients after the deployment) • Access point(s) and the management station computer connected to the same layer-2 network. Switch Computer to be used as Management Station Enterprise APEnterprise AP Enterprise AP Sample Network Diagram 3 Hardware Installation Hardware Installation The UniFi Enterprise AP is powered by the included PoE (Power over Ethernet) adapter. To install the AP, perform the following steps: 1. Connect an Ethernet cable to the Ethernet port on the UniFi Enterprise AP. 2. Connect the power cord to the power port on the PoE Adapter. Connect the other end to of the power cord to a power outlet. 4 UniFi Enterprise WiFi System 3. Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. Note: If you plan to mount the AP on your ceiling, perform the ceiling mount installation steps before connecting the Ethernet cable to the PoE Adapter. Below is an overview of the Power over Ethernet connections. Power Connection Diagram 5 Hardware Installation Mounting the Access Point The UniFi Enterprise AP can be wall-mounted or mounted on a ceiling. Perform the following steps for the appropriate installation: Wall-Mount 1. Align the wall-mounting bracket with the Wall Mount text facing up. There are horizontal and vertical lines on the bracket to help with orientation. Wall Mount Wall Mount text 2. Use a pencil to mark the holes on the wall. 3. Use a 6 mm drill bit to drill the holes in the wall. 4. Insert the 3 screw anchors into the wall. 5. Secure the wall-mount bracket to the wall by inserting the self tapping screws into the anchors. Wall Mount 6 UniFi Enterprise WiFi System 6. Align the notches on the AP with the notches on the wall-mount bracket. Wall Mount 7. Turn the AP clockwise until it locks into place. Wall Mount 7 Hardware Installation Ceiling-Mount 1. Remove the ceiling tile. 2. Align the ceiling-mount plate to the center of the top side of the ceiling tile. 3. Use a 3.5 mm drill bit to drill holes for the three flat head screws. 4. Cut or drill a circle approximately 25 mm in size that lines up with the larger circle on the ceiling-mount plate. This will be used for the Ethernet cabling. 5. Secure the wall-mount bracket and ceiling-mount plate to the ceiling tile using the 3 flathead screws and 3 nuts with tooth washers. 8 UniFi Enterprise WiFi System 6. Feed the Ethernet cable through the hole and then align the Enterprise AP with the notches on the wall-mount bracket. Note: The UniFi Enterprise AP supports Passive PoE which works with the included PoE adapter. If you want to power the UniFi AP from an 802.3af compliant switch, Ubiquiti Networks offers the optional Instant 802.3af Adapter to instantly transform any PoE device into a fully 48V 802.3af compliant product. Product details are available on our website at http://ubnt.com/8023af 7. Turn the AP clockwise until it locks into place. 9 Software Installation Software Installation Insert the UniFi Controller software CD into your CD-ROM drive and follow the instructions for your specific computer type. Mac Users 1. Click on the Install icon. 2. Click Continue and follow the on-screen instructions to install the software. 10 UniFi Enterprise WiFi System 3. Go to Go > Applications and double-click the UniFi icon. Proceed to Configuring the UniFi Controller Software on page 12. PC Users 1. Launch UniFi-installer.exe. 2. Click Install. 3. If your computer doesn't have Java 1.6 or above installed, you will be prompted to install it. Click Install to continue. 11 Software Installation 4. Click Next. 5. Be sure the Start UniFi Controller after installation option is checked and click Finish. Note: The UniFi Controller software can also be launched from Start > All Programs. 12 UniFi Enterprise WiFi System Configuring the UniFi Controller Software 1. The UniFi Controller software startup will begin. When the option becomes available, click Launch a Browser to Manage Wireless Network. 2. Select your language and country. Click Next. 3. Select the devices that you want to configure and click Next. 13 Software Installation 4. The UniFi Installation Wizard will create a secure primary wireless network for your devices. Perform the following steps: a. Enter the wireless network name (SSID) in the Secure SSID field. b. Enter a passphrase to be used for your primary network. c. If you want to enable guest access, select Enable Guest Access and enter a guest network name in the Guest SSID field. d. Click Next. 5. Enter an admin name and password to use when accessing the management interface. Confirm your password in the Confirm field. Click Next. 14 UniFi Enterprise WiFi System 6. Review your settings. Click Back to make changes or Finish to save your settings. Once finished you will be redirected to the management interface via your web browser. Congratulations, your wireless network is now configured. A login screen will appear for the UniFi Controller management interface. Enter the admin name and password that you created and click Login. You can manage your wireless network and view network statistics using the UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide located on the CD. 15 Declaration of Conf…

Text truncated - open the document above for the full version.

Enterprise WiFi System UniFi Enterprise WiFi System User Guide i Table of Contents Ubiquiti Networks, Inc. Table of Contents Chapter 1: Product Overview ...................................................1 Package Contents ................................................................1 System Requirements ............................................................1 Network Topology Requirements .................................................1 Front .............................................................................2 Back .............................................................................2 Chapter 2: Installation ..........................................................3 Hardware Installation .............................................................3 Software Installation ..............................................................5 Chapter 3: Using the UniFi Controller Software ..................................7 Map ..............................................................................7 Statistics .........................................................................9 Access Points .....................................................................9 Users ............................................................................10 Guests ..........................................................................10 Recent Events ...................................................................11 Alerts ...........................................................................15 Settings .........................................................................15 Admin ..........................................................................17 Appendix A: Specifications .......................................................18 Appendix B: Compliance Information ............................................19 FCC .............................................................................19 Industry Canada .................................................................19 Appendix C: Warranty ...........................................................20 General Warranty ................................................................20 Appendix D: Contact Information ................................................21 Ubiquiti Networks Support ......................................................21 1Ubiquiti Networks, Inc. Chapter 1: Product OverviewUniFi Enterprise WiFi System User Guide Chapter 1: Product Overview Thank you for purchasing the Ubiquiti UniFi Enterprise WiFi System. The UniFi Enterprise WiFi System includes the UniFi Controller software that allows you to manage your wireless network using your Web browser. The UniFi Enterprise WiFi System also includes the necessary hardware for mounting the unit on a wall or a ceiling. The UniFi Enterprise WiFi System supports Passive PoE which works with the included PoE adapter. If you want to power the UniFi AP from an 802.3af compliant switch, Ubiquiti Networks offers the optional Instant 802.3af Adapter to instantly transform any PoE device into a fully 48V 802.3af compliant product. Product details are available on our website at http://ubnt.com/8023af Package Contents Wall Mount UniFi Enterprise APWall-Mount BracketCeiling-Mount Plate UniFi Controller CD with User Guide Quick Start Guide 24v PoE Adapter Power Cord M3X30 Flat Head Screw (Qty. 3) M3 Nut with Tooth Washer (Qty. 3) M2.9x20 Self Tapping Screw (Qty. 3) M3x20 Screw Anchor (Qty. 3) System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, or Mac OS X • Java Runtime Environment 1.6 (or above) • Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or above) Network Topology Requirements • A DHCP-enabled network (for AP to obtain an IP as well as for the wireless clients after the deployment) • Access point(s) and the management station computer connected to the same layer-2 network. Switch Computer to be used as Management Station Enterprise APEnterprise AP Enterprise AP Sample Network Diagram 2Ubiquiti Networks, Inc. Chapter 1: Product Overview UniFi Enterprise WiFi System User Guide Front LED Indicates the status of the device. See the table below for details. LED ColorStatus Flashing AmberInitializing Steady AmberFactory default, waiting to be integrated Alternating Amber/Green Device is busy, do not touch or unplug it, this usually indicates a process such as a firmware upgrade is taking place Quickly Flashing Green This is used to locate an AP. When you click on Locate in the UniFi Controller software, the AP will blink. It will also display the location of the AP on the map. Steady GreenIndicates the device has been successfully integrated into a network and is working properly Back Ethernet Port Connects to the 24v PoE Adapter to provide power to the unit. Reset Button The reset button serves two functions: • Restart I t will restart the device when you press and release it quickly. • Restore Factory Defaults When y ou press and hold it for more then 5 seconds, it will restore the device to the factory default settings. 3Ubiquiti Networks, Inc. Chapter 2: InstallationUniFi Enterprise WiFi System User Guide Chapter 2: Installation Hardware Installation The UniFi Enterprise AP is powered by the included PoE (Power over Ethernet) adapter. To install the AP, perform the following steps: 1. Connect an Ethernet cable to the Ethernet port on the UniFi Enterprise AP. 2. Connect the power cord to the power port on the PoE Adapter. Connect the other end to of the power cord to a power outlet. 3. Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. Note: If you plan to mount the AP on your ceiling, perform the ceiling mount installation steps before connecting the Ethernet cable to the PoE Adapter. Below is an overview of the Power over Ethernet connections. Power Connection Diagram Mounting the Access Point The UniFi Enterprise AP can be wall-moun…

Text truncated - open the document above for the full version.

Ubiquiti Networks, Inc. 91 E. Tasman San Jose, CA 95134 11/09/10 Attn: MET laboratories 914 West Patapsco Ave. Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR M2 (FCC ID: SWX-UAP) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 & 0.459. We have requested that the schematics, block diagrams, theory of operation, and internal photos required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

2.4GHz Antenna List UAP Peak Gain 4dBi

§ 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412 - 2462 MHz ; highest conducted power = 29.68dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 4 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (928.966mW) G = Antenna Gain (2.51 numeric) S = (928.96*2.51/ 4*3.14*20.0 2 ) = (2333.46 / 5024) = 0.46 mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory December 10, 2010 Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Dear Robert Pera, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, UAP-LR as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a B Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Roseline Onyeagwu Documentation Department Reference: (\Ubiquiti Networks\EMCS82657-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks Cover Page UAP-LR CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82657-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page ii of xii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks UAP-LR Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators 3 MET Report: EMCS82657-FCC247 Rev. 1 December 10, 2010 Prepared For: Ubiquiti Networks 91 E. Tasman San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page UAP-LR CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82657-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page iii of xii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks UAP-LR Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Minh Ly, Project Engineer Roseline Onyeagwu Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status UAP-LR CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82657-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page iv of xii DOC-EMC702 2/18/2010 Report Status Sheet Revision Report Date Reason for Revision  November 30, 2010 Initial Issue. 1 December 10, 2010 Revised per engineer corrections. Electromagnetic Compatibility Ubiquiti Networks Table of Contents UAP-LR CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82657-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page v of xii DOC-EMC702 2/18/2010 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................8 H. Mode of Operation................................................................................................................................…

Text truncated - open the document above for the full version.

Photograph 1. Radiated Spurious Emissions @ 3 m Photograph 2. Radiated Spurious Emissions @ 1 m Photograph 3. Conducted Emissions Photograph 4. Radiated Emissions
