SWX-UCD21UniFi Connect 21

Datasheet UC-Display21 Connect Display 2 1" PoE-powe r ed, 21.5" Full HD touchscr e en display designed for UniFi Connect. The Connect Display 21" (UC Display21) is a PoE-powe r ed, HD touchscr e en display designed for UniFi Connect. The UC Display21 offe rs robust functionality with its two pr esentation modes: Digital Signage and Protect. In Digital Signage Mode, the UC Display21 showcases your custom, multimedia playlists in eithe r landscape or portr ait mode, and gives you the ability to schedule when they a r e pr esented. This display is ide al for businesses, hotels, convention cente rs, and othe r populated venues that ne ed an intuitive, centr ally managed content broadcasting solution to enhance the expe rience of clients and patrons. In Protect Mode, the UC Display21 provides the same intuitive came r a management expe rience as the UniFi Protect application. With its va riety of mounting options, the UC Display21 can be staged virtually anywhe r e within your space, and can be set up in minutes with the UniFi Connect web application or mobile app. Mechanical Dimensions 538.3 x 330 x 37 mm (21.2 x 13 x 1.5") Weight 4.9 kg (10.8 lb) Mounting Table stand (optional) Recessed mount (optional) Surface mount (optional) Arm mount (optional) Har dware Display size 546 mm (21.5") diagonal Resolution 1920 x 1080 FHD (16:9) Display luminance 250 nits (typical) Touch scr e en technology Capacitive multi-touch Processor Octa-cor e ARM ® Cortex ® -A53 at 2.2 GHz Memory Stor age: 32 GB RAM: 2 GB Powe r input 802.3bt PoE++ Connectivity (1) GbE RJ45 port (1) USB-C port (for accessory UC-DisplayCam only) Bluetooth ® 4.2 WiFi 2.4G b/g/n/ac, BW 20/40 MHz WiFi 5G a/n/ac, BW 20/40/80 MHz Button Factory r eset Sensors TOF (time of ight), NFC, G sensor (3-axis accele romete r) NFC r e ading r ange < 10 mm (< 0.4") NFC standa rds ISO 14443A, 14443B, 15693 NFC technology NFC Tag 1, 2, 3, 4, 5 MIFARE Classic MIFARE Plus MIFARE Ultr alight MIFARE DESFir e EV1/EV2 Embedded front came ra 5 MP Microphone Yes Spe aker Yes Ope r ating tempe r ature 0 to 40° C (32 to 104° F) 2 of 3 Ope r ating humidity 20 to 90% noncondensing Ce rti cations FCC, IC Soft ware Application UniFi Connect Minimum softwa r e r equir ements Web browse r (Chrome™ r ecommended) Mobile apps UniFi Connect iOS™ and Android™ E-label Access E-label and warning statements can be found in the device via controller (Install controller from ui.com/download then select/adopt device) -> overview ->e-label information. Ubiq uiti pro d uc ts a re s old with a limite d wa rra nty de s c ribe d a t: ui.c om/s u p p ort/wa rra nty The limite d wa rra nty re q uire s the us e of a rbitra tio n to re s olve dis p ute s o n a n in divid ua l ba s is , a n d, whe re a p plic a ble , s pe c ify a rbitra tio n ins te a d of jury tria ls or c la s s a c tio ns . ©2 0 2 1 Ubiq uiti Inc . All rig hts re s e rve d. Ubiq uiti, Ubiq uiti Ne tworks , the Ubiq uiti U lo g o, UniFi, a n d UniFi Co n ne c t a re tra de ma rks or re gis te re d tra de ma rks of Ubiq uiti Inc . in the Unite d Sta te s a n d in othe r c o u ntrie s . All othe r tra de ma rks a re the pro pe rty of the ir re s pe c tive owne rs . 6 2 0-0 0 9 7 2-04

E-Label User Information M/N: UC‐Display21 FCC: SWX-UCD21 IC ID: 6545A- UCD21 Ubiquiti Inc. will be incorporating the E-Label procedures per FCC KDB 784748-D02. The information below is what will be included in the E-Labeling. E-label and warning statements can be found in the device/controller GUI under Device > Overview > E-label info. Detailed compliance information including Declaration of Conformity is available at the following internet address: ui.com/compliance FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help ISED Canada CAN ICES-3 (B) / NMB-3 (B) This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence.L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilize en conflit avec tout autre antenne ou transmetteur.

Ubiquiti Inc. DATE : 2021/12/06 FCC ID: SWX-UCD21 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., Taoyuan City, 33848, Taiwan(R.O.C.) Name: Nina Hsu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by TIMCO Engineering Inc., still resides with us. Signature FCC grantee contact person information. Name/Title: Mark Feil / Compliance Manager Company Name: Ubiquiti Inc. Address: 685 Third Avenue, New York, NY, United States, 10017 TEL: 408-942-3084 FAX: 408-904-5255 Email: [email protected]

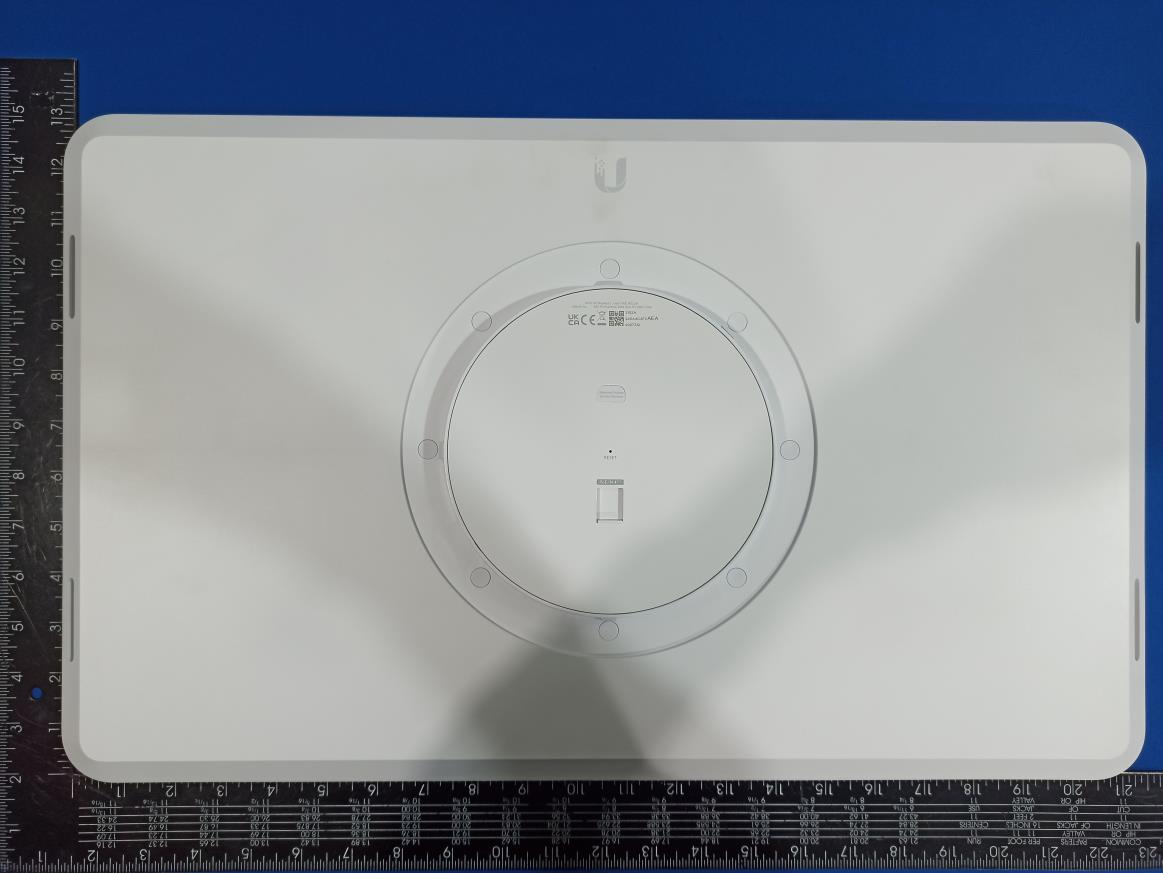

CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 1 of 20 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 2 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 3 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 4 of 20

Ubiquiti Inc. E-Label Information Model: UC-Display21 A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information On e-label In Manual FCC/ISED ID number Yes No FCC logo / DoC logo No No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) Yes No Class A / B Digital Device user manual statements 1 Yes No Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 Yes No Describe any other FCC regulatory information included in e-label 1 Yes No 1 If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) The e-label is provided as the document “E-Label-User-Manual_UC-Display21 (0120)”. B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: E-label and warning statements can be found in the device/controller GUI under Device > Overview > E-label info No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. Yes 3. Users are provided specific instructions on how to access the information. The information to the user is provided in the last page of user manual. C. Labeling for Importation and Purchasing Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC/ISED ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. The FCC/ISED ID, and model number are present on the product packaging. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the grantee. The user cannot modify the e-label information. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. Yes, it is provided.

CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 5 of 20 ANT A position (WLAN&BT) ANT B position (NFC) ANT C position (NFC) CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 6 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 7 of 20 RF Chip (NFC) CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 8 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 9 of 20 RF Chip (WLAN&BT) CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 10 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 11 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 12 of 20 RF Chip (NFC) CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 13 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 14 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 15 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 16 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 17 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 18 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 19 of 20 CERPASS TECHNOLOGY CORP. Report No.: 21030230 Cerpass Technology Corp. Issued Date : Jan. 05, 2022 Page No. : 20 of 20

CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC02 Cerpass Technology Corp. Issued date : Jun 30, 2021 T-FD-509-0 Ver 1.4 Page No. : 71 of 73 FCC ID. : SWX-UCD21 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 22.57dBm (180.717mW) at 2437MHz (with 4.20dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC02 Cerpass Technology Corp. Issued date : Jun 30, 2021 T-FD-509-0 Ver 1.4 Page No. : 72 of 73 FCC ID. : SWX-UCD21 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 3770 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC02 Cerpass Technology Corp. Issued date : Jun 30, 2021 T-FD-509-0 Ver 1.4 Page No. : 73 of 73 FCC ID. : SWX-UCD21 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 22.57 23.07 4.20 20 0.106 1 Maximum Permissible Exposure (Co-location) Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 8DPSK 2402-2480 12.57 13.07 4.20 20 0.0106 1.000 0.0106 11g 2412-2462 22.57 23.07 4.20 20 0.1061 1.000 0.1061 Co-location Total 0.1167 ∑MPE ratios Limit 1 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC04 Cerpass Technology Corp. Issued Date : Jun. 30, 2021 T-FD-506-0 Ver 1.4 Page No. : 44 of 46 FCC ID. : SWX-UCD21 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 3.42dBm (2.198mW) at 2480MHz (with 4.20dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC04 Cerpass Technology Corp. Issued Date : Jun. 30, 2021 T-FD-506-0 Ver 1.4 Page No. : 45 of 46 FCC ID. : SWX-UCD21 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 3770 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC04 Cerpass Technology Corp. Issued Date : Jun. 30, 2021 T-FD-506-0 Ver 1.4 Page No. : 46 of 46 FCC ID. : SWX-UCD21 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2402-2480 3.42 3.92 4.20 20 0.001 1 Maximum Permissible Exposure (Co-location) BT+Wifi 2.4G Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 8DPSK 2402-2480 12.57 13.07 4.20 20 0.0106 1.000 0.0106 11g 2412-2462 22.57 23.07 4.20 20 0.1061 1.000 0.1061 Co-location Total 0.1167 ∑MPE ratios Limit 1 BT+Wifi 5G Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 8DPSK 2402-2480 12.57 13.07 4.20 20 0.011 1.000 0.0106 11ac VHT20 5745-5825 17.51 18.01 5.00 20 0.040 1.000 0.0398 Co-location Total 0.0504 ∑MPE ratios Limit 1 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC02 Cerpass Technology Corp. Issued date : Jun 30, 2021 T-FD-509-0 Ver 1.4 Page No. : 1 of 73 FCC ID. : SWX-UCD21 FCC RADIO TEST REPORT Applicant : Ubiquiti Inc. Address : 685 Third Avenue, New York, New York 10017, USA Equipment : UniFi Connect 21 Model No. : UC-Display21 Trade Name : UBIQUITI FCC ID. : SWX-UCD21 I HEREBY CERTIFY THAT : The sample was received on Apr. 01, 2021 and the testing was completed on Jun. 18, 2021 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC02 Cerpass Technology Corp. Issued date : Jun 30, 2021 T-FD-509-0 Ver 1.4 Page No. : 2 of 73 FCC ID. : SWX-UCD21 Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment ................................................................................................................. 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Antenna Requirements ..................................................................................................................... 13 4.1 Antenna Construction and Directional Gain ............................................................................. 13 5. Test of AC Power Line Conducted Emission ................................................................................. 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 14 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data ................................................................................................................ 16 5.5 Test Photographs ..................................................................................................................... 18 6. Test of Radiated Spurious Emission ............................................................................................... 19 6.1 Test Limit .................................................................................................................................. 19 6.2 Test Procedures ....................................................................................................................... 20 6.3 Typical Test Setup .................................................................................................................... 21 6.4 Test Result and Data (9KHz ~ 30MHz) .................................................................................... 22 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 22 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 24 6.7 Restricted Bands of Operation ................................................................................................. 48 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 49 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 50 7. Test of Conducted Spurious Emission ........................................................................................... 52 7.1 Test Limit .................................................................................................................................. 52 7.2 Test Procedure ......................................................................................................................... 52 7.3 Test Setup Layout .................................................................................................................... 52 7.4 Test Result and Data ................................................................................................................ 52 8. On Time, Duty Cycle and Measurement methods ......................................................................... 61 8.1 Test Limit .................................................................................................................................. 61 8.2 Test Procedure ......................................................................................................................... 61 8.3 Test Setup Layout .................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC04 Cerpass Technology Corp. Issued Date : Jun. 30, 2021 T-FD-506-0 Ver 1.4 Page No. : 1 of 46 FCC ID. : SWX-UCD21 FCC RADIO TEST REPORT Applicant : Ubiquiti Inc. Address : 685 Third Avenue, New York, New York 10017, USA Equipment : UniFi Connect 21 Model No. : UC-Display21 Trade Name : UBIQUITI FCC ID. : SWX-UCD21 I HEREBY CERTIFY THAT : The sample was received on Apr. 01, 2021 and the testing was completed on Jun. 24, 2021 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 21030230-TRFCC04 Cerpass Technology Corp. Issued Date : Jun. 30, 2021 T-FD-506-0 Ver 1.4 Page No. : 2 of 46 FCC ID. : SWX-UCD21 CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 10 4. Antenna Requirements ..................................................................................................................... 12 4.1 Standard Applicable ................................................................................................................. 12 4.2 Antenna Construction and Directional Gain ............................................................................. 12 5. Test of AC Power Line Conducted Emission ................................................................................. 13 5.1 Test Limit .................................................................................................................................. 13 5.2 Test Procedures ....................................................................................................................... 13 5.3 Typical Test Setup .................................................................................................................... 14 5.4 Test Result and Data ................................................................................................................ 15 5.5 Test Photographs ..................................................................................................................... 17 6. Test of Spurious Emission (Radiated) ............................................................................................ 18 6.1 Test Limit .................................................................................................................................. 18 6.2 Test Procedures ....................................................................................................................... 19 6.3 Typical Test Setup .................................................................................................................... 20 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 22 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 22 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 24 6.7 Restricted Bands of Operation ................................................................................................. 30 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 31 6.9 Test Photographs (1GHz ~ 25GHz) .............…

Text truncated - open the document above for the full version.
