SWX-UCIUniFi Cable Internet

Datasheet UCI UniFi Cable Internet UCI Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ui.com/support/warranty ©2023 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, UniFi, and UniFi Network are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. Mechanical Hardware Dimensions 442.4 x 80 x 43.7 mm (5.5 x 2.7 x 1.6") Weight Without rackmount bracket: 1.5 kg With rackmount bracket: 1.6 kg Enclosure material Galvanized steel (SGCC) Mounting material Galvanized steel (SGCC) Management interface Ethernet Bluetooth Networking interface (1) 2.5GbE RJ45 port RF interface (1) Bluetooth v4.1 Upload: Dual OFDMA/ (8) SC-QAM, 5-42MHz, switchable 5—85MHz Download: Dual OFDM/ (32) SC-QAM, 108—1218MHz DOCSIS interface (1) DOCSIS 3.1/3.0 Power input (1) Universal AC input, 100–240V AC, Max. 0.8A, 50/60Hz Max. power consumption 25W LEDs White: Link or activity Operation temperature 0 to 45° C (32 to 113° F) Operation humidity 10 to 95% non-condensing Certications CE, FCC, IC, UL, CableLabs FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. "This equipment has been tested and found to comply with the limits for a Class B digital device. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help." The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. ISED Canada CAN ICES-3(B)/NMB-3(B) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)/NMB-3(B) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio ex empts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepti ble d’en compromettre le fonctionnement. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

www.ui.com Date: 13 March 2023 Federal Communications Commission (the “Commission” or “FCC”) Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 USA RE: Attestation Statements Part 2.911(d)(5)(i) Filing –SWX-UCI Ubiquiti Inc. (“the applicant”) certifies that, as of the date of the application, the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Alex Macon Ubiquiti lnc. Compliance Officer www.ui.com Date: 13 March 2023 Federal Communications Commission (the “Commission” or “FCC”) Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 USA RE: Attestation Statements Part 2.911(d)(5)(ii) Filing –SWX-UCI Ubiquiti Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List 1 as an entity producing “covered” equipment. Sincerely, Alex Macon Ubiquiti lnc. Compliance Officer 1 https://www.fcc.gov/supplychain/coveredlist

V02072023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 13, 2023 Ref: Attestation Statement Part 2.911(d)(7) Filing Grantee Code: SWX Ubiquiti Inc. certifies that, as of the dates of this application, Americas Compliance Consulting LLC dba iCertifi “iCertifi” is our designated U.S. agent for service of process for the above referenced FCC ID. Ubiquiti Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission- related proceeding involving the equipment. iCertifi accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Americas Compliance Consulting, LLC dba iCertifi FCC FRN: 0033399411 Address: 1001 SW Disk Drive, Suite 250, Bend, Oregon 97702 Contact Person: Paul Preston Tel: 866-885-4575 Email: [email protected] Sincerely, Ubiquiti Inc. Americas Compliance Consulting LLC dba iCertifi Alex Macon Paul Preston DocuSign Envelope ID: E8692818-6F6E-42A6-AF67-A617E18B3843

685 Third Avenue, New York, New York 10017 USA Date: 2022-11-18 FCC ID: SWX-UCI To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Alex Macon / Compliance manager Ubiquiti Inc. Tel: 385-200-1617 Fax: 408-904-7556 E-mail: [email protected]

685 Third Avenue, New York, New York 10017 USA Date: 2022-11-18 FCC ID: SWX-UCI To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Alex Macon / Compliance manager Ubiquiti Inc. Tel: 385-200-1617 Fax: 408-904-7556 E-mail: [email protected]

685 Third Avenue, New York, New York 10017 USA Date: 2022-11-18 FCC ID: SWX-UCI AUTHORIZATION LETTER To Whom It May Concern: Ubiquiti Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on Ubiquiti Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Alex Macon / Compliance manager Ubiquiti Inc. Tel: 385-200-1617 Fax: 408-904-7556 E-mail: [email protected]

Reference No.: BGQZ-WTW-P22090809_EXT 1 of 6 CONSTRUCTION PHOTOS OF EUT Reference No.: BGQZ-WTW-P22090809_EXT 2 of 6 Reference No.: BGQZ-WTW-P22090809_EXT 3 of 6 Reference No.: BGQZ-WTW-P22090809_EXT 4 of 6 Reference No.: BGQZ-WTW-P22090809_EXT 5 of 6 Reference No.: BGQZ-WTW-P22090809_EXT 6 of 6

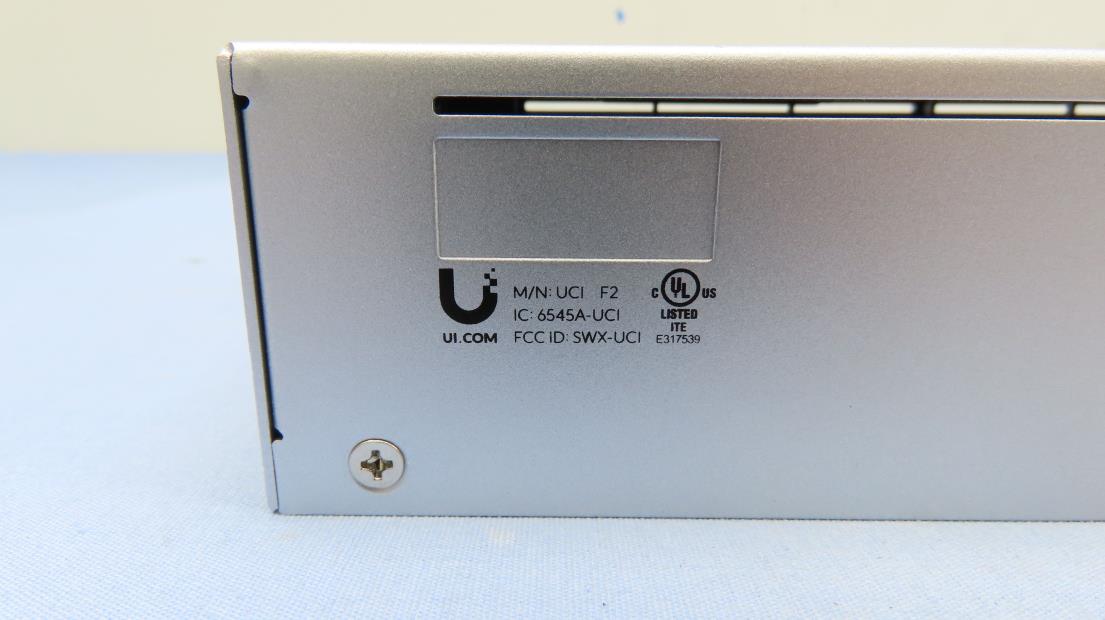

Label Location
