SWX-UISPPUISP Power

Datasheet UISP-P Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty ©2022 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UISP are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. Mechanical Hardware LEDs Dimensions 289 x 280 x 52 mm (11.38 x 11.02 x 2.05") Weight 1.4 kg (3.1 lb) Enclosure materials Polycarbonate/ acrylonitrile butadiene styrene Networking interface (1) 10/100 MbE RJ45 LAN port Management interface Ethernet In-band Bluetooth Power TransPort output 100W 27VDC max (with 1 power adapter module) 200W 27VDC max (with 2 power adapter modules) Power method (2) 27VDC, 4.4A power adapter module Model: UACC-Adapter-PT-120W (not included) Backup power (1) 25.2VDC, 7.93A rechargeable lithium-ion battery pack (included) (1) 24V lead acid battery input (battery not included) Max. power consumption 3W (excludes Power TransPort output and charger) ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV Operating temperature -10 to 40° C (14 to 104° F) Operating humidity 5 to 95% non-condensing Certications CE, FCC, IC System Status RJ45 data ports Link/activity Power TransPort On/off UISP Power Power management system for MicroPoP applications with uninterruptible power supply (UPS) functionality. The UISP ® Power (UISP P) is a high-performance power management system that can deliver up to 200W* (27V DC) to supported UISP devices via its Power TransPort interface. The UISP P offers a variety of UPS functions, including battery health and uptime monitoring, and a Power Load Balancing Mode that dynamically adjusts load distribution between two power supply units (PSU) when the output of one falls below half of its expected capacity. Its Backup PSU Mode also ensures that the redundancy unit in a dual-PSU setup will automatically activate when needed. The UISP P comes with a 25V rechargeable Lithium-ion (Li-on) battery, and its interface is also compatible with 24V lead acid batteries to provide an additional powering option. This wall-mountable system can be set up and congured with the UISP application or mobile app in minutes, allowing you to quickly improve your deployment's power infrastructure without extended downtime. * With (2) PSUs installed and congured.

RF_160, Issue 04 Declaration of Authorization We Name: Ubiquiti Inc. Address: 685 Third Avenue City: 10017, New York Country: USA Declare that: Name Representative of agent: Nina Hsu (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu District City: Taoyuan City Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: UISP Power Type designation: UISP-P Trademark: UBIQUITI Validity/ expiry date on our behalf. Date: May 28, 2022 City: New York Name: Mark Feil (2) Function: Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: Ubiquiti Inc. Address: 685 Third Avenue City: 10017 New York Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SWX-UISPP Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: For marketing purpose Planned Release Date STC: 180 days from the date of grant. (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: May 28, 2022 Name and signature of applicant: Mark Feil Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

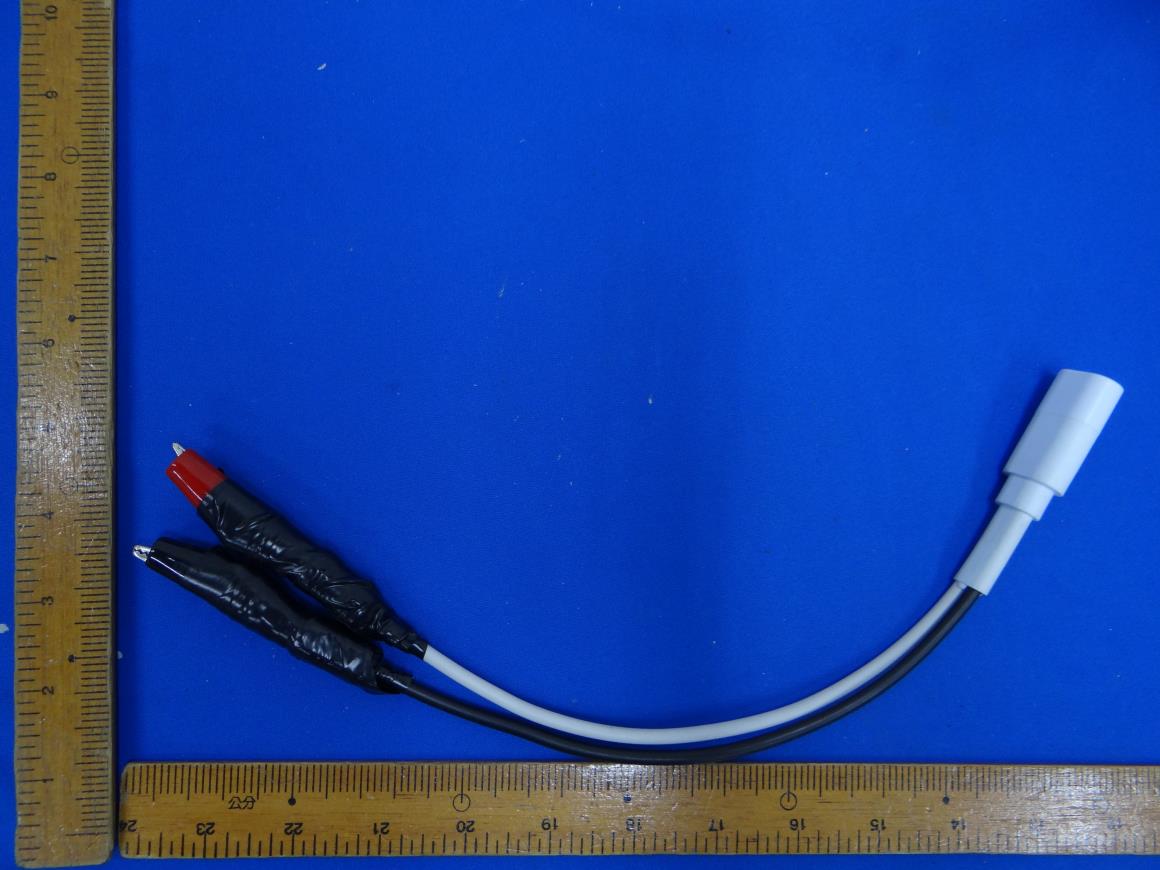

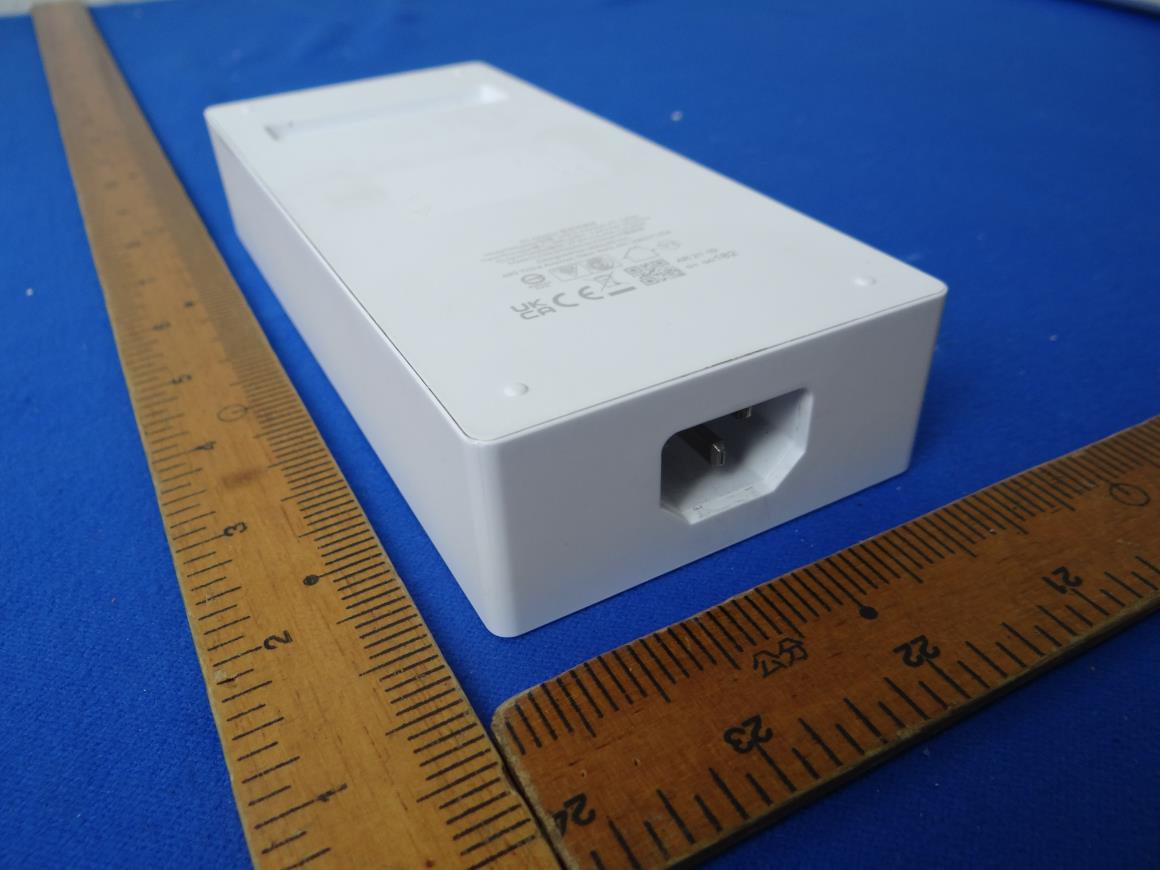

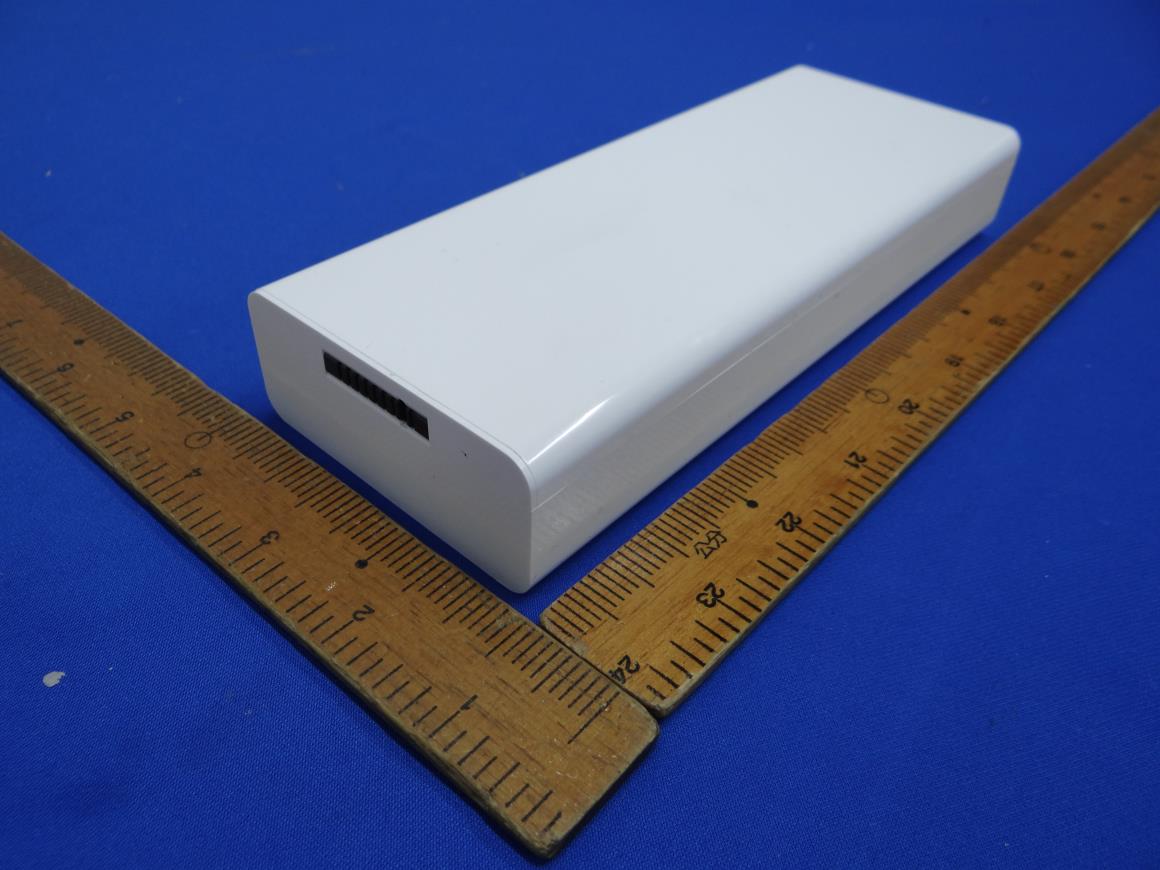

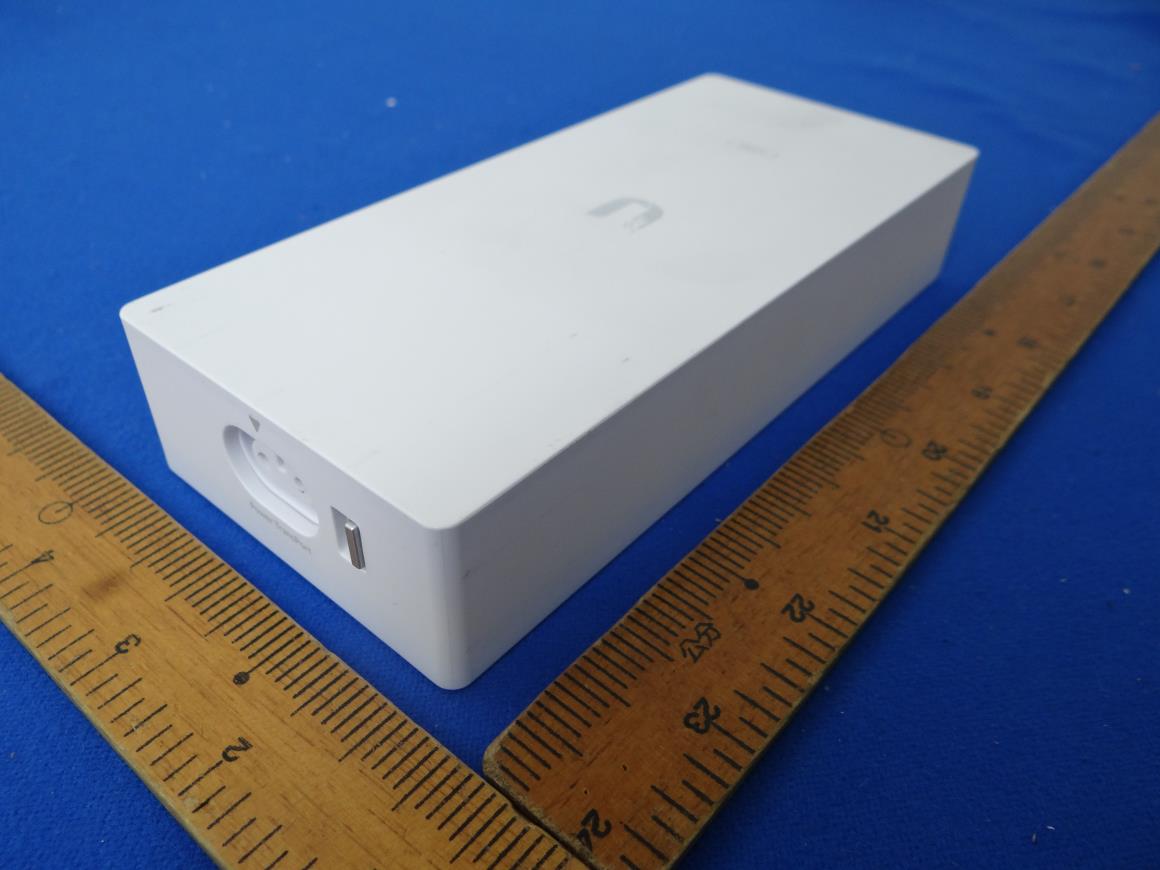

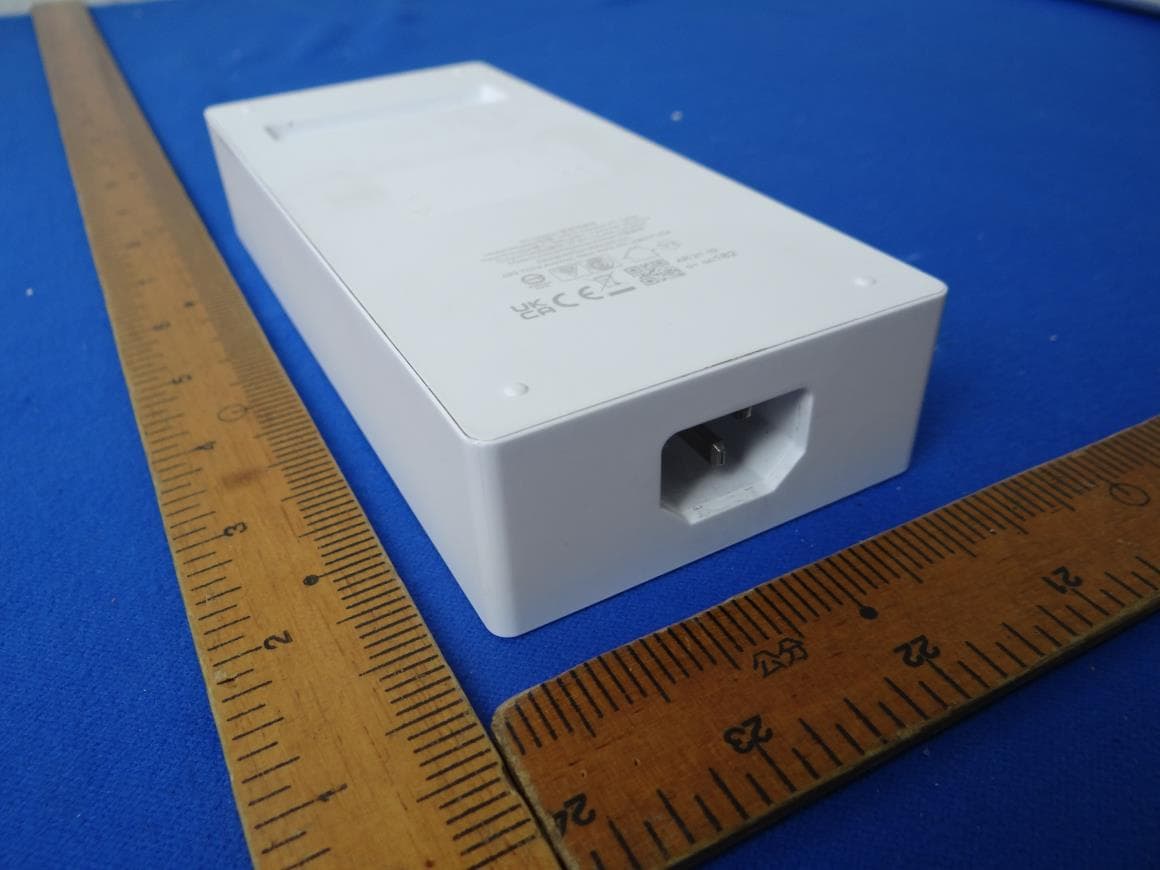

CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 1 of 16 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 2 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 3 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 12 of 16 120W Adaptor Brand:UBIQUITI, Model:UACC-Adapter-PT-120W CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 13 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 14 of 16 Battery Brand:FUJI ELECTRONICS(SHENZHEN) CO.,LTD., Model:SW26650-50ME(7INR27/66) CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 15 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 16 of 16 PP45 Cable Brand: Well Shin Technology Co., Ltd. ,Model: EM-302-F

Label & location Label Here: Rear side of EUT Label Here

CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 4 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 5 of 16 Antenna position CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 6 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 7 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 8 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 9 of 16 RF Chip CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 10 of 16 CERPASS TECHNOLOGY CORP. Report No.: 22030057 Cerpass Technology Corp. Issued Date : May. 13, 2022 Page No. : 11 of 16

CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 46 of 46 FCC ID. : SWX-UISPP 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 7.05dBm (5.070mW) at 2480MHz (with 2.65dBi antenna gain.) 12.3 Result Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 2402-2480 7.05 7.55 2.65 8.05 6.38 3060 No non-compliance noted. ----------THE END OF REPORT----------

Antenna Spec Type: Dipole Antenna Gain: 2400-2483.5Mhz: 2.65dBi

CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 1 of 46 FCC ID. : SWX-UISPP FCC RADIO TEST REPORT Applicant : Ubiquiti Inc. Address : 685 Third Avenue, New York, New York 10017, USA Equipment : UISP Power Model No. : UISP-P Trade Name : UBIQUITI FCC ID : SWX-UISPP I HEREBY CERTIFY THAT : The sample was received on Mar. 04, 2022 and the testing was completed on May. 05, 2022 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 2 of 46 FCC ID. : SWX-UISPP CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Antenna Requirements ..................................................................................................................... 13 4.1 Standard Applicable ................................................................................................................. 13 4.2 Antenna Construction and Directional Gain ............................................................................. 13 5. Test of AC Power Line Conducted Emission ................................................................................. 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 14 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data ................................................................................................................ 16 5.5 Test Photographs ..................................................................................................................... 18 6. Test of Spurious Emission (Radiated) ............................................................................................ 19 6.1 Test Limit .................................................................................................................................. 19 6.2 Test Procedures ....................................................................................................................... 20 6.3 Typical Test Setup .................................................................................................................... 21 6.4 Test Result and Data (9kHz ~ 30MHz)..................................................................................... 23 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 23 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 25 6.7 Restricted Bands of Operation ................................................................................................. 31 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 32 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 33 7. Test of Spurious Emission (Conducted)......................................................................................... 35 7.1 Test Limit .................................................................................................................................. 35 7.2 Test Procedure ......................................................................................................................... 35 7.3 Test Setup Layout .................................................................................................................... 35 7.4 Test Result and Data ................................................................................................................ 35 8. On Time, Duty Cycle and Measurement methods ......................................................................... 38 8.1 Test Limit .................................................................................................................................. 38 8.2 Test Procedure ............................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 18 of 46 FCC ID. : SWX-UISPP 5.5 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 32 of 46 FCC ID. : SWX-UISPP 6.8 Test Photographs (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 33 of 46 FCC ID. : SWX-UISPP 6.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 22030057-TRFCC01 Cerpass Technology Corp. Issued Date : May. 13, 2022 T-FD-506-0 Ver 1.5 Page No. : 34 of 46 FCC ID. : SWX-UISPP Side View
