SWX-UISPSPUISP Switch Pro

Datasheet UISP-S-Pro 2 of 3 Mechanical Hardware PoE Dimensions 442.4 x 267.5 x 43.7 mm (17.42 x 10.53 x 1.72") Weight 3.86 kg (8.51 lb) Enclosure materials SGCC steel, polycarbonate/ acrylonitrile butadiene styrene Total non-blocking throughput 64 Gbps Switching capacity 128 Gbps Forwarding rate 95.23 Mpps Networking interfaces (24) 10/100/1,000 MbE RJ45 LAN ports (4) 1/10G SFP+ ports Management interfaces Ethernet In-band Bluetooth LCM display (1) 1.3" touchscreen Power method (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz (1) Power TransPort DC input 27VDC, 10A Power supply AC/DC, Internal, 250W Supported voltage range 100 to 240VAC Max. power consumption 30W (excludes PoE output) ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV Operating temperature -10 to 50° C (14 to 122° F) Operating humidity 5 to 95% non-condensing Certications CE, FCC, IC PoE interfaces (16) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16 Total available PoE 220W Passive PoE max wattage per port 30W/27VDC Passive PoE voltage range 27VDC UISP Switch Pro Layer 3 PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE output and (4) 10G SFP+ ports to facilitate high-speed ber uplinks. Ideal for WISP deployments, the UISP Switch Pro (UISP S Pro) is a Layer 3 PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE output and (4) 10G SFP+ ports to facilitate high-speed ber uplinks. The UISP S Pro has a robust 220W PoE supply and provides 2 or 4-pair mode functionality to ensure reliable support for your radio devices. Additionally, the rack-mountable UISP S Pro features a 1.3" LCM color touchscreen that concisely presents key device and network status insights. The UISP S Pro can be set up in minutes and fully managed with the UISP application, a centralized platform where you can monitor and congure all your UISP devices. Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty ©2021 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UISP are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. LEDs RJ45 data ports PoE; Speed/link/activity SFP+ data ports Speed/link/activity FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in con junction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une dis tance de séparation de toute personnes d’aumoins 20 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

RF_160, Issue 04 Declaration of Authorization We Name: Ubiquiti Inc. Address: 685 Third Avenue City: 10017, New York Country: USA Declare that: Name Representative of agent: Nina Hsu (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu District City: Taoyuan City Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: UISP Switch Pro Type designation: UISP-S-Pro Trademark: UBIQUITI Validity/ expiry date on our behalf. Date: Apr. 18, 2022 City: New York Name: Mark Feil (2) Function: Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: Ubiquiti Inc. Address: 685 Third Avenue City: 10017 New York Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SWX-UISPSP Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Antenna Spec Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: For marketing purpose Planned Release Date STC: 180 days from the date of grant. (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: Apr. 18, 2022 Name and signature of applicant: Mark Feil Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

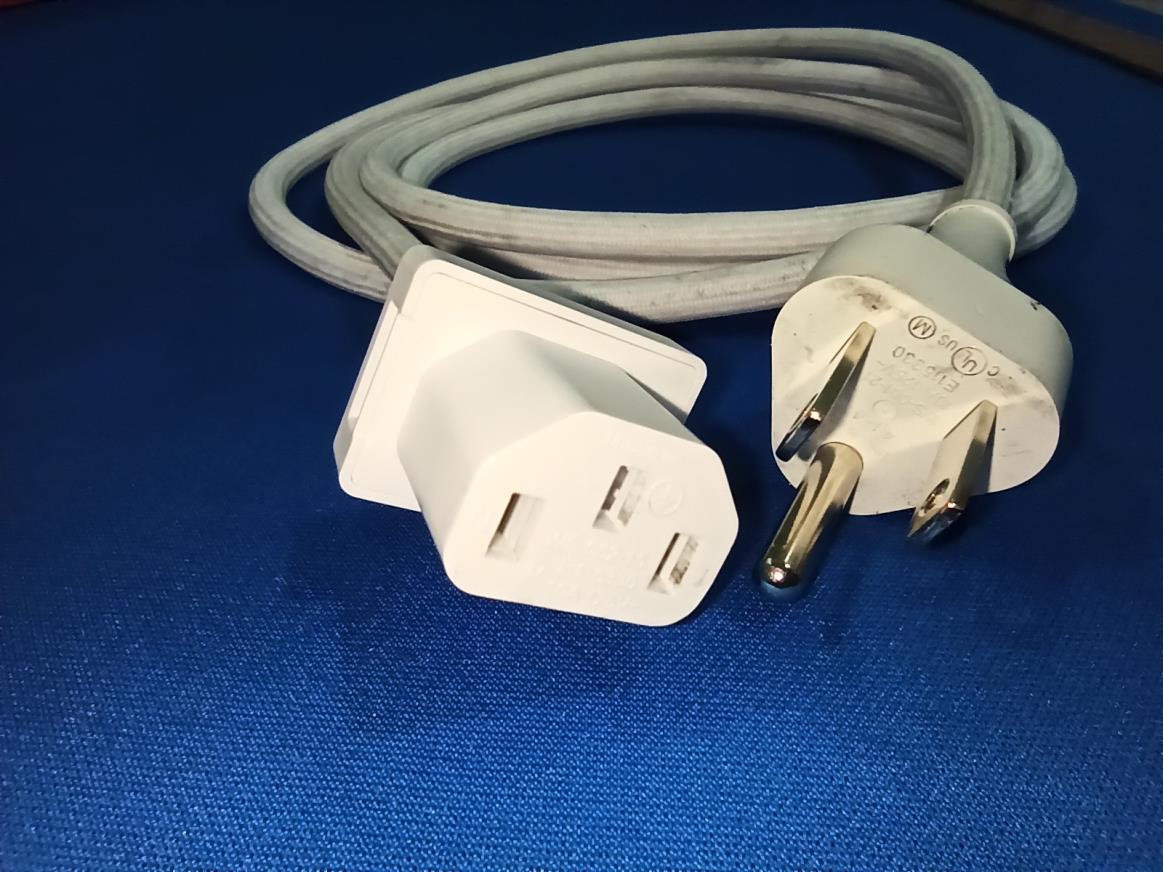

CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 1 of 19 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 2 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 3 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 4 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 5 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 6 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 19 of 19 Power cord Brand: UBIQUITI Model: WS-001-21+WS-002-15

Label & location Label Here: Rear side of EUT

CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 7 of 19 Antenna position CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 8 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 9 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 10 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 11 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 12 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 13 of 19 RF Chip Antenna Connect CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 14 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 15 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 16 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 17 of 19 CERPASS TECHNOLOGY CORP. Report No.: 21100001 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 Page No. : 18 of 19 Antenna

CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 48 of 50 FCC ID. : SWX-UISPSP 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 8.92 dBm (7.798 mW) at 2480 MHz (with 1.5dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 49 of 50 FCC ID. : SWX-UISPSP 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 3770 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 50 of 50 FCC ID. : SWX-UISPSP 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2402-2480 8.92 9.42 1.5 20 0.002 1 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 1 of 50 FCC ID. : SWX-UISPSP FCC RADIO TEST REPORT Applicant : Ubiquiti Inc. Address : 685 Third Avenue, New York, New York 10017, USA Equipment : UISP Switch Pro Model No. : UISP-S-Pro Trade Name : UBIQUITI FCC ID : SWX-UISPSP I HEREBY CERTIFY THAT : The sample was received on Oct. 01, 2021 and the testing was completed on Nov. 11, 2021 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 2 of 50 FCC ID. : SWX-UISPSP CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 11 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 12 4. Antenna Requirements ..................................................................................................................... 14 4.1 Standard Applicable ................................................................................................................. 14 4.2 Antenna Construction and Directional Gain ............................................................................. 14 5. Test of AC Power Line Conducted Emission ................................................................................. 15 5.1 Test Limit .................................................................................................................................. 15 5.2 Test Procedures ....................................................................................................................... 15 5.3 Typical Test Setup .................................................................................................................... 16 5.4 Test Result and Data ................................................................................................................ 17 5.5 Test Photographs ..................................................................................................................... 21 6. Test of Spurious Emission (Radiated) ............................................................................................ 22 6.1 Test Limit .................................................................................................................................. 22 6.2 Test Procedures ....................................................................................................................... 23 6.3 Typical Test Setup .................................................................................................................... 24 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 26 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 26 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 28 6.7 Restricted Bands of Operation ................................................................................................. 34 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 35 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 36 7. Test of Spurious Emission (Conducted) ......................................................................................... 38 7.1 Test Limit .................................................................................................................................. 38 7.2 Test Procedure ......................................................................................................................... 38 7.3 Test Setup Layout .................................................................................................................... 38 7.4 Test Result and Data ................................................................................................................ 38 8. On Time, Duty Cycle and Measurement methods ......................................................................... 41 8.1 Test Limit .................................................................................................................................. 41 8.2 Test Procedure .............................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 21 of 50 FCC ID. : SWX-UISPSP 5.5 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 35 of 50 FCC ID. : SWX-UISPSP 6.8 Test Photographs (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 36 of 50 FCC ID. : SWX-UISPSP 6.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 21100001-TRFCC01 Cerpass Technology Corp. Issued Date : Nov. 19, 2021 T-FD-506-0 Ver 1.5 Page No. : 37 of 50 FCC ID. : SWX-UISPSP Side View
