Networked Serial Interface Model: mPort-S 1 Introduction Introduction Thank you for purchasing the Ubiquiti Networks mFi ™ mPort ™ Serial. The mPort Serial includes the mFi Controller software that allows you to control your machines using your web browser. Package Contents mPort SerialWall-Mount Bracket PoE Adapter and Power Cord Antenna mPort Serial Model: mPort-S Terminal BlockScrews (Qty. 4) Anchors (Qty. 4) Quick Start Guide System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, or Mac OS X • Java Runtime Environment 1.6 (or above) • Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or above) 2 mFi ™ mPort ™ Serial Hardware Overview Front View Antenna Connector Power LED Ethernet LED Status LED Power The Power LED will light steady green when the mPort Serial is properly connected to a power source. Ethernet The Ethernet LED will light steady green when an active Ethernet connection is made and flash when there is activity. Status The Status LED will light yellow when the mPort Serial is first powered on in factory default mode out of the box. The Status LED will light steady green when the mPort Serial has been successfully integrated into a network and is working properly. The Status LED will flash when the Locate button is used in the mFi Controller software. Antenna Connector Connects to the included Antenna. 3 Hardware Overview Side View Serial DB9 Port Serial TB Port USB Port Ethernet Port Wall-Mount Bracket Serial DB9 Port Connects to a switch, router, or other device for remote access. Serial TB (Terminal Block) Port Connects to an industrial networking device for automation, such as script execution from the mFi Controller software. USB Port Reserved for future use. Ethernet Port Connects to the POE port of the PoE Adapter. Wall-Mount Bracket Wall-mounting is optional. 4 mFi ™ mPort ™ Serial Hardware Installation Remove the Wall-Mount Bracket from the mPort Serial by pressing the Release Tabs. Release Tabs Wall-Mount (Optional) 1. Position the Wall-Mount Bracket with the Release Tabs on top. Release Tab Release Tab 5 Hardware Installation 2. To secure the Wall-Mount Bracket to the wall: a. Use a pencil to mark the holes on the wall. b. Use a 6 mm drill bit to drill the holes in the wall. c. Insert the four Anchors into the wall. d. Insert the Screws into the anchors. 3. Angle the mPort Serial so that the notches on the bottom of the Wall-Mount Bracket are inserted into the mPort Serial. Then press the mPort Serial into the Release Tabs and snap it into place. 6 mFi ™ mPort ™ Serial Antenna Installation (Optional) The mPort Serial uses the internal antenna by default. If you want to use an external antenna, then attach the included Antenna and configure its use in the mFi Controller software. 7 Connecting a Serial Device Connecting a Serial Device Each serial port supports RS232, RS422, and RS485. Use the appropriate serial port for your serial cable (not included). Note: Only one serial port can be used at a time. Serial DB9 1. Connect one end of the serial cable to the console port of the switch, router, or other device. Note: A null modem may be needed; refer to the User Guide on the CD-ROM for more information. 2. Connect the DB9 end of the serial cable to the Serial DB9 port of the mPort Serial. 8 mFi ™ mPort ™ Serial Serial TB The Serial TB port is labeled for RS485 pinout. The table lists the pinouts for RS232, RS422, and RS485. For more information, refer to the User Guide on the CD-ROM. FunctionRXTXGround PinoutR-R+T-T+G RS232 ✓✓✓ RS422 ✓✓✓✓ * RS485 ✓✓✓✓ * * Technically not needed. 1. Wire one end of the serial cable to an industrial networking device. Note: Wiring will vary depending on your device. 9 Connecting a Serial Device 2. Wire the other end of the serial cable to the Terminal Block included with the mPort Serial. 3. Insert the Terminal Block into the Serial TB port of the mPort Serial. 10 mFi ™ mPort ™ Serial Connecting Ethernet and Power 1. Connect an Ethernet cable to the Ethernet port on the mPort Serial. 2. Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. 11 Connecting Ethernet and Power 3. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. Note: Wi-Fi settings for the mPort Serial can be configured via LAN or by connecting an Ethernet cable directly from your computer to the LAN port on the PoE Adapter. For details, refer to Accessing the mPort Configuration Portal on page 19. 4. Connect the power cord to the power port on the PoE Adapter. Connect the other end of the power cord to a power outlet. The Power LED should light up on the mPort Serial. 12 mFi ™ mPort ™ Serial Software Download and Installation For local mFi Controller installations, the mFi Controller software is installed just once when you initially create a mFi network. It is not necessary to go through the software installation process every time you add another mFi device. Note: If you are using the cloud, there is no need to install the mFi Controller software locally. Skip to Accessing the mPort Configuration Portal on page 19. The mFi Controller software can be downloaded from the Ubiquiti Networks website. 1. Go to downloads.ubnt.com/mfi 2. Mac users should download mFi.dmg and Windows users should download mFi-installer.exe. 3. Follow the instructions for your computer type. Mac Users 1. Click the Install icon. 13 Software Download and Installation 2. Click Continue and follow the on-screen instructions to install the software. 3. Go to Go > Applications and double-click the mFi icon. Proceed to Configuring the mFi Controller Software on page 16. 14 mFi ™ mPort ™ Serial PC Users 1. Launch mFi-installer.exe. 2. Click Install. 3. If your computer doesn’t have Java 1.6 or above installed, you will be prompted to install it. Click Install to continue. 15 Software Download and Installation 4. Ensure that the Start mFi Controller after install…

Text truncated - open the document above for the full version.

Page 1 of 1 Elliott TCB 41039 Boyce Road Fremont, CA, 94538 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for an 802.11gn pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47), Intentional Radiators RSS-Gen Issue 3, December 2010, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-210, Issue 8, December 2010, “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark Hill Staff Engineer

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Elliott TCB 41039 Boyce Road Fremont, CA. 94538 March 13, 2012 Gentlemen: This is your letter of authorization to accept our appointment of Elliott Laboratories, Inc. as our Agent for Ubiquiti Networks, 91 E Tasman Dr, San Jose, CA to sign applications before Elliott TCB and to make representations to you on our behalf. Elliott Laboratories, Inc. is to receive and exchange data between our company and Elliott TCB. I hereby certify on behalf of Ubiquiti Networks, 91 E Tasman Dr, San Jose, CA ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853a. Sincerely, Jennifer Sanchez Wireless Compliance Manager Ubiquiti Networks

2580 Orchard Pkwy. | San Jose, CA 95131 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. July 2, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re.: Confidentiality Request Letter FCC ID: SWX- VPS To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Jennifer Sanchez Wireless Compliance Manager Ubiquiti Networks [email protected] +1-408-829-1603 (Direct) +1-408-942-3085 (Main)

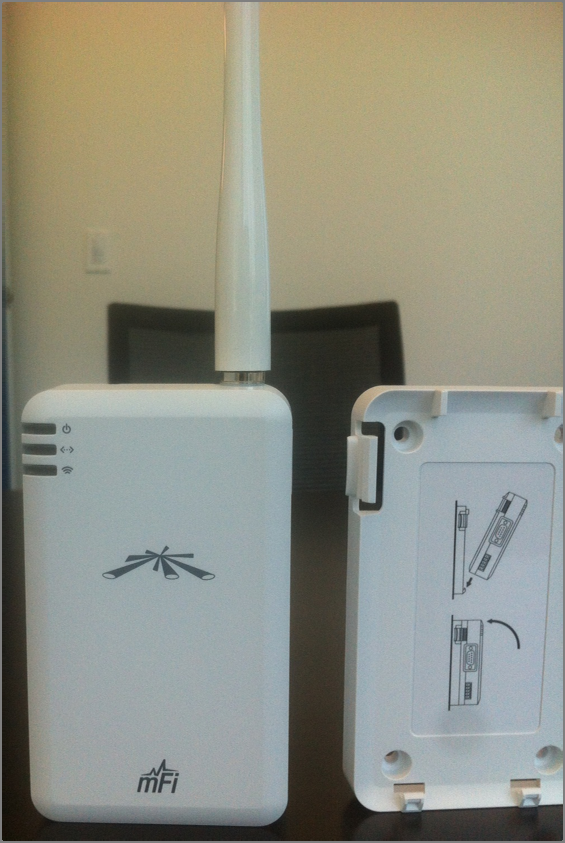

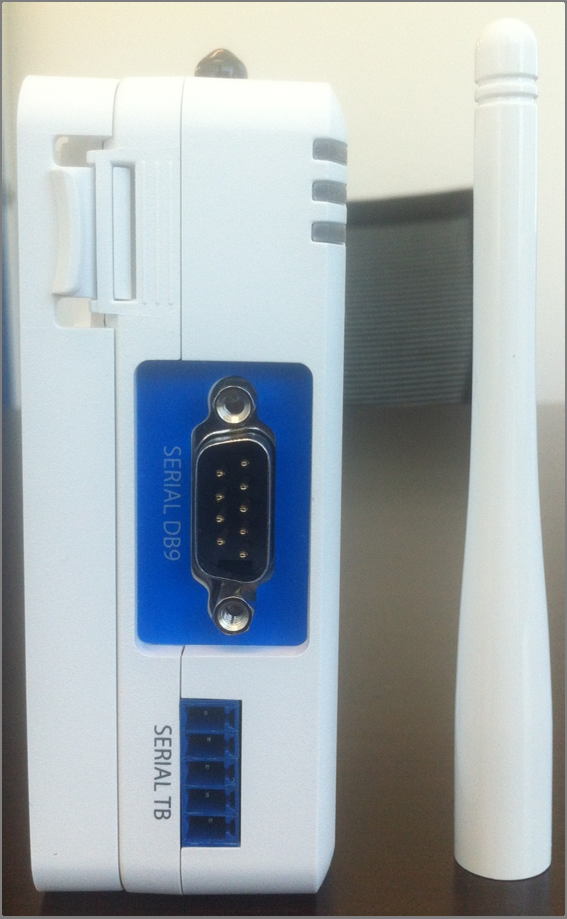

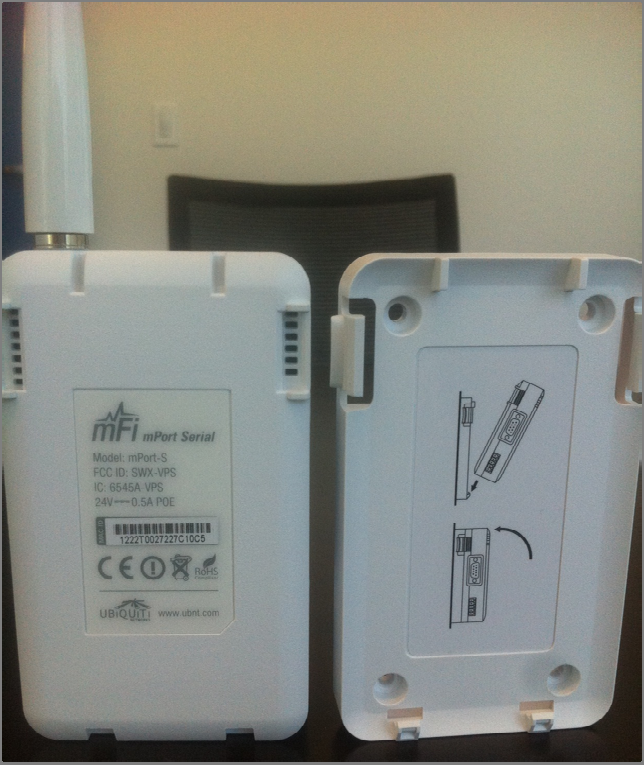

mPort‐S External Photos

mPort‐S Internal Photos

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes Ubiquiti NetworksJob Number: J85169 Model: mPort-S (Serial Port Version) T-Log Number: T85772 Account Manager: Susan Pelzl Jennifer Sanchez FCC 15.247/EN 300 328Class: N/A Test Engineer: Mark Hill RF Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 6/11/2012 Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Device complies with Power Density requirements at 20cm separation:20cm separation: Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. T85772 (FCC_Radio_mPort-S).xlsMPE Calc 11-Jun-12Page 1 of 2 EMC Test Data Client: Contact: Standard: Ubiquiti NetworksJob Number: J85169 Model: mPort-S (Serial Port Version) T-Log Number: T85772 Account Manager: Susan Pelzl Jennifer Sanchez FCC 15.247/EN 300 328Class: N/A Use: General Antenna: 3dBi (Internal - worse case eirp) 802.11g Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 24129.07.9039.015.85 24379.89.5039.819.05 24628.36.8038.313.49 802.11n20 Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 24127.75.9037.711.75 24379.28.3039.216.60 24627.86.0037.812.02 EUTPower Densit y (S)MPE Limit 0.0031.000 mW/cm^2mW/cm^2 Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 EUT 0.0041.000 0.0031.000 at 20 cm MPE LimitPower Densit y (S) Powerat 20 cm 0.0031.000 0.0021.000 0.0021.000 RF Exposure Threshold = 60/f (MHz) 0.0244W 24.37mW Note - worse case EIRP is below the RF ex posure threshold. T85772 (FCC_Radio_mPort-S).xlsMPE Calc 11-Jun-12Page 2 of 2

File: R88352 Rev 2 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15 Subpart C Model: MFi-VPS (mPort-S) IC CERTIFICATION #: 6545A-VPS FCC ID: SWX-VPS APPLICANT: Ubiquiti Networks 2580 Orchard Pkwy San Jose, CA 95131 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 REPORT DATE: July 23, 2012 REISSUE DATE: December 5, 2012 FINAL TEST DATES: January 13, February 10, March 30, April 2, 9 and 11, May 1, 14 and 18, 2012 TOTAL NUMBER OF PAGES: 72 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark E Hill David Guidotti Staff Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: July 23, 2012 Reissue Date: December 5, 2012 File: R88352 Rev 2 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 07-23-2012 First release 1 08-20-2012 Reissued to correct the model name DMG 2 12-05-12 Updated antenna information and results. Included results from the external antenna. MEH NTS Silicon Valley -- EMC Department Test Report Report Date: July 23, 2012 Reissue Date: December 5, 2012 File: R88352 Rev 2 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 4 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) .............................................................................. 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 7 MEASUREMENT UNCERTAINTIES .................................................................................................................... 8 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 9 GENERAL ................................................................................................................................................................ 9 OTHER EUT DETAILS ........................................................................................................................................... 9 ANTENNA SYSTEM .............................................................................................................................................. 9 ENCLOSURE ........................................................................................................................................................... 9 MODIFICATIONS ................................................................................................................................................... 9 SUPPORT EQUIPMENT ....................................................................................................................................... 10 EUT INTERFACE PORTS .................................................................................................................................... 10 EUT OPERATION ................................................................................................................................................. 10 TEST SITE ................................................................................................................................................................. 11 GENERAL INFORMATION ................................................................................................................................. 11 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 11 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................. 11 MEASUREMENT INSTRUMENTATION ............................................................................................................ 12 RECEIVER SYSTEM ............................…
