SWX-WSM55 GHz 802.11 an Module

ComplianCe Sheet Model: WSM5 Modular Usage The powerful 5 GHz WISP OEM Station (model: WSM5) is designed specifically for the WISP OEM market. The transmitter must only be used with the approved antenna(s). Please refer to www.ubnt.com/products for details. The WSM5 is compatible with existing Atheros Linux drivers and is only capable of 5745-5850 MHz frequency range per the FCC/IC grant. Power and frequency limits are hardcoded into the radio card EEPROM. It is necessary that the system integrators perform all applicable retesting and certification for their final system configurations. Important Modular Approval Information This device is intended only for the OEM integrator under the following conditions: • The antenna must be installed such that 66 cm is maintained between the antenna and users, and • The transmitter module may not be co-located with any other transmitter or antenna. IMPORTANT NOTE: In the event that these conditions cannot be met (for example, certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 66 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: Contains FCC ID: SWX-WSM5 and IC: 6545A-WSM5 End Product Manual Information The user manual for end users must include the following information in a prominent location: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 66 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. JL062012 www.ubnt.com © 2012 Ubiquiti Networks, Inc. All rights reserved. WSm5 important operation information FCC Part 15.247 (b)(4) (iii) – Professional Install Statement The professional installer is responsible for ensuring that the system is used exclusively for fixed, point-to-point operations. Installer Compliance Responsibility Devices must be professionally installed. Ubiquiti Networks does not allow operation outside of the approved 5745-5850 MHz frequency range. FCC Notice to Users and Operators Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 3. This device may not cause interference, and 4. This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numérique de la classe A est confrome à la norme NMB-003 Canada. Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas provoquer d’interférences et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 66 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 66 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur. For MPE and antenna usage details, please visit our website at www.ubnt.com/products IC Requirement - RSS-GEN for Permanently Attached Antennas Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for…

Text truncated - open the document above for the full version.

2580 Orchard Pkwy. | San Jose, CA 95131 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. May 21, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re.: Confidentiality Request Letter FCC ID: SWX-WSM5 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Jennifer Sanchez Wireless Compliance Manager Ubiquiti Networks [email protected] +1-408-829-1603 (Direct) +1-408-942-3085 (Main)

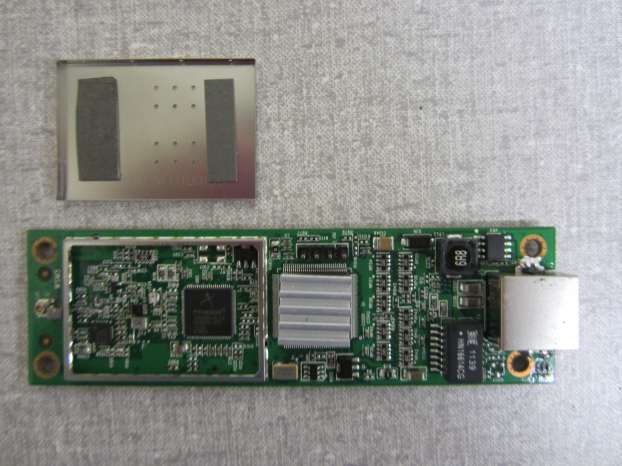

2580 Orchard Pkwy. | San Jose, CA 95131 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. May 31, 2011 Dear Application Examiner, Ubiquiti Networks, FCC ID: SWX-WSM5, would like to have your authorization as a modular approval specific to WISP OEM module. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Refer to external photos. 2. “The modular transmitter must have buffered modulation/data inputs.”: All inputs to the modules are buffered through logic or microprocessor inputs. 3. “The modular transmitter must have its own power supply regulation.”: Internal 2.5V/3.3V power regulator. Refer to block diagram. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).”: The device is equipped with a unique antenna connector. Refer to external photos. 5. “The modular transmitter must be tested in a stand-alone configuration”: The device was tested in an adapter which exposed it outside that of a host laptop. 6. “The modular transmitter must be labeled with its own FCC ID number.”: There is one FCC ID submitter. A second FCC ID will be obtained by OEM customers for use in their hosts 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.”: There are specific EEPROM settings inside the module that prohibit illegal usage. 8. “The modular transmitter must comply with any applicable RF exposure requirements.”: The module is NOT a portable device for laptops. Can only be used in mobile applications. Please contact me if there is any information you may need. Sincerely, Jennifer Sanchez Wireless Compliance Manager Ubiquiti Networks [email protected] +1-408-829-1603 (Direct) +1-408-942-3085 (Main)

Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5725-5850 MHz; highest conducted power = 22.26 dBm + 2dBm = 24.26dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 23 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (266.69mW) G = Antenna Gain (199.53 numeric) R = (266.69*199.53/ 4*3.14*1.0) 1/2 = (5321.83 / 12.56) 1/2 = 65.08cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 3162 BELICK STREET ! SANTA CLARA, CA 95054 ! PHONE (408) 748-3585 ! FAX (510) 489-6372 13301 MCCALLEN PASS ! AUSTIN, TX 78753 ! PHONE (512) 287-2500 ! FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory June 5, 2012 Ubiquiti Networks, Inc. 91 E. Tasman Drive San Jose, CA 95134 Dear Jennifer Sanchez, Enclosed is the EMC Wireless test report for compliance testing of the Ubiquiti Networks, Inc., WispStation M5 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ubiquiti Networks, Inc.\EMCS34046-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Ubiquiti Networks, Inc. Cover Page WispStation M5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS34046-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page ii of x DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks, Inc. WispStation M5 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMCS34046-FCC247 Rev. 1 June 5, 2012 Prepared For: Ubiquiti Networks, Inc. 91 E. Tasman Drive San Jose, CA 95134 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks, Inc. Cover Page WispStation M5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS34046-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page iii of x DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks, Inc. WispStation M5 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks, Inc. Report Status WispStation M5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS34046-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page iv of x DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  May 16, 2012 Initial Issue. 1 June 5, 2012 Revised to reflect corrected model name and MPE Calculation. Electromagnetic Compatibility Ubiquiti Networks, Inc. Table of Contents WispStation M5 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMCS34046-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page v of x DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................6 E. Equipment Configuration ....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ....................................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup, Front View Photograph 2. Conducted Emissions, Test Setup, Side View Photograph 3. Radiated Emissions, Test Setup Photograph 4. Radiated Emissions, Test Setup, 30 MHz – 1 GHz Photograph 5. Radiated Emissions, Test Setup, 1 GHz – 10 GHz Photograph 6. Conducted Emissions, 15.207(a), Test Setup, Front View Photograph 7. Conducted Emissions, 15.207(a), Test Setup, Side View Photograph 8. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 9. Radiated Spurious Emissions, Test Setup, 1 GHz – 18 GHz
