SWX-XR9900MHz Wireless PCMCIA Module

Ubiquiti Inc.
900MHz Wireless PCMCIA Module - FCC ID SWX-XR9 - Ubiquiti Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 12, 2007
Application Purpose
Original Equipment
Date of Application
Sep 12, 2007
Equipment Note
900MHz Wireless PCMCIA Module
Frequency Range
907.00000000 - 922.00000000
Company
Ubiquiti Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

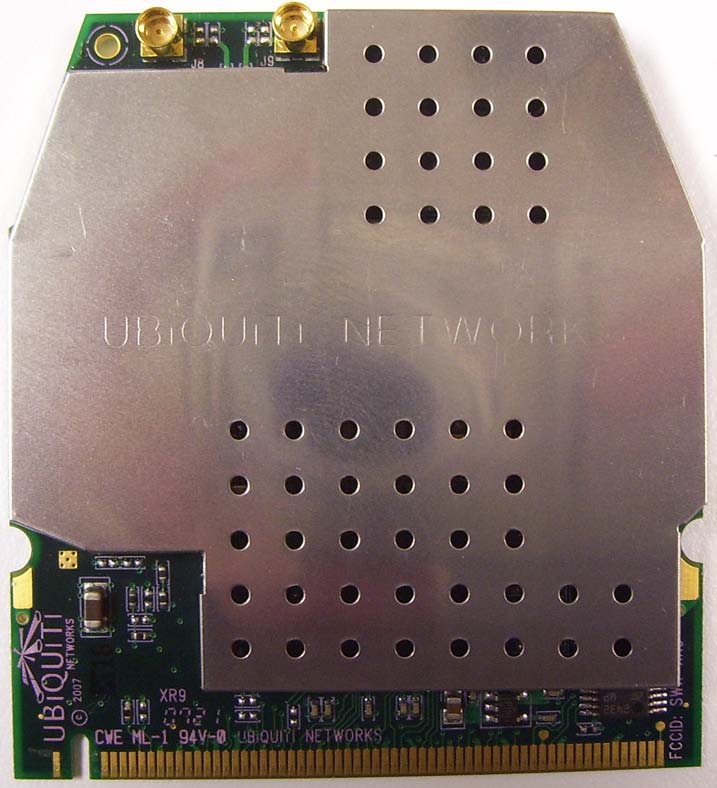

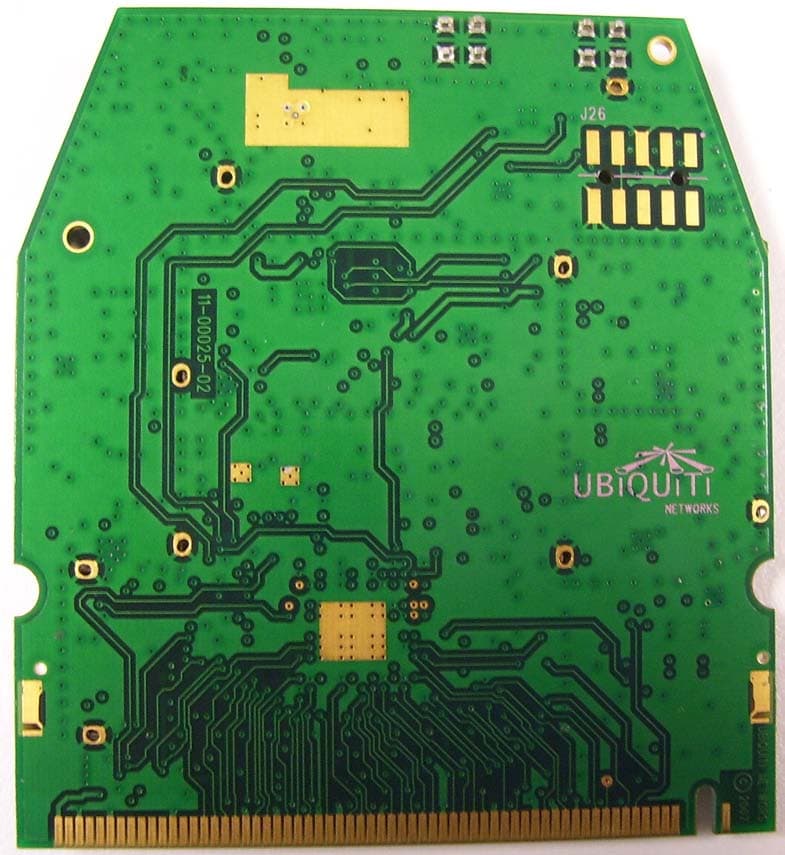

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

XTREMERange9 OEM INTEGRATION GUIDE Carrier-Class 900MHz Radio Module TECHNICAL SPECIFICATIONS XTREMERange9 DataRateTX PowerToleranceDataRateSensitivityTolerance 1Mbps27 dBm+/-1.5dB1Mbps-93 dBm+/-2dB 2Mbps27 dBm+/-1.5dB2Mbps-92 dBm+/-2dB 5.5Mbps27 dBm+/-1.5dB5.5Mbps-91 dBm+/-2dB 11Mbps27 dBm+/-1.5dB11Mbps-88 dBm+/-2dB 6Mbps27 dBm+/-1.5dB6Mbps-91 dBm+/-2dB 9Mbps27 dBm+/-1.5dB9Mbps-90 dBm+/-2dB 12Mbps27 dBm+/-1.5dB12Mbps-88 dBm+/-2dB 18Mbps27 dBm+/-1.5dB18Mbps-87 dBm+/-2dB 24Mbps27 dBm+/-1.5dB24Mbps-83 dBm+/-2dB 36Mbps25 dBm+/-1.5dB36Mbps-83 dBm+/-2dB 48Mbps23 dBm+/-1.5dB48Mbps-74 dBm+/-2dB 54Mbps21 dBm+/-1.5dB54Mbps-71 dBm+/-2dB DataRateCurrentToleranceDataRateCurrentTolerance 1Mbps1.2 A+/-100 mA1Mbps500mA+/-100 mA 2Mbps1.2 A+/-100 mA2Mbps500mA+/-100 mA 5.5Mbps1.2 A+/-100 mA5.5Mbps500mA+/-100 mA 11Mbps1.2 A+/-100 mA11Mbps500mA+/-100 mA 6Mbps1.2 A+/-100 mA6Mbps500mA+/-100 mA 9Mbps1.2 A+/-100 mA9Mbps500mA+/-100 mA 12Mbps1.2 A+/-100 mA12Mbps500mA+/-100 mA 18Mbps1.2 A+/-100 mA18Mbps500mA+/-100 mA 24Mbps1.2 A+/-100 mA24Mbps500mA+/-100 mA 36Mbps1.1 A+/-100 mA36Mbps500mA+/-100 mA 48Mbps1.0 A+/-100 mA48Mbps500mA+/-100 mA 54Mbps0.85 A+/-100 mA54Mbps500mA+/-100 mA Frequency5MHz10MHz20MHzFrequency5MHz10MHz20MHz 907 MHz917 MHz 912 MHz922 MHz 802.11g OFDM 802.11g OFDM 900MHz TX SPECIFICATIONS900MHz RX SPECIFICATIONS 802.11b 802.11b 802.11g OFDM 802.11g OFDM CURRENT CONSUMPTION INFORMATION RANGE PERFORMANCE Up to 100metersIndoor (Antenna Dependent): Over 1kmOutdoor (Antenna Dependent): OPERATING FREQUENCY 907-922MHz 900MHz TX SPECIFICATIONS900MHz RX SPECIFICATIONS 802.11b 802.11b 900MHz FREQUENCY CHANNEL SUPPORT Antenna PortsDual u.fl (Primary only required; secondary optional for diversity) Temperature Range -45C to +90C SecurityWPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP Data Rates1Mbps-11Mbps (802.11b), 6-54Mbps (802.11g) RoHS ComplianceYES DRIVER INFORMATION REGULATORY INFORMATION Wireless Modular ApprovalsFCC and Industry Canada Cisco SupportCCX 4.0 Supported Driver/Utility also available from Ubiquiti For help with MADWIFI or other Special Driver Support, Please e-mail [email protected] Operating System SupportLinux MADWIFI, WindowsXP, Windows2000 Advanced Mobility / QuickHandoffWindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti Operation Voltage3.3VDC CARD INFORMATION Radio Operation Proprietary 900MHz based on 802.11b/g CCK/OFDM Interface32-bit mini-PCI Type IIIA MECHANICAL DIMENSIONS 495-499 Montague Expwy. Milpitas, CA 95035 San Jose, CA 95112 T (408)-942-3085 F (408)-351-4973 http://www.ubnt.com XTREMERange9

Cover Letter(s)

Ubiquiti Networks, Inc. 495-499 Montague Expwy Milpitas, CA 95035 8/15/07 Attn: MET laboratories 914 West Patapsco Ave. Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR XtremeRange9 (FCC ID: SWX-XR9) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested that the schematics, block diagrams, Bill of Materials, tune-up procedure, and theory of operation required to be submitted with this application be withheld from public review. These documents contain proprietary information that would sacrifice our competitive advantage in the marketplace if made public. Please contact me if there is any information you may need. Sincerely, Robert J. Pera Senior RF Engineer

Cover Letter(s)

495 Montague Expwy. Milpitas, CA 95035 (408)-942-3085 www.ubnt.com September 12, 2007 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Robert J. Pera Senior RF Engineer Ubiquiti Networks

Cover Letter(s)

Ubiquiti Networks, Inc. 495-499 Montague Expwy Milpitas, CA 95035 September 27, 2007 Dear Application Examiner, Ubiquiti Networks FCC ID: SWX-XR9, would like to have your authorization as a modular approval specific to Mini PCI module. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Device is equipped with metal shielding to cover RF section. Refer to external photos 2. “The modular transmitter must have buffered modulation/data inputs.”: All inputs to the modules are buffered through logic or microprocessor inputs. 3. “The modular transmitter must have its own power supply regulation.”: Internal 2.5V/3.3V power regulator. Refer to block diagram. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).”: The device is equipped with a unique antenna connector. Refer to external photos. 5. “The modular transmitter must be tested in a stand-alone configuration”: The device was tested in an adapter which exposed it outside that of a host laptop. 6. “The modular transmitter must be labeled with its own FCC ID number.”: There is one FCC ID submitter. A second FCC ID will be obtained by OEM customers for use in their hosts. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.”: There are specific EEPROM settings inside the module that prohibit illegal usage. 8. “The modular transmitter must comply with any applicable RF exposure requirements.”: The module is NOT a portable device for laptops. Can only be used in mobile applications. Please contact me if you have any further questions. Regards, Robert J. Pera Senior RF Engineer

ID Label/Location Info

FCCID: SWX-XR9IC: 6545A-XR9

RF Exposure Info

Antenna Information Dimensions: 19in x 16in x 3in Frequency: 900-928MHz Gain: 7dBi Evergreen 900ISM_P-7 SMA Connector

RF Exposure Info

Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 902-928 MHz ; highest conducted power = 29.0dBm (peak) therefore, Limit for Uncontrolled exposure: 0.6 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 7 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (794.3mW) G = Antenna Gain (5.0numeric) R = (794.3*5.0/ 4*3.14*0.6) 1/2 = (3971.5 / 7.536) 1/2 = 22.95 cm

Test Report

Electromagnetic Compatibility Ubiquiti Networks Cover Page XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Page ii of viii Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks Model XR9 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS80375A-FCC247 August 17, 2007 Prepared For: Ubiquiti Networks 495 Montague Expressway Milpitas, CA 95035 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 Electromagnetic Compatibility Ubiquiti Networks Cover Page XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Page iii of viii Electromagnetic Compatibility Criteria Test Report for the Ubiquiti Networks Model XR9 Tested Under Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Shawn McMillen, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of FCC Rule Parts 15B and Part 15.247 & ICES-003, Issue 4 February 2004 and RSS-210, Issue 7, June 2007, of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Ubiquiti Networks Report Status XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Page iv of viii Report Status Sheet Revision Report Date Reason for Revision ∅ August 17, 2007 Initial Issue. Electromagnetic Compatibility Ubiquiti Networks Table of Contents XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Page v of viii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration..................................................................................................................................10 F. Support Equipment ...........................................................................................................................................10 G. Ports and Cabling Information ..........................................................................................................................11 H. Mode of Operation............................................................................................................................................11 I. Method of Monitoring EUT Operation .............................................................................................................11 J. Modifications ....................................................................................................................................................11 a) Modifications to EUT..................................................................................................................11 b) Modifications to Test Standard....................................................................................................11 K. Disposition of EUT ...........................................................................................................................................11 III. Electromagnetic Compatibility Criteria for Unintentional Radiators ..............................................................12 § 15.107(a) Conducted Emissions Limits.............................................................................................................. 13 § 15.109(a) Radiated Emission Limits .................................................................................................................. 17 § 15.09(a) Radiated Emissions Limits................................................................................................................... 17 IV. Electromagnetic Compatibility Criteria for Intentional Radiators .....................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Conducted Emission Limits Test Setup Conducted Emissions Test Setup Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Radiated Emission Limits Test Setup Radiated Emission Test Setup 30 MHz - 1 GHz Electromagnetic Compatibility Ubiquiti Networks Unintentional Radiators XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Radiated Emission Limits Test Setup Radiated Emission Test Setup 30 MHz - 1 GHz Electromagnetic Compatibility Ubiquiti Networks Intentional Radiators XR9 CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS80375A-FCC247 © 2007, MET Laboratories, Inc. Test Equipment and setup for various Radiated Measurements

Contact Information

Applicant

Alex Macon
[email protected]385-200-1617Fax: 408-904-7556

Test Firm

MET LaboratoriesAlvin Ilarina
[email protected]408-919-3774Fax: 1234567890

Technical Specifications

#Rule PartsFrequency RangePower OutputEmission
415C907 MHz - 922 MHz794.00 mW16M2D7D
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular approval. Power output listed is conducted. This module may only be installed by the OEM or an OEM integrator. The antenna(s) used for this transmitter is 7dBi gain and must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
