SXNLSNM-0001-ALight Sensory Network Module

Reference Guide – NetSense Platform Network Module PROPRIETARY PAGE 1 OF 5 Overview The Sensity Systems NetSense platform introduces an open architecture-based Light Sensory Network that can be deployed at the same time as Sensity LED retrofits and new LED luminaires. The NetSense platform leverages standards-based IPv4/6 (Internet Protocol version 4 or 6) data transports that support a variety of application-specific sensors and software analytics to deliver multi- service capabilities at each LED retrofit/new luminaire. Savings derived from converting to LED lighting help fund the deployment of this sophisticated platform, which enables light owners to leverage their investment in LEDs by running a variety of software applications, spanning both lighting-specific and non-lighting-related services. Electrical Specifications  AC Input: 100-277 VAC, Max current up to 10A Environmental Specification  Operating Temperature: -20C to 65C  Storage Temperature: -20C to 85C  Enclosure Suitable for Damp Locations, not directly exposed to outdoor elements Antenna Specification  External antenna installation is constrained to any Omni-directional antenna rated ≤ 6dbi and supporting 2.4/ 5GHz frequencies. Antenna specification is provided only by Sensity engineering and has been validated to meet the requirements imposed by FCC through testing. Installation Guidelines  NetSense Platform Network Module (LSNM-0001-A) must only be installed into outdoor, non- residential locations.  Installation is only allowed into approved Sensity Systems luminaires  Module must be installed into a downward facing position relative to ground  Only professional installation is allowed through Sensity authorized factories Serviceability  There are no serviceable items within the module. Per FCC requirements, the unit cannot be serviced by any end user; regardless if in-warranty or out of warranty. If the unit is malfunctioning or causing interference with existing radio devices; o Determine cause of interference and remove suspect device from service o Contact Sensity Systems Customer Service at 1-855-500-SENS (7367) Reference Guide – NetSense Platform Network Module PROPRIETARY PAGE 2 OF 5 Wiring Installation Guide Reference Guide – NetSense Platform Network Module PROPRIETARY PAGE 3 OF 5 Product Labeling Guidelines  Product is to be labeled in accordance to Sensity Systems LSNM_MarkingRequirements document; no other changes or revisions to placement, script, font or size is allowed.  Refer to below for brief detail of label placement Micronode (uNode) Label Micronode Enclosure Label Installation Example Label/ Placement Network Identifier FCC Identifier Enclosure Product Identifier Product Label Reference Guide – NetSense Platform Network Module PROPRIETARY PAGE 4 OF 5 Luminaire Installation and Verification Procedure  Power up luminaire containing netsense networking element using rated voltage. Network Node should connect to wireless gateway/repeater automatically once power is applied  Connect to customer server to control and collect data from a luminaire containing network node. Note: Please contact your sales representative if web address, userid and password is not provided.  Verify following items from the server website: o Network node appears on the server. (If network node do not appear on the server, there please verify that gateway/repeaters are powered up.) o The WIFI status shows network connection.  Verify that dimming functionality controlled by network node and LED driver work as expected (dim from 100 to 50% and turn on/off light).  Verify that temperature (external) measured by sensor is within reasonable values. Picture showing key identifier on LSN server website  Move luminaire from original location to correct location by changing latitude/longitude or dragging the symbol. Provides status of light, WIFI (network connectivity) and sensor alarms. Provides status of boot counts and power meter related values (current, voltage, power etc) Use the menu to control light and dimming levels. Reference Guide – NetSense Platform Network Module PROPRIETARY PAGE 5 OF 5 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or other communication devices, which can be determined by turning the equipment on and off, the user is encouraged to try and correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment and the receiver  Contact the manufacturer for additional support. The FCC requires the user to be notified that any changes to modifications made to this device that are not expressly approved by Sensity Systems, will void the user’s authority to operate the equipment.

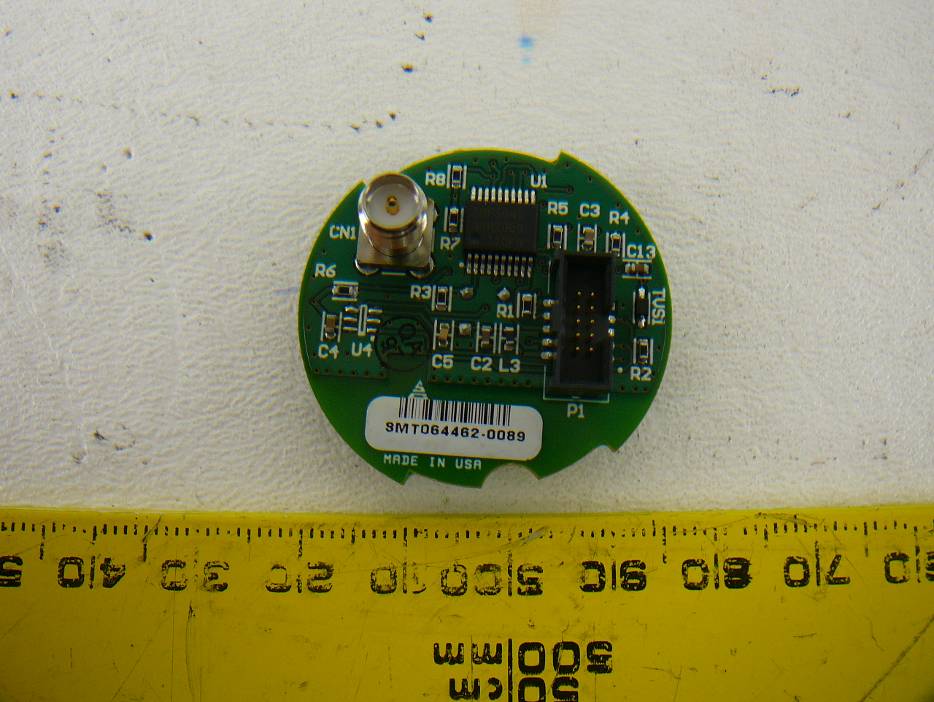

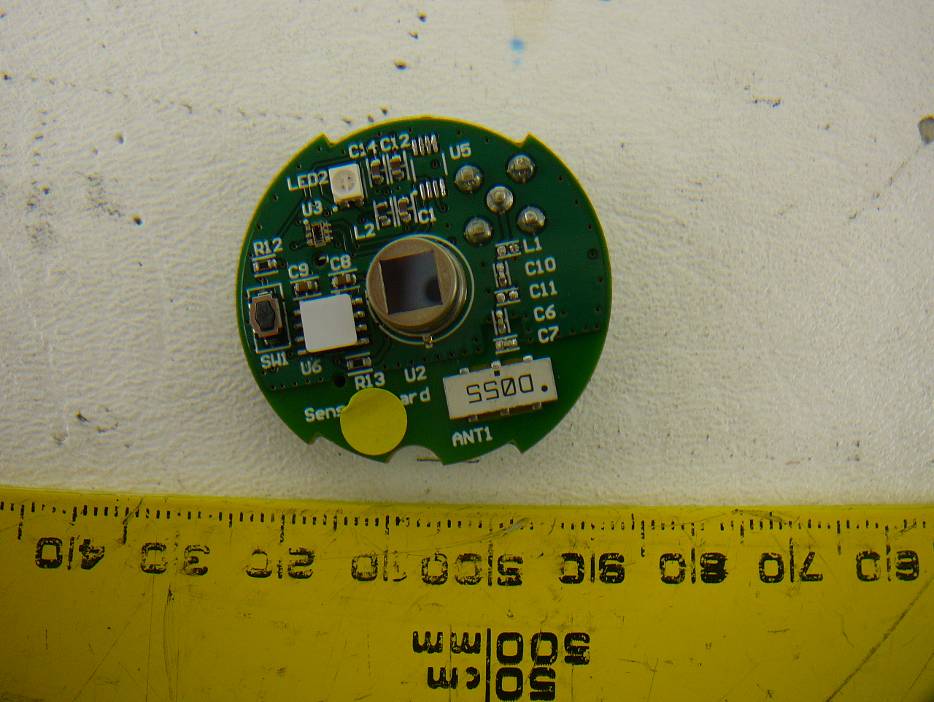

Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 81 of 86 FCC Part 15C Test Report 15 Exhibit C – EUT Photographs 15.1 Module with Enclosure and the External Antenna View 15.2 Module with Enclosure Top View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 82 of 86 FCC Part 15C Test Report 15.3 Module with Enclosure Bottom View 15.4 Module with Enclosure Side View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 83 of 86 FCC Part 15C Test Report 15.5 Open View 15.6 Main Board Component View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 84 of 86 FCC Part 15C Test Report 15.7 Main Board Solder View 15.8 Power Board Component View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 85 of 86 FCC Part 15C Test Report 15.9 Power Board Solder View 15.10 Sensor Board Component View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 86 of 86 FCC Part 15C Test Report 15.11 Sensor Board Solder View --- END OF REPORT ---

Marking Requirements: Light Sensory Network Module Micronode (uNode) Label Network Identifier Font (Size) Font Type Requirement Actual 16.5 x 8mm -- Sensity Logo Sensity Logo 8 Arial Bold Node ID (NID) Variable: Generated During Test 8 Arial Bold MAC Address (MAC) Variable: Generated During Test 5 x 5 mm Data Matrix Code Contains NID and MAC FCC Identifier Font (Size) Font Type Requirement Actual 8 Arial Bold FCC ID FCC ID: SXNLSNM-0001-A 3 x 40 mm Barcode Code 128 SXNLSNM-0001-A Network Identifier 2" 1 / 2 " MAC:00:10:B5:C4:99:6A NID: N0198C24C FCC Identifier 2" 1 / 2 " FCC ID:SXNLSNM-0001-A Application Material – Thermal Transfer Print Label Stock Ribbon Zebra Z-Ultimate 3000T Polyester (ANSI/ UL969 rated), -40 / 150 degC White Background UL Listed: PGJI2.MH15633 Zebra 5095 Thermal Transfer Ribbon UL Listed: PGJI2.MH18322 and PGJI2.MH15633 Micronode Enclosure Label Enclosure Label Specification Font (Size) Font Type Requirement Actual 20 x 10mm -- Sensity Logo Sensity Logo 8 x 8 mm -- CSA Trademark cCSAul Logo 10 Arial Bold Model LSNM-0001-A 10 Arial Bold Serial Number Variable: 010WWYYFSSSSSSSS Format 10 Arial Bold Electrical Rating Specified per CSA Requirements 10 Arial Bold Environmental Class Specified per CSA Requirements 8 x 8 mm Data Matrix Code Contains Model and Serial Number Enclosure 3" 2 " SUITABLE FOR DAMP LOCATION LSNM-0001-A 010WWYYFSSSSSSSS AC INPUT:120-277V / 5A / 50-60HZ MAC:00:10:B5:C4:99:6A NID: N0198C24C Second Network Identifier Label CONTAINS FCC ID: SXNLSNM-0001-A Application Material – Thermal Transfer Print Label Stock Ribbon Zebra Z-Ultimate 4000T Polyester (ANSI/ UL969 rated), -40 / 150 degC White Background UL Listed: PGJI2.MH15633 Zebra 5095 Thermal Transfer Ribbon UL Listed: PGJI2.MH18322 and PGJI2.MH15633 Installation Example Label/ Placement Product Label Specification Font (Size) Font Type Requirement Actual 20 x 10mm -- Sensity Logo Sensity Logo 8 x 8 mm -- CSA Trademark cCSAul Logo 10 Arial Bold Model Variable: Luminaire Model 10 Arial Bold Serial Number Variable: 010WWYYFSSSSSSSS Format 10 Arial Bold Electrical Rating Specified per CSA Requirements 10 Arial Bold FCC ID Contains FCC ID: SXNLSNM-0001-A 10 Arial Bold Environmental Class Specified per CSA Requirements 8 x 8 mm Data Matrix Code Contains Model, Serial Number, CAT/SKU Product Label Design 3" 2 " SUITABLE FOR WET LOCATIONS XLE-5MS-118-50P7-UAC-G4 AC INPUT:120-277V / 40W / 50-60HZ 010WWYYFSSSSSSSS S10-000011 Contains FCC ID: SXNLSNM-0001-A Third Network Identifier Label MAC:00:10:B5:C4:99:6A NID: N0198C24C Application Example Material – Thermal Transfer Print Label Stock Ribbon Zebra Z-Ultimate 4000T Polyester (ANSI/ UL969 rated), -40 / 150 degC White Background UL Listed: PGJI2.MH15633 Zebra 5095 Thermal Transfer Ribbon UL Listed: PGJI2.MH18322 and PGJI2.MH15633

Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 81 of 86 FCC Part 15C Test Report 15 Exhibit C – EUT Photographs 15.1 Module with Enclosure and the External Antenna View 15.2 Module with Enclosure Top View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 82 of 86 FCC Part 15C Test Report 15.3 Module with Enclosure Bottom View 15.4 Module with Enclosure Side View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 83 of 86 FCC Part 15C Test Report 15.5 Open View 15.6 Main Board Component View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 84 of 86 FCC Part 15C Test Report 15.7 Main Board Solder View 15.8 Power Board Component View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 85 of 86 FCC Part 15C Test Report 15.9 Power Board Solder View 15.10 Sensor Board Component View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 86 of 86 FCC Part 15C Test Report 15.11 Sensor Board Solder View --- END OF REPORT ---

Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 11 of 86 FCC Part 15C Test Report 4 FCC §2.1091 & §15.247 (i) – RF Exposure 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm): 17.48 Maximum peak output power at antenna input terminal (mW): 55.98 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Maximum Antenna Gain, typical (dBi): -1.7 Maximum Antenna Gain (numeric): 0.676 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0075 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.0075 mW/cm 2 .

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15, SUBPART C TEST AND MEASUREMENT REPORT For Sensity Systems, Inc. 480 Oakmead Parkway, Sunnyvale, CA 94085, USA Report Type: Original Report Product Type: Light Sensory Module Prepared By: Lionel Lara Report Number: R1304307-247 Report Date: 2013-09-24 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: SXNLSNM-0001-A Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 2 of 86 FCC Part 15C Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ...................................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................................... 5 1.3 Objective ............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ............................................................................................................................. 5 1.5 Test Methodology ............................................................................................................................................... 5 1.6 Measurement Uncertainty ................................................................................................................................... 5 1.7 Test Facility ........................................................................................................................................................ 6 2 System Test Configuration.......................................................................................................................................... 8 2.1 Justification ......................................................................................................................................................... 8 2.2 EUT Exercise Software....................................................................................................................................... 8 2.3 Special Equipment .............................................................................................................................................. 8 2.4 Equipment Modifications.................................................................................................................................... 8 2.5 Local Support Equipment ................................................................................................................................... 8 2.6 EUT Internal Configuration Details .................................................................................................................... 8 2.7 Interface Ports and Cables .................................................................................................................................. 9 2.8 Power Supply List and Details ............................................................................................................................ 9 3 Summary of Test Results ............................................................................................................................................ 10 4 FCC §2.1091 & §15.247 (i) – RF Exposure ................................................................................................................ 11 4.1 Applicable Standard .......................................................................................................................................... 11 4.2 MPE Prediction ................................................................................................................................................. 11 4.3 MPE Results ..................................................................................................................................................... 11 5 FCC §15.203 – Antenna Requirements ...................................................................................................................... 12 5.1 Applicable Standard .......................................................................................................................................... 12 5.2 Antenna List ...................................................................................................................................................... 12 6 FCC §15.207 – AC Line Conducted Emissions ......................................................................................................... 13 6.1 Applicable Standards ........................................................................................................................................ 13 6.2 Test Setup ......................................................................................................................................................... 13 6.3 Test Procedure .................................................................................................................................................. 13 6.4 Test Setup Block Diagram ..................................................................................................................…

Text truncated - open the document above for the full version.

Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 78 of 86 FCC Part 15C Test Report 14 Exhibit B – Test Setup Photographs 14.1 Conducted Emissions - Front View 14.2 Conducted Emissions - Side View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 79 of 86 FCC Part 15C Test Report 14.3 Radiated Emission Front View 14.4 Radiated Emission below 1 GHz Rear View Sensity Systems, Inc. FCC ID: SXNLSNM-0001-A Report Number: R1304307-247 Page 80 of 86 FCC Part 15C Test Report 14.5 Radiated Emission above 1 GHz Rear View
