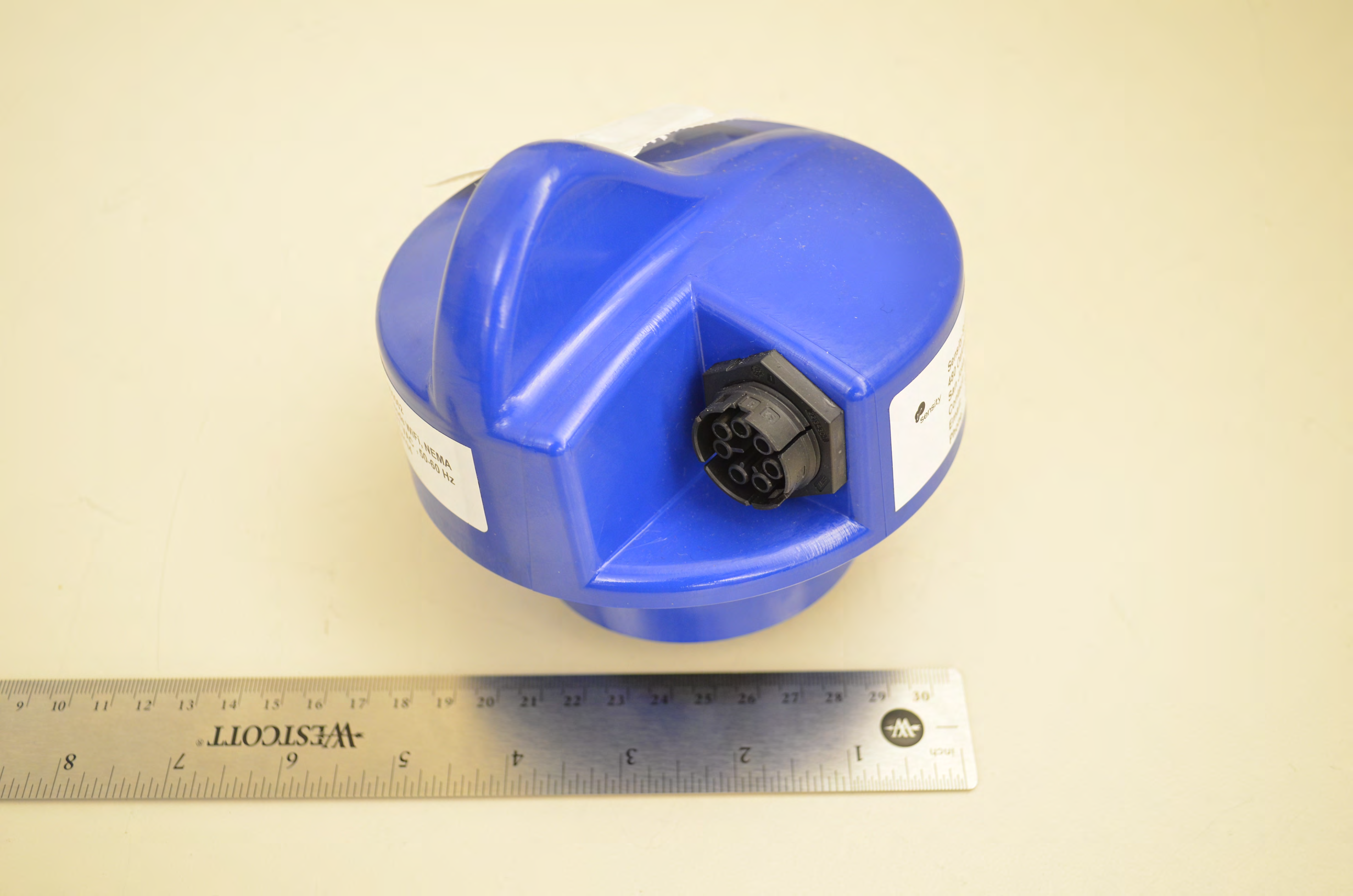

SXNWYSBMVGX41CORE NODE EXTERNAL, WIFI

EXTERNAL CORE NODE INSTALLATION / REFERENCE GUIDE Environmental Considerations  Operational Temperature: -30°C - +55°C (-22°F - 131°F)  Storage Temperature: -50°C - +65°C (-58°F - 149°F)  Ingress Protection Rating: External Core Node - IP43 Compliant External Sensor Pod – IP65 Compliant Required Tool List  Flat Head Screwdriver  Cable De-Latching Tool  UV resistant outdoor cable ties Power, Current and Weight Requirements Voltage Configuration Switchable LED Power (Watts) Switchable LED Current (A) Switchable AUX Current (A) Maximum Weight (lbs.) 120V 600 5 2 1.0 277V 831 3 2 1.0 480V 480 1 1 1.5 External Sensor Pod Pole Mounting Requirements Mounting Type Horizontal Pole Mount Vertical Pole Mount Round Pole Diameter 1 5/8” – 2 3/8” Minimum 3” Square Pole Dimension Minimum 4” height Minimum 3” width Installation Preparation 1. Ensure the luminaire fixture is equipped with acceptable 7-pin NEMA connector. If fixture does not have this receptacle, a retrofit kit can be ordered from Sensity Systems. 2. Ensure NEMA receptacle North Position (N) is orientated 90° right of luminaire (3 o’clock position) if faced from pole direction. This ensures the External Core Node power connection is correctly facing the pole-side of the luminaire. Mounting Instructions Pole Mounting illustration is shown. Box arm mounting instructions are same, substituting pole for box arm following mounting requirement size above. 1. Install the External Core Node on the photocell receptacle by fully seating the node prongs in to the receptacle, provide a slight clockwise twist to lock into place. Optional External Sensor Pod Installation 1. External Sensor Pod includes (1) Horizontal Bracket and (1) Vertical Bracket for mounting. Chose what is best suited for installation and discard other. 2. Position External Sensor Pod at the distance provided by the included sensor power cable. 3. Using supplied band-clamp, feed strap through mounting tabs and secure to intended pole location. 4. Tighten clamp until sensor bracket is firm and secure. 5. Position External Sensor Pod onto mounting bracket and secure with wingnuts. No not over-tighten. Sensor should be facing in a downward position for optimal performance. 6. Remove protective cap from the External Core Node power tap using supplied De-Latching tool 7. Install supplied sensor cable into mating connectors on both External Core Node and External Sensor Pod. Ensure a positive snap is heard, noting positive connector engagement. 8. Secure all power cables to pole using UV rated cable ties. Refer to local and national codes for additional clarification and laws. SAFETY PRECAUTIONS / INSTALLATION CONSIDERATIONS  Installation and service should be performed by a qualified licensed electrician.  All electrical work should be completed by a licensed electrical contractor.  Installation should conform to all national and/ or local municipal laws and codes.  Disconnect or safe-off all power before installation.  DO NOT INSTALL DAMAGED PRODUCT! This External Core Node and External Sensor Pod has been properly packed so that no parts should have been damaged during transit. Inspect to confirm. Any part damaged or broken during or after assembly should be replaced.  These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to meet in connection with installation, operation, or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s or owner’s purposes, please contact Sensity Systems directly.  Installation is intended for outdoor luminaires. Product should not be installed ≤20ft from ground level and must be considered out of reach from normal access. EXTERNAL CORE NODE INSTALLATION / REFERENCE GUIDE REGULATORY COMPLIANCE STATEMENTS USA This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications or changes not expressly approved by Sensity Systems may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. There are no serviceable items within this unit and cannot be serviced by any end user; regardless if in-warranty or out of warranty. If the unit is malfunctioning or causing interference with existing radio devices:  Determine cause of interference and remove suspect device from service  Contact Sensity Systems Customer Service at 1-855-500-SENS (7367) The Core Node contains a radio transmitter with the FCC ID SXNWYSBMVGX4I Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage; (2) l’utili…

Text truncated - open the document above for the full version.

FCC Part 1 Subpart I FCC Part 2 Subpart J INDUSTRY CANADA RSS 102 ISSUE 3 RF EXPOSURE REPORT FOR CORE NODE EXTERNAL, WiFi MODEL NUMBER: CNEX-277W2N, CNEX-480W2N FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I REPORT NUMBER: 15U21052-E10V1 ISSUE DATE: OCTOBER 12, 2015 Prepared for SENSITY SYSTEMS, INC. 1237 ARQUES AVENUE SUNNYVALE, CA 94085, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U21052-E3V1 DATE: OCTOBER 12, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 2 of 11 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 10/12/15 Initial Issue REPORT NO: 15U21052-E3V1 DATE: OCTOBER 12, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 3 of 11 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION .....................................................................................10 6. RF EXPOSURE RESULTS ................................................................................................11 REPORT NO: 15U21052-E3V1 DATE: OCTOBER 12, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 4 of 11 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SENSITY SYSTEMS, INC. EUT DESCRIPTION: CORE NODE EXTERNAL, WiFi MODEL: CNEX-277W2N, CNEX-480W2N SERIAL NUMBER: N01334064, N0123155F DATE TESTED: AUGUST 14-31, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass INDUSTRY CANADA RSS 102 ISSUE 3 Pass UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc. By: Calculated By: DAN CORONIA JEFFREY WU WiSE PROJECT LEAD WiSE LAB ENGINEER UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 15U21052-E3V1 DATE: OCTOBER 12, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 5 of 11 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3. REFERENCES All measurements were made as documented in test report UL Verification Services Inc. 15U21052-E1V1 for operation in the 2.4 GHz band and UL Verification Services Inc. 15U21052- E2V2 for operation in the 5 GHz bands. Output power, Duty cycle and Antenna gain data is excerpted from the applicable test reports. Antenna gain data is excerpted from the applicable test reports. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/2000650.htm. REPORT NO: 15U21052-E3V1 DATE: OCTOBER 12, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 6 of 11 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510)…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART E INDUSTRY CANADA RSS-247 ISSUE 1 CERTIFICATION TEST REPORT FOR CODE NODE EXTERNAL, WiFi MODEL NUMBER: CNEX-277W2N, CNEX-480W2N FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I REPORT NUMBER: 15U21052-E2V2 ISSUE DATE: OCTOBER 14, 2015 Prepared for SENSITY SYSTEMS, INC. 1237 ARQUES AVENUE SUNNYVALE, CA 94085, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 2 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Revision History Rev. Issue Date Revisions Revised By V1 9/30/15 Initial Issue V2 10/14/15 Updated Section 5.3, 8, 10.5 & 11 D. Coronia REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 3 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. SAMPLE CALCULATION ............................................................................................ 7 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. MAXIMUM OUTPUT POWER.....................................................................................10 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................10 5.4. WORST-CASE CONFIGURATION AND MODE .........................................................10 5.5. DESCRIPTION OF TEST SETUP ...............................................................................11 6. TEST AND MEASUREMENT EQUIPMENT ................................................................ ......13 7. SUMMARY TABLE ...........................................................................................................14 8. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS ...........................................15 8.1. ON TIME AND DUTY CYCLE RESULTS ....................................................................15 8.2. DUTY CYCLE PLOTS ................................................................................................16 9. MEASUREMENT METHOD...............................................................................................17 10. ANTENNA PORT TEST RESULTS ...................................................................................18 10.1. 6 dB BANDWIDTH ..................................................................................................18 10.1.1. 802.11a MODE IN THE 5.8 GHz BAND ...............................................................19 10.1.2. 802.11n HT20 MODE IN THE 5.8 GHz BAND .....................................................19 10.1.3. 802.11n HT40 MODE IN THE 5.8 GHz BAND .....................................................19 10.1.4. 6 dB BANDWIDTH MID CH PLOTS .....................................................................20 10.2. 26 dB BANDWIDTH ................................................................................................21 10.2.1. 802.11a MODE IN THE 5.2 GHz BAND ...............................................................22 10.2.2. 802.11n HT20 MODE IN THE 5.2 GHz BAND .....................................................22 10.2.3. 802.11n HT40 MODE IN THE 5.2 GHz BAND .....................................................22 10.2.1. 802.11a MODE IN THE 5.3 GHz BAND ...............................................................22 10.2.1. 802.11n HT20 MODE IN THE 5.3 GHz BAND .....................................................23 10.2.2. 802.11n HT40 MODE IN THE 5.3 GHz BAND .....................................................23 10.2.3. 802.11a MODE IN THE 5.5 GHz BAND ...............................................................23 REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 4 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 10.2.4. 802.11n HT20 MODE IN THE 5.5 GHz BAND .....................................................23 10.2.5. 802.11n HT40 MODE IN THE 5.5 GHz BAND .....................................................24 10.2.6. 802.11a MODE IN THE 5.8 GHz BAND ...............................................................24 10.2.7. 802.11n HT20 MODE IN THE 5.8 GHz BAND .....................................................24 10.2.8. 802.11n HT40 MODE IN THE 5.8 GHz BAND .....................................................24 10.2.1. 26 dB BANDWIDTH PLOTS ................................................................................25 10.3. 99% BANDWI…

Text truncated - open the document above for the full version.

REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 120 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . LOW CHANNEL DATA TRACE MARKERS Marker Frequency (GHz) Meter Reading (dBuV) Det AF T119 (dB/m) Amp/Cbl/ Fltr/Pad (dB) DC Corr (dB) Corrected Reading (dBuV/m) Avg Limit (dBuV/m) Margin (dB) Peak Limit (dBuV/m) PK Margin (dB) UNII Non- Restricted (dBuV/m) PK Margin (dB) Azimuth (Degs) Height (cm) Polarity 1 * 1.223 32.18 PK 29.2 -32.7 0 28.68 - - 74 -45.32 - - 0-360 200 H 2 * 3.885 30.91 PK 33.2 -29.9 0 34.21 - - 74 -39.79 - - 0-360 100 H 3 * 7.333 42.19 PK 35.6 -28.4 0 49.39 - - 74 -24.61 - - 0-360 200 H 4 * 11 29.76 PK 37.9 -23.3 0 44.36 - - 74 -29.64 - - 0-360 200 H 5 * 7.333 41.9 PK 35.6 -28.4 0 49.1 - - 74 -24.9 - - 0-360 100 V 6 * 10.999 30.66 PK 37.9 -23.3 0 45.26 - - 74 -28.74 - - 0-360 200 V PK - Peak detector RADIATED EMISSIONS Frequency (GHz) Meter Reading (dBuV) Det AF T119 (dB/m) Amp/Cbl/Fl tr/Pad (dB) DC Corr (dB) Corrected Reading (dBuV/m) Avg Limit (dBuV/m) Margin (dB) Peak Limit (dBuV/m) PK Margin (dB) UNII Non- Restricted (dBuV/m) PK Margin (dB) Azimuth (Degs) Height (cm) Polarity * 1.224 42.06 PK1 29.2 -32.7 0 38.56 - - 74 -35.44 - - 0 200 H * 1.223 30.16 AD1 29.1 -32.7 3.76 30.32 54 -23.68 - - - - 0 200 H * 3.886 40.88 PK1 33.2 -29.9 0 44.18 - - 74 -29.82 - - 0 100 H * 3.886 28.84 AD1 33.2 -29.9 3.76 35.9 54 -18.1 - - - - 0 100 H * 7.333 45.25 PK1 35.6 -28.5 0 52.35 - - 74 -21.65 - - 271 175 H * 7.333 36.94 AD1 35.6 -28.4 3.76 47.9 54 -6.1 - - - - 271 175 H * 11 39.63 PK1 37.9 -23.3 0 54.23 - - 74 -19.77 - - 15 170 H * 11 25.95 AD1 37.9 -23.3 3.76 44.31 54 -9.69 - - - - 15 170 H * 7.333 45.7 PK1 35.6 -28.5 0 52.8 - - 74 -21.2 - - 317 101 V * 7.333 38.43 AD1 35.6 -28.4 3.76 49.39 54 -4.61 - - - - 317 101 V * 11 41.71 PK1 37.9 -23.3 0 56.31 - - 74 -17.69 - - 0 341 V * 10.999 27.31 AD1 37.9 -23.3 3.76 45.67 54 -8.33 - - - - 0 341 V REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 121 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . MID CHANNEL HORIZONTAL Note: Emission was scanned up to 40GHz; No emissions were detected above the noise floor which was at least 20dB below the specification limit. REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 122 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . MID CHANNEL VERTICAL Note: Emission was scanned up to 40GHz; No emissions were detected above the noise floor which was at least 20dB below the specification limit. REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 123 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . MID CHANNEL DATA TRACE MARKERS Marker Frequency (GHz) Meter Reading (dBuV) Det AF T119 (dB/m) Amp/Cbl/ Fltr/Pad (dB) DC Corr (dB) Corrected Reading (dBuV/m) Avg Limit (dBuV/m) Margin (dB) Peak Limit (dBuV/m) PK Margin (dB) UNII Non- Restricted (dBuV/m) PK Margin (dB) Azimuth (Degs) Height (cm) Polarity 1 * 1.307 32.43 PK 29.8 -33 0 29.23 - - 74 -44.77 - - 0-360 200 H 2 * 3.873 31.02 PK 33.2 -30.2 0 34.02 - - 74 -39.98 - - 0-360 100 V 3 * 7.44 39.76 PK 35.7 -27.8 0 47.66 - - 74 -26.34 - - 0-360 200 H 5 * 11.342 27.9 PK 38.1 -22.7 0 43.3 - - 74 -30.7 - - 0-360 200 H 4 * 7.44 39.84 PK 35.7 -27.8 0 47.74 - - 74 -26.26 - - 0-360 100 V 6 * 11.164 29.36 PK 37.9 -23.5 0 43.76 - - 74 -30.24 - - 0-360 200 V PK - Peak detector RADIATED EMISSIONS Frequency (GHz) Meter Reading (dBuV) Det AF T119 (dB/m) Amp/Cbl/Fl tr/Pad (dB) DC Corr (dB) Corrected Reading (dBuV/m) Avg Limit (dBuV/m) Margin (dB) Peak Limit (dBuV/m) PK Margin (dB) UNII Non- Restricted (dBuV/m) PK Margin (dB) Azimuth (Degs) Height (cm) Polarity * 1.307 41.67 PK1 29.8 -33 0 38.47 - - 74 -35.53 - - 0 200 H * 1.307 29.92 AD1 29.8 -33 3.76 30.48 54 -23.52 - - - - 0 200 H * 3.871 40.57 PK1 33.2 -30.2 0 43.57 - - 74 -30.43 - - 0 100 V * 3.875 28.71 AD1 33.2 -30.2 3.76 35.47 54 -18.53 - - - - 0 100 V * 7.44 42.82 PK1 35.7 -27.8 0 50.72 - - 74 -23.28 - - 54 250 H * 7.44 33.01 AD1 35.7 -27.8 3.76 44.67 54 -9.33 - - - - 54 250 H * 11.342 36.11 PK1 38.1 -22.7 0 51.51 - - 74 -22.49 - - 54 200 H * 11.344 24.95 AD1 38.1 -22.7 3.76 44.11 54 -9.89 - - - - 54 200 H * 7.44 45.06 PK1 35.7 -27.8 0 52.96 - - 74 -21.04 - - 8 393 V * 7.44 38.44 AD1 35.7 -27.8 3.76 50.1 54 -3.9 - - - - 8 393 V * 11.164 36.09 PK1 37.9 -23.5 0 50.49 - - 74 -23.51 - - 8 200 V * 11.166 24.76 AD1 37.9 -23.5 3.76 42.92 54 -11.08 - - - - 8 200 V REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 124 of 200 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . HIGH CHANNEL HORIZONTAL Note: Emission was scanned up to 40GHz; No emissions were detected above the noise floor which was at least 20dB below the specification limit. REPORT NO: 15U21052-E2V2 DATE: OCTOBER 14, 2015 FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I Page 125 of 200 UL VERIFICATION SERVICES INC.…

Text truncated - open the document above for the full version.

DFS PORTION of FCC 47 CFR PART 15 SUBPART E DFS PORTION of INDUSTRY CANADA RSS-247 ISSUE 1 CERTIFICATION TEST REPORT FOR CODE NODE EXTERNAL, WiFi MODEL NUMBER: CNEX-277W2N, CNEX-480W2N FCC ID: SXNWYSBMVGX4I IC ID: 20569-WYSBMVGX4I REPORT NUMBER: 15U21052-E5V2 ISSUE DATE: OCTOBER 13, 2015 Prepared for SENSITY SYSTEMS, INC. 1237 ARQUES AVENUE SUNNYVALE CA., 94085, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U21052-E5V2 DATE: OCTOBER 13, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 2 of 32 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Revision History Rev. Issue Date Revisions Revised By V1 09/19/15 Initial Issue C. Cheung V2 10/13/15 Correct Antenna Information and Typo C. Cheung REPORT NO: 15U21052-E5V2 DATE: OCTOBER 13, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 3 of 32 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. DYNAMIC FREQUENCY SELECTION ............................................................................... 6 5.1. OVERVIEW ................................................................................................................. 6 5.1.1. LIMITS .................................................................................................................. 6 5.1.2. TEST AND MEASUREMENT SYSTEM ...............................................................10 5.1.3. SETUP OF EUT ...................................................................................................13 5.1.4. DESCRIPTION OF EUT ......................................................................................14 5.2. RESULTS FOR 20 MHz BANDWIDTH .......................................................................16 5.2.1. TEST CHANNEL .................................................................................................16 5.2.2. RADAR WAVEFORM AND TRAFFIC ..................................................................16 5.2.3. OVERLAPPING CHANNEL TESTS .....................................................................19 5.2.4. MOVE AND CLOSING TIME ...............................................................................19 5.3. RESULTS FOR 40 MHz BANDWIDTH .......................................................................23 5.3.1. TEST CHANNEL .................................................................................................23 5.3.2. RADAR WAVEFORM AND TRAFFIC ..................................................................23 5.3.3. OVERLAPPING CHANNEL TESTS .....................................................................26 5.3.4. MOVE AND CLOSING TIME ...............................................................................26 5.3.5. 10-MINUTE BEACON MONITORING PERIOD ...................................................30 6. SETUP PHOTOS ...............................................................................................................31 REPORT NO: 15U21052-E5V2 DATE: OCTOBER 13, 2015 FCC ID: SXNWYSBMVGX4I IC: 20569-WYSBMVGX4I Page 4 of 32 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SENSITY SYSTEMS, INC. EUT DESCRIPTION: CODE NODE EXTERNAL, WiFi MODEL: CNEX-277W2N, CNEX-480W2N SERIAL NUMBER: N0133013E DATE TESTED: AUGUST 14, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS DFS Portion of CFR 47 Part 15 Subpart E Pass INDUSTRY CANADA RSS-247 Issue 1 Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal…

Text truncated - open the document above for the full version.
