SXS336501Bluetooth Speaker

SPECIFICATIONS >>> WARRANTY POLICY >>> Your Bluetooth speaker is covered by a limited warranty. It is backed by 1 year performance warranty against any manufacturing defects in material or workmanship from the date of original purchase. This warranty entitles the purchaser to get the product repaired or replaced under the following conditions: ◆The warranty applies to the original purchase, Proof of original purchase is required ◆The warranty does not cover the damage caused by misuse, abuse or improper storage. ◆In no event shall be responsible for any direct, incidental, consequential or other damages of any kind. The company reserves the right to the product modification for appearance and function,which is subject to change without prior notice. Bluetooth version: Driver spec： Size： Net weight： Frequency response： Sensitivity： S/N ratio： Distortion： Working distance： Transmission Power： Bluetooth profiles： Working current： Working voltage： Charging voltage： Charging current： Battery capacity： Static standby current under shuttdown status ： Static standby current under power on status ： Charging time： Playtime at full volume: Playtime at 60% volume: Waterproof: 4.2 Φ45mm 4Ω/8Wx2 L165*W78.6*H43.5 mm 357g +/-5g 80HZ - 20KHZ 80dB ≥75dB ≤0.3% @ 1W about 33 feet/ 10M Class2, ≤4dbm A2DP, AVRCP, HFP ≤700mA 3.3 - 4.2V DC 5V ≤1000MA 3600MAH ≤80 uA ≤25mA about 4-5hours about 4 hours about 9-10 hours IPX7 AUX-IN CABLE* USB CHARGE CABLE V6 OUTDOOR SPEAKER MANUALCARABINER * CONTAIN >>> WARNING >>> FCC WARNING >>> This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Connect to your device Setting>Bluetooth>Choose device >V6 Connected successfully Status indicator steady on 2 INTRODUCTION >>> HOW TO CONNECT >>> FUNCTIONS >>> OUTDOOR SPEAKER MANUAL Long press the power on/off button and it will be in Bluetooth mode the Blue indicator flashes 1 V6 Note: 1. Short press the mode switch button, you can switch among Bluetooth /Mirco SD /Aux in mode. 2. If the device is crashed, please long press the POWER ON button at least 10 seconds to reset. 3. Answer/reject call button, short press for answering,Long press for rejecting call. 4. Support Mirco SD max 32G. 5. Micro SD Card support format: MP3 , WMA , WAV , FLAC , APE. AUX in Jack DC IN Mirco SD* Mode switch button Answer/reject call Status indicator Power On/Off Restart Play/Pause button SD SD BLUETOOTHIPX7 WATERPROOFAUX INPUT HANDS FREE CALLBUILT IN PLB OTHER >>> Note：Your speaker will power off automatically within 15 minutes if you did not pair it with playback devices in order to save energy. Blue indicator flashes Blue indicator remains steady on Red indicator flashes Red charging indicator on Status of pairing Connected to Bluetooth® source or connected to aux-in/Micro SD Card devices Battery voltage lower than 3.4V , Red light flashes means your speaker needs charging Red indicator is on when charging , and off when fully charged. Charging via a computer through a USB cable or buy a USB charger separately. Charging Indicator IPX7 : Submerged in 1 meter of depth in water up to 30 minutes. Mic Long press Vol+ Short press Next Track Long press Vol - Short press Previous Track In Bluetooth mode, press the M key, disconnect the current connection, and the light flashes Charging indicator AUX mode: long press M/ and short press + /- is invalid Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. The device has been evaluated to meet general RF exposure requirement.The device can be used in portable exposure condition without restriction. TOP Bottom 158x350mm158x70mm, 85g

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2019-11-29> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name SXS336501 336501 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Soldlin Li / R&D Manager Company: GSOU Technology(Shenzhen) Co., LTD Address: 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Phone: +86 755 83354000-805 Fax: +86 755 83255400 E-Mail: [email protected]

GSOU Technology(Shenzhen) Co., LTD 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Date: November 29, 2019 FCC ID: SXS336501 Model Number: 336501 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, GSOU Technology(Shenzhen) Co., LTD hereby declare that our product (Bluetooth Speaker) Model Number: 336501 will disable Bluetooth Lower Energy function (Bluetooth V4.2 LE) by software and only open Bluetooth Classics function (Bluetooth V4.2) although Bluetooth modular ATS2815 support both Bluetooth Lower Energy (Bluetooth V4.2 LE) and Bluetooth Classics (Bluetooth V4.2) due to marketing purposes. End-user will only use Bluetooth Classics (Bluetooth V4.2) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Soldlin Li / R&D Manager Company: GSOU Technology(Shenzhen) Co., LTD Address: 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Phone: +86 755 83354000-805 Fax: +86 755 83255400 E-Mail: [email protected]

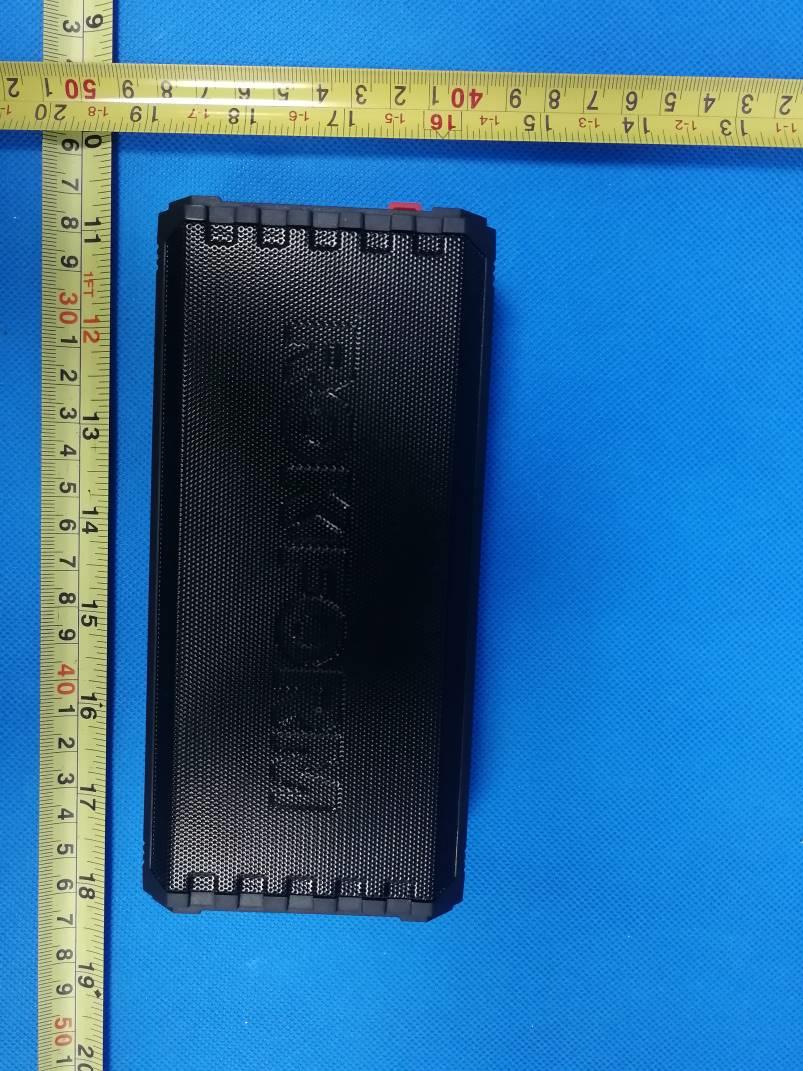

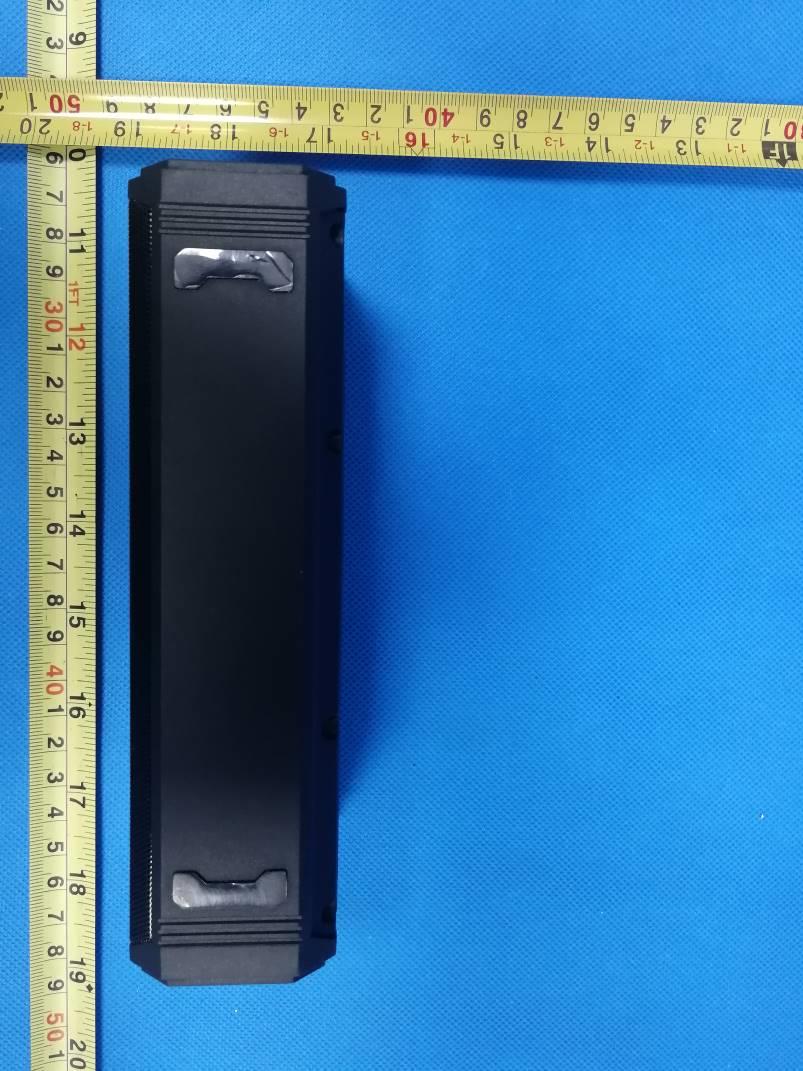

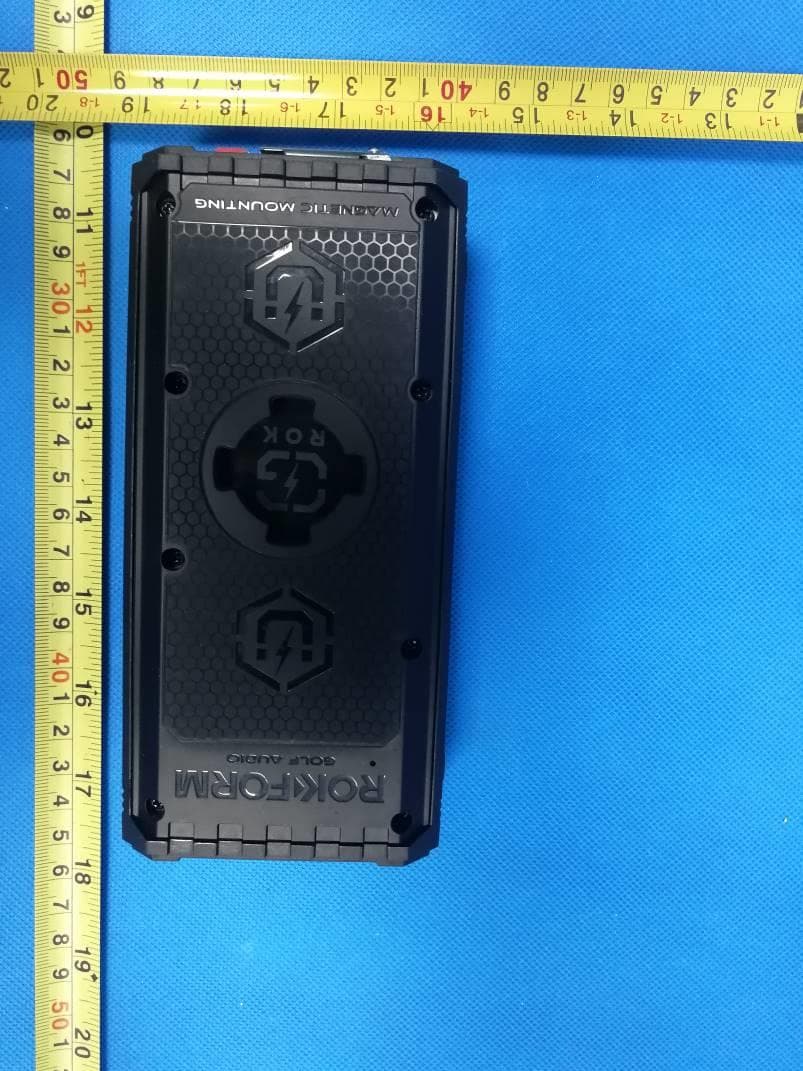

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L4.0cm*W2.5cm Label Location FCC ID: SXS336501 Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Fig. 3 Fig. 4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: SXS336501 Product name Bluetooth Speaker Model number 336501 Model List No. 336501 Power supply DC 3.7V By Battery(3600mAh) Recharged By DC 5V 1A Modulation Type GFSK, π/4-DQPSK, 8-DPSK for V4.2 (BT Classics) Channel Number 79 channels for V4.2 (BT Classics) Channel Spacing 1MHz for V4.2 (BT Classics) Antenna Type Internal Antenna Antenna Gain -5.47 dBi (maximum) Hardware version 1.0 Software version 1.0 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.852 39 2441 0.439 78 2480 1.698 π/4DQPSK 0 2402 1.383 39 2441 3.475 78 2480 4.574 8-DPSK 0 2402 1.656 39 2441 3.691 78 2480 4.754 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 3.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 3.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2 (BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Speaker Trade Mark: ROKFORM Test Model: 336501 Environmental Conditions Temperature: 23.3  C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: CHUANG WANG Supervised by: JAYDEN ZHUO A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -1.852 21 PASS MCH 0.439 21 PASS HCH 1.698 21 PASS π/4DQPSK LCH 1.383 21 PASS MCH 3.475 21 PASS HCH 4.574 21 PASS 8-DPSK LCH 1.656 21 PASS MCH 3.691 21 PASS HCH 4.754 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 5 of 47 8-DPSK/LCH 8-DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 6 of 47 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 7 of 47 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.8311 0.8484 Not Specified PASS MCH 0.8304 0.8485 Not Specified PASS HCH 0.8340 0.8835 Not Specified PASS π/4DQPSK LCH 1.169 1.281 Not Specified PASS MCH 1.169 1.280 Not Specified PASS HCH 1.170 1.280 Not Specified PASS 8-DPSK LCH 1.172 1.267 Not Specified PASS MCH 1.174 1.265 Not Specified PASS HCH 1.171 1.253 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 10 of 47 π/4DQPSK/HCH 8-DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 11 of 47 8-DPSK/MCH 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] 2/3*20dB Bandwidth Verdict GFSK LCH 0.996 0.566 PASS MCH 1.003 0.566 PASS HCH 0.998 0.589 PASS π/4DQPSK LCH 1.013 0.854 PASS MCH 0.999 0.853 PASS HCH 0.998 0.853 PASS 8-DPSK LCH 0.998 0.845 PASS MCH 0.999 0.843 PASS HCH 0.998 0.835 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 15 of 47 π/4DQPSK/HCH 8-DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 16 of 47 8-DPSK/MCH 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8-DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 18 of 47 π/4DQPSK/Hop 8-DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.87 106.7 0.306 0.4 PASS DH5 MCH 2.87 106.7 0.306 0.4 PASS DH5 HCH 2.87 106.7 0.306 0.4 PASS π/4DQPSK 2DH5 LCH 2.86 106.7 0.305 0.4 PASS 2DH5 MCH 2.86 106.7 0.305 0.4 PASS 2DH5 HCH 2.86 106.7 0.305 0.4 PASS 8-DPSK 3DH5 LCH 2.85 106.7 0.304 0.4 PASS 3DH5 MCH 2.86 106.7 0.305 0.4 PASS 3DH5 HCH 2.86 106.7 0.305 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8-DPSK_3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 23 of 47 8-DPSK_3DH5/MCH 8-DPSK_3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -1.408 -48.007 -21.41 PASS MCH 0.562 -47.348 -19.44 PASS HCH 1.666 -40.615 -18.33 PASS π/4DQPSK LCH -1.419 -49.556 -21.42 PASS MCH 0.540 -48.199 -19.46 PASS HCH 1.668 -41.967 -18.33 PASS 8-DPSK LCH -1.427 -48.869 -21.43 PASS MCH 0.549 -46.646 -19.45 PASS HCH 1.793 -42.407 -18.21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 25 of 47 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Pu…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR GSOU Technology(Shenzhen) Co., LTD Bluetooth Speaker Test Model: 336501 Prepared for : GSOU Technology(Shenzhen) Co., LTD Address : 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 17, 2019 Number of tested samples : 2 Serial number : Prototype Date of Test : October 17, 2019 ~ November 29, 2019 Date of Report : November 29, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS191017014AEA Date of Issue .................................. : November 29, 2019 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : GSOU Technology(Shenzhen) Co., LTD Address .......................................... : 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Bluetooth Speaker Trade Mark ..................................... : ROKFORM Test Model ..................................... : 336501 Ratings ........................................... : DC 3.7V By Battery(3600mAh) Recharged By DC 5V 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191017014AEA November 29, 2019 Date of issue Test Model........................... : 336501 EUT......................................... : Bluetooth Speaker Applicant............................... : GSOU Technology(Shenzhen) Co., LTD Address.................................. : 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : GSOU Technology(Shenzhen) Co., LTD Address................................... : 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : GSOU Technology(Shenzhen) Co., LTD Address................................... : 14C, Block A, First World Plaza, No.7002 West Hongli Road, Futian District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 November 29, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 Report No.: LCS191017014AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ........................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ..................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXS336501 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
