SXXKF-100FM transmitter

ModelNo.:KF-100REV:A20151216 KingboardtechnologyCo.,ltd ShenzhenKingBoardTechnologyCo.,Ltd. Item:FMtransmitter Description: KF-100itistheFMtransmitterwitha3.5mmJack,connectedwithcellphoneorother MP3player. Remark: 1.keepoutofreachofchildren! 2.Plsusetheoriginalaccessories 3.Ifunithaveproblem,plscontactwiththeseller.DisassembletheunitbyUserisnot allown 4.Keepgoodventilatedenvironmentwhenchargetheunit,donotkeepnear inflammables,oxidizersandexplosive ModelNo.:KF-100REV:A20151216 KingboardtechnologyCo.,ltd B.Specification: 1.Size ： ---mm6.Chargeport:MicroUSB 2.Weight：--g7.connectionjack：3.5MM 3.Batteryoutput：DC3.7~4.2V 8.FMFrequencyrange： 87.5-108.0Mhz 4.Chargeinput：DC5V-1000mAh 5.Batterycapactity ： 110mAh Operationguide A:“ Shortpress ： Decrease0.1Mhz Longpress ： Decreasethevolume B:“ Shortpress ： Increase0.1Mhz Longpress ： Increasethevolume C.“ON/OFF” Switchtoon,toturnon. Switchtoon,toturnoff. ModelNo.:KF-100REV:A20151216 KingboardtechnologyCo.,ltd USER’SGUIDE: connectKF-100’saudioplugtotheheadphonejackofyourmusicdevice, cellphoneorotherMP3player. TurnKF-100“ON” Startplayingasongonyourmusicdeviceatmediumlevelvolume. TurnonyourFMradioandfindastation(frequency)thatisnotbeingused, forexample:88.1MHz. UsetheFWDandBACKscanbuttonsonKF-100tomatchtheradiostation youfound,forexample:88.1MHz. Note:NowbothKF-100andyourradioshouldbeonthesamestation,and youshouldhearyourmusicplaying. Adjustthevolumeonyourmusicdeviceand/orFMradioasnecessary. FCCStatement: Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormore ofthefollowingmeasures: • Reorientorrelocatethereceivingantenna. • Increasetheseparationbetweentheequipmentandreceiver. • Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. • Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodicationstothisdevicenotexplicitlyapproved bymanufacturercouldvoidyourauthoritytooperatethisequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjectto thefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful interference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen KingBoard Technology Co., Ltd. Add: Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040 2015-12-28 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: SXXKF-100 Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Shenzhen KingBoard Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): FM transmitter /KF-100, KLM-01 Sincerely, Client’s name / title : Qin Hong Huang / Manager Contact information / address : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040 E-Mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0 Shenzhen KingBoard Technology Co., Ltd. 2015-12-28 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SXXKF-100 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : LISA Guo / Manager Contact information / address: Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040 E-Mail: [email protected]

Shenzhen KingBoard Technology Co., Ltd. Address: Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040 FCC ID: SXXKF-100 Model No.: KF-100, KLM-01 1) How does this device operate? This device is a FM audio transmitter, which radiates FM wave on the air by modulating the any required signal to the carrier signal. The transmission frequency is set from 88.1 to 107.9MHz (step freq.:0.1MHz) This product can be powered by 5V. 2) Provide information on the device and its antenna. This product is designed to transmits audio signal from mp3 player or MIC, etc. The transmitter use a non-standard antenna. 3) How is it installed? The transmitter is powered by 5V. It can worked in anywhere. 4) What test procedure was used? Operating condition is according to ANSI C63.10-2013 5) If tested in a car, how was it configured/tested? Not tested in a car, it was tested in a chamber. 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. EUT was adjusted to work at the selected channels: 88.1 MHz, 98.1 MHz, and 107.9MHz. The EUT will not allow operating below 88.1 MHz and will not allow operation above 107.9MHz. Press the “frequency +/- button” key to select the transmission frequency. We have indicated the testing in the test report, see clause 7. 7) Was the bandwidth properly tested with maximum audio input? The test was performed with playing typical audio signal with a 2.5 kHz tone at a level 16 dB higher than that required to produce a frequency deviation of 37.5 kHz. We have indicated the operating condition in the test report, see clause 1.7. 8) Provide the test report. Test Report Submitted. Sincerely, Client’s name / title : Qin Hong Huang / Manager Contact information / address : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040

Shenzhen KingBoard Technology Co., Ltd. Add: Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040 Date: 2015-12-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: SXXKF-100 Dear Sir/Madam, We, Shenzhen KingBoard Technology Co., Ltd. Hereby declares the following statement for SIEMIC, INC, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Fm transmitter Model no.:KF-100, KLM-01 Sincerely, Client’s name / title : Qin Hong Huang / Manager Contact information / address : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Tel: 008675528026161 Fax: 008675528029040 E-Mail: [email protected]

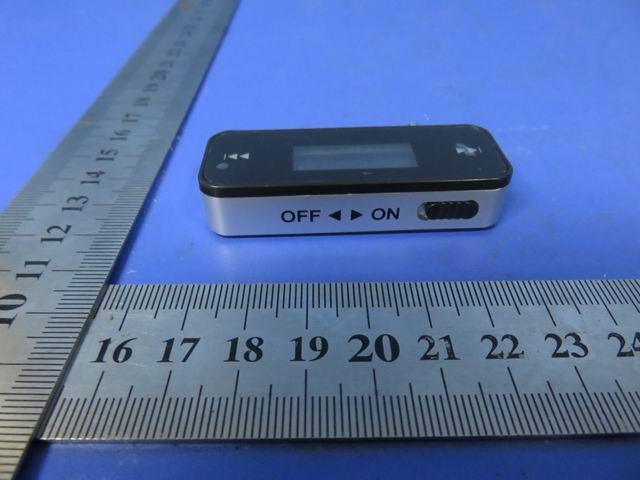

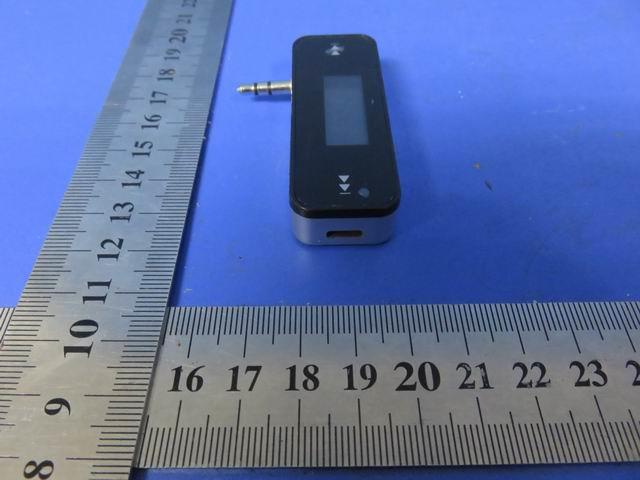

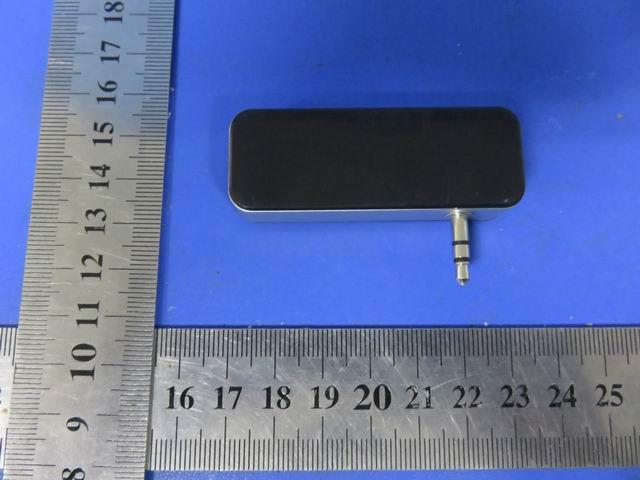

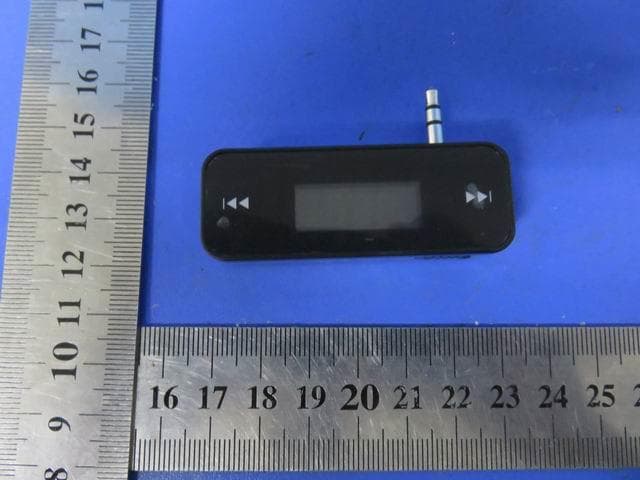

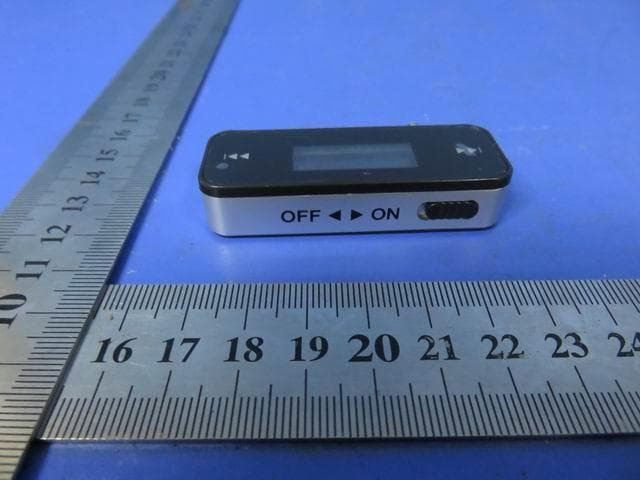

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXXKF-100 Report No.: LCS1512151255E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXXKF-100 Report No.: LCS1512151255E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXXKF-100 Report No.: LCS1512151255E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXXKF-100 Report No.: LCS1512151255E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: SXXKF-100 Report No.:LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:1.5cm*W:1.0cm Fm transmitter Model No.: KF-100 FCC ID: SXXKF-100 Label location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXXKF-100 Report No.: LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: SXXKF-100 Report No.: LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:SXXKF-100 Report No.: LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 25 FCC TEST REPORT FOR Shenzhen KingBoard Technology Co., Ltd. FM transmitter Model No.: KF-100 Additional Model No.: Please refer to page 5. Prepared for : Shenzhen KingBoard Technology Co., Ltd. Address : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : December 15, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : December 15, 2015–December 24, 2015 Date of Report : December 24, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:SXXKF-100 Report No.: LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 25 FCC TEST REPORT FCC CFR 47 PART 15.239(2015) Report Reference No. ............... : LCS1512151255E Date of Issue ................................. : December 24, 2015 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen KingBoard Technology Co., Ltd. Address ......................................... : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Test Specification Standard ........................................ : FCC CFR 47 Part 15.239(2015) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : FM transmitter Trade Mark ................................... : N/A Model/ Type reference .................. : KF-100 Ratings .......................................... : DC 5V Result ......................................... : Positive Compiled by: Supervised by: Approved by: Kyle Yin/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:SXXKF-100 Report No.: LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 25 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1512151255E December 24, 2015 Date of issue Type / Model........................... : KF-100 EUT......................................... : FM transmitter Applicant............................... : Shenzhen KingBoard Technology Co., Ltd. Address.................................. : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen KingBoard Technology Co., Ltd. Address................................... : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen KingBoard Technology Co., Ltd. Address................................... : Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:SXXKF-100 Report No.: LCS1512151255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 25 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ....................................................................................................... 5 1.1 Description of Device (EUT) ................................................................................................................ 5 1.2 Support equipment List .......................................................................................................................... 5 1.3 External I/O Cable .................................................................................................................................. 5 1.4 Description of Test Facility .................................................................................................................... 6 1.5 Statement of The Measurement Uncertainty .......................................................................................... 6 1.6 Measurement Uncertainty....................................................................................................................... 6 1.7 Description Of Test Modes .................................................................................................................... 6 2. TEST METHODOLOGY ..................…
