SXXKTS-2003Bluetooth Speaker

User’smanual PackageIncludes 1Bluetoothspeaker 2USBtoMicroUSBcable 33.5mmAuxiliaryCable Features Durable,shockandweather-resistantsiliconewrap On-boardplaybackandvolumecontrols Auxiliaryinputtoconnectspeakerwithnon-Bluetoothdevices Chargeit PlugthemicroUSBcableintothemicroUSBportunderthesiliconecoveronthebutton rightcornerofthespeaker,andconnecttheotherendofcabletoeitheracomputerUSBport ortoaUSB-compatiblecarorwallcharger. AsolidredLEDlightwillappearthroughthegrillonthebackofthespeakertoindicate whentheKTS-86ischarging,evenwhilespeakeristurnedoff. Whenchargingiscomplete,theredLEDlightwillturnoff. Chargingtimeisapproximately2hours Pair&ConnectwithaNewDevice Poweronthekts-86speaker(refertothe“Turniton”section) TheKTS-86willemitatone,andthenLEDlightonthebackofthespeakerwillbeginto flashblueasittriestoreconnectwithapreviousdevice.Ifitcannotreconnect,theLEDlight willbegintoquicklyflashbluetoindicatethatthespeakerisnowreadytobepairedwitha newdevice. OnyourBluetoothenabledsmartphone,tabletormediaplayer,navigatetotheBluetooth settingmenu,turnontheBluetoothfeature,andsearchforanewdevices. Afterafewsecondsyouwillsee“KTS-86”listed Tapthismodeltoselectit.TheLEDwillturnasolidblue.Youarenowpaired,connected andreadytoplay. Alternativelyyoucanconnectanynon-Bluetoothdeviceusingtheincluded3.5mmAUX cabletogetherwiththeAUXinputlocatedunderthesiliconecoverthebottomrightcornerof thespeaker.WhilepluggedinviatheAUXinput,theLEDlightwillslowlyflashblueand Bluetoothonthespeakerwillautomaticallyturnoff. PowerOn/Off Press&holdthepowerbuttonontherightsideofthespeakerfor2-3secondstoturnonthe speakerandautomaticallyreconnectwiththelastBluetoothdevice. TheKTS-86willemitatone,andtheLEDlightonthebackofthespeakerwillglowblueto indicatethatthespeakerisnowpoweringon. ToturntheKTS-86speakeroff,press&holdthepowerbuttonagainfor2-3seconds.The speakerwillemitatonetoindicatethattheKTS-86isnowpoweringoff. ReconnecttoBluetooth YouonlyneedtopairyourBluetoothdevicewiththeKTS-86once. Withyourpreviouslypaireddevice’sBluetoothturnedonandinrange,poweronthe KTS-86. ThespeakerwillautomaticallyreconnecttothelastBluetoothdeviceitwasconnectedto. Ifyouhaveapreviouslypaireddevicethatdoesnotauto-reconnect,navigatetotheBluetooth settingsmenuonyourdevice,turnontheBluetoothfeature,andselect“KTS-86”fromyour listofpairedBluetoothdevices. Play ConnectyourdevicetotheKTS-86overBluetoothorthroughtheAUXinput..(refertothe “Pair&Connect”section) Openyourfavoritemusicappandpressplay. Youcancontrolthemusic,volume,andtracksfromyourdevice,aswellascontrolthe playbackandvolumefromthespeaker:Volumeonyourdeviceandonthespeakerare controlledseparately. Presstheplaybuttontoplay/pausemusic,ortoanswer/endphonecalls.Pressthe“+”or “-“buttonstoadjustvolume. Speakerwillemitatonewhenthemaximumorminimumvolumeonthespeakerhasbeen reached.Ifvolumeisstilltoolow,youcanalsoadjustthevolumeonyourdevice. Allaudio,includingmusic,games,videos,andnotificationswillberoutedthroughthe KTS-86. ImportantWaterproof/SafetyInformation IMPORTANT:DONOTsubmergetheKTS-86inwater.Thisdeviceisnotintendedtofunction properlyafterbeingunderwater. BeforeusingtheKTS-86inawetenvironment,makesurethesiliconecoverovertheAUX andmicroUSBinputportsonthebackofthespeakerisfullyclosedandsecured.Ifwater getsintoeitherport,thespeakermaynotfunctionproperly ThespeakerisratedIPX4.whichmeansthespeakercanbesplashedwithwaterorleftinthe rain(butnotsubmergedinwater)forapproximately5minutes. IftheKTS-86getswet,itisrecommendedthatyoudrythespeakercompletelybeforeusing itagain. AllactionsdonewiththeKTS-86aredoneatyourownrisk.Whilethespeakeris weather-proofandhasaprotectivesiliconecase,itisnotaguaranteeforcompletedamage protection. Specification OutputPower:3W SpeakerDriverSize:45mm Impedence:4Ω FrequencyResponse:15Hzto18KHz WaterproofLevel:IPX4 BatteryInformation: Built-inBattery:Lithium–ion Input:DC5V/1A BatteryCapacity:400mAH Musicplayingtime:Upto6hours Standbytime:Upto24hours Chargingtime：2hours Approximateplaybacktime.Batterylifedependsonindividualuseandmaybeslightlymoreor lessthanthetimespecified. BluetoothInformation BluetoothSpecification:V2.1+EDR OperatingDistance:10Meters SystemRequirements:Bluetooth–capabledevice AdditionalConnectionSources: Audio:3.5mmAUXcable PowerSouce:Bulit-inrechargeablebatteryorviaUSBcable.

ShenzhenKingBoardTechnologyCo.,Ltd. Bldg.A,DakanglongIndustryZoneDabuxiang, Guanlan,Shenzhen,China FCCConfidentialityRequest Number:CF303 Version:V05 Date:21-05-2012 (Permanentoralsocalledlongtermconfidentialityisthenormalmethodtokeepcertaindocuementsconfidential,andmayapplyto schematics,blockdiagrams,operationaldescriptionandbillofmaterials.) To:FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Pursuantto47CFRSection0.459(a)&(b),we, (theapplicant/grantee) CompanynameShenzhenKingBoardTechnologyCo.,Ltd. AddressBldg.A,DakanglongIndustryZoneDabuxiang,Guanlan CityShenzhen CountryChina requestforthiscertificationfilingunder: GranteeCodeProductNumber FCCID:SXXKTS-2003 tomaintainpermanentconfidentialityforthefollowingdocumentssubmittedwithinthisapplication: (pleasecrosswhatisapplicable,oraddotherdocuments,providethefilenameanddescription) ExhibitFileNameDescription XOperationalDescriptionexplainingthefunctioningoftheblockdiagram XBlockDiagramsshowingthesystematicbuildingblocksoftheEUT XSchematicsDiagramsshowingcomponents,theirvaluesandinterconnection XBillofMaterialsListofcomponentsusedonthePCB’softheEUT Abovematerialscrossedcontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybeguardedfrom competitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionofthiscompanyconfidentialmaterial tootherpartiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefitsforcompetitors.Weunderstandthat pursuantto47CFRsection0.457(d)(1)(ii)disclosureoftheapplicantandallaccompanyingdocumentationwillnotbemade beforethedateofthegrant.Thedocumentsindicatedasconfidentialabove,arenotpubliclyavailableelsewhere. Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) Shenzhen,China2015-09-21QinHongHuangManager

ShenzhenKingBoardTechnologyCo.,Ltd. Bldg.A,DakanglongIndustryZoneDabuxiang,Guanlan, Shenzhen,China FCCAuthorizationLetter Number:CF304 Version:V03 Date:11-08-2013 We, (theapprovalholder) CompanynameShenzhenKingBoardTechnologyCo.,Ltd. AddressBldg.A,DakanglongIndustryZoneDabuxiang,Guanlan CityShenzhen CountryChina declarethatthefollowingrepresentative(agent): Name(person)FrankZhang CompanynameATATestingTechnologyServiceCo.,Ltd. Address3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict, CityShenzhen CountryChina isherebyauthorizedtoapplythefollowingequipmentforcertificationonourbehalf: ProductDescription BluetoothSpeaker TypeorModel(s)KTS-2003 TradenameorBrand(s)N/A WealsoauthorizeTeleconformity(Mr.M.Koop,ManagerCertification,Address:Rietven31,7534NHEnschede,the Netherlands)toapplyandsignthisapplicationforcertification,registrationorfilingonourbehalf(asrepresentativeagentor certifier). Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) Shenzhen,China2015-09-21QinHongHuangManager

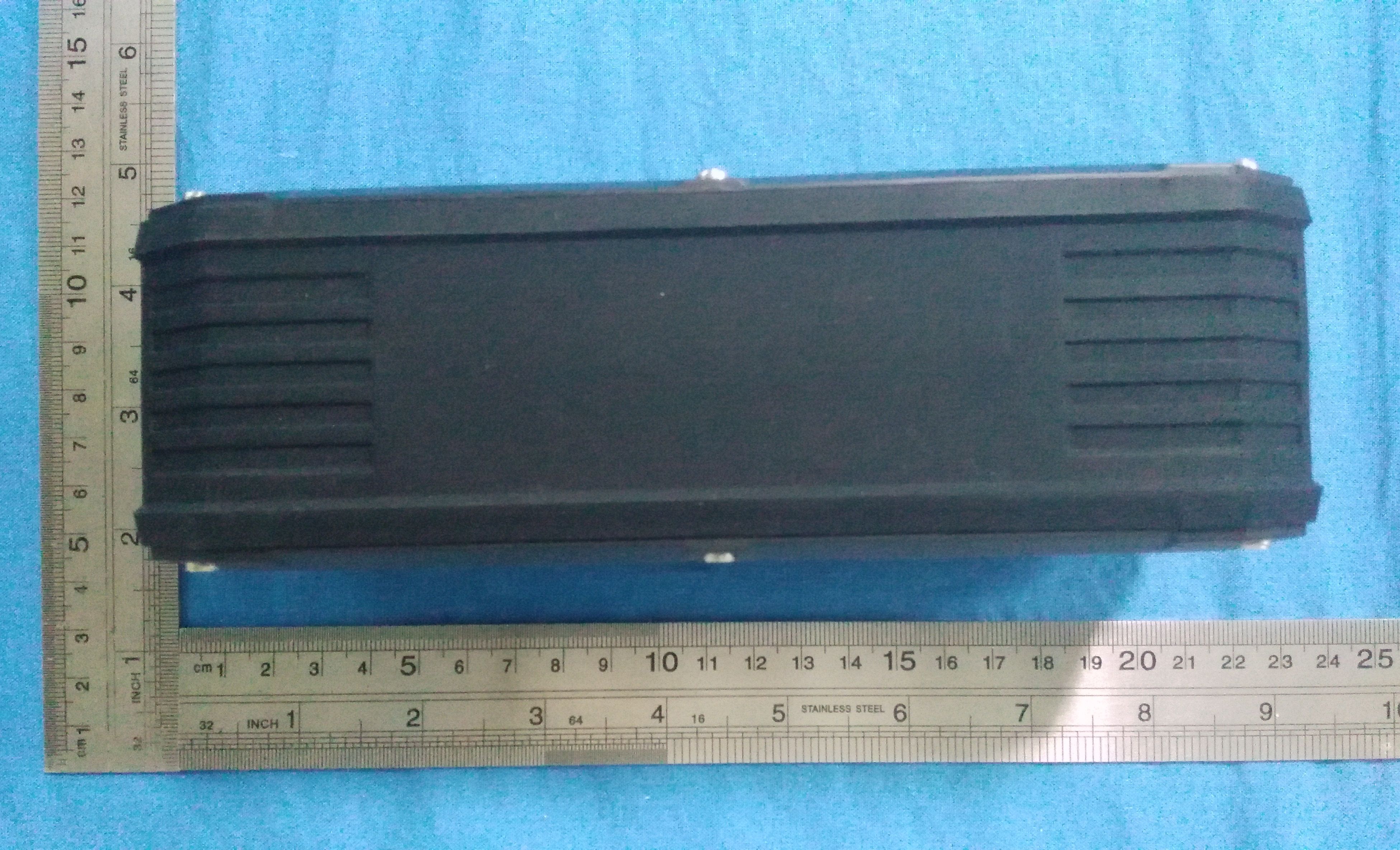

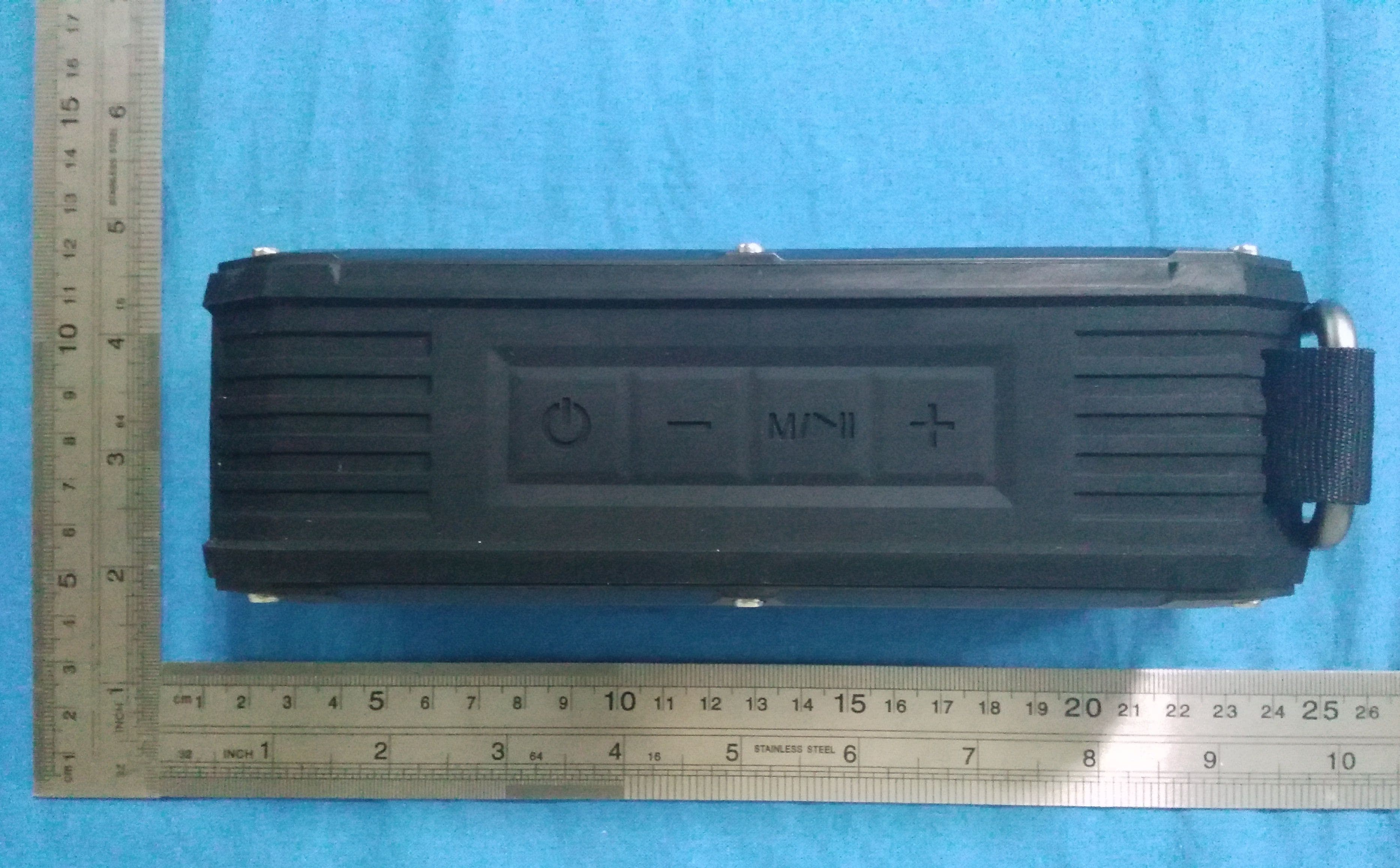

ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:1of2 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com Photographs–ExternalPhoto ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:2of2 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com

Labelandlabellocation Label: BluetoothSpeaker ModelNO.:KTS-2003 BT:2402MHz~2480MHz FCCID:SXXKTS-2003 Labellocation: Labellocation

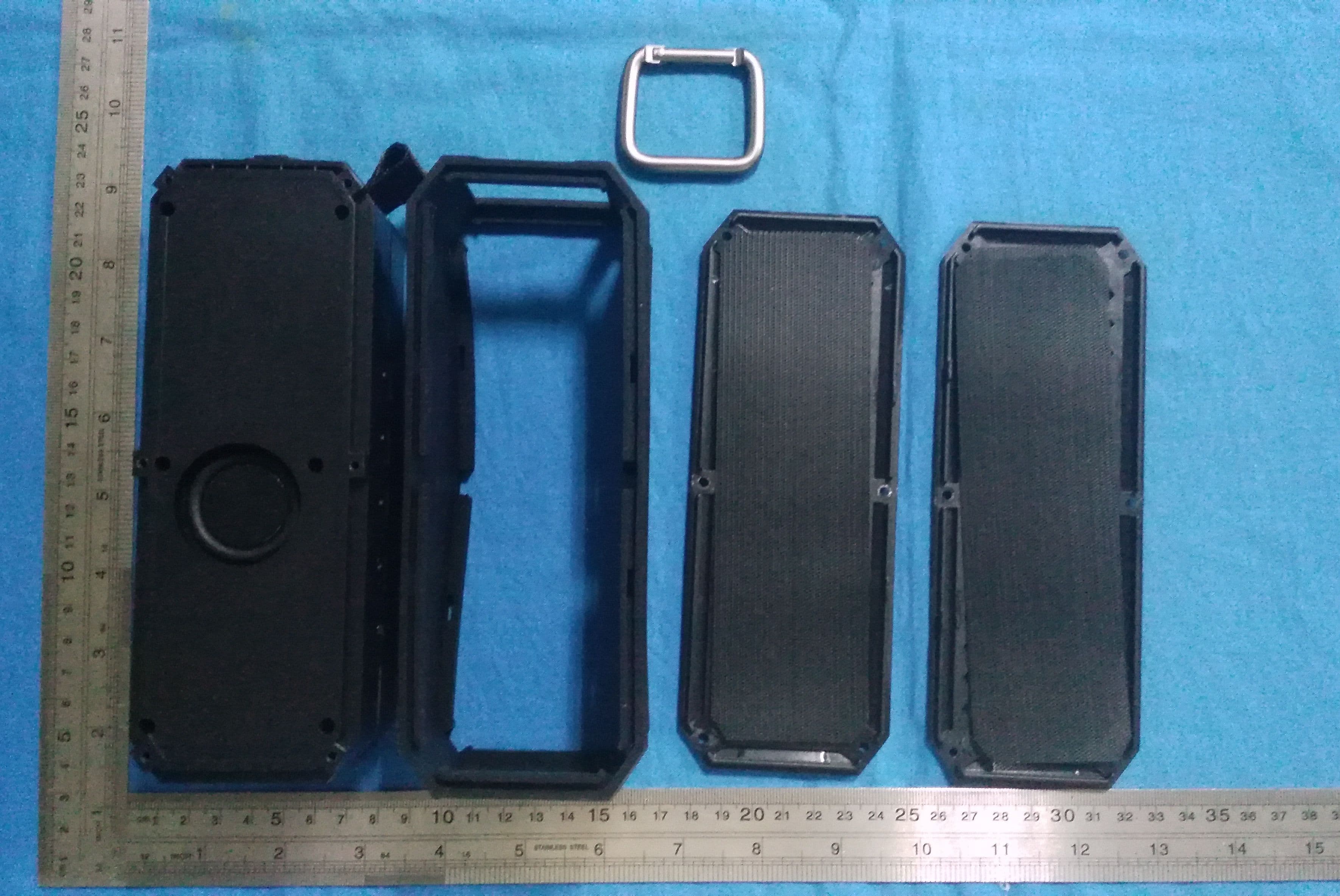

ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:1of5 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com Photographs–InternalPhoto ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:2of5 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:3of5 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:4of5 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:5of5 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com

ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 1 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com FCC Test Report(Bluetooth) FCC ID:SXXKTS-2003 Applicant:Shenzhen KingBoard Technology Co., Ltd. Bldg. A, Dakanglong Industry Zone Dabuxiang, Guanlan, Shenzhen, China Sample Description Product Name:Bluetooth Speaker Model No.:KTS-2003 Serial No.:N/A Trademark:N/A Receipt Date:2015-09-14 Test Date:2015-09-15 to 2015-09-18 Issue Date:2015-09-21 Test Standard(s): FCC CFR Title 47 Part 15 Subpart C Section 15.247 Conclusions:PASSED* *In the configuration tested, the EUT complied with the standards specified above. Test/Witness Engineer : Approved & Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 2 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com Contents CONTENTS........................................................................................................................................................................... 2 1. GENERAL INFORMATION............................................................................................................................................4 1.1. Client Information............................................................................................................................................ 4 1.2. General Description of EUT (Equipment Under Test)...............................................................................4 1.3. Block Diagram Showing The Configuration of System Tested................................................................6 1.4. Description of Support Units..........................................................................................................................6 1.5. External I/O Cable...........................................................................................................................................6 1.6. Description of Test Mode................................................................................................................................6 1.7. Test Instruments List.......................................................................................................................................7 1.8. Laboratory Location........................................................................................................................................ 8 2. TEST SUMMARY.............................................................................................................................................................9 3. ANTENNA REQUIREMENT........................................................................................................................................ 10 3.1. Standard Requirement.................................................................................................................................10 3.2. Antenna Connected Construction..............................................................................................................10 4. CONDUCTED EMISSION TEST.................................................................................................................................11 4.1. Test Standard and Limit................................................................................................................................11 4.2. Test Setup.......................................................................................................................................................11 4.3. Test Procedure...............................................................................................................................................11 4.4. Test Data.........................................................................................................................................................12 5. CONDUCTED PEAK OUTPUT POWER TEST.......................................................................................................15 5.1. Test Standard and Limit............................................................................................................................... 15 5.2. Test Setup.......................................................................................................................................................15 5.3. Test Procedure...............................................................................................................................................15 5.4. Test Data.........................................................................................................................................................16 6. 20DB OCCUPY BANDWIDTH TEST.........................................................................................................................22 6.1. Test Standard and Limit............................................................................................................................... 22 6.2. Test Setup.......................................................................................................................................................22 6.3. Test Procedure...............................................................................................................................................22 6.4. Test Data...............................................................................................................................................…

Text truncated - open the document above for the full version.

ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 26 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 2480MHz ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 27 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com Modulation mode8DPSK 2402MHz 2441MHz ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 28 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 2480MHz ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 29 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 7. Carrier Frequency Separation Test 7.1. Test Standard and Limit 7.1.1 Test Standard FCC Part15 C Section 15.247 (a)(1) 7.1.2 Test Limit FCC Part 15 Subpart C(15.247) Test ItemLimit Frequency Range (MHz) Channel Separation >25KHz or >two-thirds of the 20 dB bandwidth (Which is greater) 2400~2483.5 7.2. Test Setup 7.3. Test Procedure (1) The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. (2) Spectrum Setting: RBW=100 kHz, VBW=300 kHz, detector= Peak, Sweep Time =auto. (3) The EUT was set to the Hopping Mode for Channel Separation Test and continuously transmitting for the Test. ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 30 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 7.4. Test Data GFSK mode Channel NumberChannel Frequency (MHz) Test Result (KHz) Limit (KHz) Judgment CH 392441 1002 554.733 PASSED π/4-DQPSK mode Channel NumberChannel Frequency (MHz) Test Result (KHz) Limit (KHz) Judgment CH 392441 1002744.667 PASSED 8DPSK mode Channel NumberChannel Frequency (MHz) Test Result (KHz) Limit (KHz) Judgment CH 3924411002774.667PASSED Remark: Test plot as follows According to section 6.4 Test Mode20dB bandwidth (MHz)Limit (kHz) (Carrier Frequency Separation) GFSK 0.8321554.733 π/4-DQPSK 1.117744.667 8DPSK 1.162774.667 ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 31 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com Modulation modeGFSK mode 2441MHz Modulation modeπ/4-DQPSK 2441MHz ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 32 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com Modulation mode8DPSK 2441MHz ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 33 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 8. Number of Hopping Channel 8.1. Test Standard and Limit 8.1.1 Test Standard FCC Part15 C Section 15.247 (a)(1) 8.1.2 Test Limit FCC Part 15 Subpart C (15.247) Test ItemLimit Frequency Range (MHz) Number of Hopping Channel>15 channels2400~2483.5 8.2. Test Setup 8.3. Test Procedure (1) The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. (2) Spectrum Setting: RBW=100 kHz, VBW=300 kHz, Detector=Peak, Sweep time= Auto. (3) The EUT was set to the Hopping Mode for Channel Separation Test and continuously transmitting for the Test. 8.4. Test Data ModeQuantity of Hopping Channel Limit Judgment GFSK, π/4-DQPSK, 8DPSK79>15 PASSED ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 34 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com Modulation modeGFSK mode Modulation modeπ/4-DQPSK ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 35 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com Modulation mode8DPSK ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 36 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 9. Dwell Time Test 9.1. Test Standard and Limit 9.1.1 Test Standard FCC Part15 C Section 15.247 (a)(1) 9.1.2 Test Limit FCC Part 15 Subpart C(15.247) SectionTest ItemLimit 15.247(a)(1)Dwell time0.4 sec 9.2. Test Setup 9.3. Test Procedure (1) The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. (2) Spectrum Setting: RBW=1MHz, VBW=1MHz, Span=0Hz, Detector=Peak (3) Use video trigger with the trigger level set to enable triggering only on full pulses. (4) Sweep Time is more than once pulse time. (5) Set the center frequency on any frequency would be measure and set the frequency span to zero span. (6) Measure the maximum time duration of one single pulse. (7) Set the EUT for packet transmitting. (8) Measure the maximum time duration of one single pulse. (9) The EUT was set to the Hopping Mode for Dwell Time Test ATATesting TechnologyServiceCo.,Ltd. Report No.: ATA150921013FPage: 37 of 57 3/F., Bldg. 5, Fusen Technology Park, Hangcheng Road, Xixiang, Bao’an District, Shenzhen, China Tel: (86)-0755-23498786 Fax: (86)-0755-29765125 www.ata-test.com 9.4. Test Data For GFSK, π/4-DQPSK and 8DPSK: The test period: T= 0.4 Second/Channel x 79 Channel = 31.6 s EUT: Bluetooth Speaker M/N: KTS-2003 …

Text truncated - open the document above for the full version.

ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:1of2 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com Photographs–TestSetup ATATestingTechnologyServiceCo.,Ltd. ReportNo.:ATA150608001FPage:2of2 3/F.,Bldg.5,FusenTechnologyPark,HangchengRoad,Xixiang,Bao’anDistrict,Shenzhen,China Tel:(86)-0755-23498786Fax:(86)-0755-29765125www.ata-test.com
