Safety Information il CHC® N72™ GNSS Reference Receiver Revision 1.0 January 2015 N72 GNSS Reference Receiver User Guide  Page 1 Copyright Copyright 2009‐2015 CHC | Shanghai HuaCe Navigation Technology Ltd. All rights reserved. The CHC are trademark of Shanghai HuaCe Navigation Technology Limited. All other trademarks are the property of their respective owners. Trademarks All product and brand names mentioned in this publication are trademarks of their respective holders. Safety Warnings The Global Positioning System (GPS) is operated by the U.S. Government, which is solely responsible for the accuracy and maintenance of the GPS network. Accuracy can also be affected by poor satellite geometry and obstructions, like buildings and heavy canopy. FCC interference statement This equipment has been designed to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules in the Portable Mode. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT This product has been tested and found to comply with the limits for Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. N72 GNSS Reference Receiver User Guide – Revision 1.0 January 2015 N72 GNSS Reference Receiver User Guide  Page 2 SAFETY INFORMATION Before you use your CHC® N72™ GNSS reference receiver, make sure that you have read and understood all safety requirements. REGULATIONS AND SAFETY The receiver contains an internal wireless modem for communicating signals through Bluetooth® wireless technology or through an external data communications radio. Regulations regarding the use of the wireless modem vary greatly from country to country. In some countries, the unit can be used without obtaining an end‐user license. Other countries require end‐user licensing. For licensing information, consult your local CHC dealer. Before operating a N72 GNSS reference receiver, determine if authorization or a license to operate the unit is required in your country. It is the responsibility of the end‐user to obtain an operator's permit or license for the receiver for the location or country of use. TYPE APPROVAL Type approval, or acceptance, covers technical parameters of the equipment related to emissions that can cause interference. Type approval is granted to the manufacturer of the transmission equipment, independent from the operation or licensing of the units. Some countries have unique technical requirements for operation in particular radio modem frequency bands. To comply with those requirements, CHC may have modified your equipment to be granted Type approval. Unauthorized modification of the units voids the Type approval, the warranty, and the operational license of the equipment. EXPOSURE TO RADIO FREQUENCY RADIATION Safety. Exposure to RF energy is an important safety consideration. The FCC has adopted a safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated equipment. Proper use of this radio modem results in exposure below government limits. The following precautions are recommended:  Do not operate the transmitter when someone is 20 cm (7.8 inches) of the antenna.  Do not operate the transmitter unless all RF connectors are secure and any open connectors are correctly terminated.  Do not operate the equipment near electrical blasting caps or in an Safety Information N72 GNSS Reference Receiver User Guide  Page 3 explosive atmosphere.  All equipment must be correctly grounded for safe operation.  All equipment should be serviced only by a qualified technician. BATTERY SAFETY WARNING – Do not damage the rechargeable Lithium‐ion battery. A damaged battery can cause an explosion or fire, and can result in personal injury and/or property damage. To prevent injury or damage: – Do not use or charge the battery if it appears to be damaged. Signs of damage include, but are not limited to, discoloration, warping, and leaking battery fluid. – Do not expose the battery to fire, high temperature, or direct sunlight. – Do not immerse the battery in water. – Do not use or store the battery inside a vehicle during hot weather. – Do not drop or puncture the battery. – Do not open the battery or short‐circuit its contacts. WARNING – Avoid contact with the rechargeable Lithium‐ion battery if it appears to be leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or property damage. To prevent injury or damage: – If the battery leaks, avoid contact with the battery fluid. – If battery fluid gets into your eyes, immediately rinse your eyes with clean water and seek medic…

Text truncated - open the document above for the full version.

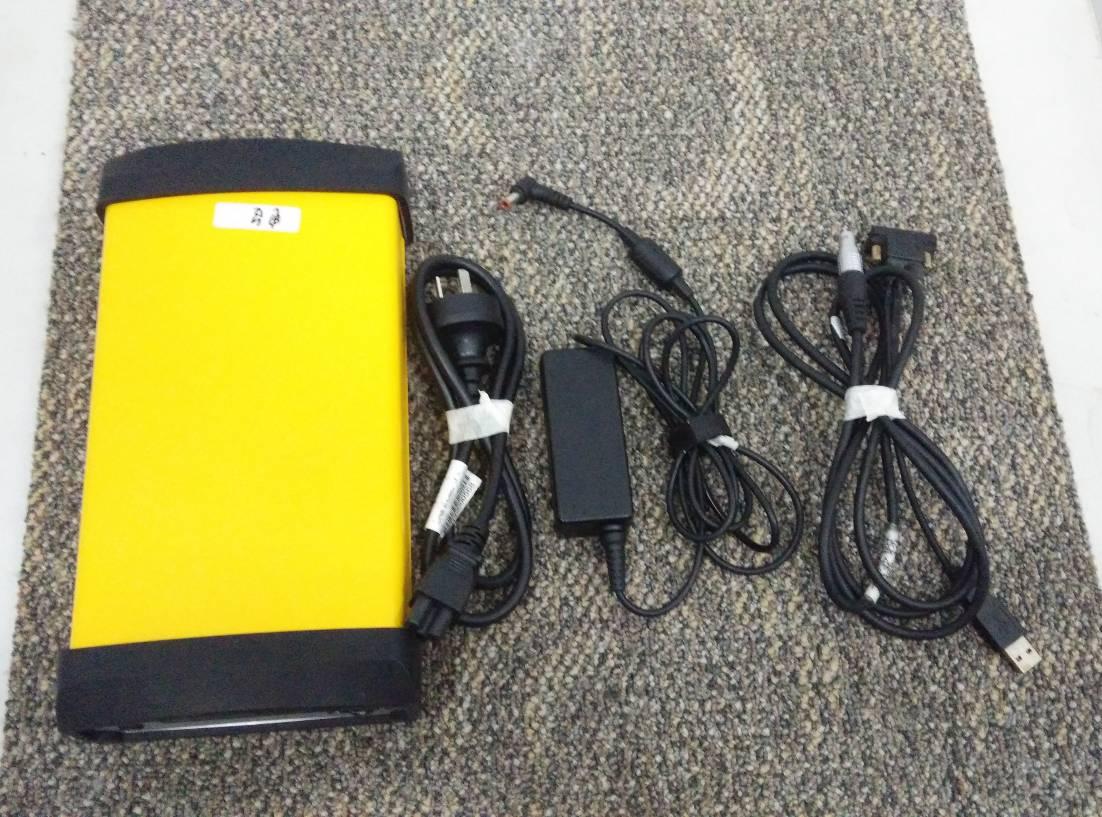

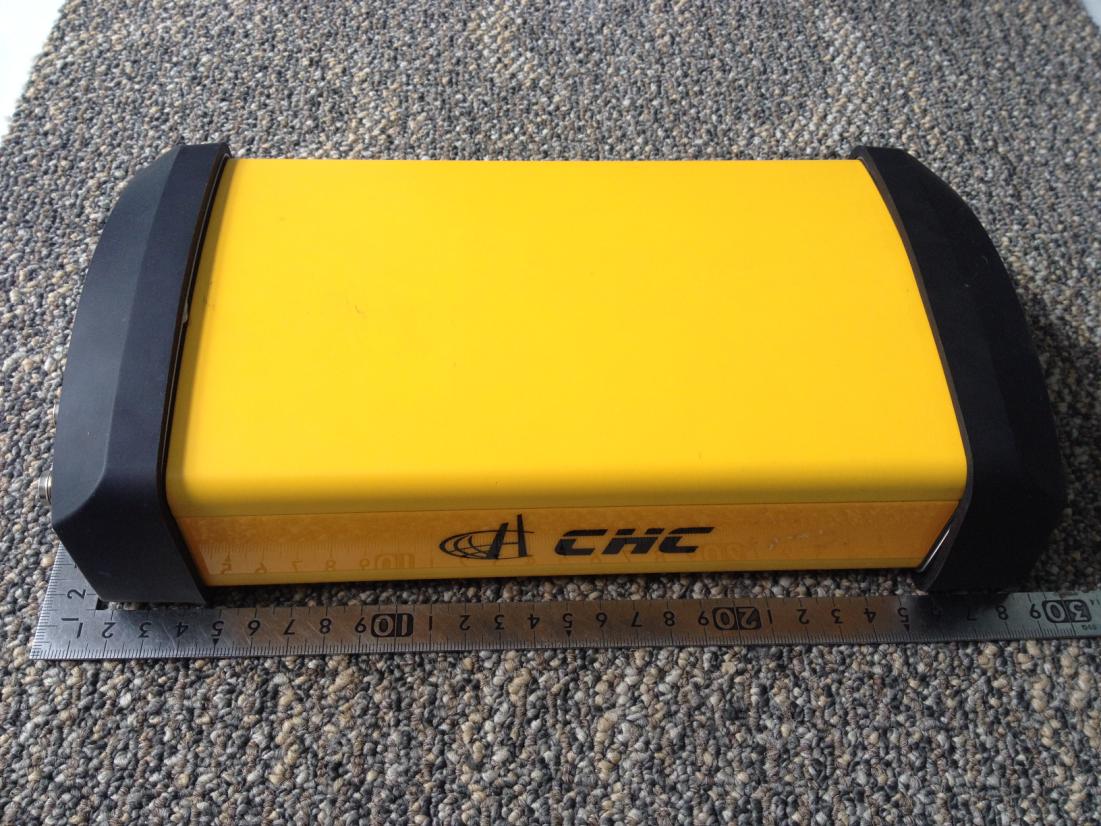

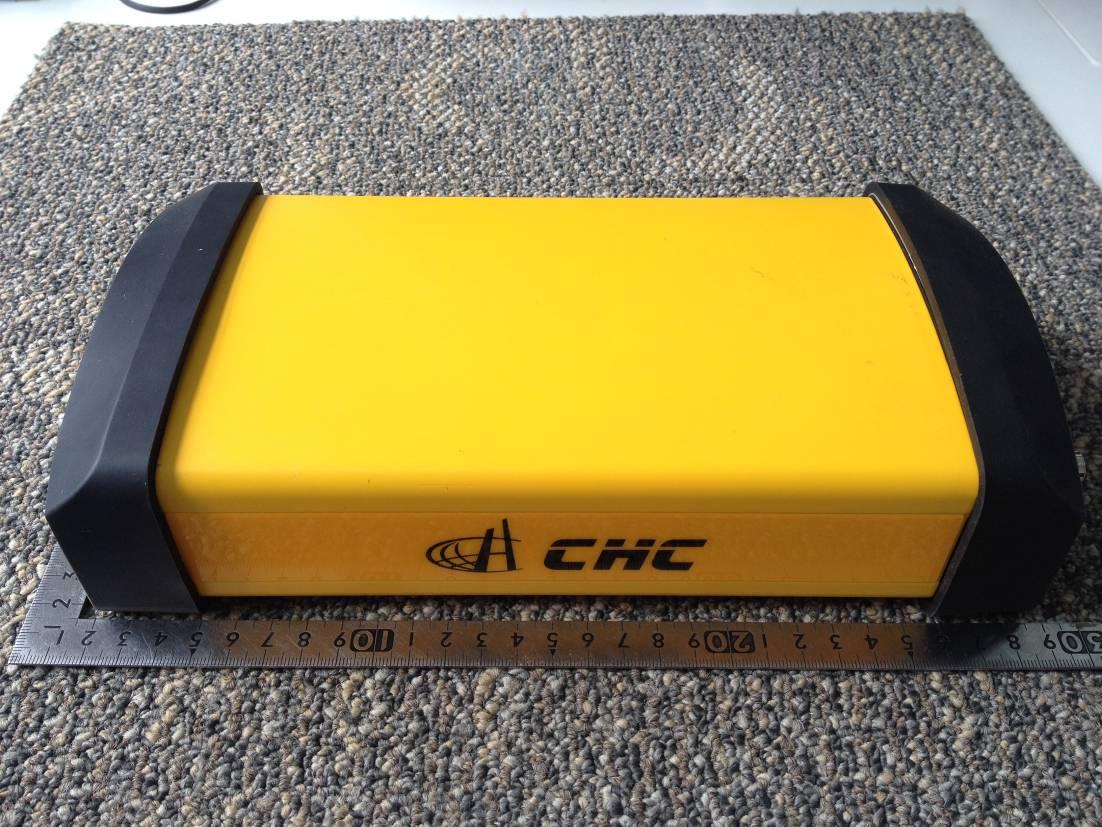

Model Name : N72 WXYZ Report Number: UL41320150312CE/FCC003-8 Page 1 of 5 EUT EXTERNAL PHOTOS View of EUT-1 View of EUT-2 1 2 2 1 Model Name : N72 WXYZ Report Number: UL41320150312CE/FCC003-8 Page 2 of 5 View of EUT-3 View of EUT-4 Model Name : N72 WXYZ Report Number: UL41320150312CE/FCC003-8 Page 3 of 5 View of EUT-5 View of EUT-6 Model Name : N72 WXYZ Report Number: UL41320150312CE/FCC003-8 Page 4 of 5 View of EUT-7 View of EUT-8 Model Name : N72 WXYZ Report Number: UL41320150312CE/FCC003-8 Page 5 of 5 View of EUT-9

N72 WXYZ Labe l and Location

Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 1 of 10 EUT INTERNAL PHOTOS View of EUT-1 View of EUT-2 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 2 of 10 View of EUT-3 View of EUT-4 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 3 of 10 View of EUT-5 View of EUT-6 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 4 of 10 View of EUT-7 View of EUT-8 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 5 of 10 View of EUT-9 View of EUT-10 1 2 2 1 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 6 of 10 View of EUT-11 View of EUT-12 1 2 2 1 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 7 of 10 View of EUT-13 View of EUT-14 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 8 of 10 View of EUT-15 View of EUT-16 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 9 of 10 View of EUT-17 View of EUT-18 Model Name: N72 WXYZ Report Number: UL41320150312CE/FCC 003-9 Page 10 of 10 View of EUT-19 View of EUT-20

Report No. : UL41320150312CE/FCC003-5 Page: 1 of 5 RF Exposure Evaluation Declaration Product Name : GNSS receiver Model No. : N72 WXYZ FCC ID: SY4-A02003 Applicant : Shanghai Huace Navigation Technology LTD. Address : Building C,599 Gaojing Road,Qingpu District,Shanghai， Date of Receipt : 03/12/2015 Issued Date : 05/10/2015 Report No. : UL41320150312CE/FCC003-5 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of Unilab Corporation. Report No. : UL41320150312CE/FCC003-5 Page: 2 of 5 RF Exposure Evaluation Declaration Issued Date : 05/10/2015 Report No. : UL41320150312CE/FCC003-5 Product Name : GNSS receiver Applicant : Shanghai Huace Navigation Technology LTD Address : Building C,599 Gaojing Road,Qingpu District,Shanghai Manufacturer : Shanghai Huace Navigation Technology LTD. Address : Building C,599 Gaojing Road,Qingpu District,Shanghai Model No. : N72 WXYZ Model Description: See Part1 Note. EUT Voltage Extreme Low:12,Nominal:12,Extreme High:36 Brand Name : Applicable Standard : FCC’s Rules(47 C.F.R.§1.1310 and 2.1091) Test Result : Complied Performed Location : Unilab (Shanghai) Co.,Ltd. FCC 2.948 register number is 714465 No.1350, Lianxi Road, Pudong New District, Shangha, China TEL:+86-21-5027-5125/FAX:+86-21-5027-5126-876 Documented By : (Technical Engineer: Jeffrey Wang) Reviewed By : (Senior Engineer: Forest Cao) Approved By : (Supervisor: Eva Wang) Report No. : UL41320150312CE/FCC003-5 Page: 3 of 5 1. EUT Description Product Name: GNSS receiver Model Name: N72 WXYZ Hardware Version: V2.2 Software Version: 1.0.11 RF Exposure Environment: Uncontrolled GPRS/EGPRS Support Band: GSM850/PCS 1900 Tx Frequency Range: GSM 850: 824.2MHz to 848.8MHz PCS 1900: 1850.2MHz to 1909.8MHz Rx Frequency Range: GSM 850: 869.2MHz to 893.8MHz PCS 1900: 1930.2MHz to 1989.8MHz Type of modulation: GPRS for GMSK EGPRS for 8PSK Antenna Type: Connector Antenna Peak Gain: GSM 850:5 dBi PCS 1900: 5dBi UMTS Support Band: WCDMA Band II / V Tx Frequency Range: WCDMA Band II: 1850MHz ~1910MHz WCDMA Band V: 824MHz ~849MHz Rx Frequency Range: WCDMA Band II: 1930MHz ~1990MHz WCDMA Band V: 869MHz ~894MHz Type of modulation: WCDMA(UMTS): QPSK Antenna Type: Connector Antenna Peak Gain: WCDMA Band II/ V: 5.0dBi Note: Model N72 WXYZ, W is variable, it indicated A-Z or 0-9 or blank, X is variable, it indicated A-Z or 0-9 or blank，Y is variable, it indicated A-Z, 0-9 or blank. Z is variable, it indicated A-Z, 0-9 or blank. due to sales purpose in different countries or regions. The internal PCB design are no difference，but only distinct in colours and model names. This test model name is N72. Report No. : UL41320150312CE/FCC003-5 Page: 4 of 5 2. RF Exposure Evaluation 2.1 Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range(MHz) Electric Filed Strength (V/m) Magnetic Filed Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A)Limits for Occupation/Control Exposures 300-1500 -- --F/3006 1500-100,000 -- --56 (B)Limits for General Occupation/UnControlled Exposures 300-1500 -- --F/15006 1500-100,000 -- --130 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*Pi*R2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.2.Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 22°Cand 45％ RH. Report No. : UL41320150312CE/FCC003-5 Page: 5 of 5 2.3.Test Result of RF Exposure Evaluation This device is evaluated by mobile device with general population/uncontrolled exposure condition For this device, the calculation is using the most conservative values, and the results are as follows: Test Mode ERP (dBm) EIRP (dBm) Peak EIRP (mW) Average EIRP (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) GPRS850 31.26 33.41 2192.8 276.1 0.055 0.55 GPRS1900 / 28.71 743.0 93.5 0.019 1.00 EGPRS850 30.02 32.17 1648.2 115.08 0.023 0.55 EGPRS1900 / 28.33 680.8 115.1 0.023 1.00 Band V 21.91 24.06 254.7 254.7 0.051 0.55 Band II / 22.90 195.0 195.0 0.039 1.00 Test Mode Antenn a Gain (dBi) Maximum Output Power (dBm) Maximum Output Power (mW) Average EIRP (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) GPRS850 5 35 3162.28 398.11 0.079 0.55 GPRS1900 5 32 1584.89 251.19 0.050 1.00 EGPRS850 5 35 3162.28 398.11 0.079 0.55 EGPRS1900 5 32 1584.89 251.19 0.050 1.00 Band II 5 24 251.12 794.3 0.158 0.55 Band V 5 24 251.12 794.3 0.158 1.00 This device can pass RF exposure limit.

Unilab(Shanghai) Co.,Ltd. Report No. : UL41320150312CE/FCC003-4 Page 1 of 99 FCC Part 15 Subpart C Test Report for FHSS System Product Name : GNSS receiver Model Name : N72 WXYZ Prepared for: Shanghai Huace Navigation Technology LTD. Building C,599 Gaojing Road,Qingpu District,Shanghai TEL: 021-51508100-1242 FAX: 021-64851208 Prepared by: Unilab (Shanghai) Co., Ltd FCC 2.948 register number is 714465 No.1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50275126 Report Number : UL41320150312CE/FCC003-4 Date of Report : 05-11-2015 Date of Test : 05-08-2015~05-11-2015 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL41320150312CE/FCC003-4 Page 2 of 99 Applicant: Shanghai Huace Navigation Technology LTD. Building C,599 Gaojing Road,Qingpu District,Shanghai Manufacturer: Shanghai Huace Navigation Technology LTD. Building C,599 Gaojing Road,Qingpu District,Shanghai Product Name: GNSS receiver Brand Name: Model Name: N72 WXYZ Model Description: See Part1.1EUT DESCRIPTION NOTE4 FCC ID: SY4-A02003 Serial Number: N/A EUT Voltage: AC input: AC 100~240V 50/60Hz Output: DC12V 2A Date of Receipt: 03-12-2015 Test Standard: FCC CFR Tile 47 Part 15 Subpart C ANSI C 63.4: 2009 DA 00705 Test Result: PASS Date of Test 05-08-2015~05-11-2015 Prepared by : (Technical Engineer: Jeffrey Wang) Reviewed by : (Senior Engineer: Forest Cao) Approved by : (Supervisor: Eva Wang) Unilab(Shanghai) Co.,Ltd. Report No. : UL41320150312CE/FCC003-4 Page 3 of 99 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................. 5 1.1 EUT DESCRIPTION ................................................................................... 5 1.2 COMPLIANCE DESCRIPTION FOR BLUETOOTH TRANSMITTER ....... 6 1.3 TEST MODE .............................................................................................. 6 2. TEST METHODOLOGY ....................................................................................... 7 2.1 EUT CONFIGURATION ............................................................................. 7 2.2 EUT EXERCISE ......................................................................................... 7 2.3 GENERAL TEST PROCEDURES ............................................................. 7 2.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................. 7 2.5 DESCRIPTION OF TEST MODES ............................................................. 8 3. TECHNIACL SUMMARY ...................................................................................... 9 3.1 SUMMARY OF STANDARDS AND TEST RESULTS ............................... 9 3.2 TEST UNCERTAINTY................................................................................ 9 3.3 TEST EQUIPMENT LIST ........................................................................... 9 3.4 SUPPORT EQUIPMENT .......................................................................... 10 3.5 TEST FACILITY ....................................................................................... 10 3.6 TEST SETUP CONFIGURATION ............................................................ 10 4. CHANNEL SEPARATION .................................................................................. 11 4.1 TEST SETUP ........................................................................................... 11 4.2 LIMITS...................................................................................................... 11 4.3 TEST PROCEDURE ................................................................................ 11 4.4 TEST RESULT ......................................................................................... 12 5. MINIMUM HOPPING CHANNELS ...................................................................... 14 5.1 TEST SETUP ........................................................................................... 14 5.2 LIMITS...................................................................................................... 14 5.3 TEST PROCEDURE ................................................................................ 14 5.4 TEST RESULT ......................................................................................... 15 6. OCCUPIED BANDWIDTH .................................................................................. 17 6.1 TEST SETUP ........................................................................................... 17 6.2 LIMITS...................................................................................................... 17 6.3 TEST PROCEDURE ................................................................................ 17 6.4 TEST RESULTS ...................................................................................... 18 7. DWELL TIME ...................................................................................................... 23 7.1 TEST SETUP ........................................................................................... 23 7.2 LIMITS...................................................................................................... 23 7.3 TEST PROCEDURE ................................................................................ 23 7.4 TEST RESULTS ...................................................................................... 24 8. PEAK OUTPUT POWER (CONDUCTION) ........................................................ 30 8.1 TEST SETUP ........................................................................................... 30 8.2 LIMITS...................................................................................................... 30 8.3 TEST PROCEDURE ................................................................................ 3…
